Extron

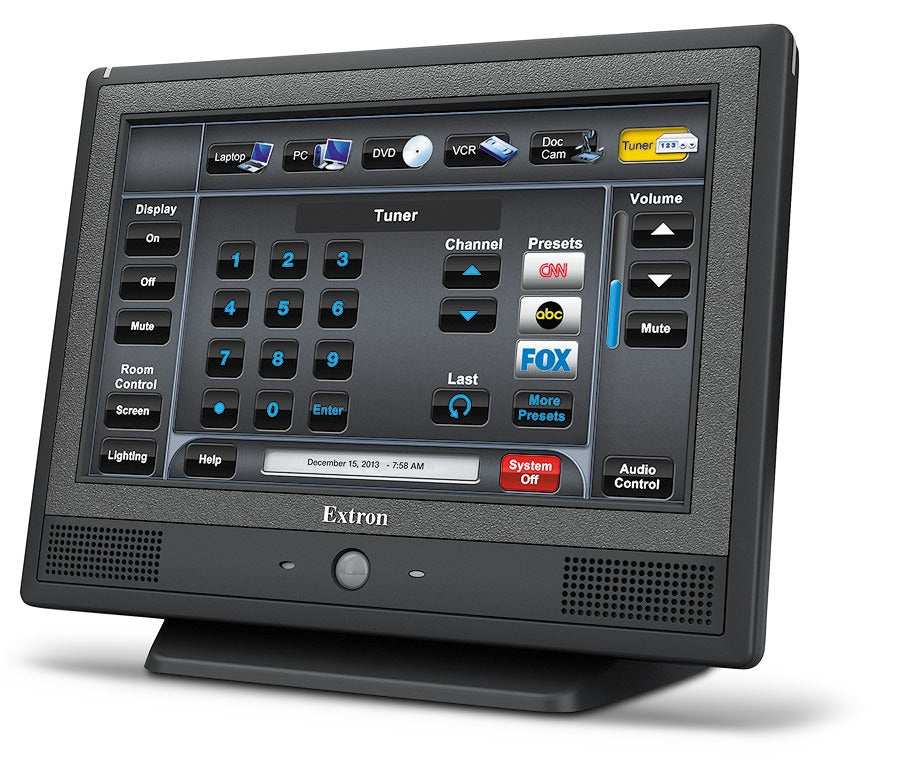

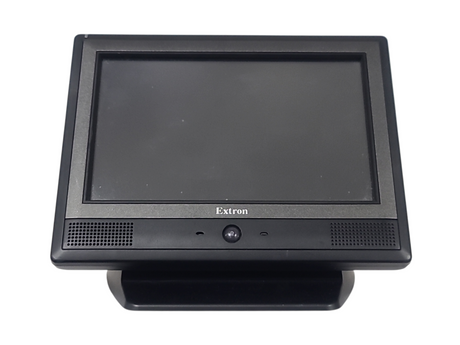

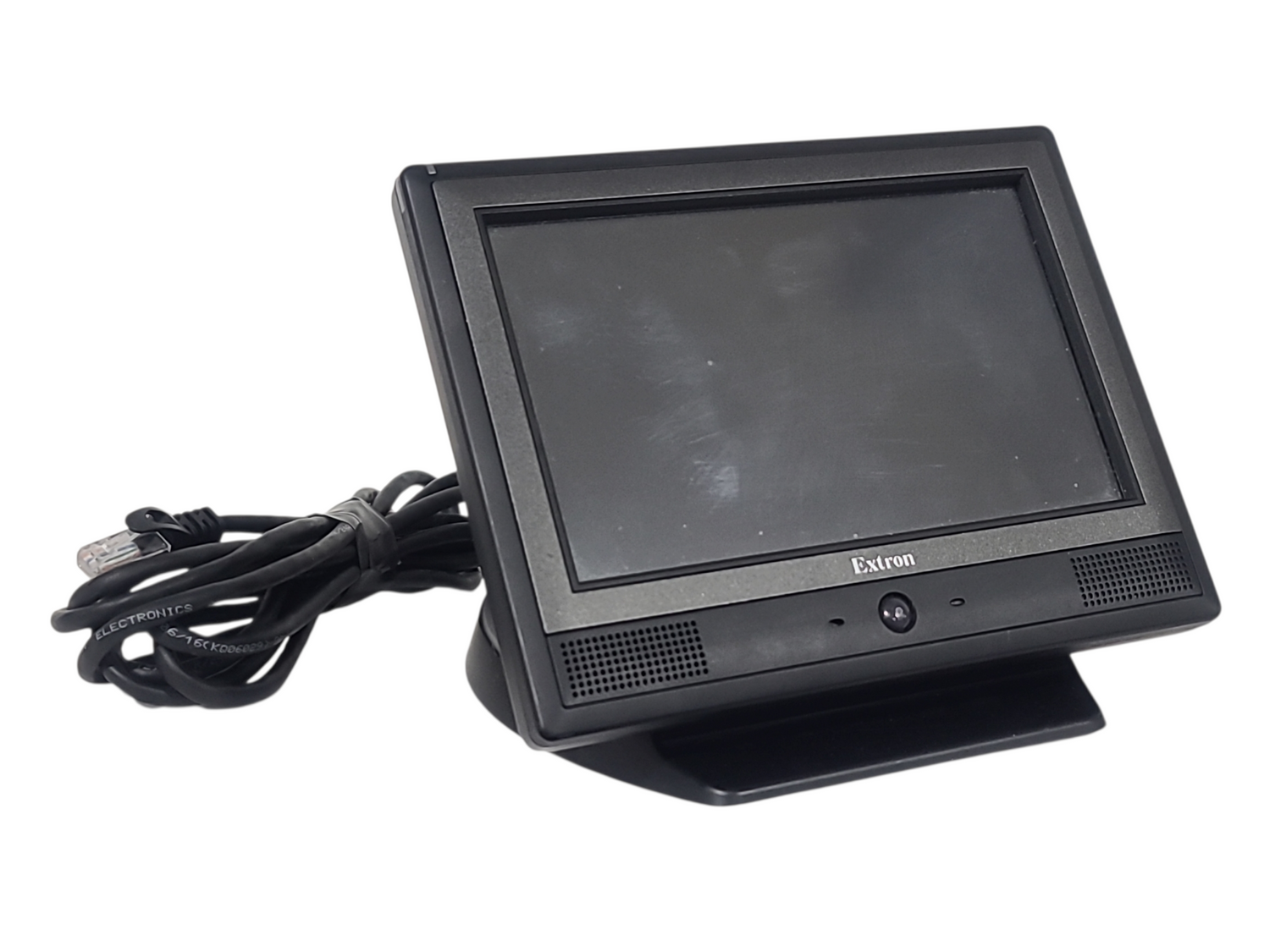

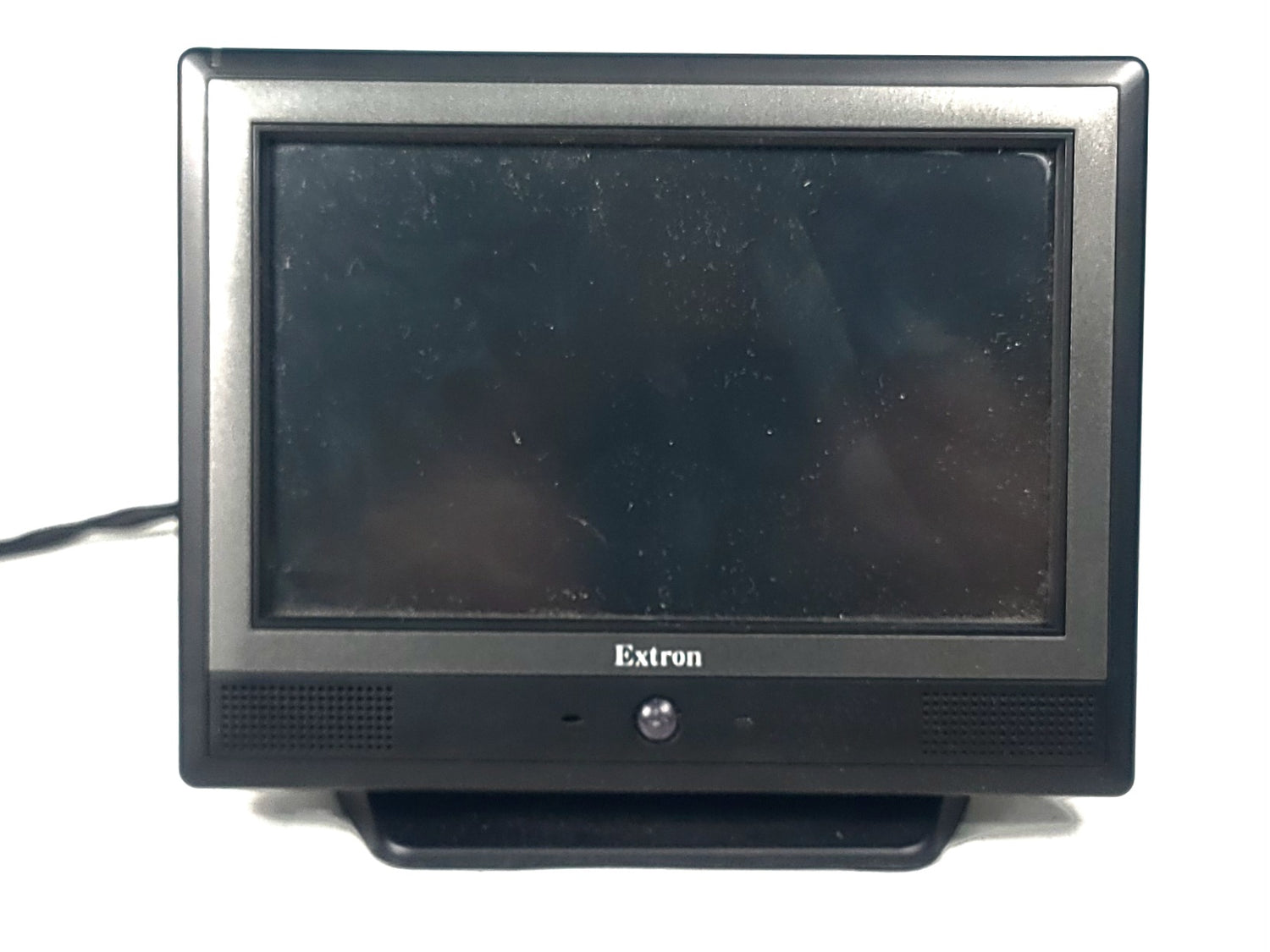

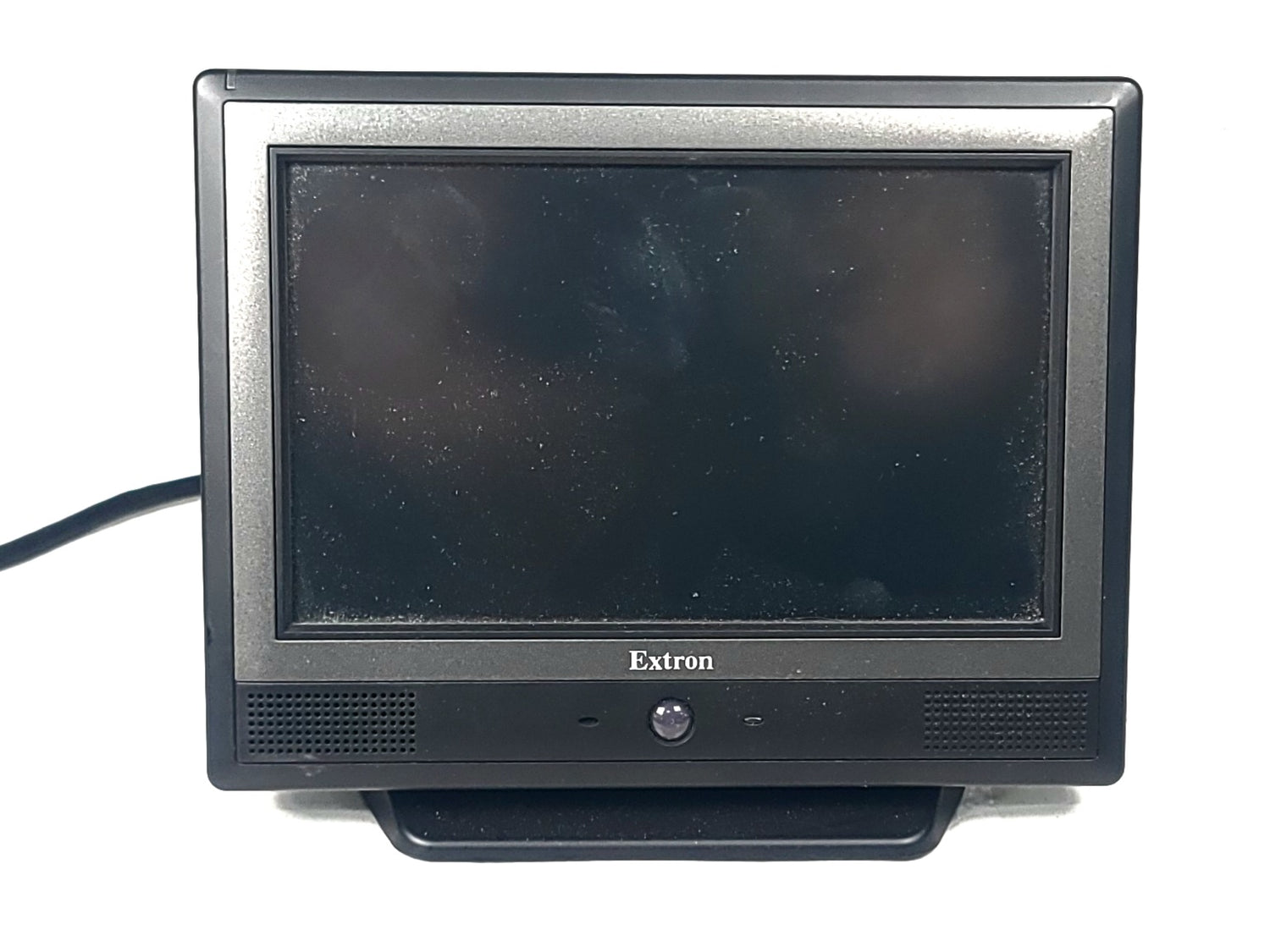

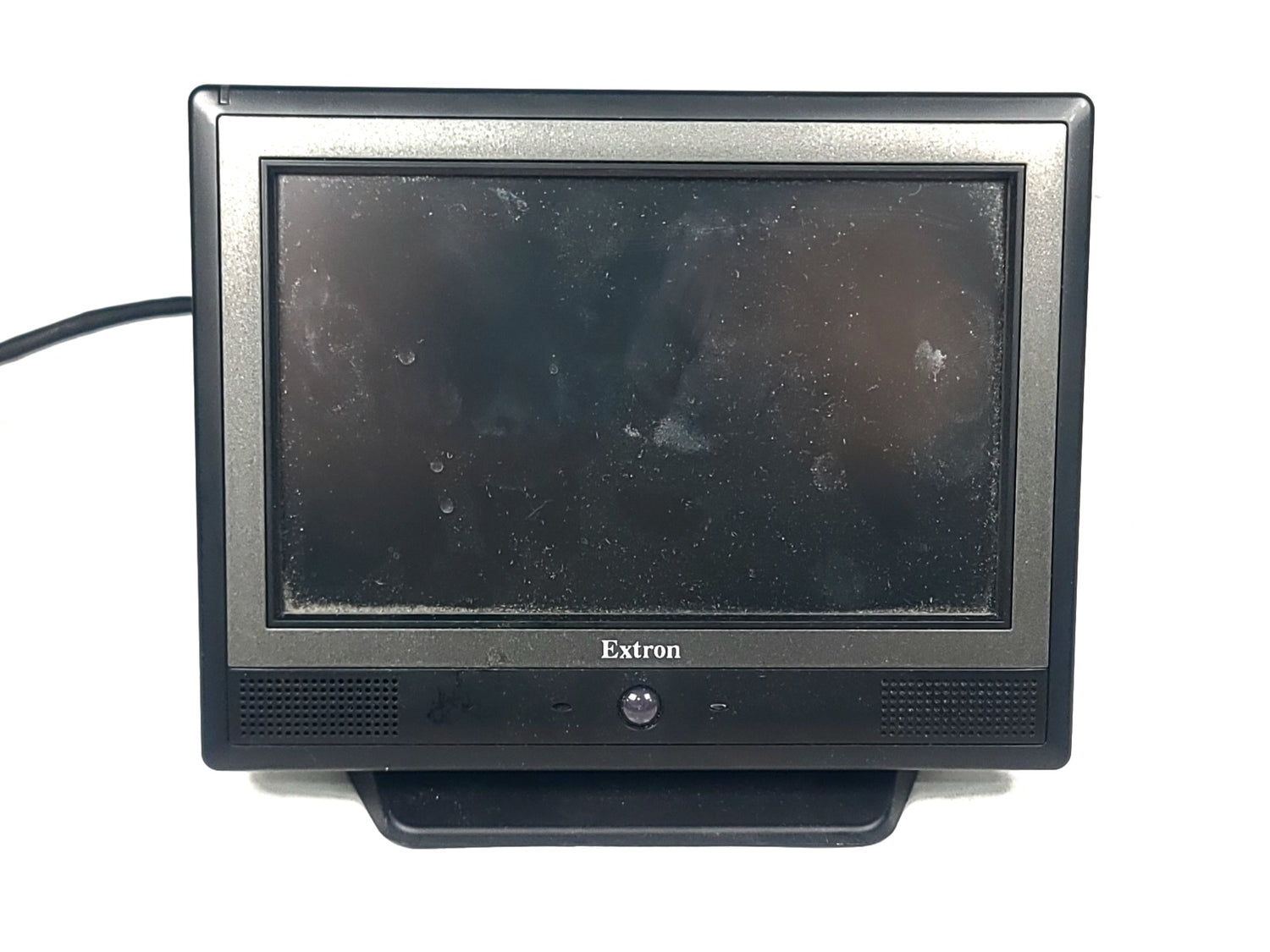

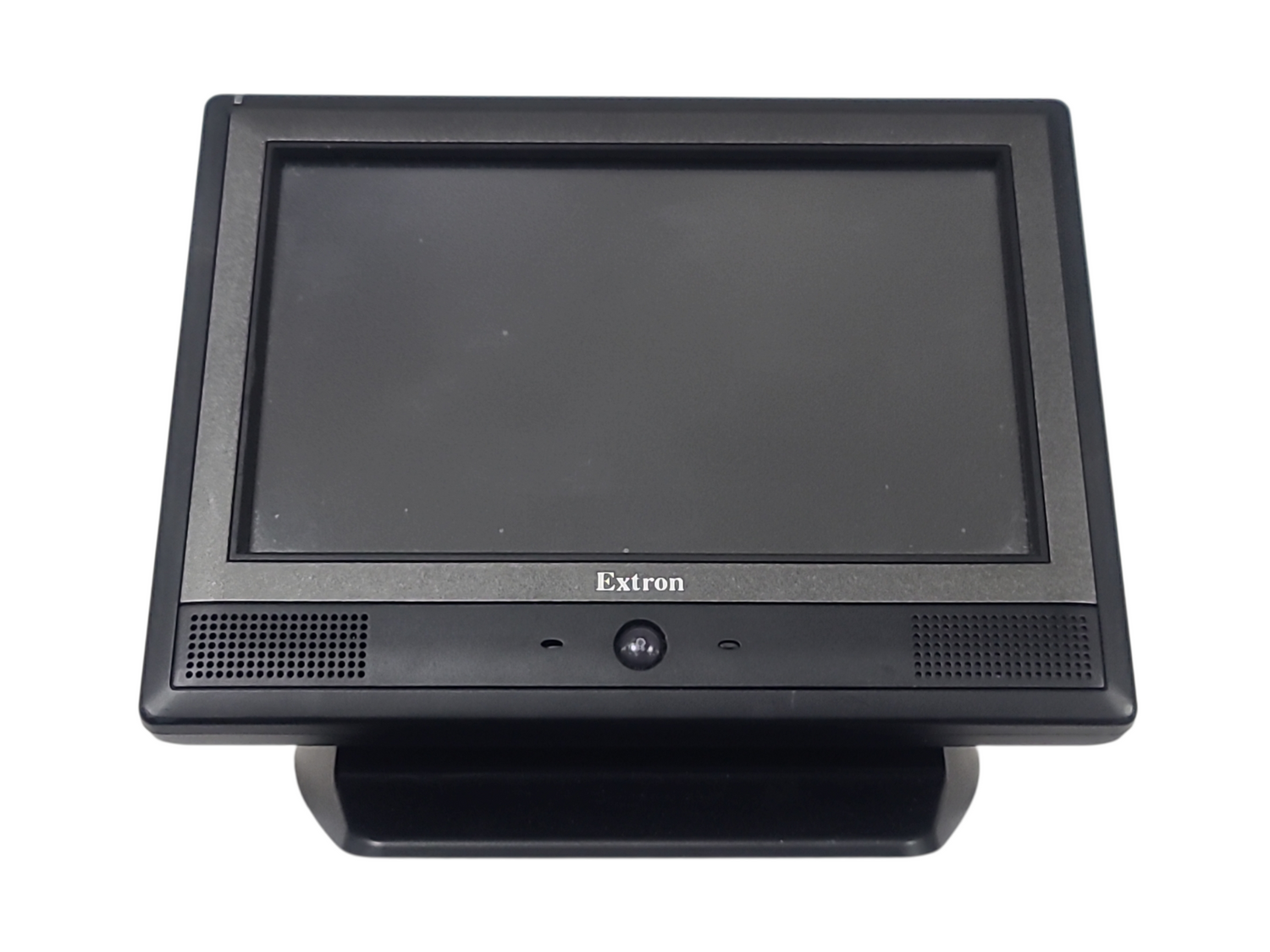

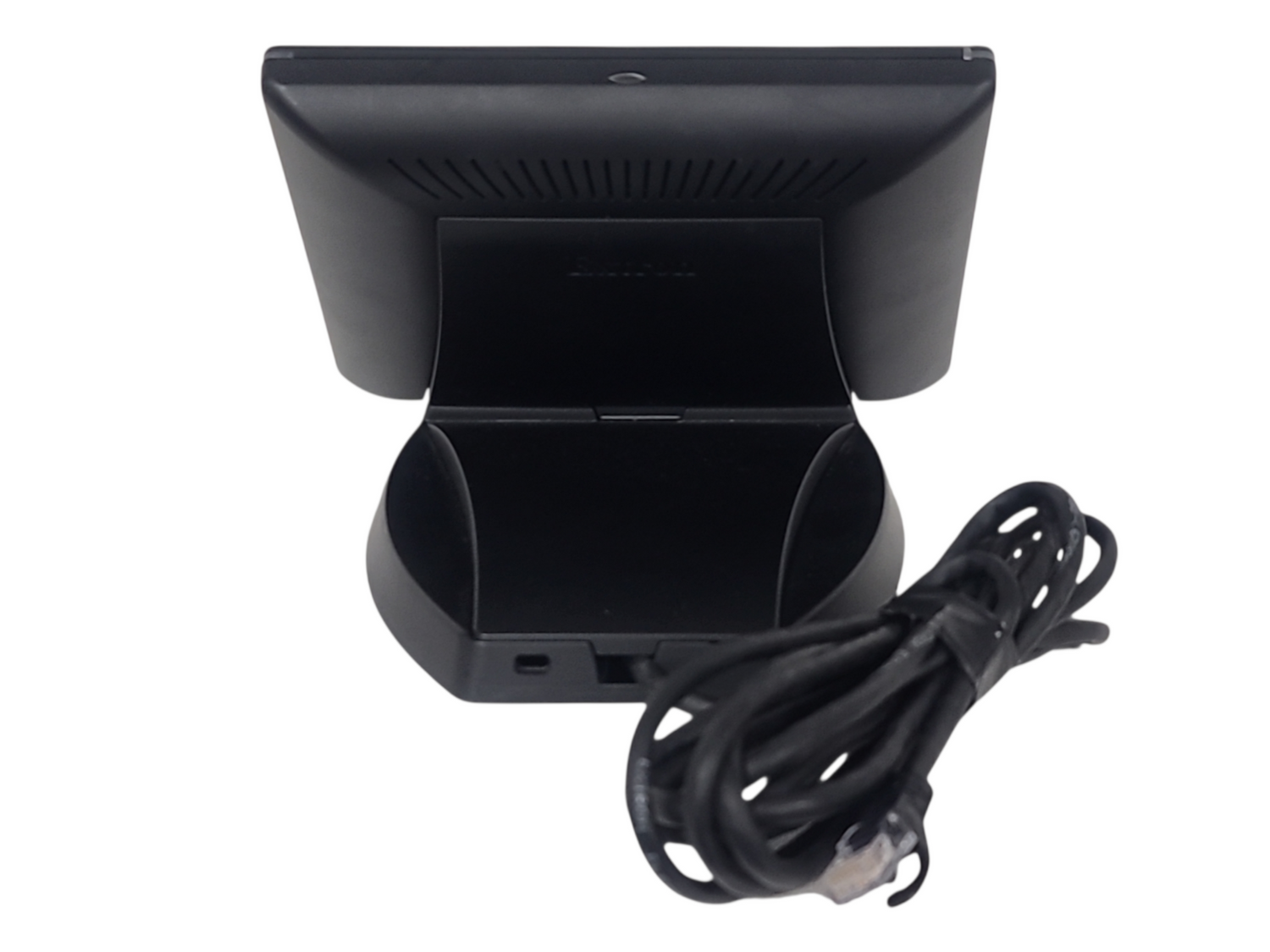

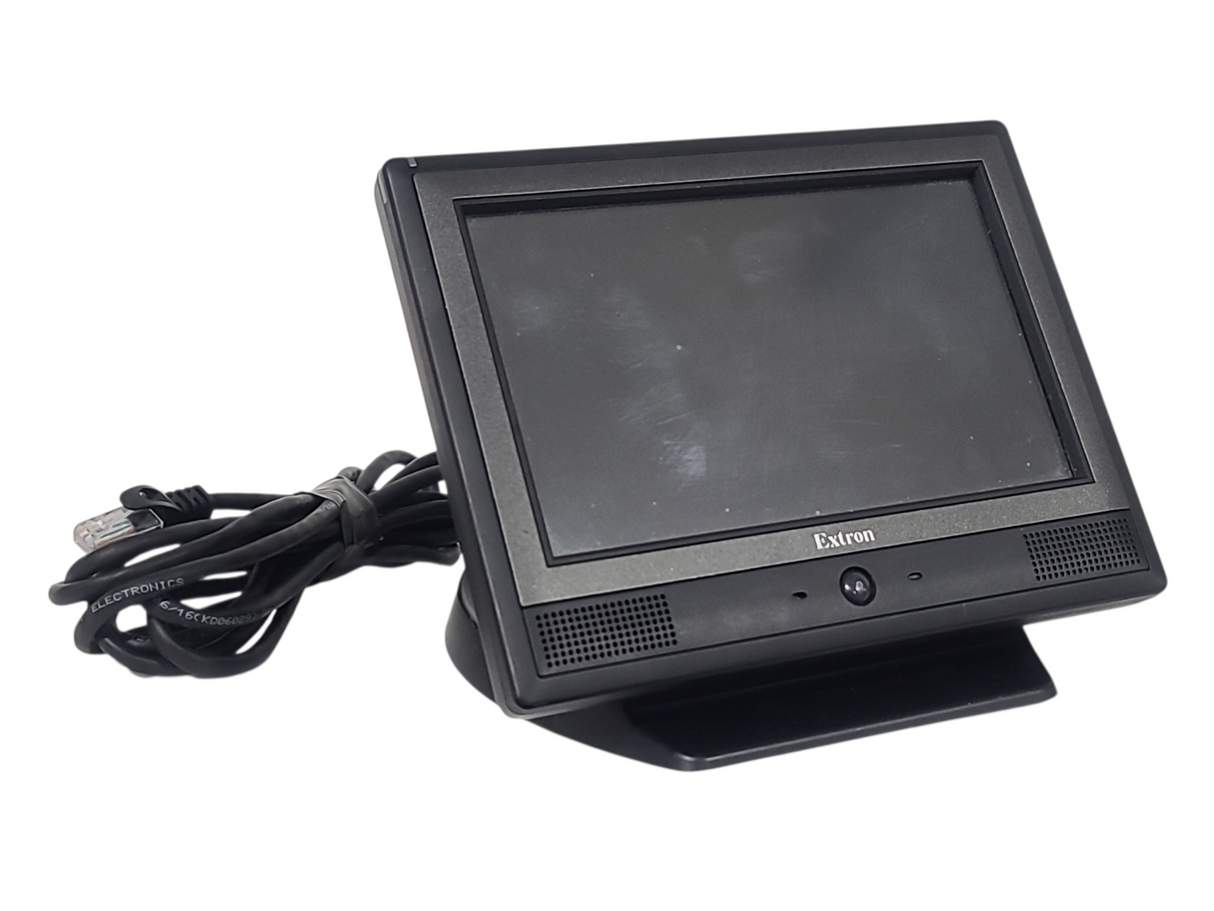

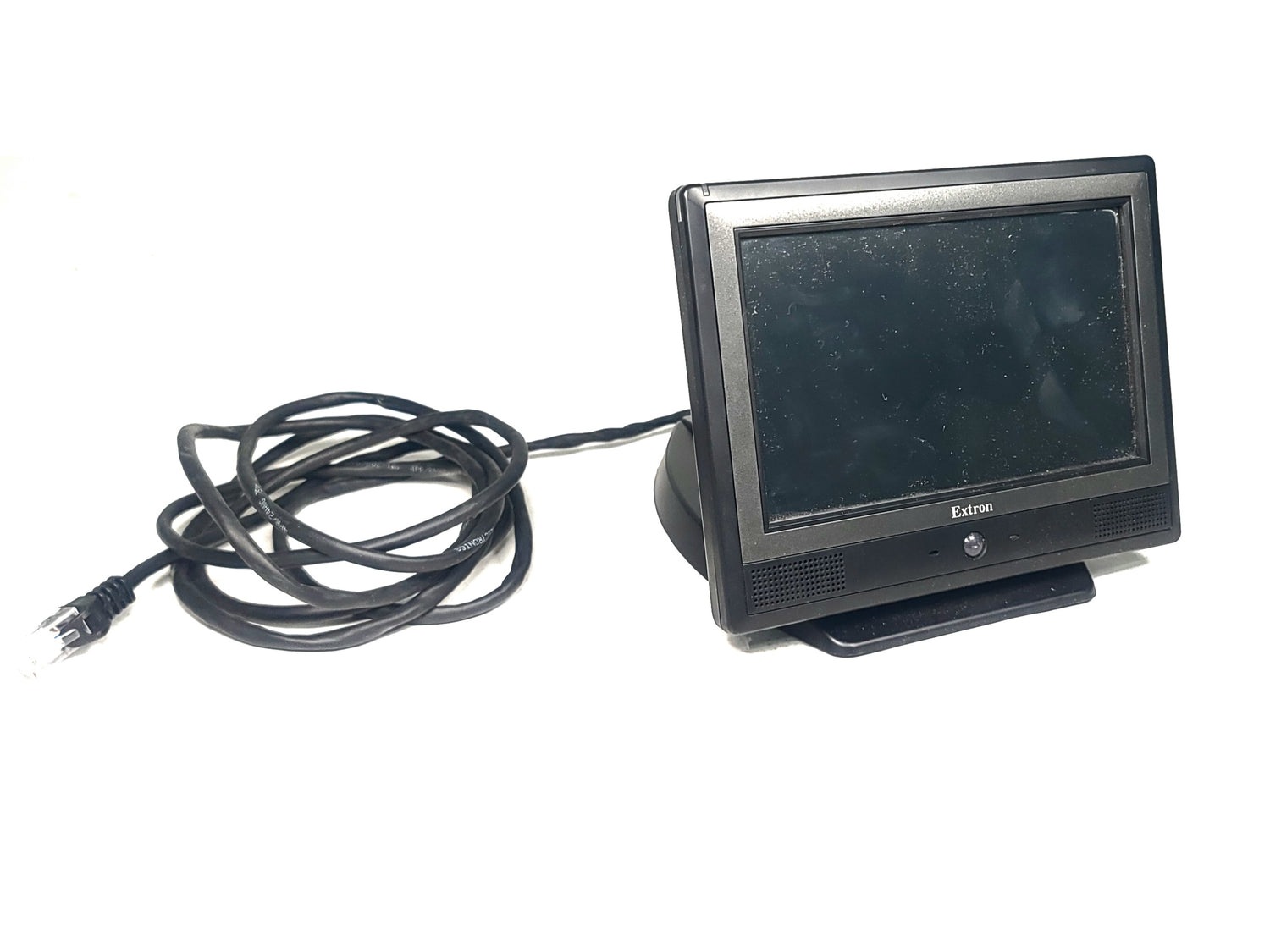

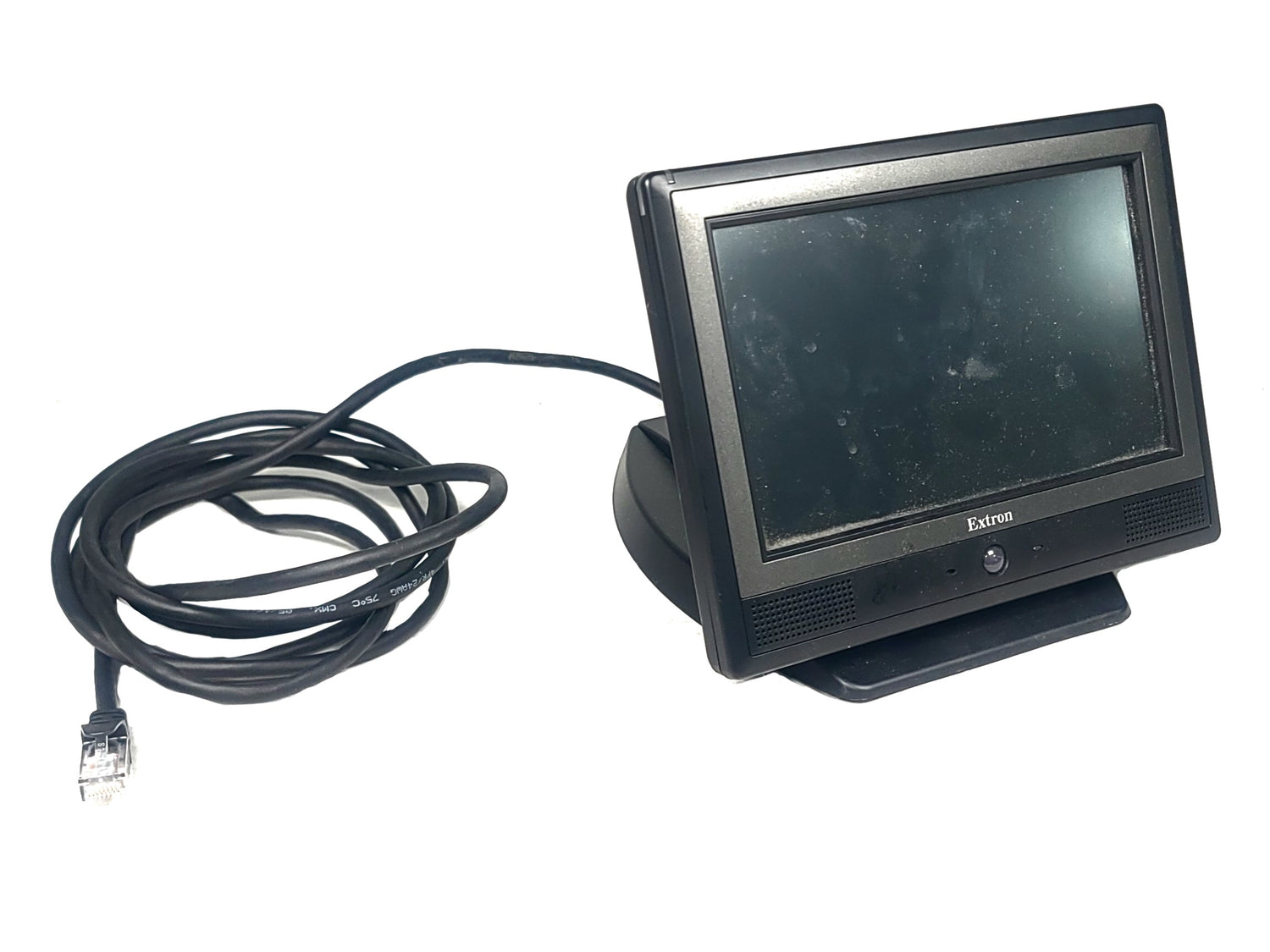

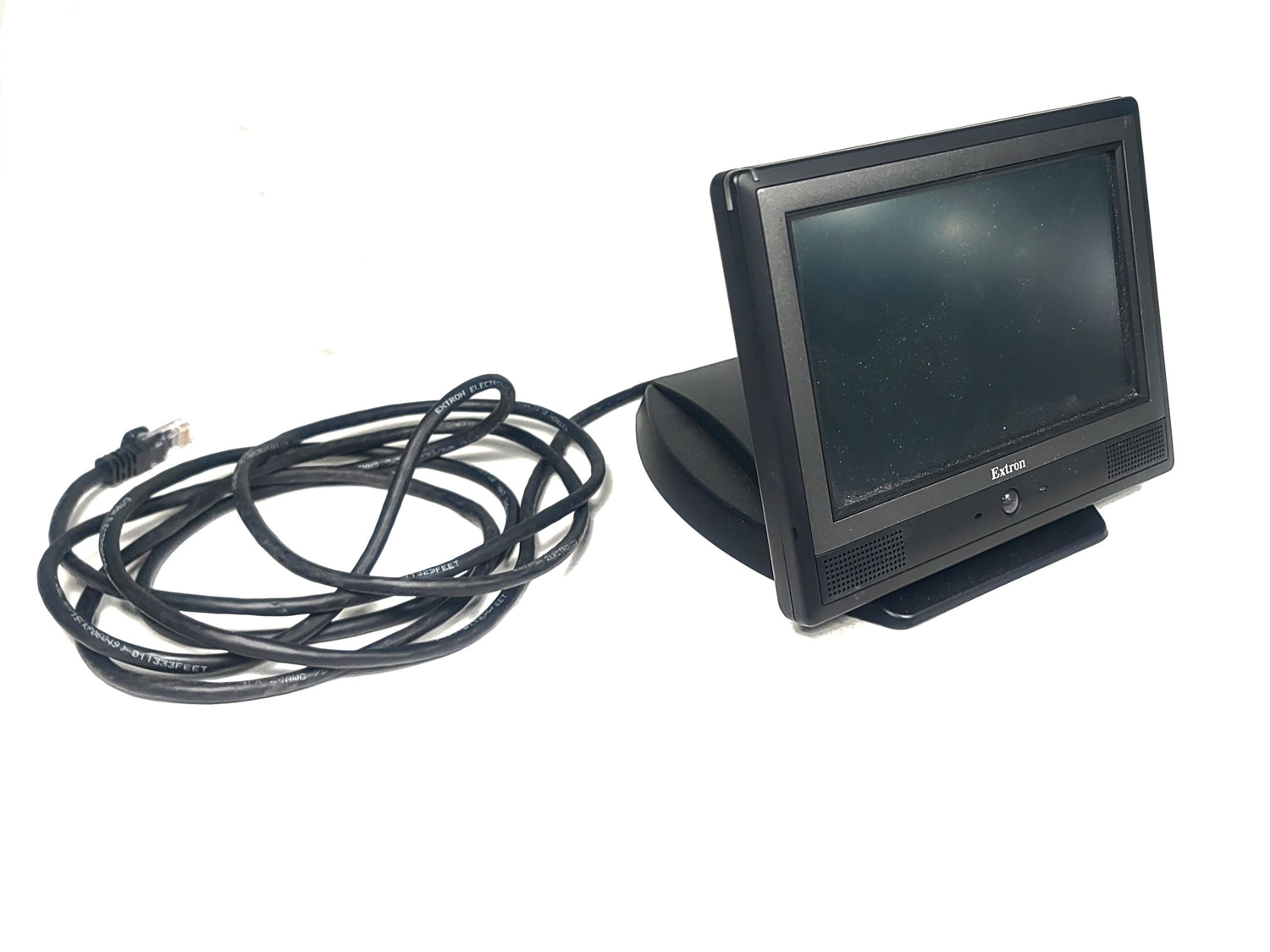

Extron TLP Pro 720T 7" Tabletop TouchLink Pro Touchpanel

$299.00

The Extron TLP Pro 720T 7" Tabletop TouchLink Pro Touchpanel is a sophisticated and powerful control solution designed to bring seamless, intuitive command to any professional AV environment. Featuring a high-resolution 7-inch LCD touchscreen with 800x480 resolution and 18-bit color depth, this panel delivers crisp, vibrant graphics and a responsive touch experience for effortless system management. As part of the TouchLink Pro family, it boasts a faster processor and expanded memory, ensuring quick configuration uploads and ample storage for complex, customized GUI pages tailored to your specific room requirements.

View Product Features

  • 7-inch LCD touchscreen with 800x480 resolution.
  • Faster processing and expanded memory capabilities.

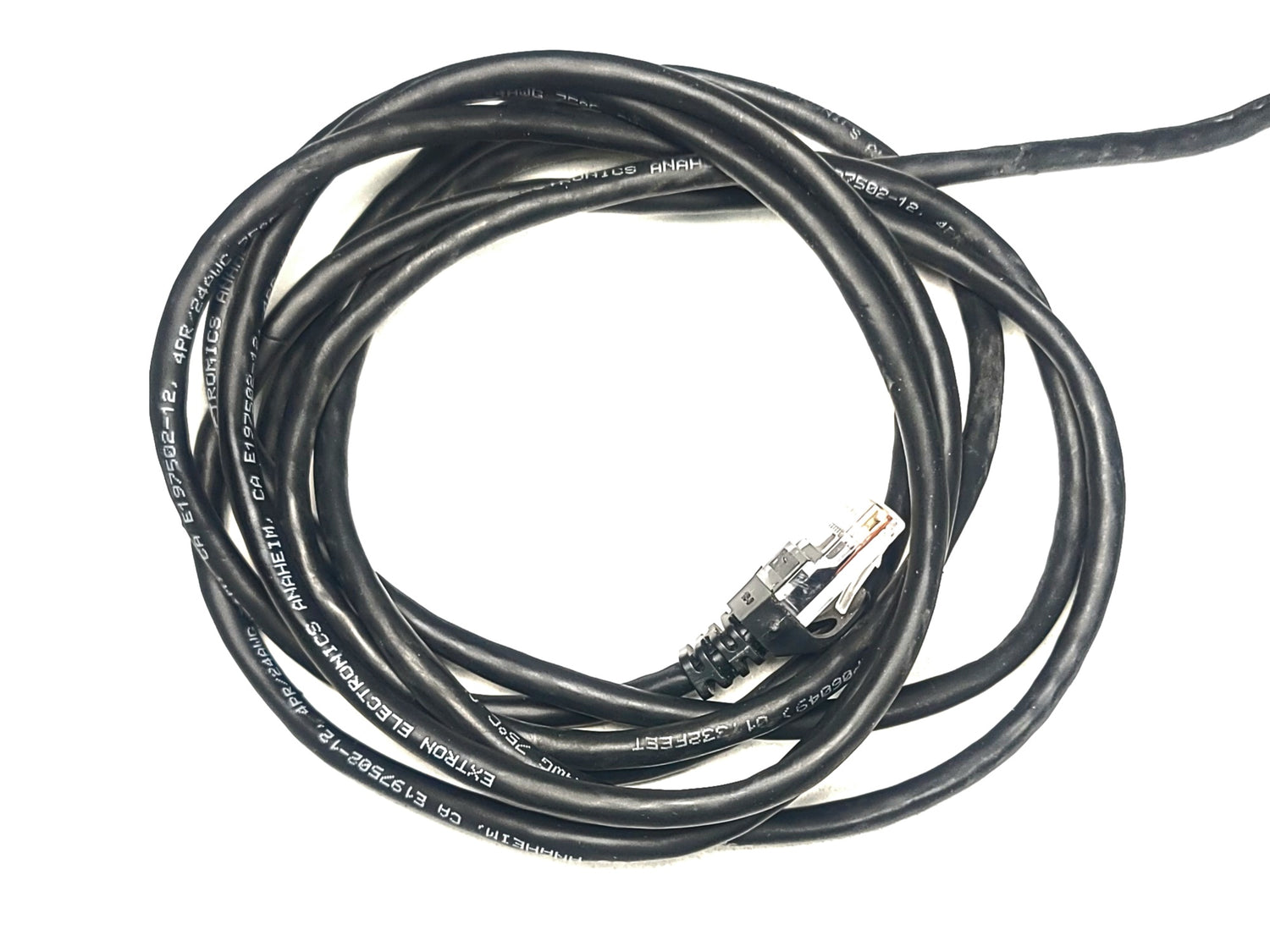

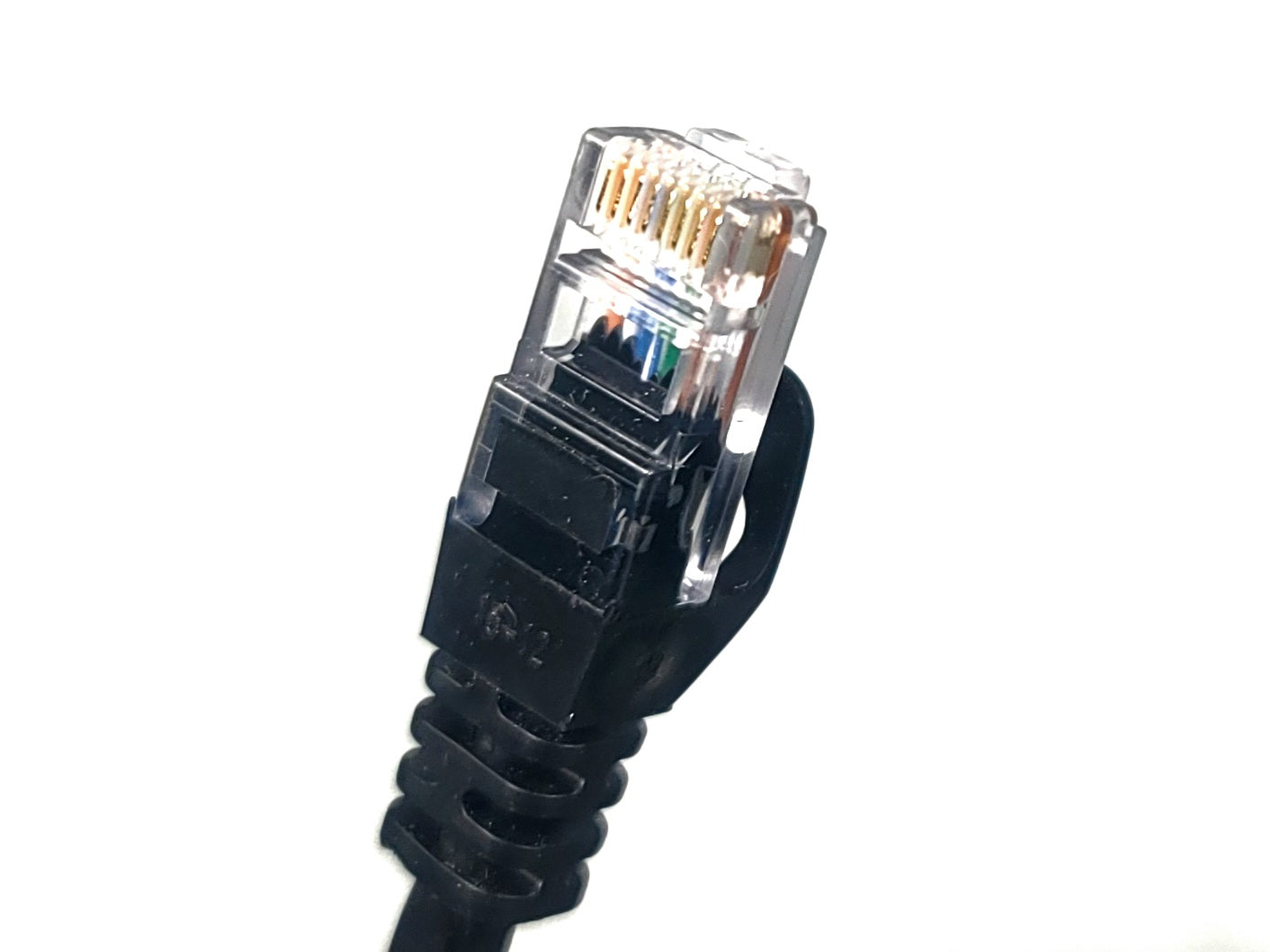

  • Power over Ethernet for single cable connection.
  • Built-in speaker provides audible button feedback.
  • Ambient light sensor for automatic screen brightness.
  • Configurable red and green status indicator lights.
In stock
4 in stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Extron TLP Pro 720T 7" Tabletop TouchLink Pro Touchpanel

The Extron TLP Pro 720T is a 7-inch tabletop touchpanel featuring a high-resolution LCD touchscreen with 800x480 resolution and 18-bit color depth. As part of the TouchLink Pro series, this customizable touchpanel offers faster processing speeds and expanded memory compared to legacy models, enabling quicker configuration uploads and increased storage capacity for graphical user interface pages. The PoE capability allows the touchpanel to receive both power and communication over a single Ethernet cable, eliminating the need for a local power supply and simplifying installation with reliable, cost-effective network cabling. The TLP Pro 720T is compatible with all Extron IP Link Pro control processors and works seamlessly with Extron's GUI Designer software, which provides ready-to-use templates for various room environments that can be fully customized by changing individual graphic elements.

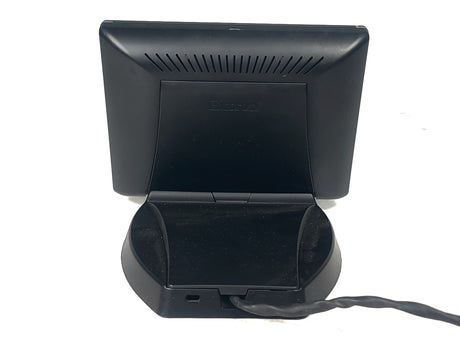

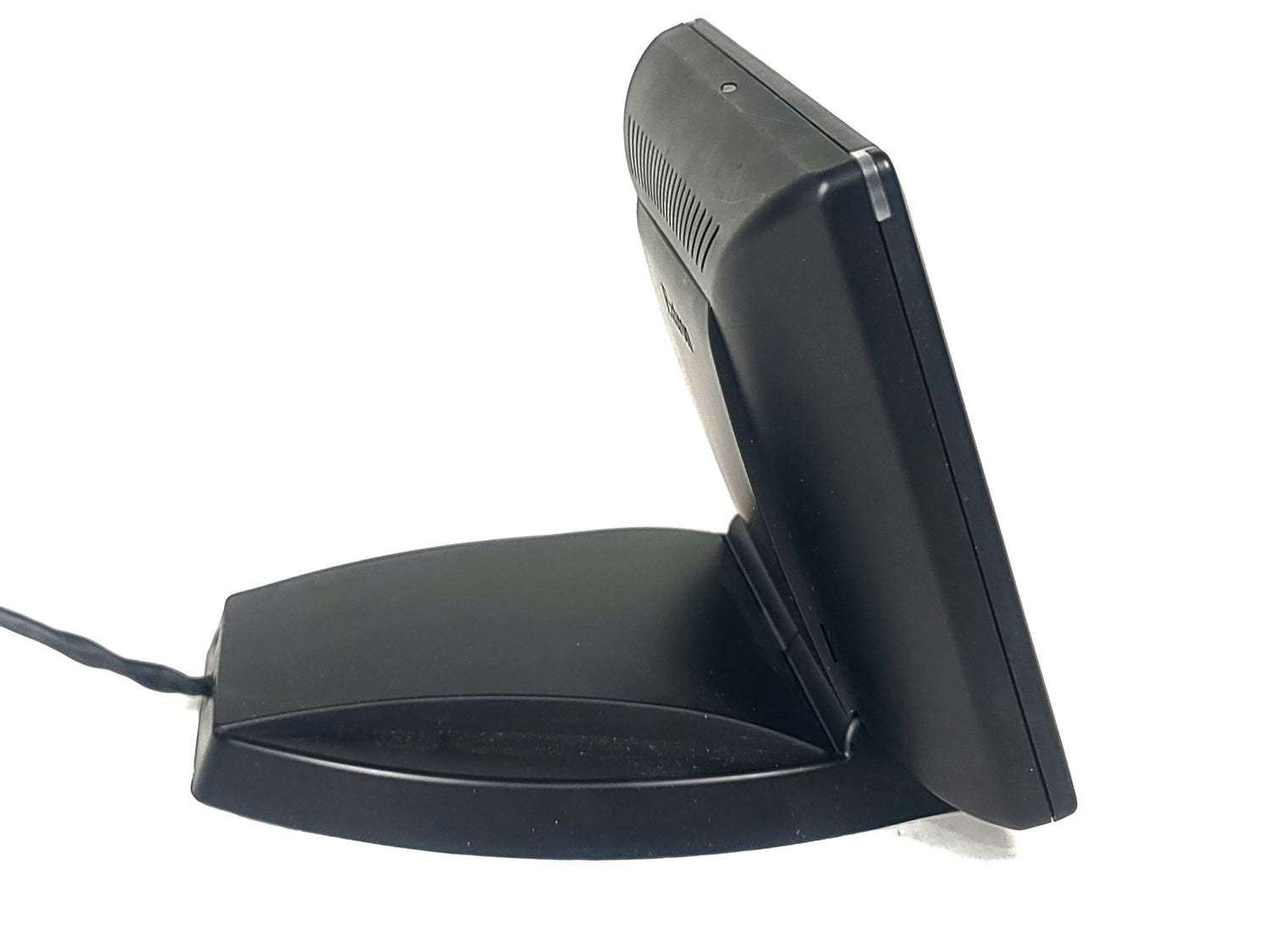

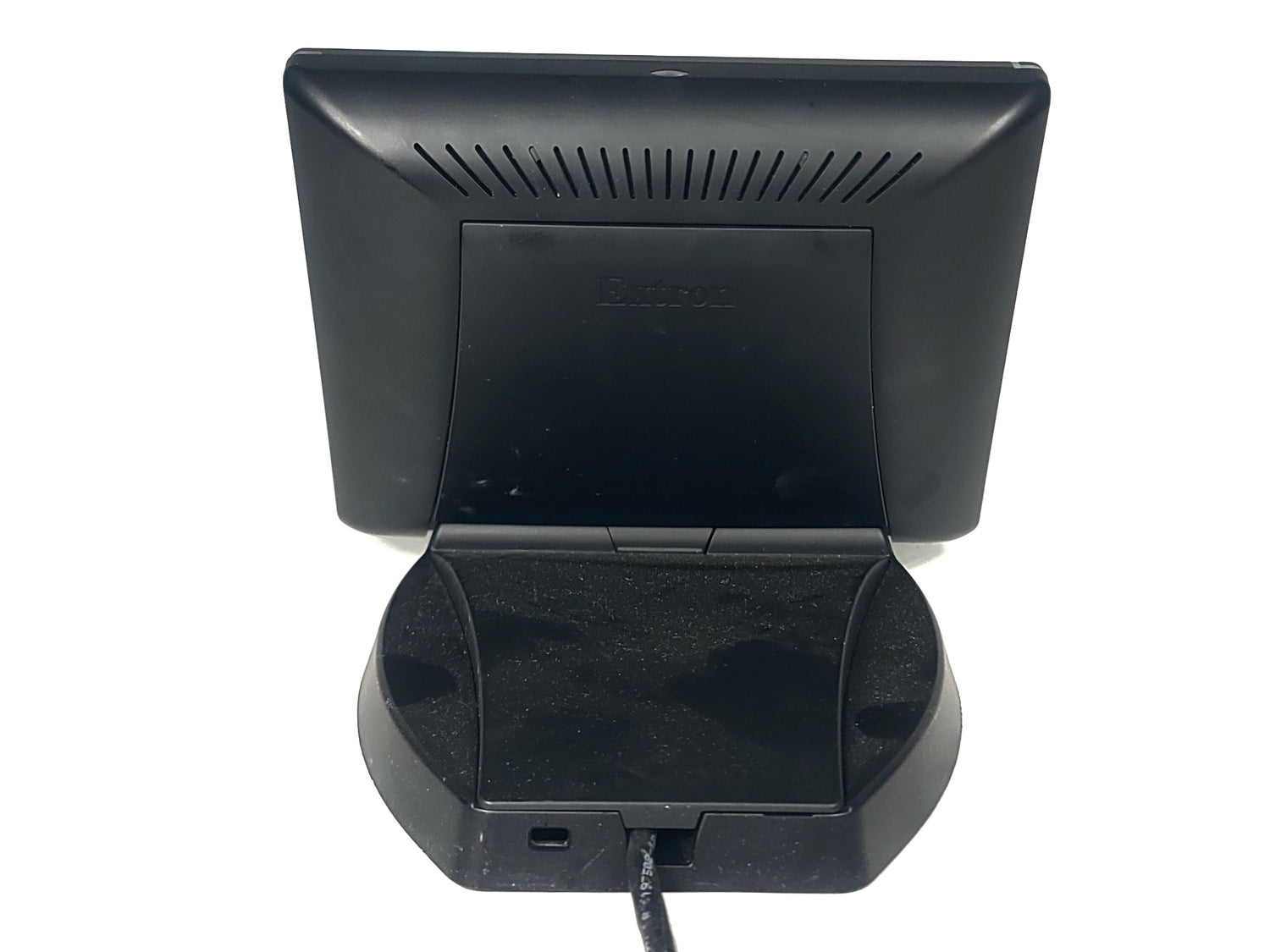

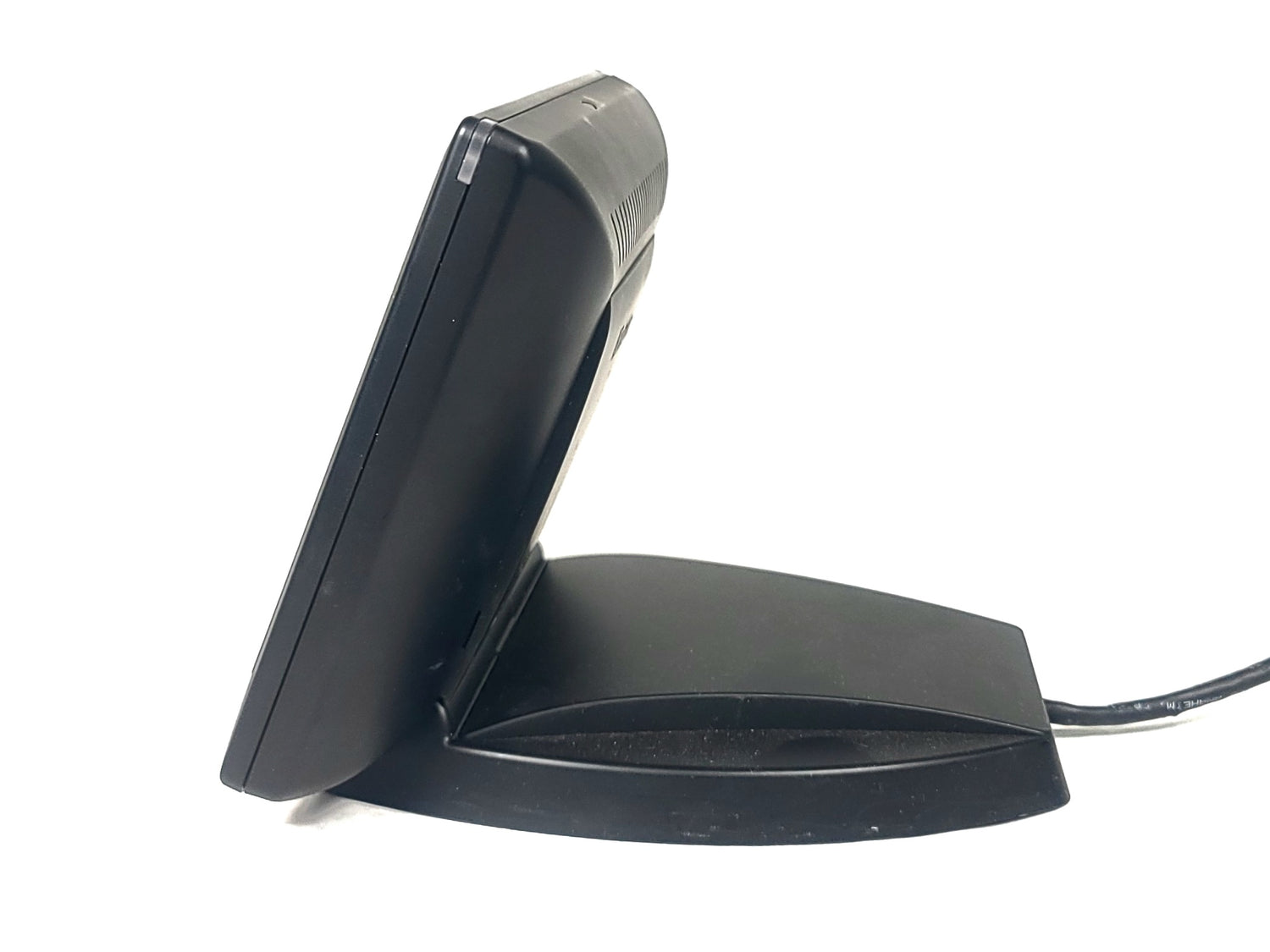

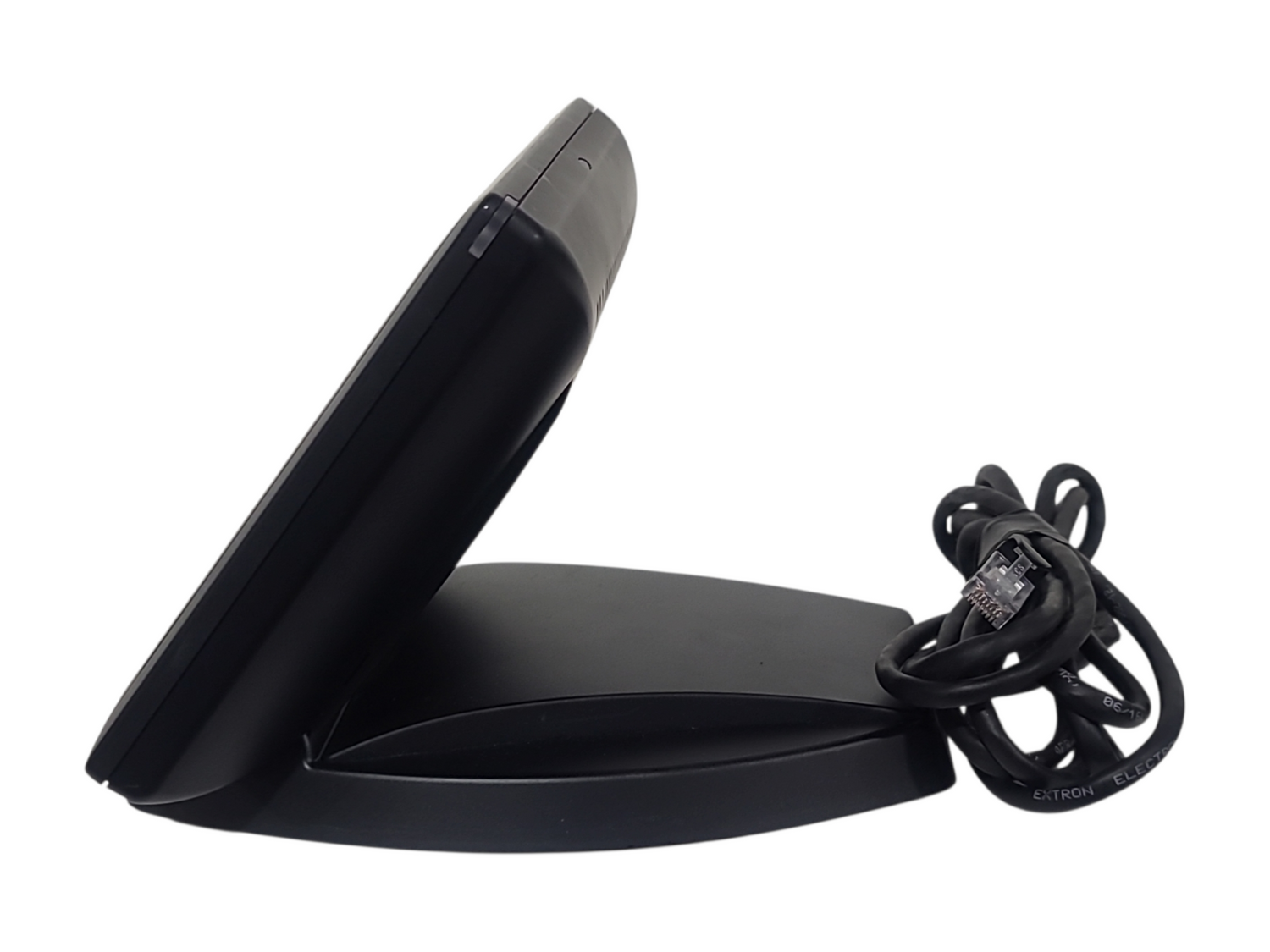

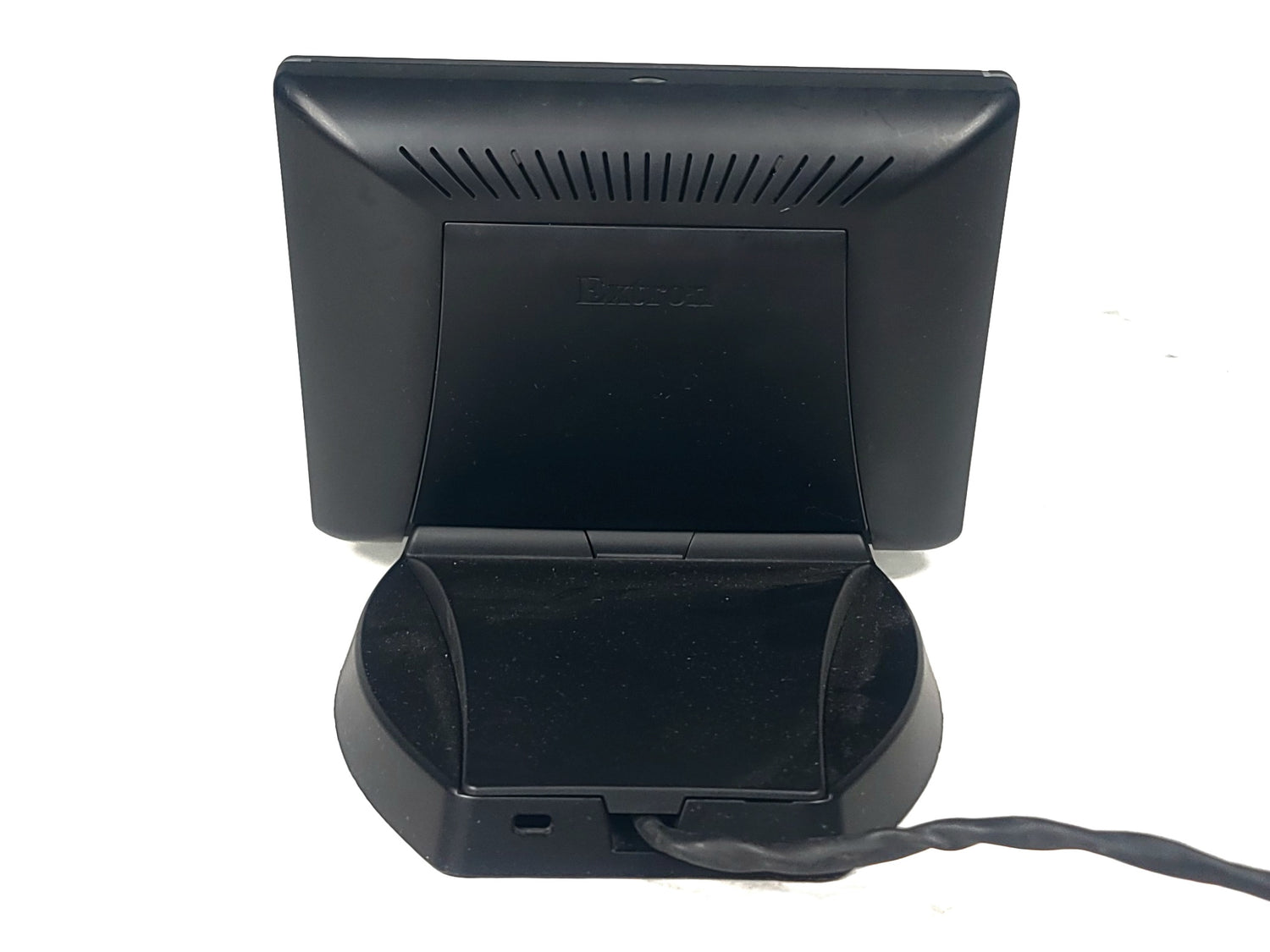

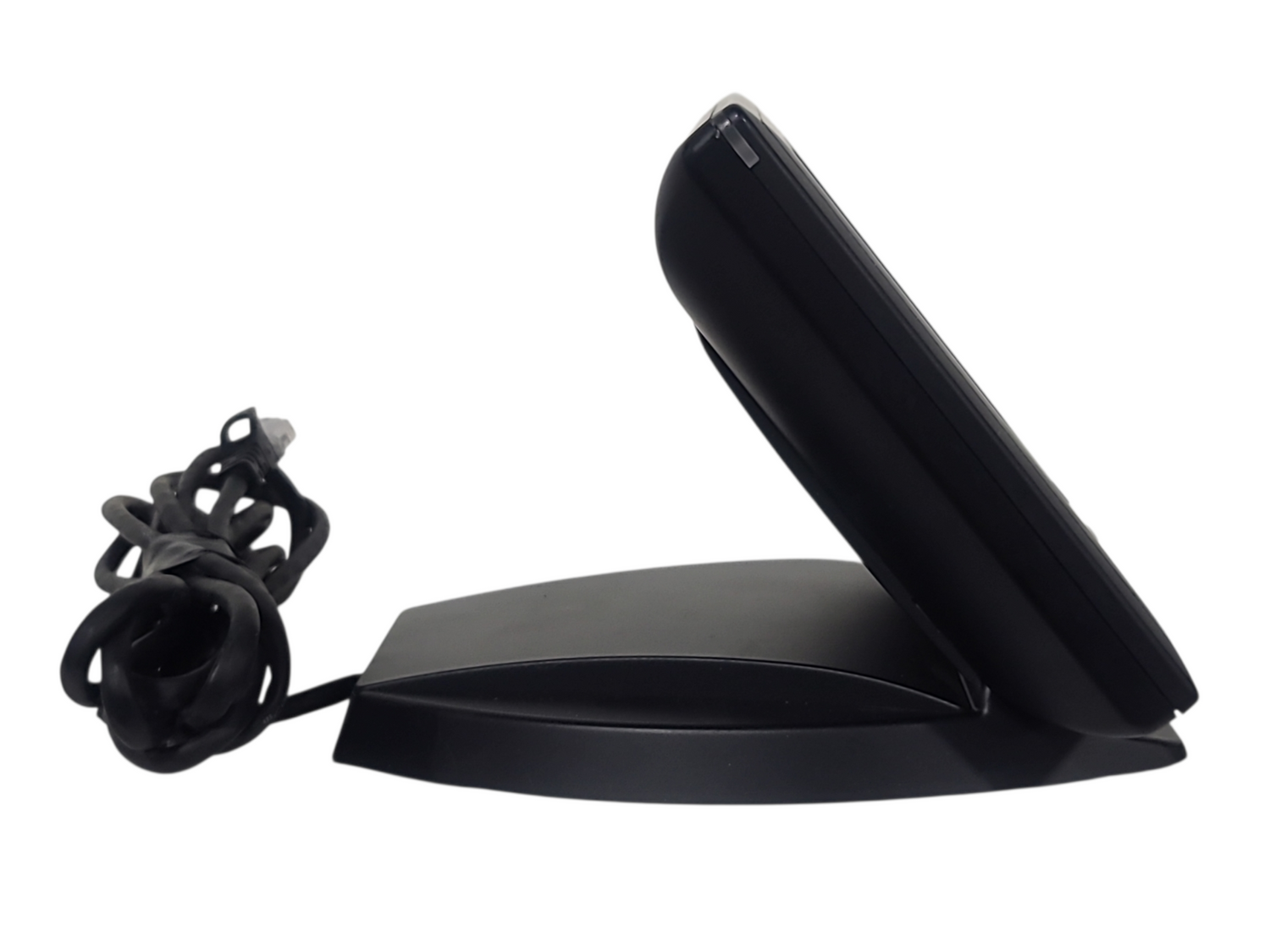

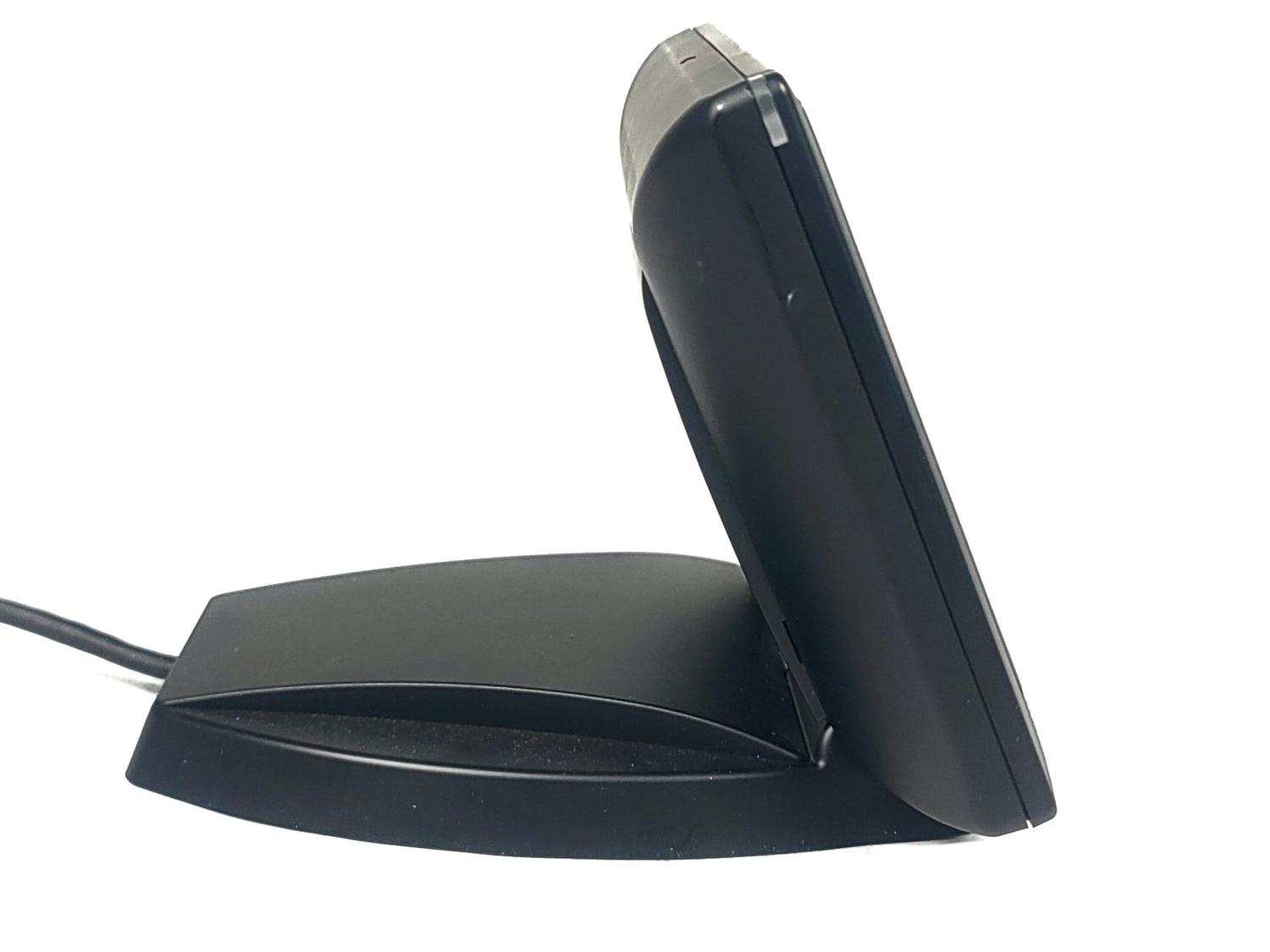

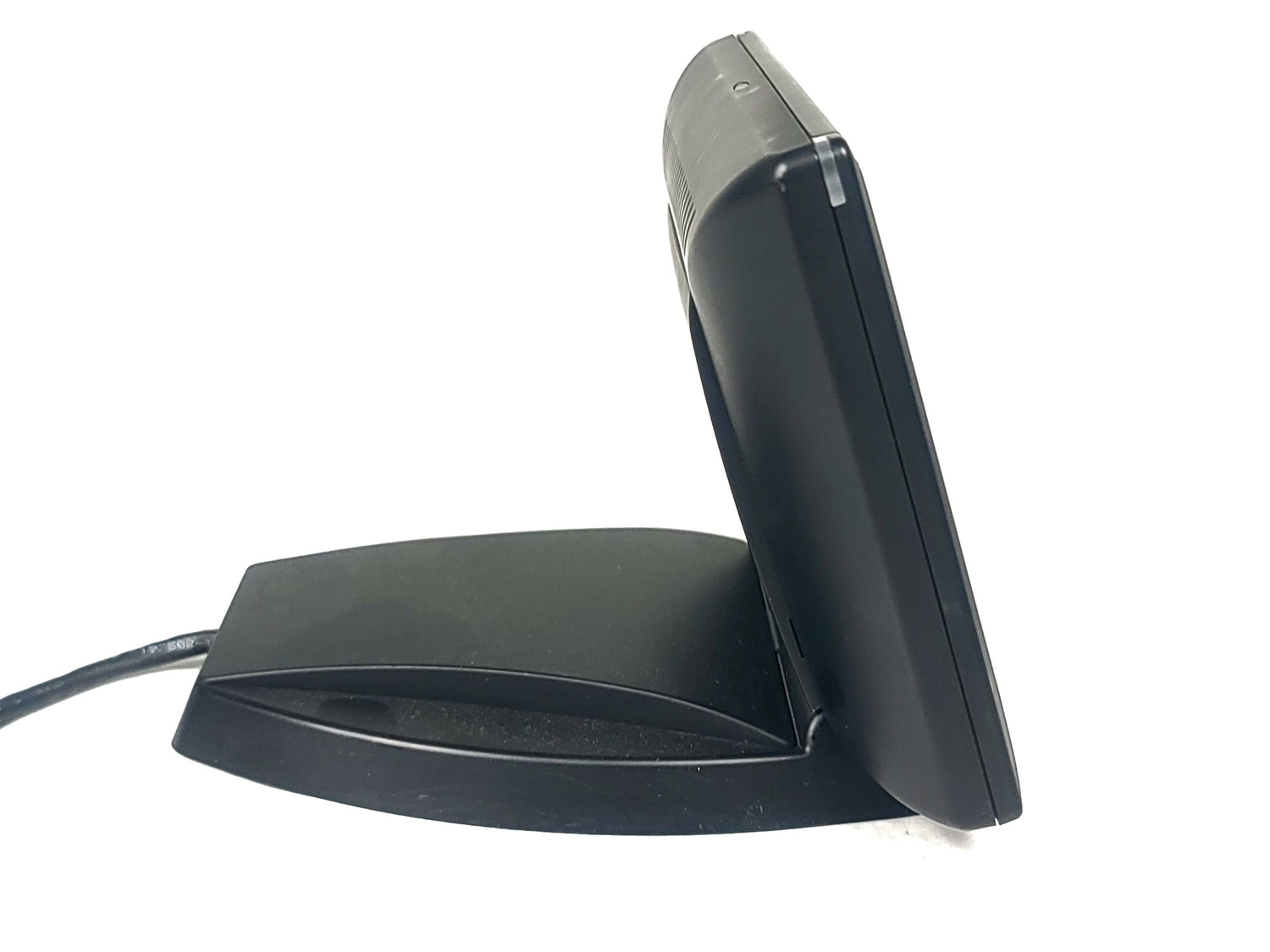

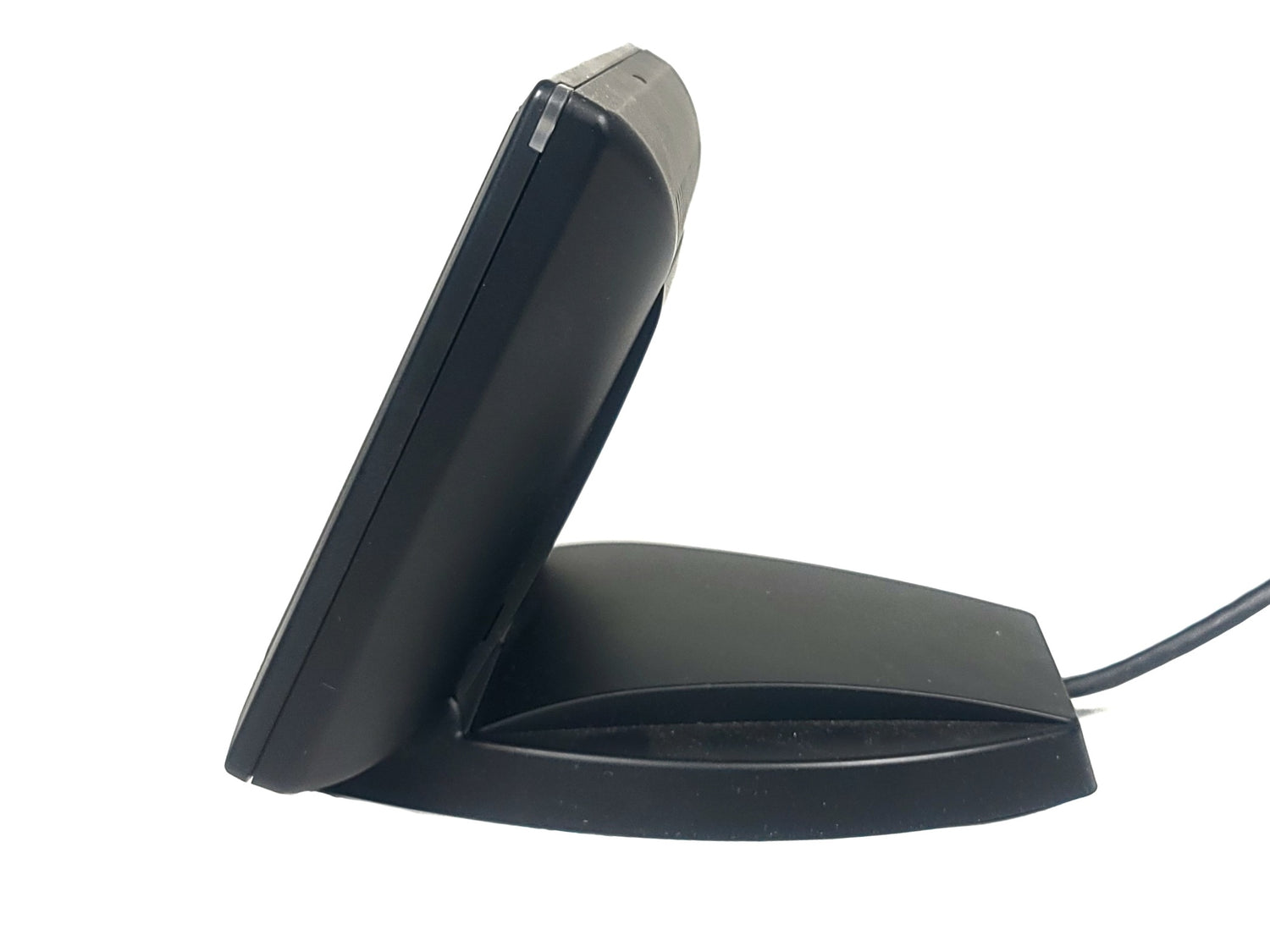

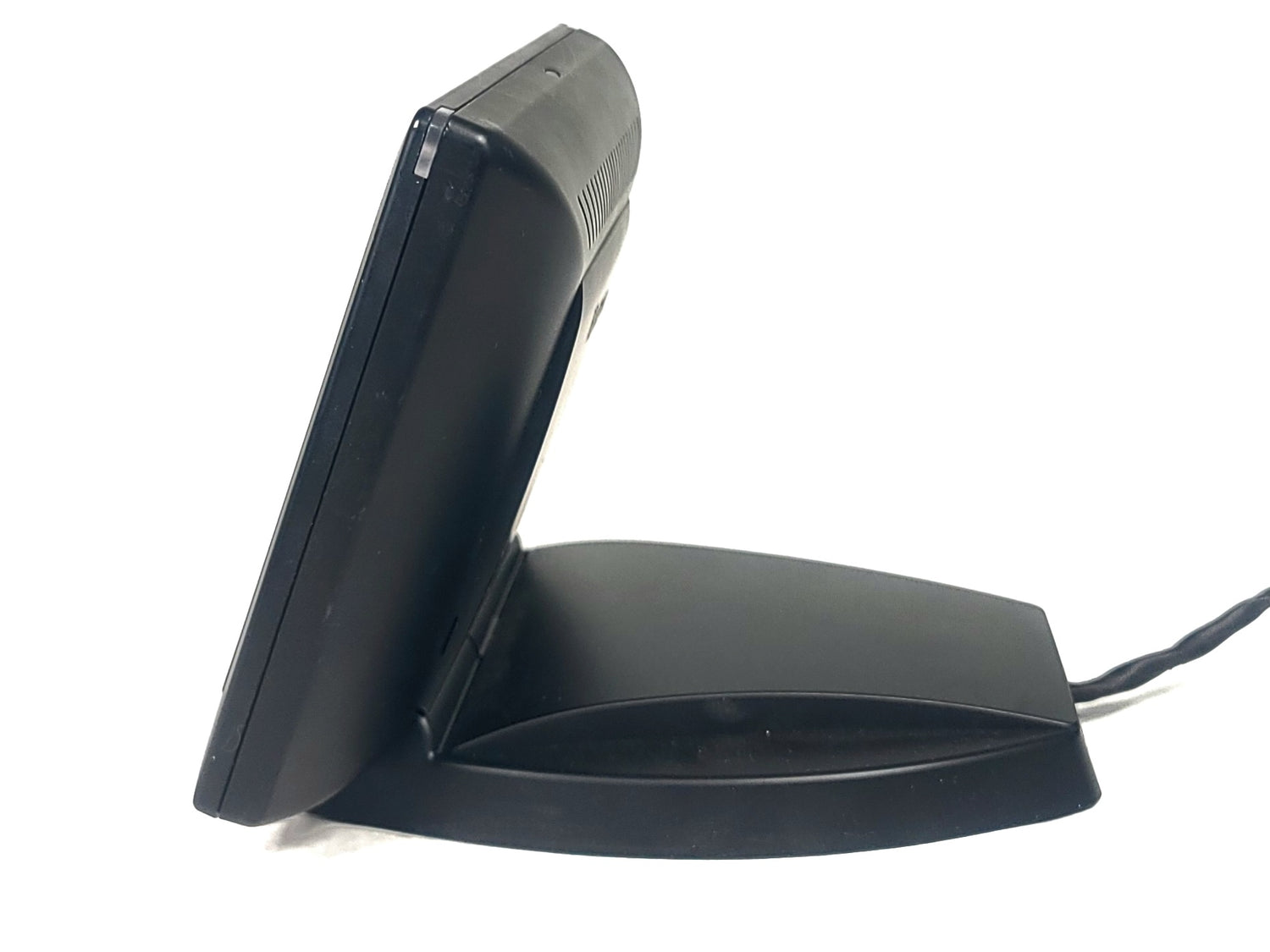

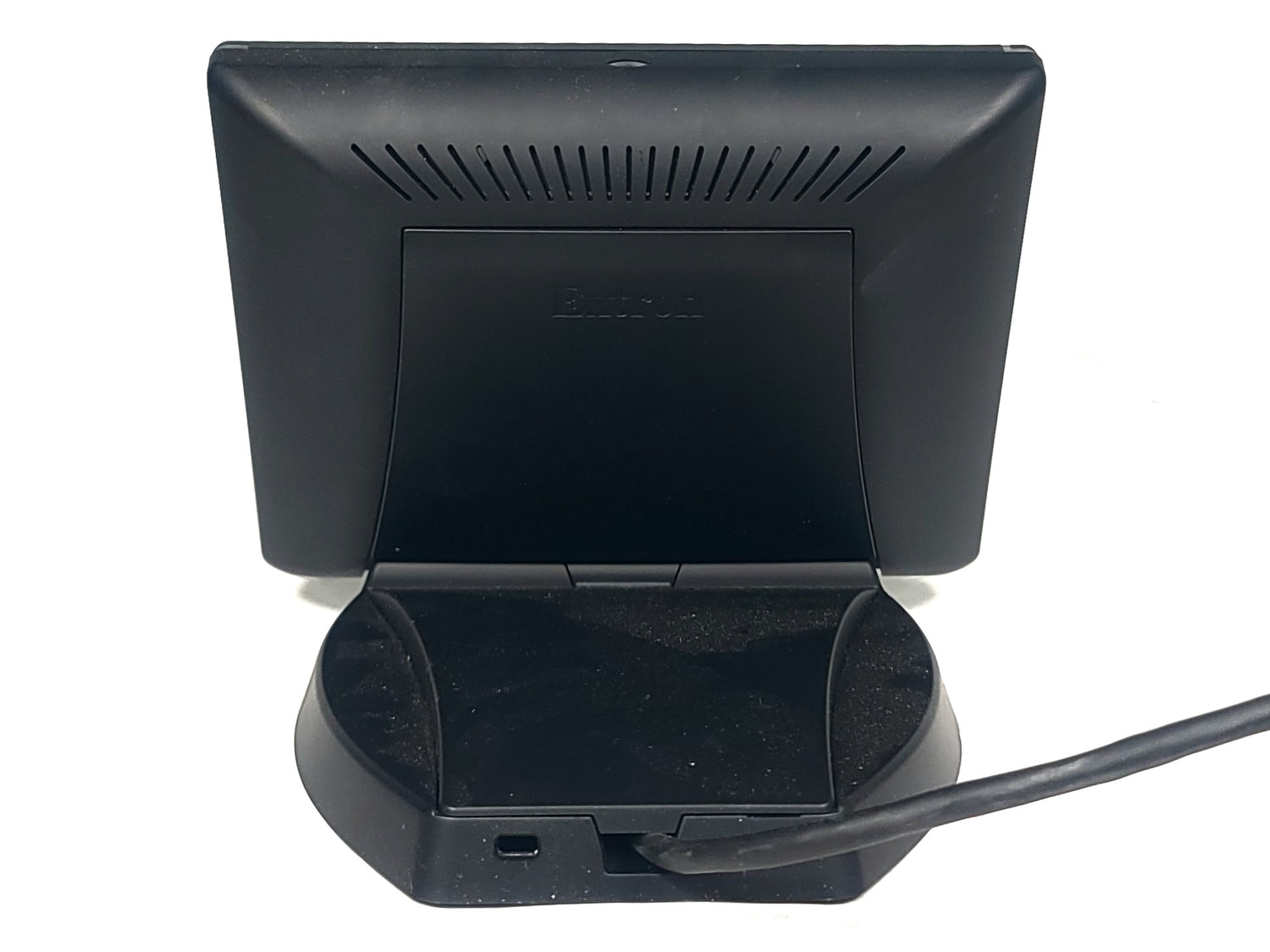

Designed with both form and function in mind, the TLP Pro 720T features a weighted base that allows up to 45 degrees of tilt for optimal viewing angles. The touchpanel includes an integrated motion sensor that detects movement from three to five feet away, automatically waking the device from sleep mode when a user approaches. A built-in speaker delivers 86 dB SPL audio output for audible button feedback, while an ambient light sensor automatically adjusts screen brightness based on changing room lighting conditions. Configurable red and green status lights at the top corners can indicate room availability, call status, or other system conditions. The unit also features a Kensington lock slot for physical security and can be removed from its base for VESA-compliant mounting on standard arms or brackets. When paired with Extron's Room Agent software, the touchpanel transforms into a full-featured room booking appliance that communicates directly with Microsoft Exchange servers and Office 365 for seamless conference room scheduling.

Key Features

  • 7-inch LCD touchscreen with 800x480 resolution.
  • Faster processing and expanded memory capabilities.
  • Power over Ethernet for single cable connection.
  • Built-in speaker provides audible button feedback.
  • Ambient light sensor for automatic screen brightness.
  • Configurable red and green status indicator lights.

Extron TLP Pro 720T 7" Tabletop TouchLink Pro Touchpanel Specs

Display Specifications
Screen Type
Active matrix TFT color display
Screen Size
7 inches (17.8 cm) diagonal
Resolution
800 x 480
Pixel Density
134 dpi
Aspect Ratio
Widescreen
Color Depth
256k colors (18-bit)
Brightness
400 nits (cd/m²)
Contrast Ratio
400:1
Backlight Type
LED
Viewing Angle
±70° horizontal, +60°/-70° vertical
Touch Screen Technology
Resistive
Memory and Processing
SDRAM
512 MB
Flash Memory
512 MB
Ethernet Communication

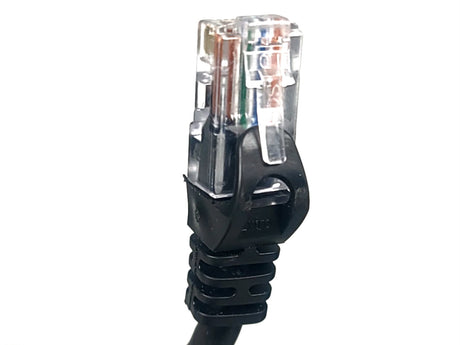

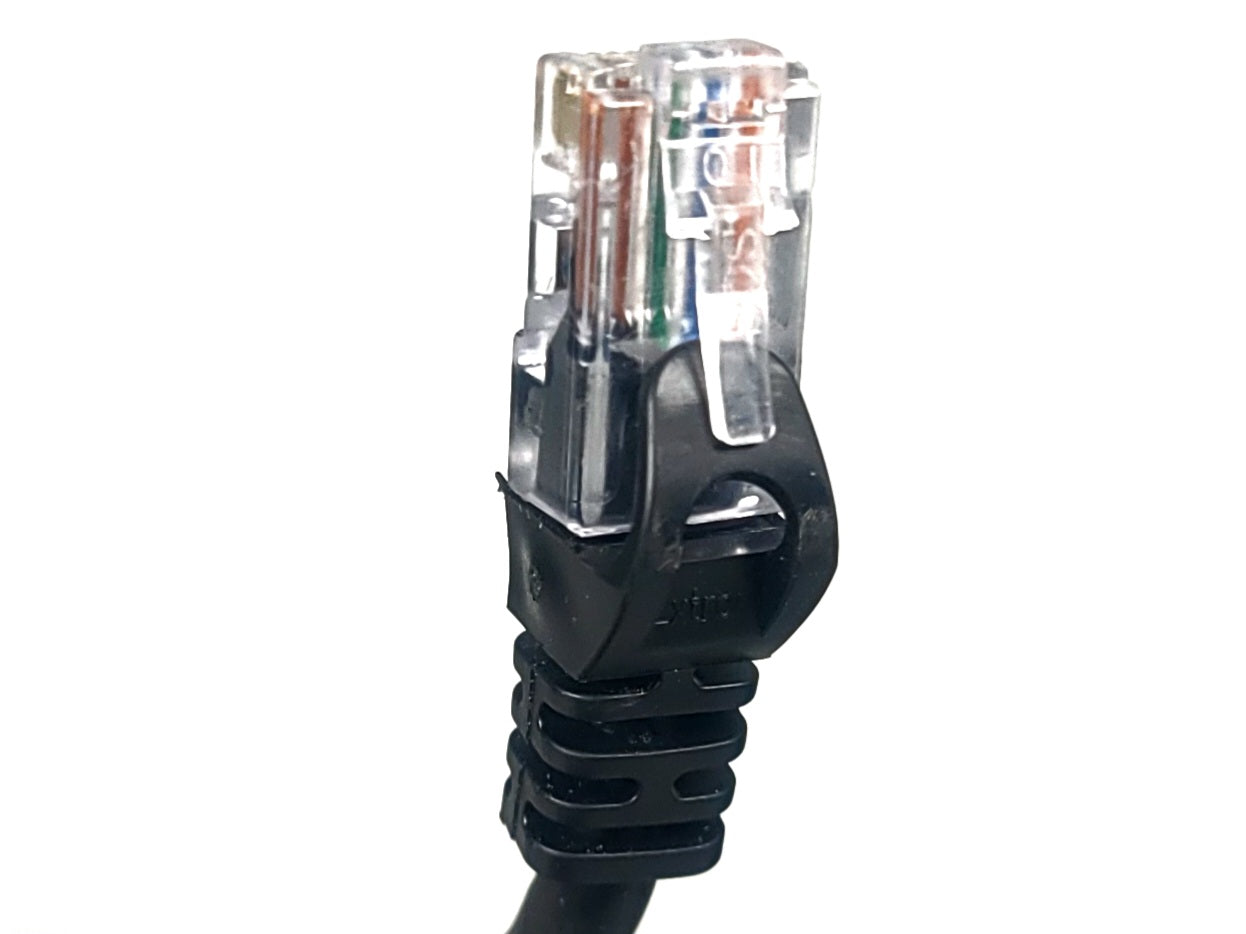

Ethernet Port

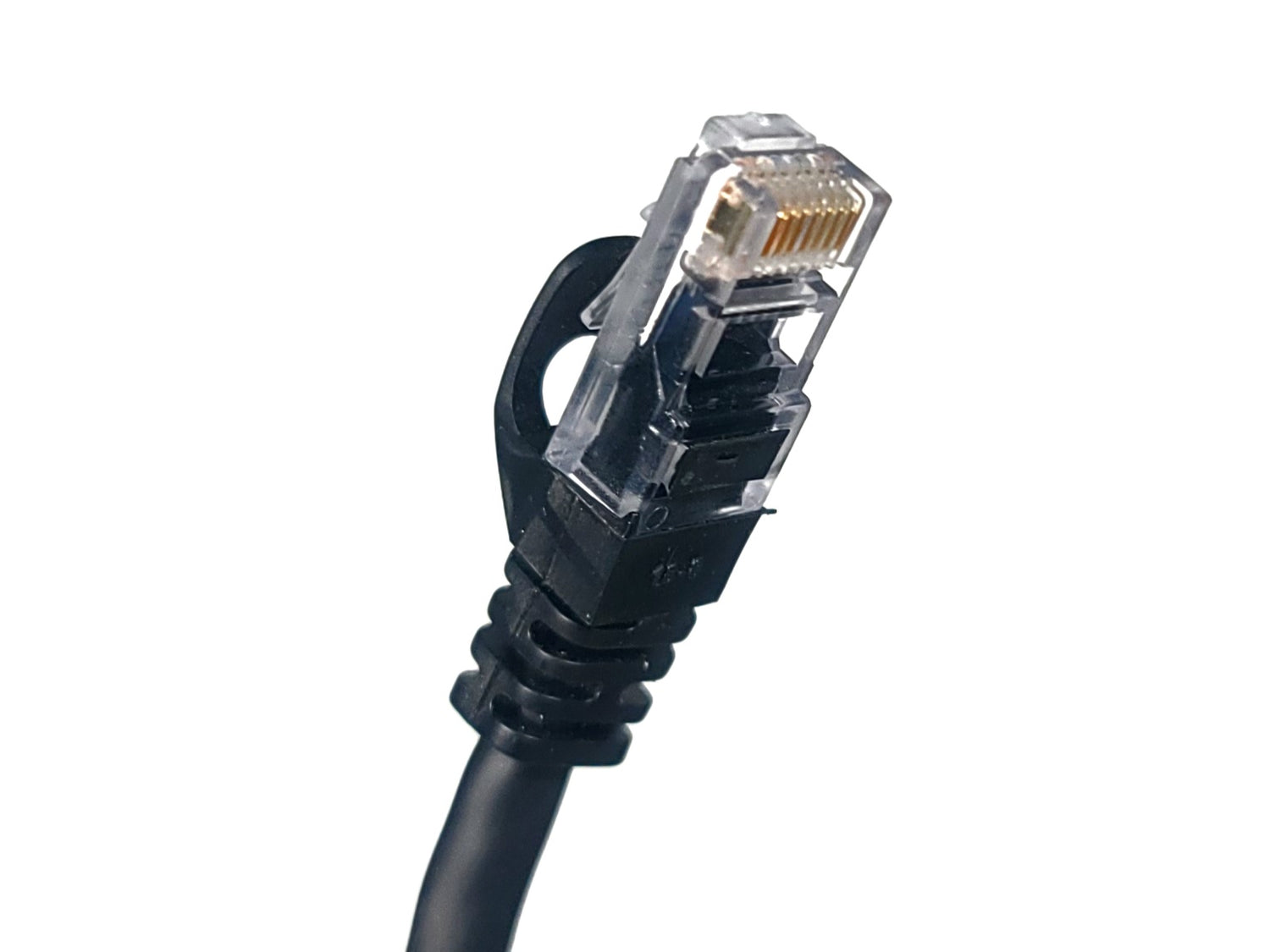

1 x female RJ-45 connector
Data Rate
10/100Base-T, half/full duplex with auto-detect
Protocols
DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP
Default IP Address
192.168.254.251
Default Subnet Mask
255.255.0.0
Default Gateway
0.0.0.0
DHCP Default
Off
Program Control
Extron Global Configurator Plus, Global Configurator Professional, GUI Designer
Sensors
Motion Sensor
On/off configurable, wakes touchpanel from sleep
Light Sensor
On/off configurable, adjusts screen brightness automatically
Audio Output
Speaker Output
1 mono
Sound Pressure Level
86 dB SPL at 0.1 watt, 0.1 meter, half space
Frequency Response
750 Hz to 20 kHz, ±5 dB
Playback Format
WAV (Microsoft RIFF), LPCM uncompressed
Supported Bit Depth
8-bit, 16-bit, 24-bit, 32-bit
Sampling Rate
2 kHz to 192 kHz

Key Features

  • 7-inch LCD touchscreen with 800x480 resolution.
  • Faster processing and expanded memory capabilities.
  • Power over Ethernet for single cable connection.
  • Built-in speaker provides audible button feedback.
  • Ambient light sensor for automatic screen brightness.
  • Configurable red and green status indicator lights.
