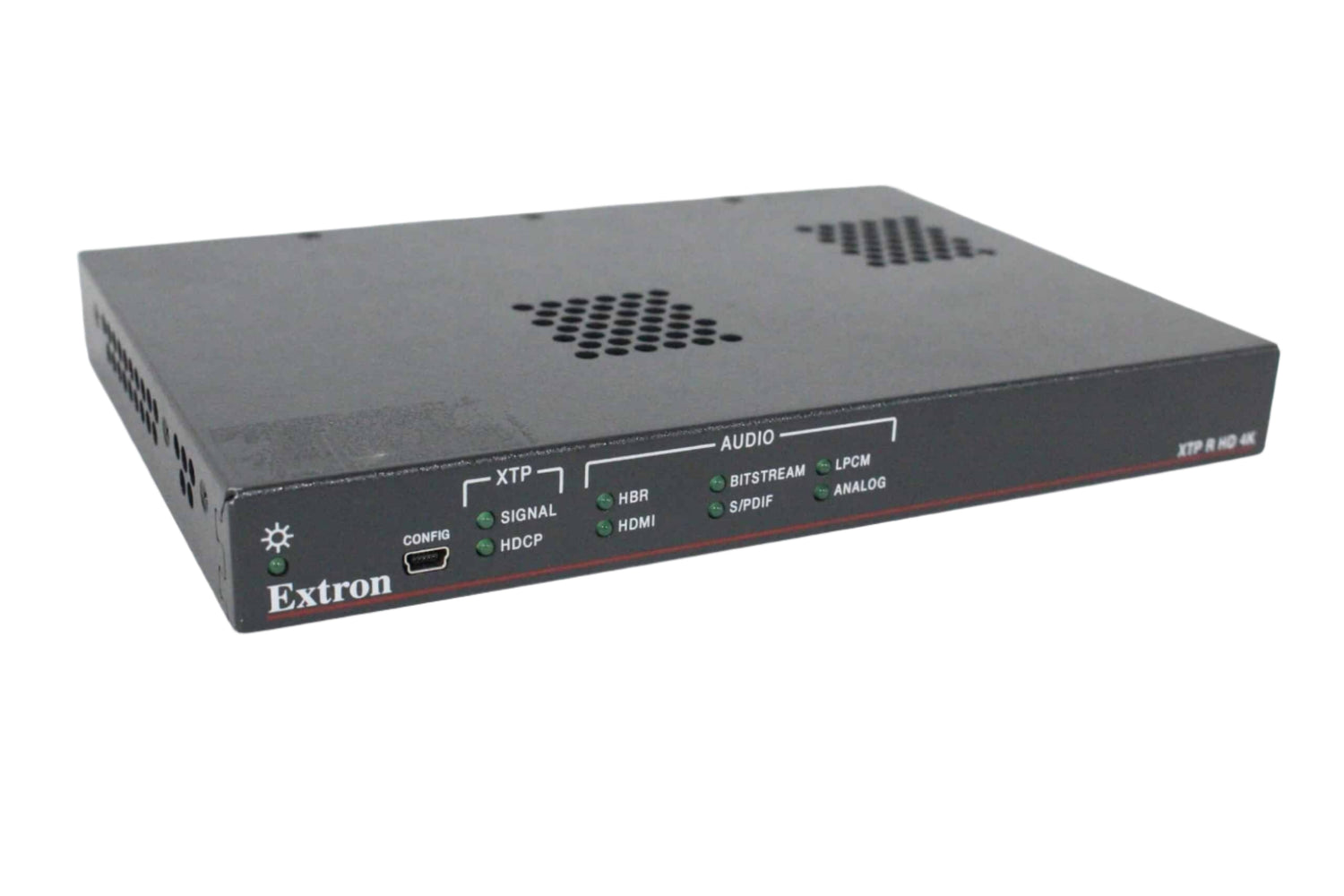

The Extron XTP R HD 4K is a professional receiver unit designed for the Extron XTP Systems, which are modular, high-performance platforms for switching, distribution, and extension of audiovisual signals. This specific receiver is engineered to receive 4K HDMI signals, along with embedded audio and control data, that have been transmitted over a single CATx cable from a compatible XTP transmitter. It forms the endpoint of a long-distance signal extension link, reconstructing the original high-definition video and audio at the display location with exceptional fidelity. The system supports resolutions up to 4K at 60 Hz with 4:4:4 color sampling, ensuring compatibility with the latest high-resolution content sources and displays, making it suitable for demanding applications in command and control rooms, digital signage, corporate boardrooms, and higher education.

A key feature of the XTP ecosystem is its integration of multiple signal types over a common infrastructure. The XTP R HD 4K receiver not only handles HDMI but, within the modular XTP frame, can coexist with receivers for other signal types (like DTP or twisted pair), all controlled and managed from a central point. The receiver incorporates Extron's advanced signal processing to equalize, reclock, and restore the HDMI signal after its long cable run, compensating for cable losses to deliver a stable, artifact-free image. It also extracts embedded multi-channel audio and passes through bidirectional control signals such as RS-232, infrared (IR), and Ethernet, allowing for remote management of source devices and displays from the receiver location.

Housed in a compact metal enclosure, the receiver is designed for discreet installation behind a display or within furniture. It can be powered locally or via Power over Ethernet (PoE) from an XTP compatible transmitter or switch, simplifying installation by reducing the number of required cables. The unit is managed through Extron's Global Configurator software, which provides centralized control and monitoring of the entire XTP system. By offering a robust, high-bandwidth extension solution that maintains signal integrity over standard structured cabling, the Extron XTP R HD 4K receiver enables flexible, scalable, and future-proof AV system designs, allowing high-resolution content to be reliably distributed to displays located far from the source equipment.
