Ferrofish

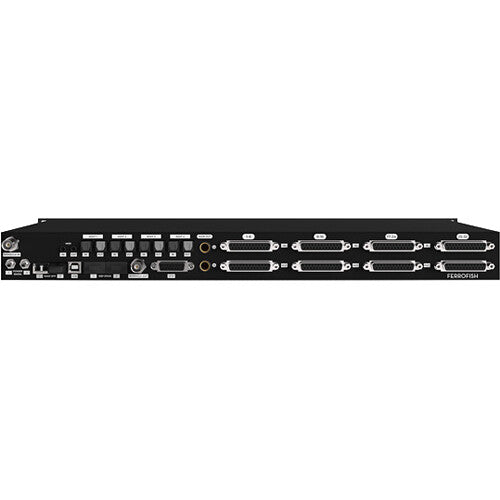

Ferrofish A32pro 32-Channel AD/DA Converter with MADI and ADAT

$2,999.00 - $3,999.00

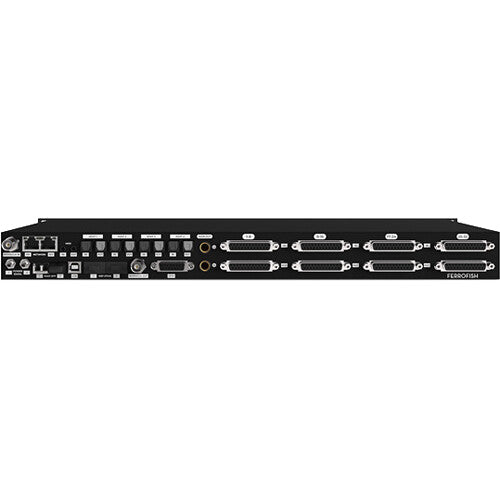

The Ferrofish A32pro and A32pro Dante are the latest in a long line of professional AD/DA converters from German pro audio manufacturer Ferrofish.Continuing the company's successful tradition of designing high-quality, cost-effective AD/DA converters for studio, live audio and broadcast production, the A32pro and A32pro Dante are the natural successors to the popular Ferrofish A32 and A32 Dante models, packing more functionality than ever before into a single 1U frame.

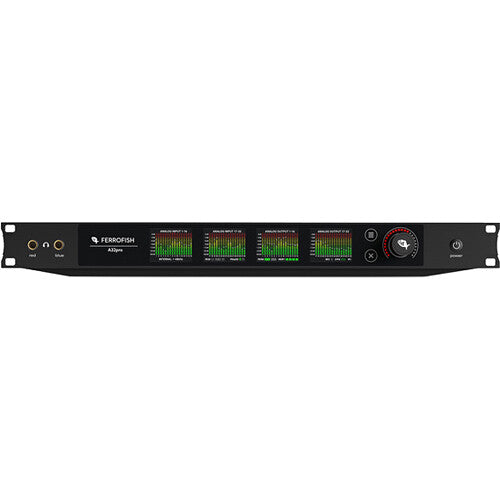

In addition to the completely revised front-panel design, the four TFT screens and highly-intuitive operation of previous models are now supplemented by a touch-screen interface and large encoder knob. Changes to device settings can be made directly from the front of the unit simply by tapping the functions - it couldn't be easier!

View Product Features

  • 32 x 32 analogue I/O channels, fully balanced on DSub25 (Tascam pinout)
  • 32 x 32 ADAT I/O channels on TOSLINK jacks with 96kHz support
  • 64 x 64 MADI I/O channels on LC SFP module, user exchangeable, coax SFP module optional available
  • 64 x 64 DANTE I/O channels on dual Ethernet ports with redundant functionality*
  • Wordclock I/O on BNC connectors with proprietary jitter reduction circuit
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Ferrofish A32pro 32-Channel AD/DA Converter with MADI and ADAT

High-Quality analog conversion: with the latest high-performance low-latency converter generation from ESS, the device sets a new milestone for multi-channel conversion. Combined with a temperature-compensated high-precision clock and an active jitter reduction hardware design, the 388-channel behemoth delivers an exceptional detailed sound.

Key Features

  • 32 x 32 analogue I/O channels, fully balanced on DSub25 (Tascam pinout)
  • 32 x 32 ADAT I/O channels on TOSLINK jacks with 96kHz support
  • 64 x 64 MADI I/O channels on LC SFP module, user exchangeable, coax SFP module optional available
  • 64 x 64 DANTE I/O channels on dual Ethernet ports with redundant functionality*
  • Wordclock I/O on BNC connectors with proprietary jitter reduction circuit

Ferrofish A32pro 32-Channel AD/DA Converter with MADI and ADAT Specs

MADI I/O (AES10)
Dual SFP Slots for MADI
Multimode or Singlemode SFP module as default configuration, optional second SFP module optional
64 channels @32kHz, 44.1kHz, 48kHz
32 channels @64kHz, 88.2kHz, 96kHz
32 channels @128kHz, 176.4kHz, 192kHz*
Latency
3 samples Redundancy: Automatic switching between optical <-> coax MADI when signal lost.
Analog Inputs (AD)
Latest generation of Analog / Digital Converters from ESS Tech.
4 x DSub25 (Tascam format)
Digital gain
+20dBu … -8 dBu, 1dB steps
OpAmps: OPA1604 / OPA1664
Level indicator
TFT screen, 28 levels
Power Supply
12V, 3A
2 x input jacks with screw lock for redundant power.
Voltage supervision, warning message on screen when PSU input fails
Internal resettable polyfuse
1 x Power Supply included, second PSU optional

Key Features

  • 32 x 32 analogue I/O channels, fully balanced on DSub25 (Tascam pinout)
  • 32 x 32 ADAT I/O channels on TOSLINK jacks with 96kHz support
  • 64 x 64 MADI I/O channels on LC SFP module, user exchangeable, coax SFP module optional available
  • 64 x 64 DANTE I/O channels on dual Ethernet ports with redundant functionality*
  • Wordclock I/O on BNC connectors with proprietary jitter reduction circuit
