Ferrofish

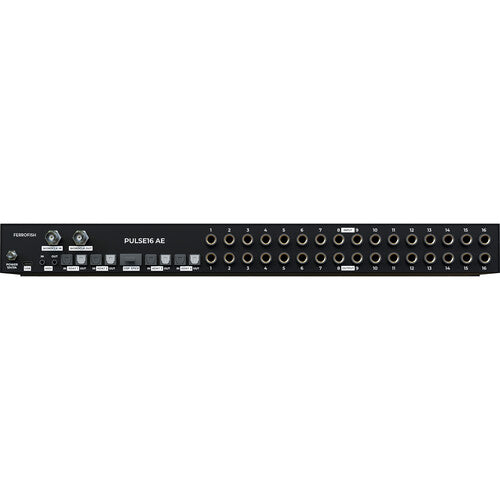

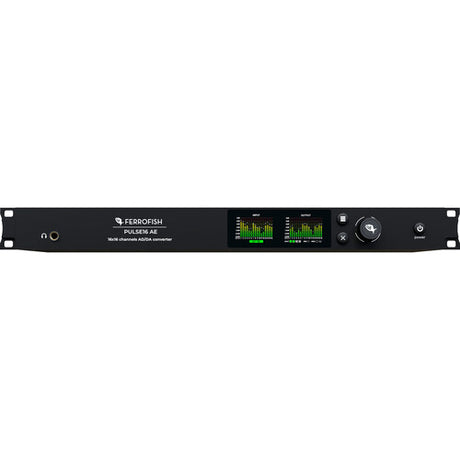

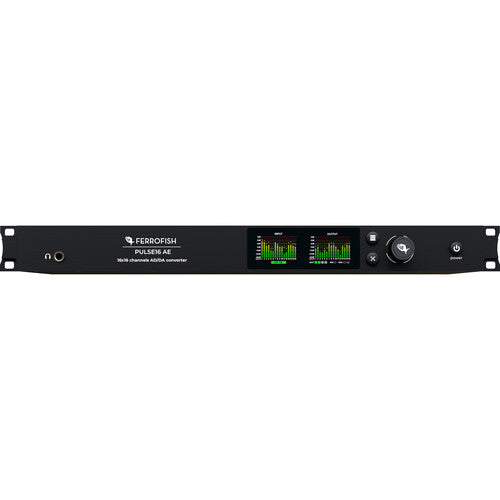

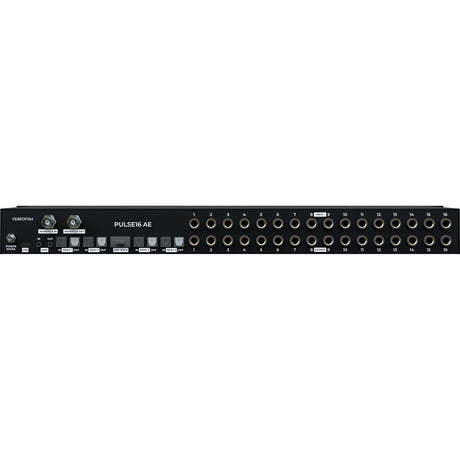

Ferrofish Pulse16 AE 16x16 AD/DA Converter with ADAT
$1,199.00
Unit price
/
The Ferrofish PULSE16 AE is a versatile and compact AD/DA converter designed for seamless integration into studio or live setups. With 16 high-quality balanced analog inputs and outputs, it ensures precise and clean signal conversion. The PULSE16 AE offers full visual control via its vibrant front-panel displays, simplifying real-time monitoring and configuration.
Built to accommodate professional workflows, its robust clocking options and compatibility with standard studio connections make it an essential tool for engineers seeking reliable performance in a 19″ 1HU rack form factor.
View Product Features
View Product Features
In stock
Scroll below to see our current inventory for this item.
In-Stock Inventory
-
New
-
About the Ferrofish Pulse16 AE 16x16 AD/DA Converter with ADAT
Key Features
Ferrofish Pulse16 AE 16x16 AD/DA Converter with ADAT Specs
General
Form Factor
Rackmount
Converter Type
AD/DA Converter
Number of Channels
16x A/D 16x D/A
Conversion Formats
ADAT
Display
2x 3" Color TFT
Maximum Sampling Rate
192 kHz / 32-Bit
Number of Microphone Inputs
No Mic Inputs
Signal Processing
Gain/Trim Range
Line Inputs: 0 to 28 dB (in 1 dB Steps) Line Outputs: 0 to 28 dB (in 1 dB Steps)
Connectivity
Analog Audio I/O
16x 1/4" TRS Balanced Line Input 16x 1/4" TRS Balanced Line Output
Phantom Power
No
Digital Audio I/O
4x TOSLINK Optical ADAT Input (S/MUX4 Support) 4x TOSLINK Optical ADAT Output (S/MUX4 Support)
Host Connection / USB
No
USB (Non-Host)
1x USB-C (MIDI I/O, Remote)
Sync I/O
1x BNC Word Clock Input 1x BNC Word Clock Output
Network I/O
No
MIDI I/O
1x 1/8" / 3.5 mm TRS Input 1x 1/8" / 3.5 mm TRS Output
Expansion Slots
1x Internal DSP Slot
Wireless
No
Performance
Maximum Input Level
+20 dBu
Maximum Output Level
+20 dBu
Dynamic Range
AD/DA Converters: 120 dB (D/A) 116 dB (A/D)
SNR
Line Inputs: 112 dB Line Outputs: 112 dB
THD+N
Line Inputs: -108 dB (1 kHz, 48 kHz SR, A-Weighted, Typ.)) Line Outputs: -110 dB (1 kHz, 48 kHz SR, A-Weighted, Typ.))
Digital Audio
Sample Rates
Up to 192 kHz
Bit Depths
32-Bit
Latency
3 Samples
Sync Sources
ADAT, Internal, Word Clock
Clocking
Word Clock
Accuracy: ±1.5 ppm
Compatibility
OS Compatibility
No
Mobile Device Compatibility
No
Power
Power Requirements
AC/DC Power Adapter (Included)
DC Input Power
12 VDC at 3A
Power Consumption
12 VA (Typical) 1 VA (Standby)
