SKU: Pulse 16 MX

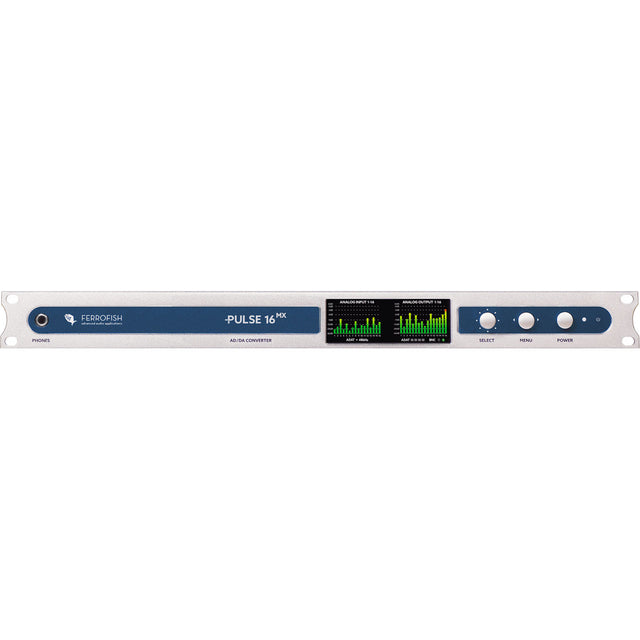

Ferrofish Pulse16 MX Rackmount 16-Channel A/D-D/A ADAT Converter with MADI

$1,349.00

Items Included

1x Pulse16 MX Rackmount 16-Channel A/D-D/A ADAT Converter with MADI Unit
1x 12V Power Supply
1x MADI Cable

Item Notes

Condition: Out of stock

Once stock replenishes, inventory will display below.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

The Ferrofish Pulse16 MX is a 1 RU rackmount 16-channel AD/DA converter offering analog, MADI, and ADAT I/O, for tracking and mixing engineers in recording studios, houses of worship, broadcast trucks, and concert venues. With 24-bit / 192 kHz Cirrus Logic converters, a TCXO internal clock, and an active jitter-elimination circuit, it delivers accurate high-resolution audio. Interface a variety of equipment via the 16 balanced 1/4" TRS inputs/outputs, four ADAT optical inputs/outputs, and optical MADI I/O. The front-panel 1/4" headphone output features digitally controlled volume and an assignable mono or stereo source. BNC jacks provide wordclock I/O for proper synchronization with other digital equipment such as master-clock generators, additional converters, and digital consoles. Remote control of the Pulse16 MX is possible through the MIDI 5-pin ports, which also support MIDI-over-MADI embedding and extracting. Display and modification of device settings, meters, and routing are achieved via the dual color TFT screens and three front-panel controls. The Pulse16 MX includes an external power supply and a MADI cable. Read more

Features

24-Bit / 192 kHz Cirrus Logic Converters
16 x Balanced 1/4" TRS (Inputs/Outputs)
4 x ADAT Optical (Inputs/Outputs)
Optical MADI I/O
1/4" Headphone Output
Wordclock and MIDI I/O
Dual-Color TFT Screens
Active Jitter-Elimination Circuit
Precise Digital Level Control
Includes Power Supply and MADI Cable

Business Financing Options Avaiable

View Available Financing

Features

24-Bit / 192 kHz Cirrus Logic Converters
16 x Balanced 1/4" TRS (Inputs/Outputs)
4 x ADAT Optical (Inputs/Outputs)
Optical MADI I/O
1/4" Headphone Output
Wordclock and MIDI I/O
Dual-Color TFT Screens
Active Jitter-Elimination Circuit
Precise Digital Level Control
Includes Power Supply and MADI Cable

No products currently in stock

About the Ferrofish Pulse16 MX Rackmount 16-Channel A/D-D/A ADAT Converter with MADI

The Ferrofish Pulse16 MX Rackmount 16-Channel A/D-D/A ADAT Converter with MADI is a professional-grade multichannel audio conversion system designed for recording studios, broadcast facilities, live sound environments, and high-end production setups. Combining 16 channels of balanced analog input/output, ADAT connectivity, and MADI digital networking, the Pulse16 MX provides a flexible solution for integrating analog equipment with modern digital audio systems.

The unit features high-quality 24-bit conversion up to 192 kHz using Cirrus Logic converter technology, along with a temperature-compensated precision clock and active jitter reduction hardware for stable and accurate audio performance. Its compact 1RU rackmount design makes it suitable for space-efficient studio installations and mobile production systems requiring high channel density.

With MADI support up to 64 channels and multiple ADAT optical interfaces, the Pulse16 MX provides extensive routing flexibility between analog consoles, digital mixers, audio interfaces, and recording systems. The integrated FPGA-based routing matrix allows independent channel management, while front-panel TFT displays and headphone monitoring provide convenient control and status monitoring.

Key Features

24-Bit / 192 kHz Cirrus Logic Converters
16 x Balanced 1/4" TRS (Inputs/Outputs)
4 x ADAT Optical (Inputs/Outputs)
Optical MADI I/O
1/4" Headphone Output
Wordclock and MIDI I/O
Dual-Color TFT Screens
Active Jitter-Elimination Circuit
Precise Digital Level Control
Includes Power Supply and MADI Cable

Already own this item and want to sell it?

Click here to sell your item

Ferrofish Pulse16 MX Rackmount 16-Channel A/D-D/A ADAT Converter with MADI Specs

Conversion Architecture

Converter Type

16-Channel A/D and D/A Converter

Conversion Resolution

24-Bit

Maximum Sample Rate

Up to 192 kHz

Analog Channels

16 Inputs / 16 Outputs

Converter Technology

Cirrus Logic Conversion System

Clock System

Temperature-Compensated Precision Clock

Jitter Reduction

Active Jitter Reduction Hardware

Analog I/O Performance

Analog Inputs

16 x Balanced 6.3 mm TRS

Analog Outputs

16 x Balanced 6.3 mm TRS

Maximum Input Level

+20 dBu

Maximum Output Level

+20 dBu

Digital Gain Range

+20 dBu to -8 dBu (1 dB Steps)

A/D Signal-to-Noise Ratio

114 dB or Better

D/A Signal-to-Noise Ratio

114 dB (A-Weighted)

A/D THD+N

-105 dB or Better

D/A THD+N

-100 dB

Interchannel Isolation

110 dB or Better

Digital Interface Options

MADI Interface

Optical MADI via SFP Module

MADI Standard

AES10

MADI Channel Capacity

64 Channels @ 32/44.1/48 kHz

MADI Channel Capacity (High Sample Rates)

32 Channels @ 64/88.2/96 kHz; 16 Channels @ 128/176.4/192 kHz

ADAT Interface

4 x Optical ADAT Input + 4 x Optical ADAT Output

ADAT Channel Capacity

32 Channels @ 32/44.1/48 kHz

ADAT SMUX Support

Up to 192 kHz

Routing & Monitoring

FPGA Routing Matrix

112 x 112 Channels

Display System

Dual Color TFT Displays

Level Metering

28-Level TFT Meter Display

Headphone Output

Independent Stereo Monitoring Output

Headphone Source Selection

Any Mono or Stereo I/O Source

MIDI Monitoring

MIDI-over-MADI Support (with MADI Module)

Synchronization & Control

Word Clock

BNC Input and Output

Word Clock Termination

Switchable 75 Ohm Input Termination

MIDI Ports

2 x DIN5 MIDI I/O

MIDI Function

Remote Control and Firmware Updates

Key Features

24-Bit / 192 kHz Cirrus Logic Converters
16 x Balanced 1/4" TRS (Inputs/Outputs)
4 x ADAT Optical (Inputs/Outputs)
Optical MADI I/O
1/4" Headphone Output
Wordclock and MIDI I/O
Dual-Color TFT Screens
Active Jitter-Elimination Circuit
Precise Digital Level Control
Includes Power Supply and MADI Cable
