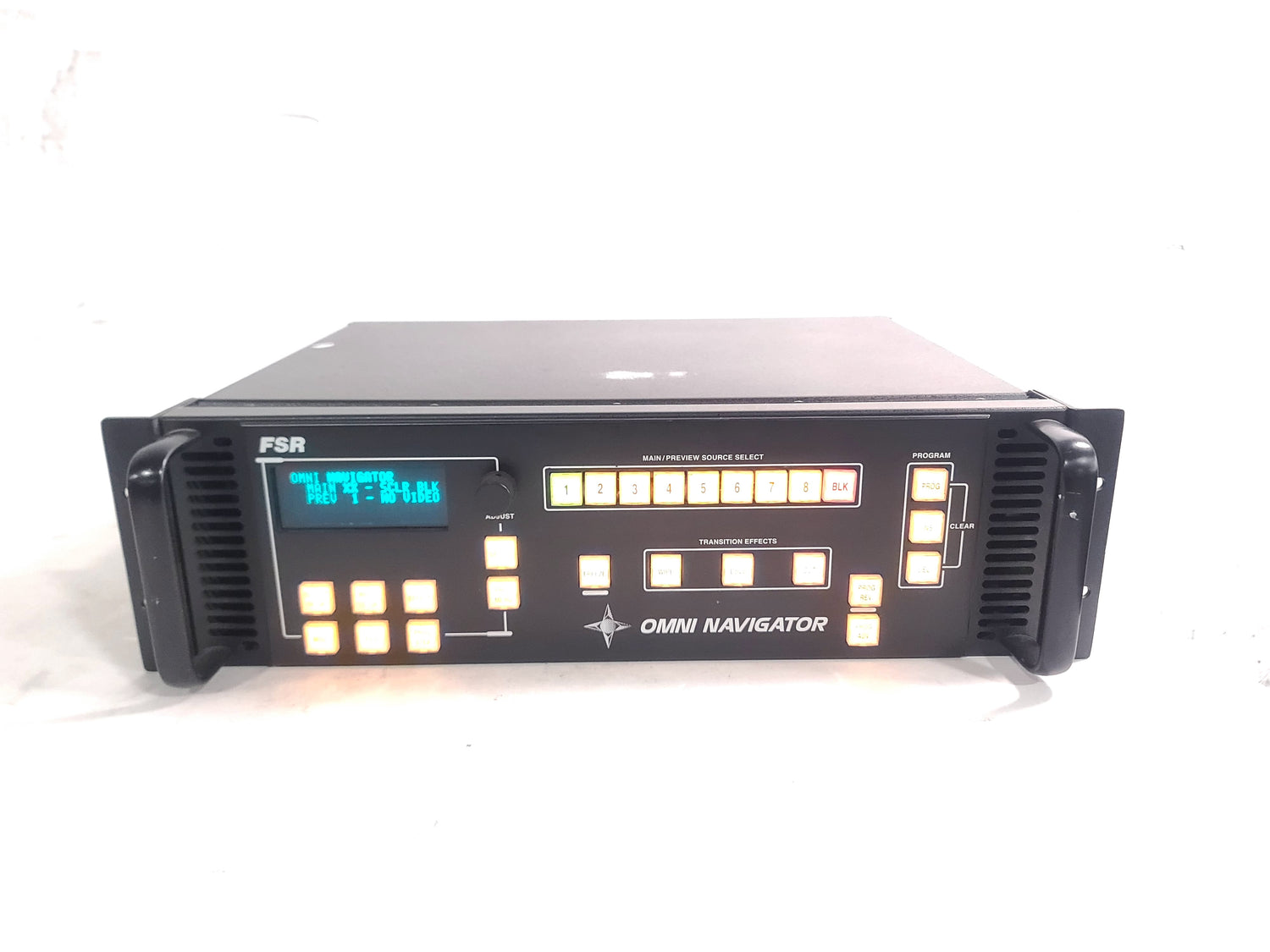

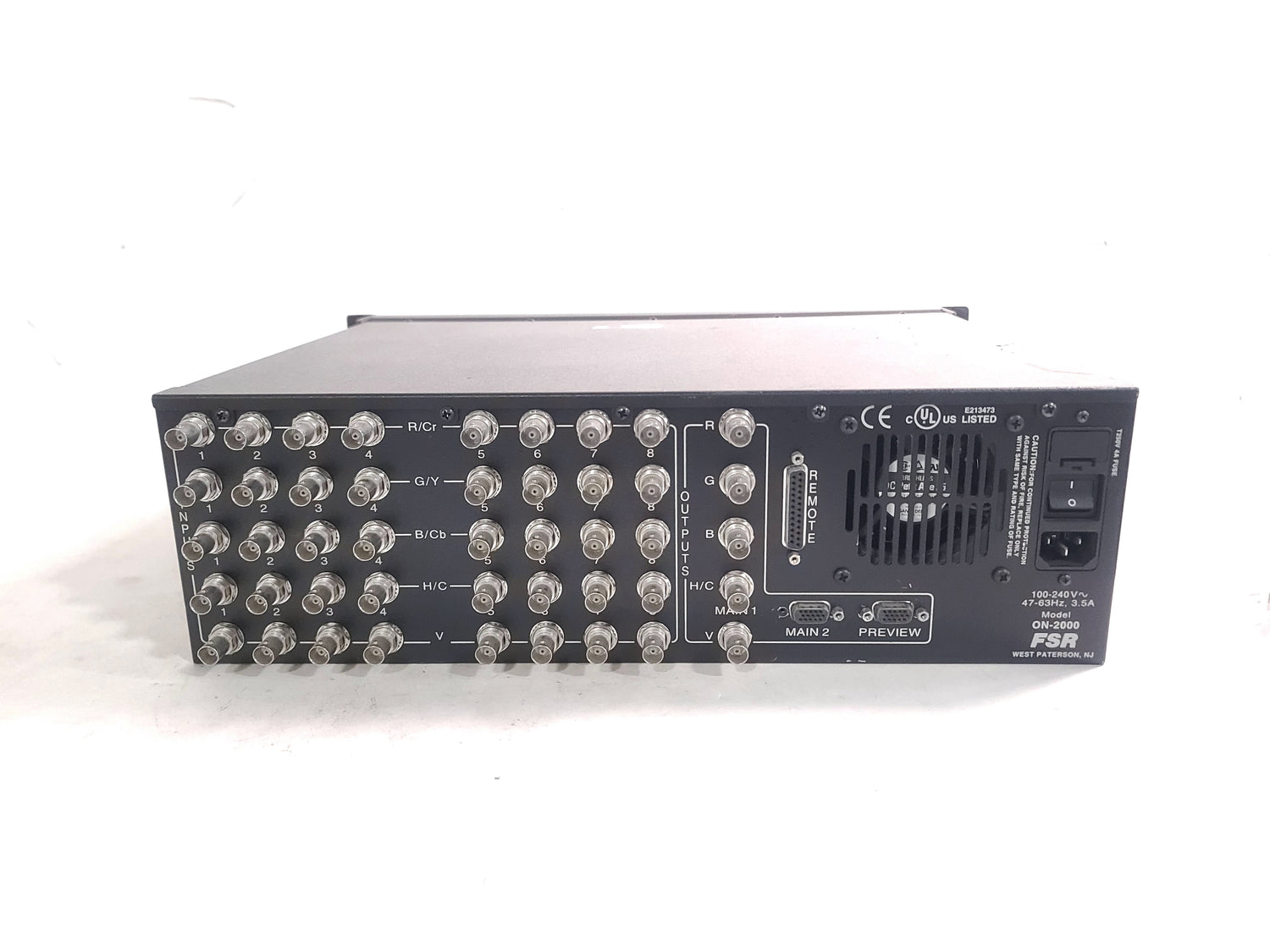

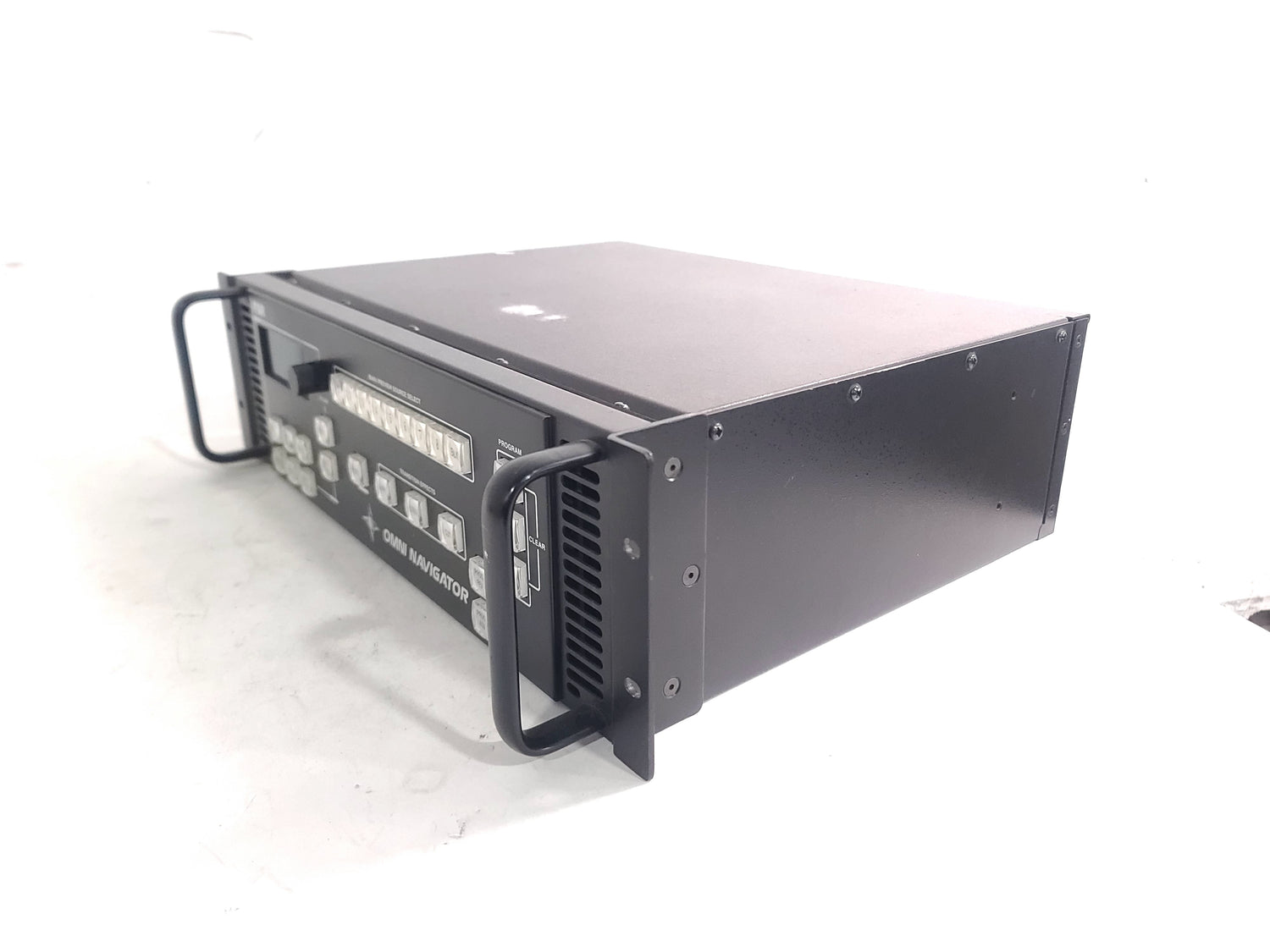

Source Selection: 9 illuminated keys support selection of the eight sources or black screen. Transition Effects: 3 illuminated keys: wipe, dissolve, and cut. Also controls the P-I-P and Key Functions Program Keys: 5 illuminated keys support generation, storage, recall, and editing of the preprogrammed control sequences. Freeze Key: A single illuminated key used to freeze the image on the main output. Setup Controls: Display, control knob, and 8 keys provide a menu-based front panel interface to support all setup functions. Test Patterns: Horizontal Ramp, Horizontal Bars, Burst, Color Bars, Black, and White Cross Hatch Raster Box: Available independently & simultaneously on the Preview and Main outputs MIXING AND TRANSITION EFFECTS
Transition effects: Cut, Dissolve, Wipe, Freeze, Picture-In-Picture (P-I-P), and Luminance Key Transition times: Adjustable from 0.1 to 5.0 seconds for Wipes and Dissolve Wipe Types: Up, Down, Left, Right, Mosaic, Curtain Open, Curtain Close, Curtain Up, Curtain Down Wipe Edge Control: Adjustable edge width of effect. Possible selections are: 4, 8, 16, 32, 64, 128, and 256 pixels. (Available on Preview Output also, requires use of FSR’s HELM Controller.) Transitions for Keying: Up, Down, Left, Right, Mosaic, Curtain Open, Curtain Close, Curtain Up, Curtain Down Freeze Key: Used to freeze the image on the main output. Picture-in-Picture Control: Size & Position
