Global Truss

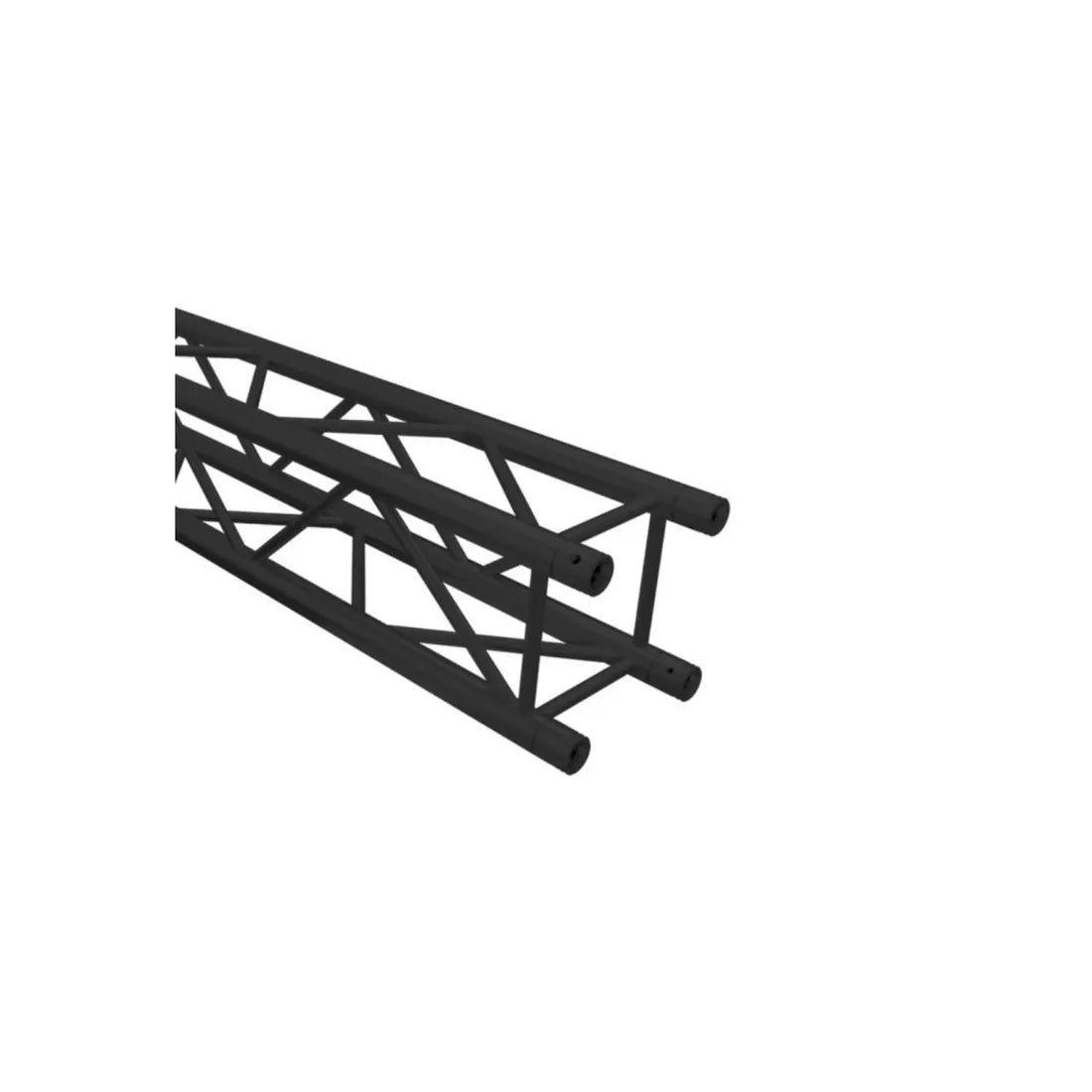

Global Truss F34 Square Segment (Black, 9.84')

$758.00

The Global Truss SQ-4114 BLK/MTE is a 9.84FT (3-meter) straight segment square truss from the F34 Series, designed to provide robust support and structural integrity for a wide range of rigging and event production applications. Known as one of Global Truss' most popular lines, the F34 Series is widely used in the entertainment and production industries for its reliability, ease of use, and high performance. Featuring 1.97-inch diameter tubing, 0.78-inch diagonal bracing, and 0.08-inch wall thickness, this truss segment is engineered to handle higher loading capacities while maintaining a compact and lightweight profile.

Constructed from EN-AW 6082 T6 aluminum alloy, the SQ-4114 BLK/MTE offers both strength and durability without the added weight of larger, heavier trusses. The truss's black finish provides a professional and sleek look, making it perfect for both visible installations and discreet rigging. With a width of 12 inches (290mm) and a length of 9.84FT (3-meter), this square truss segment is versatile enough for a variety of uses, including small-scale stages, lighting setups, exhibitions, and event displays. Its durable construction and ability to handle increased load capacities make it an ideal choice for demanding applications in both temporary and permanent installations.

View Product Features

  • Measures 9.84ft (3m) in overall length
  • 11 7/16" (290mm) square outer dimension
  • Main tubing is 2" (50mm) diameter with 2mm thick walls
  • Diagonal bracing is 3/4" (20mm) for additional stability
  • Constructed from EN-AW 6082 T6 aluminum alloy
  • Powder-coated in black for non-reflective professional finish
  • Compatible with F34 truss systems
  • Total unit weight is 40 lb (18.16kg)
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Global Truss F34 Square Segment (Black, 9.84')

The black, powder coat-finished Global Truss F34 Square Segment is used to create structures and sets in various public venues. It is 9.8' long and 1' wide.

Key Features

  • Measures 9.84ft (3m) in overall length
  • 11 7/16" (290mm) square outer dimension
  • Main tubing is 2" (50mm) diameter with 2mm thick walls
  • Diagonal bracing is 3/4" (20mm) for additional stability
  • Constructed from EN-AW 6082 T6 aluminum alloy
  • Powder-coated in black for non-reflective professional finish
  • Compatible with F34 truss systems
  • Total unit weight is 40 lb (18.16kg)

Global Truss F34 Square Segment (Black, 9.84') Specs

General
Compatibility
Global Truss SQ SQ-4114 Structures
Physical
Mounting
Top: 4x Insert Bottom: 4x Insert
Color
Black
Material of Construction
Aluminum
Certifications
TUV
Dimensions
9.8 x 1' / 300 x 29 cm
Weight
40.04 lb / 18.16 kg

Key Features

  • Measures 9.84ft (3m) in overall length
  • 11 7/16" (290mm) square outer dimension
  • Main tubing is 2" (50mm) diameter with 2mm thick walls
  • Diagonal bracing is 3/4" (20mm) for additional stability
  • Constructed from EN-AW 6082 T6 aluminum alloy
  • Powder-coated in black for non-reflective professional finish
  • Compatible with F34 truss systems
  • Total unit weight is 40 lb (18.16kg)
