Global Truss

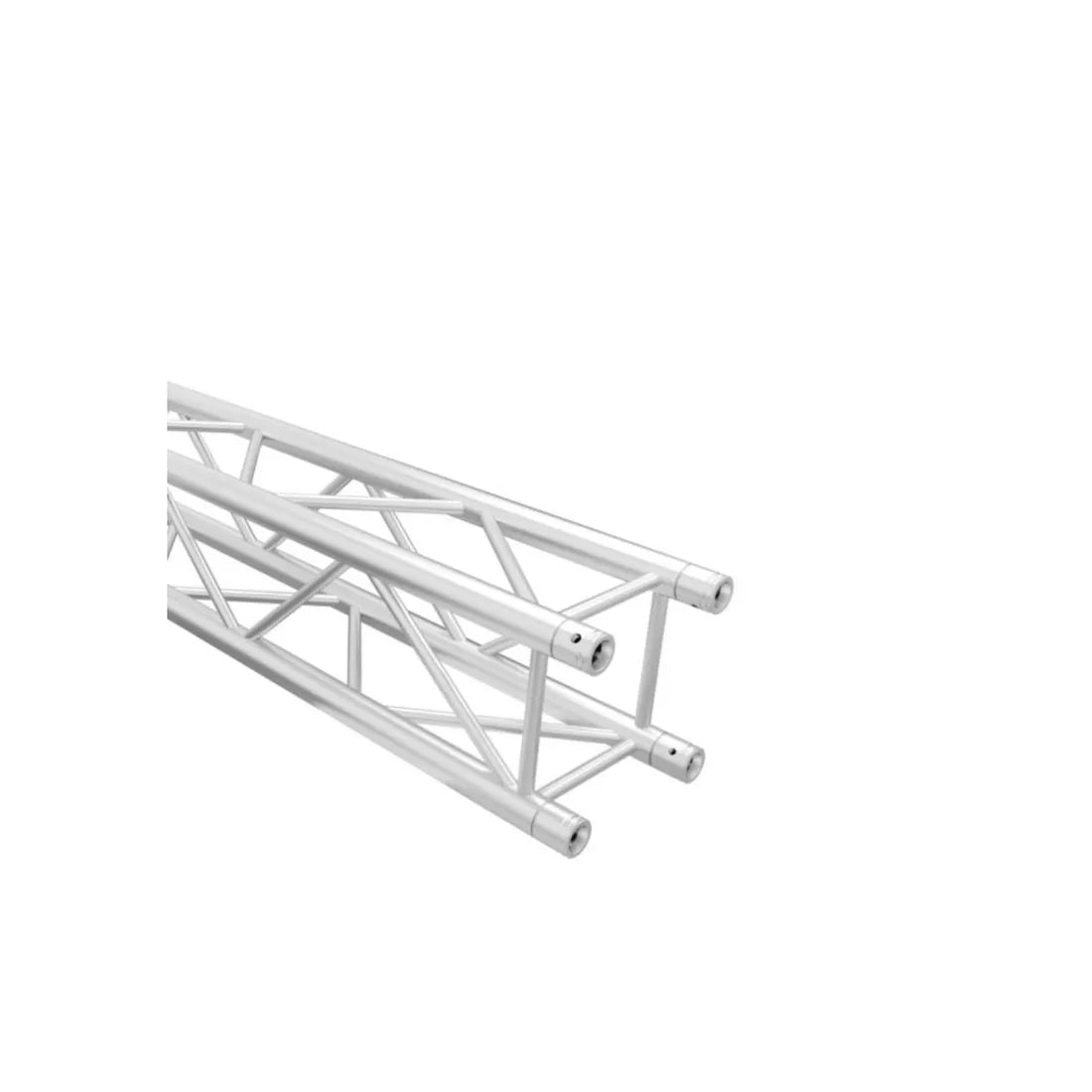

Global Truss Straight Square Segment for F34 Square Truss (2.5, Aluminum)

$283.00

The Global Truss SQ-4110-75 is a 0.75-meter (2.46-foot) straight square truss segment from the industry-standard F34 Series, offering a medium-length solution for precise modular builds. This versatile section is ideal for bridging gaps, fine-tuning spacing, and achieving exact dimensions in lighting grids, stage frameworks, exhibition booths, and ground support systems where full-meter lengths are too long and half-meter segments are too short. It is widely used in theaters, festivals, trade shows, and permanent installations requiring reliable, adaptable trussing.

Constructed from high-grade EN-AW 6082 T6 aluminum alloy, the SQ-4110-75 features an 11.4-inch (290mm) square profile with 50mm main tubes and 20mm diagonal bracing, both with 2mm wall thickness. Weighing only 14 lbs, it delivers exceptional strength-to-weight performance while remaining highly portable for touring professionals. It utilizes Global Truss's efficient European-style conical connection system with all hardware included for fast, tool-free assembly, and integrates seamlessly with all F34 Series components for complete modular flexibility.

View Product Features

  • Measures 2.46 feet (0.75 meters) in overall length
  • Maintains a standard 11 7/16" (290mm) outer width
  • Equipped with 2" (50mm) outer tubing for structural strength
  • 2mm wall thickness supports heavier rigging loads
  • Weighs just 14 pounds (6.36 kg) for easy handling
  • Compatible with F34 square truss systems
  • Ships with connection hardware
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Global Truss Straight Square Segment for F34 Square Truss (2.5, Aluminum)

Use the 2.5 Global Truss Straight Square Segment for F34 Square Truss, in an aluminum finish, to support lights, audio equipment, and other gear at events, concerts, and other venues. Mounting hardware is included.

Key Features

  • Measures 2.46 feet (0.75 meters) in overall length
  • Maintains a standard 11 7/16" (290mm) outer width
  • Equipped with 2" (50mm) outer tubing for structural strength
  • 2mm wall thickness supports heavier rigging loads
  • Weighs just 14 pounds (6.36 kg) for easy handling
  • Compatible with F34 square truss systems
  • Ships with connection hardware

Global Truss Straight Square Segment for F34 Square Truss (2.5, Aluminum) Specs

General
Compatibility
Global Truss F34 Square Truss
Diameter
11.4" / 29 cm
Physical
Color
Silver
Material of Construction
Aluminum
Dimensions
2.5' / 75 cm

Key Features

  • Measures 2.46 feet (0.75 meters) in overall length
  • Maintains a standard 11 7/16" (290mm) outer width
  • Equipped with 2" (50mm) outer tubing for structural strength
  • 2mm wall thickness supports heavier rigging loads
  • Weighs just 14 pounds (6.36 kg) for easy handling
  • Compatible with F34 square truss systems
  • Ships with connection hardware
