Global Truss

Global Truss Vertical Truss Circle for F32 I-Beam Truss System (4.92')

$847.00

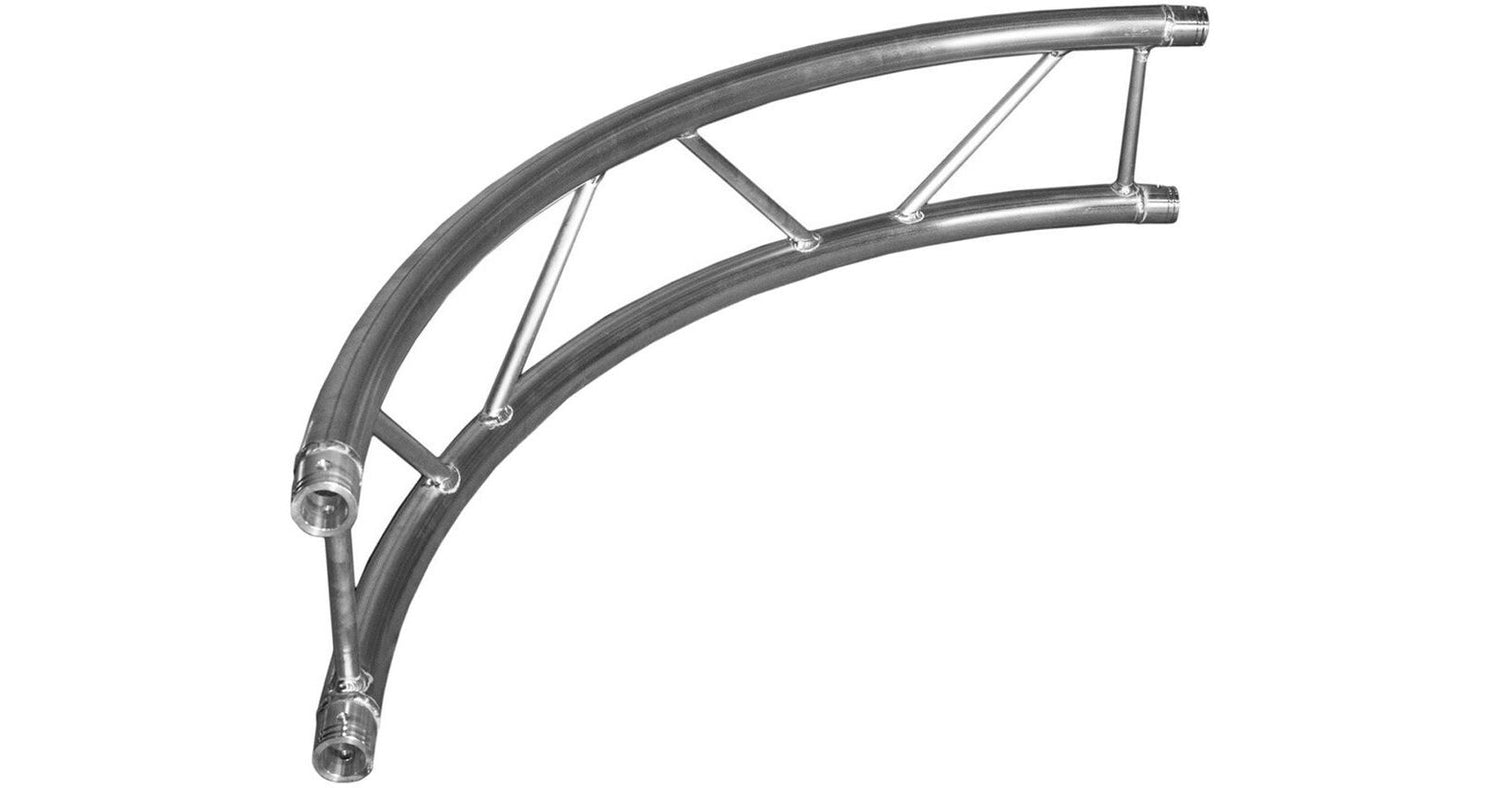

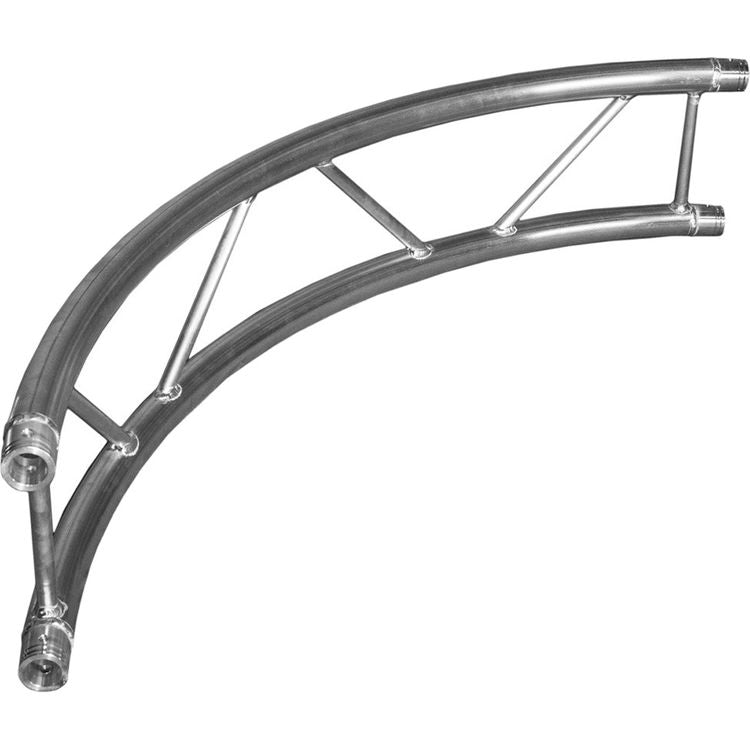

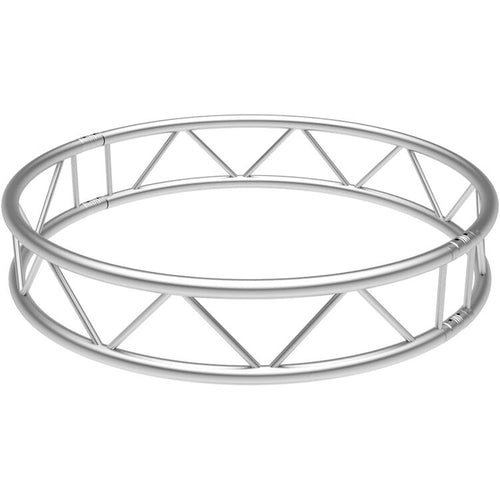

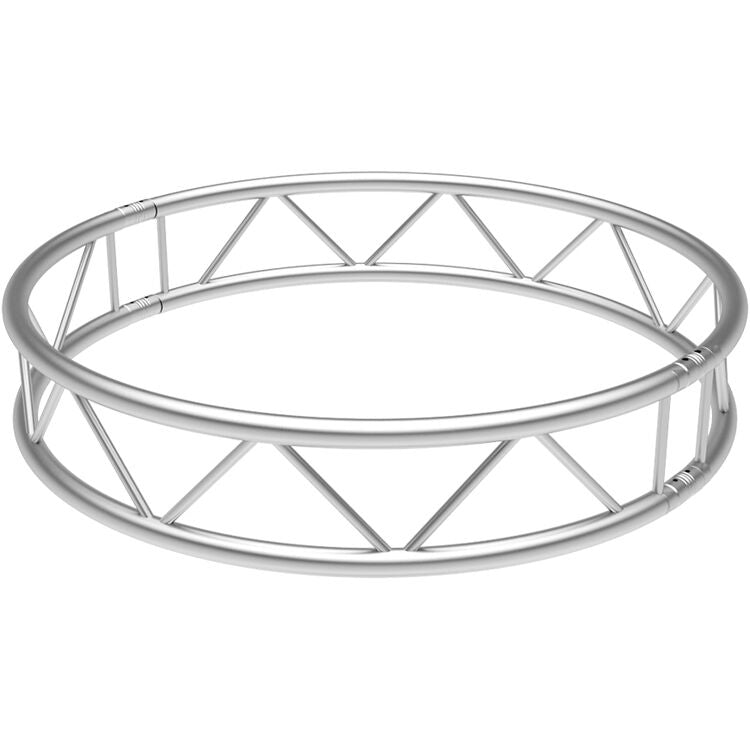

The Global Truss IB-C1.5-V180 OD Vertical Circle consists of two 180° arcs that join together to form a circle with braces and a 4.92' diameter. The truss circle weighs 24 lb.

View Product Features

2 x 180° Arcs
Arcs Join to Form Circle
Weight: 24 lb

In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

New
IB-C1.5-V180

Global Truss Vertical Truss Circle for F32 I-Beam Truss System (4.92')

$847.00

View Product

Already own this item and want to sell it?

Click here to sell your item

About the Global Truss Vertical Truss Circle for F32 I-Beam Truss System (4.92')

From the F32 I-Beam Truss offerings from Global Truss comes the IB-C1.5-H180 - a horizontal truss circle. This model is composed of two 180° arcs that when joined form a 4.92 foot (1.5 meter) truss circle.

Key Features

2 x 180° Arcs
Arcs Join to Form Circle
Weight: 24 lb

Global Truss Vertical Truss Circle for F32 I-Beam Truss System (4.92') Specs

Overall Width

11 7/16" (290mm)

Outer Diameter Tubing

2" (50mm)

Diagonal Bracing

3/4" (20mm)

Wall Thickness

0.08" (2mm)

Unit Weight

24 lbs

Key Features

2 x 180° Arcs
Arcs Join to Form Circle
Weight: 24 lb
