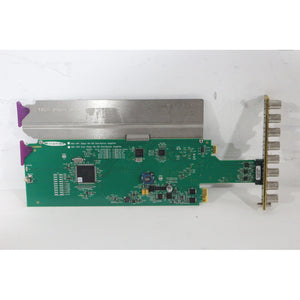

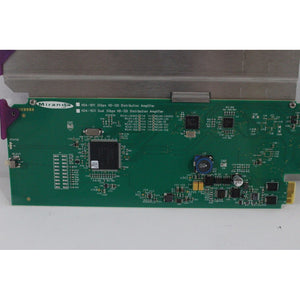

The HDA-3911 is a high-performance, single-input distribution amplifier designed to support the transmission of 3G-SDI, HD-SDI, and SD-SDI signals over both electrical coaxial and optical fiber interfaces. This dual-output capability provides system integrators with exceptional flexibility, allowing a single video source to be simultaneously distributed to two different types of destinations—one via traditional copper BNC connection and the other via a long-distance, noise-immune single-mode fiber link. The device actively reclocks and equalizes the incoming electrical SDI signal, restoring its integrity before distributing a pristine copy to each output. This regeneration is critical for maintaining broadcast-quality signal levels and timing, especially when driving long cable runs or when the input signal has been degraded by previous distribution stages.

The fiber output is a key differentiator, as it enables signal transmission over many kilometers without the need for additional external media converters or repeaters. This makes the HDA-3911 ideal for applications requiring signal distribution between buildings, across large campuses, or in environments with high levels of electromagnetic interference where copper cabling would be susceptible to noise. The unit typically supports common optical wavelengths (like 1310nm) and uses standard LC or SC connectors, ensuring compatibility with existing fiber infrastructure. On the electrical side, the output is a standard, reclocked 75-ohm coaxial signal, providing a local feed for monitoring or further distribution within a rack.

Housed in a compact, rack-mountable chassis that can accommodate multiple units side-by-side, the HDA-3911 is built for reliability in 24/7 broadcast, medical imaging, and large-venue AV installations. It represents a hybrid solution that bridges the gap between the widespread use of coaxial cabling in local equipment areas and the superior distance/immunity of fiber optic backbone links. By integrating both output types in one device, it simplifies system design, reduces points of failure, and offers a cost-effective and space-efficient method for ensuring signal integrity across diverse distribution requirements within a professional facility.
