ISIS Innovation

ISIS Innovation 16x16 SDI Matrix Router

$458.99

The ISIS Innovation 16×16 SDI Matrix Router is a dual-function device combining a multiviewer and an SDI matrix switcher in a 16‑input, 16‑output configuration. It supports auto-detected 3G‑SDI inputs, delivers multiview output via SDI or HDMI (complete with audio and overlays), and features preset recall for routing and layout control. Designed for broadcast operators, OB vans, and live‑production workflows requiring compact, flexible signal routing and monitoring.

View Product Features

  • 16×16 3G‑SDI matrix routing with auto-detect for SD/HD/3G‑SDI signals
  • Integrated multiviewer output (2× SDI + HDMI) with audio and timecode overlays
  • Full-screen plus 20 user-selectable multiview layouts with clock and UMD display
  • Routing presets (“salvos”) for quick crosspoint recall
  • Remote-capable operation via local panels or over TCP/IP Ethernet
  • Ideal for simultaneous routing and monitoring tasks in compact broadcast setups
Low stock
1 in stock – Hurry while stock lasts

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the ISIS Innovation 16x16 SDI Matrix Router

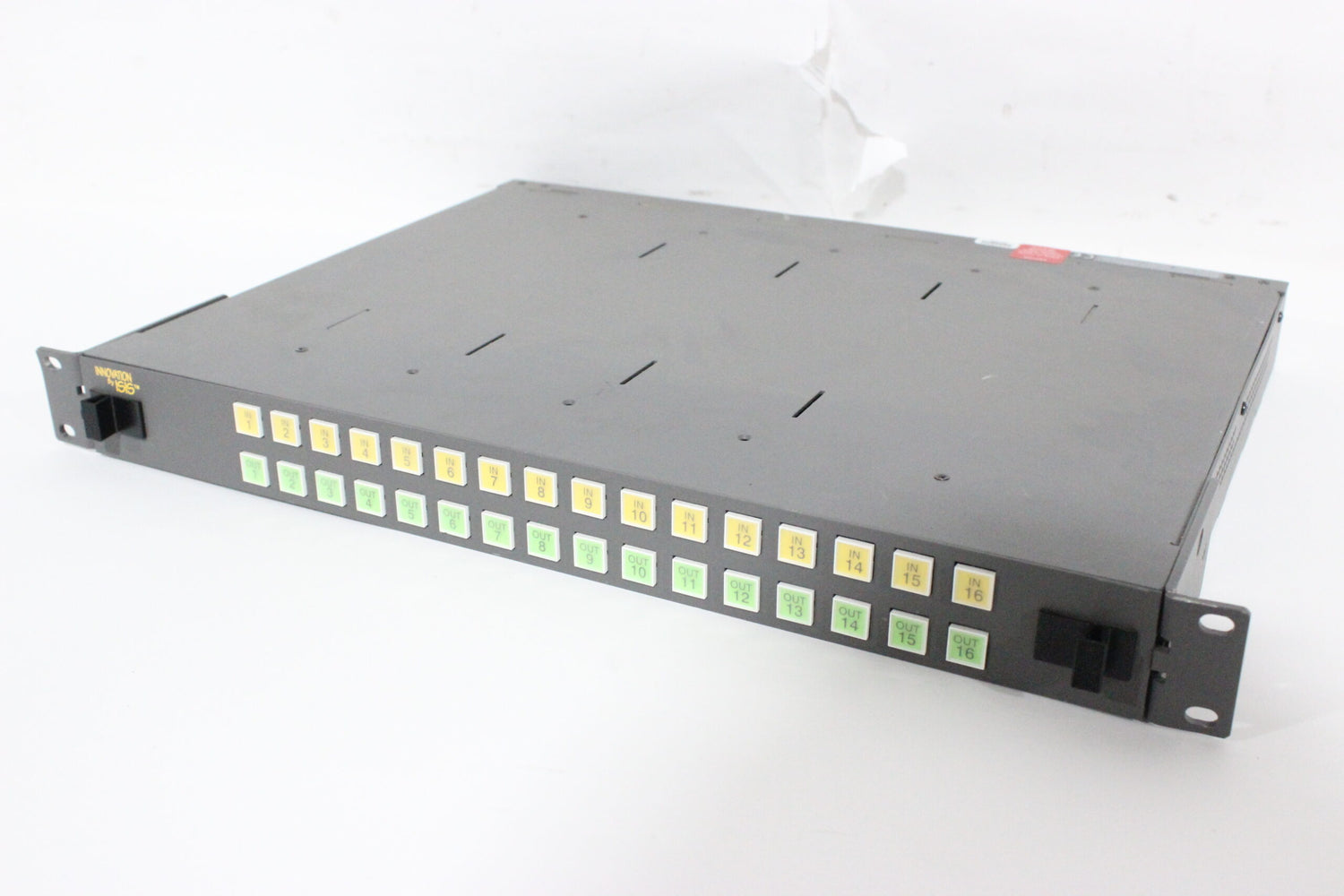

The ISIS Innovation 16x16 SDI Matrix Router is a highly capable and compact broadcast solution, designed specifically for professional environments like OB vans, live production studios, and control rooms where efficient signal routing and monitoring are crucial. This device distinguishes itself by offering dual functionality within a single, space-saving 1U rack-mount chassis: it operates as a full 16-input, 16-output 3G-SDI matrix switcher while also integrating a comprehensive multiviewer. This clever combination allows operators to route any input to any output simultaneously, while also displaying multiple video sources in customizable layouts on a single monitoring screen, complete with helpful overlays like UMDs, audio meters, and timecode.
The engineering behind this router focuses on professional reliability and seamless operation.

It handles various SDI rates—SD, HD, and 3G-SDI—automatically detecting the input format, which simplifies integration within diverse legacy and modern broadcast infrastructures. A key feature of the "seamless" variants of this technology is the built-in frame synchronizer, which ensures smooth transitions between signals of different resolutions and frame rates without experiencing disruptive black screens. Control is flexible, offering both physical front-panel buttons and knob control for quick adjustments, as well as remote management via PC software over a standard LAN connection or serial ports (RS-232/RS-422). The inclusion of a redundant dual power supply design further underscores its suitability for mission-critical applications where failure is simply not an option.

In essence, the ISIS Innovation 16x16 SDI Matrix Router serves as a versatile workhorse for broadcast professionals who require a high-density, reliable, and feature-rich routing solution in a small footprint. Its ability to pass all ancillary data and embedded audio without compromise makes it a truly production-ready tool. The product is frequently identified as a white-label version of the AVMATRIX MSS1611-S or similar professional OEM hardware, and can sometimes be found for purchase through specialized broadcast equipment suppliers.

Key Features

  • 16×16 3G‑SDI matrix routing with auto-detect for SD/HD/3G‑SDI signals
  • Integrated multiviewer output (2× SDI + HDMI) with audio and timecode overlays
  • Full-screen plus 20 user-selectable multiview layouts with clock and UMD display
  • Routing presets (“salvos”) for quick crosspoint recall
  • Remote-capable operation via local panels or over TCP/IP Ethernet
  • Ideal for simultaneous routing and monitoring tasks in compact broadcast setups

ISIS Innovation 16x16 SDI Matrix Router Specs

Inputs

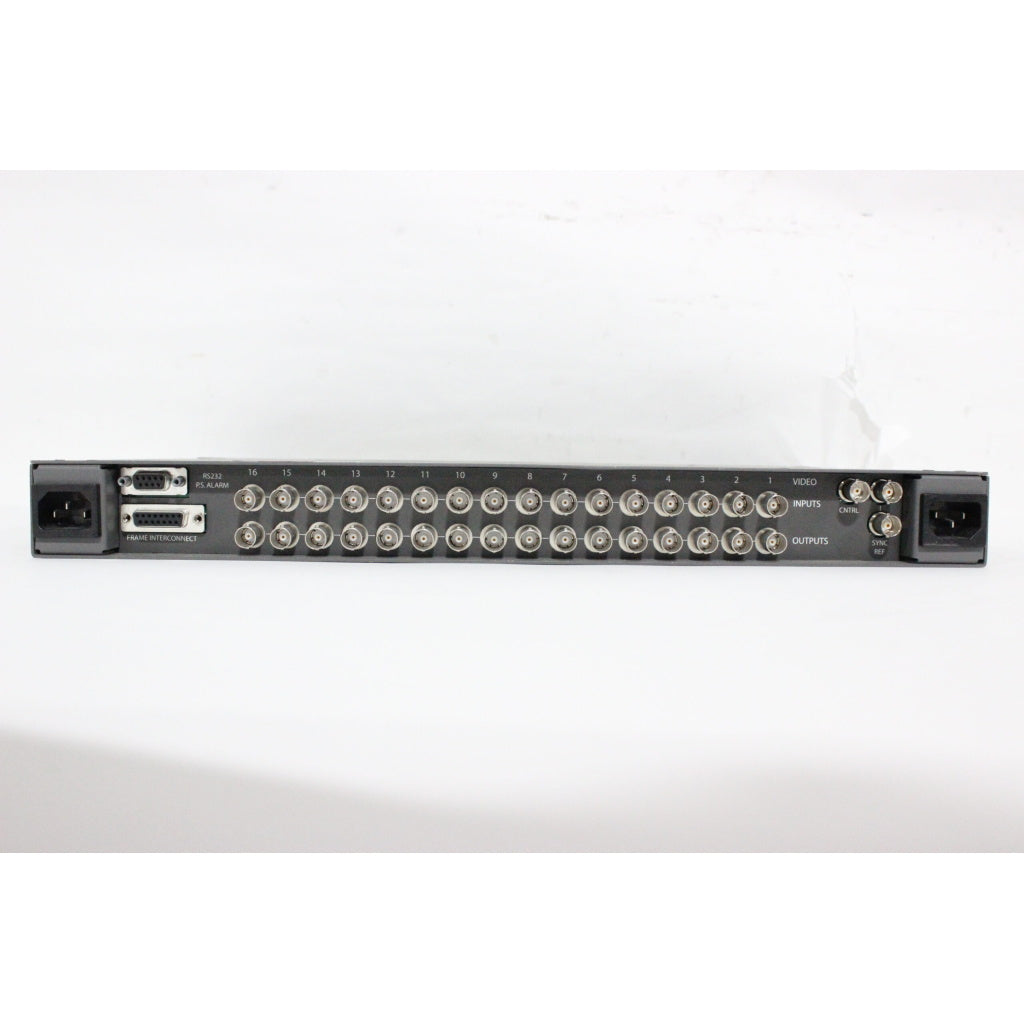

16x SD/HD/3G-SDI BNC connectors (75O impedance)
Outputs
16x SD/HD/3G-SDI BNC connectors, plus 2x SDI and 1x HDMI for multiviewer output
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M standards
Video Formats Supported
525i, 625i, 720p (all frame rates), 1080i (50/59.94/60 Hz), 1080p (all frame rates up to 60 Hz)
Color Space & Precision
YUV 4:2:2 (10/12-bit), YUV 4:4:4, RGB 4:4:4 (on SDI inputs)
Ancillary Data
Passes all embedded audio and ancillary data
Multiviewer Layouts
20 user-selectable layouts with UMD, audio meter, status, and timecode overlays
Switching Type
Seamless switching with built-in frame synchronizer capability
Control Interfaces

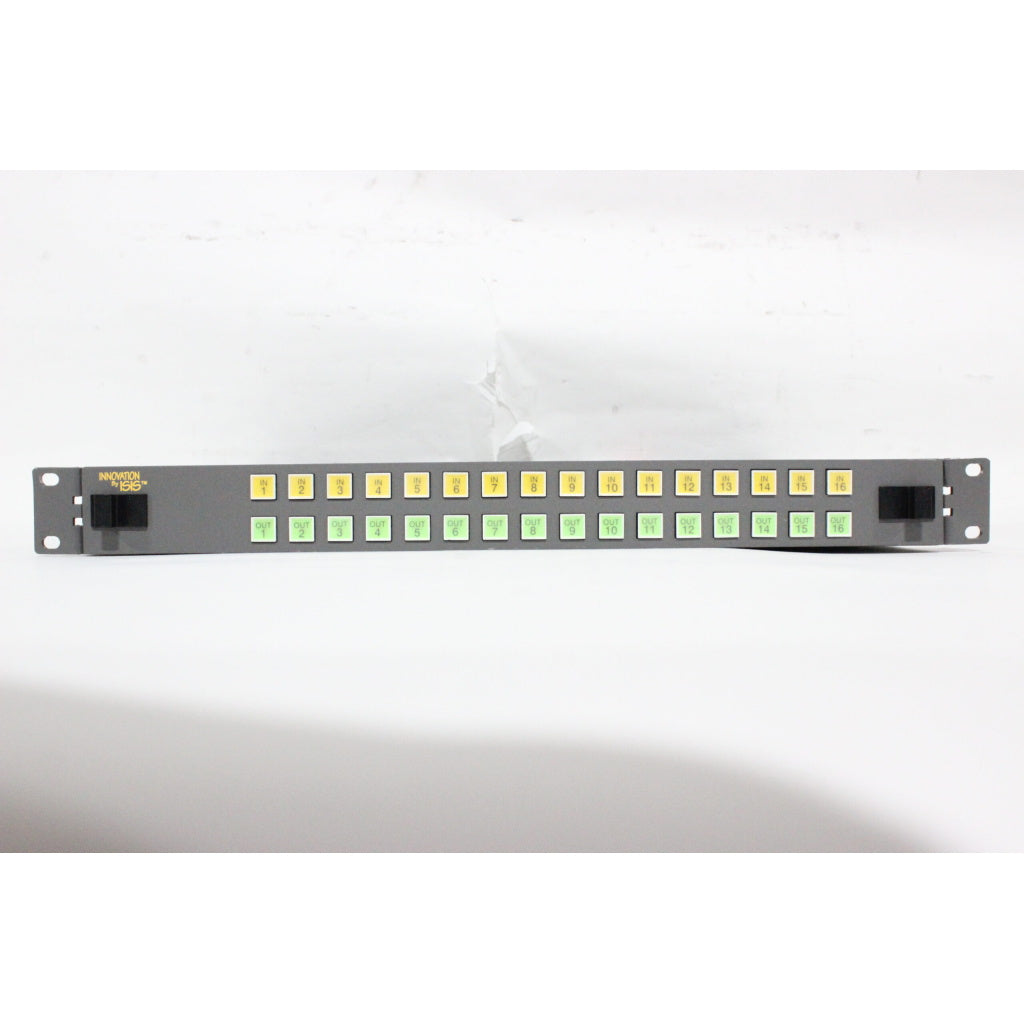

Front panel buttons and knob, PC software via LAN (TCP/IP), RS-232/RS-422 serial ports
Power Supply
Dual redundant power design (PS-1, PS-2) via threaded locking connectors
Voltage Range
DC 12-20 V (up to 24V on some models)
Power Consumption
Approximately 36W
Form Factor
Standard 19-inch 1 RU rack-mount unit
Dimensions
19" x 1.75" (1 RU height)
Weight
Approximately 4.4 lbs (2 kg)
Operating Temperature
0°C to 60°C (32°F to 140°F)
