JBL

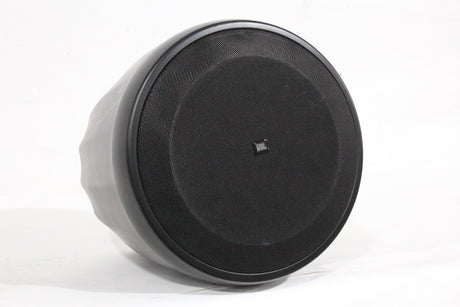

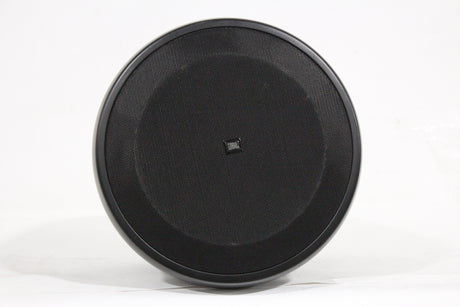

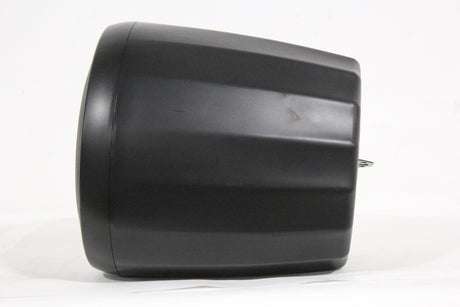

JBL 67HC/T Narrow-Coverage Satellite Pendant Speaker

$279.67

The pair of Control 67HC/T from JBL are satellite pendant speakers that provide extended-range audio in a compact design. It features a 6.5" woofer and a silk-dome tweeter that deliver high-quality audio with a wide frequency response, ideal for music or speech applications. A full grille protects the drivers and gives the speaker a sleek look.

The speaker has JBL's exclusive Radiation Boundary Integration (RBI) technology to provide 75° of consistent conical coverage. This well-controlled narrow coverage provides improved clarity in high-ceiling and reverberant locations. The speaker has a 75W power handling capability and an 8 ohm impedance for compatibility with a variety of installation sound systems. It also has a 60W multi-tap transformer for professional installs.

View Product Features

  • Compact Design
  • 6.5" Woofer with Silk-Dome Tweeter
  • Radiation Boundary Integrator Technology
  • 75° Conical Coverage
  • 75W Power Handling
  • 60W Multi-Tap Transformer
  • Full Grille
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the JBL 67HC/T Narrow-Coverage Satellite Pendant Speaker

The JBL Control 67HC/T is a narrow-coverage pendant speaker designed for high-ceiling and reverberant venues such as atriums, convention centers, and transit centers. Its specialized 75° conical coverage, achieved through JBL's Radiation Boundary Integrator (RBI) technology, ensures improved voice intelligibility and consistent sound distribution in acoustically challenging spaces.

This two-way, full-range speaker features a 6.5" low-frequency driver and a 1" silk-dome tweeter, delivering high-quality audio for both music and speech applications. With a power handling of 75 watts (continuous pink noise) and selectable 70V/100V multi-tap transformer options (including an 8-ohm direct setting), it offers versatility for various commercial sound systems. The durable, high-impact polystyrene enclosure and zinc-plated steel grille are built to withstand humidity and UV exposure, making it suitable for protected outdoor areas as well.

Key Features

  • Compact Design
  • 6.5" Woofer with Silk-Dome Tweeter
  • Radiation Boundary Integrator Technology
  • 75° Conical Coverage
  • 75W Power Handling
  • 60W Multi-Tap Transformer
  • Full Grille

JBL 67HC/T Narrow-Coverage Satellite Pendant Speaker Specs

Frequency Range (-10dB)
75 Hz – 17 kHz
Frequency Range (±3 dB)
110 Hz – 16 kHz
Power Rating
75 W continuous pink noise (300 W peak), 150 W continuous program power
Nominal Sensitivity
93 dB
Coverage Angle
75° conical
Directivity Factor (Q)
10.4
Directivity Index (DI)
9.8 dB
Maximum SPL (1m)
112 dB continuous pink noise, 118 dB peak
Impedance
8 ohms

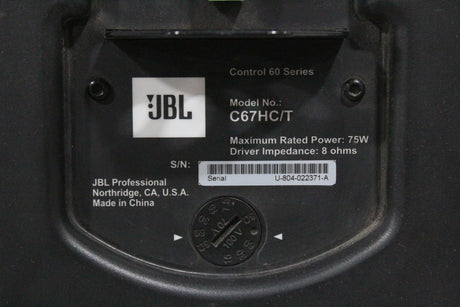

Transformer Taps
70V: 60W, 30W, 15W, 7.5W; 100V: 60W, 30W, 15W
Transformer Insertion Loss
0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
Drivers
LF: 165 mm (6.5 in) polypropylene-coated paper, butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin former; HF: 25 mm (1 in) textile soft-dome, neodymium magnet, ferro-fluid cooling, aluminum former
Enclosure
High impact polystyrene
Grille
Zinc-plated steel grille, powder-coat finish, foam backing, removable for painting
Outdoor Capability
Mil Spec 810 compliant for humidity, salt spray, temperature, UV; IP44 splashproof per IEC 529
Input Connectors
Two removable locking euro-block 2-pin connectors, loop-thru, max 12 AWG (2.5 mm²), rubber terminal covers
Suspension
Dual suspension systems, 4.5 m (15 ft) 2 mm galvanized steel cables, spring-clips, Gripple™ adjustable fasteners, SWL 45 kg (99 lb)
Safety Agency
UL1480 speaker, UL1876 transformer, IEC60849/EN60849, UL1598, UL2239, TUV, CSA Class 3426-01 & 3426-81
Dimensions (H x W x D)
333 mm (13.1 in) diameter × 344 mm (13.6 in) height, 369 mm (14.5 in) to top of suspension bracket
Net Weight (each)
5.9 kg (13 lbs)
Shipping Weight (pair)
14.1 kg (31 lbs)
Colors
Black or white (-WH), paintable

Key Features

  • Compact Design
  • 6.5" Woofer with Silk-Dome Tweeter
  • Radiation Boundary Integrator Technology
  • 75° Conical Coverage
  • 75W Power Handling
  • 60W Multi-Tap Transformer
  • Full Grille
