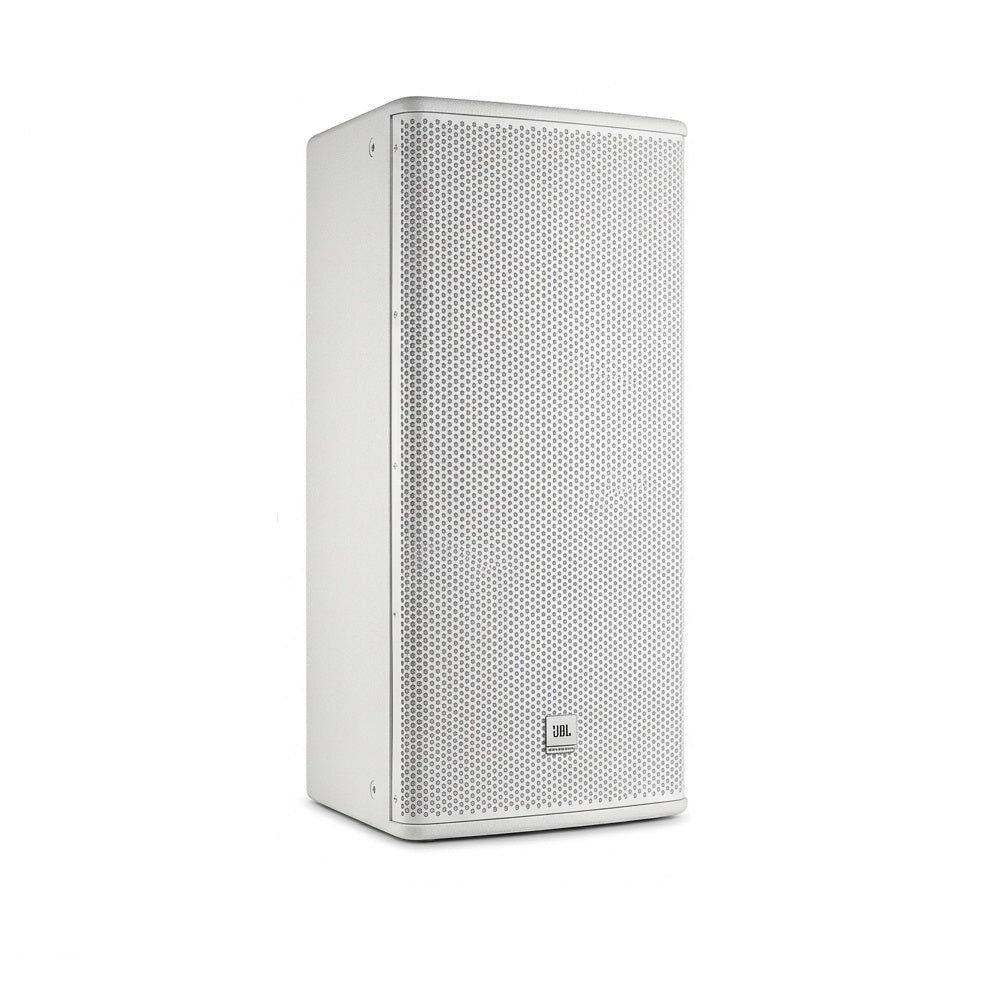

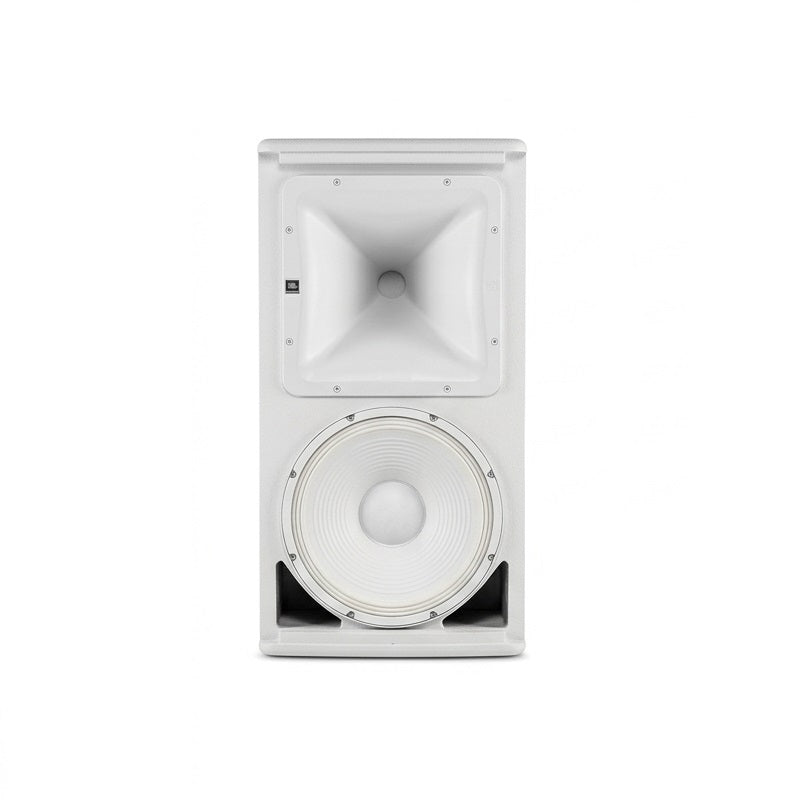

The JBL AM5215/66 is a versatile two-way loudspeaker system engineered to deliver powerful, full-range sound reinforcement for a wide spectrum of fixed installation applications. This model integrates a high-output 15-inch woofer with a precision 1.5-inch compression driver, balanced to provide a robust low-frequency foundation alongside clear and articulate high-frequency reproduction. Its design is particularly suited for venues requiring both high sound pressure levels and broad, even coverage, such as mid-sized performance spaces, houses of worship, and multipurpose auditoriums. The system is built upon a foundation of reliability and consistent sonic performance, offering a balance of power, clarity, and dispersion control that makes it a dependable choice for primary front-of-house or stage monitoring duties.

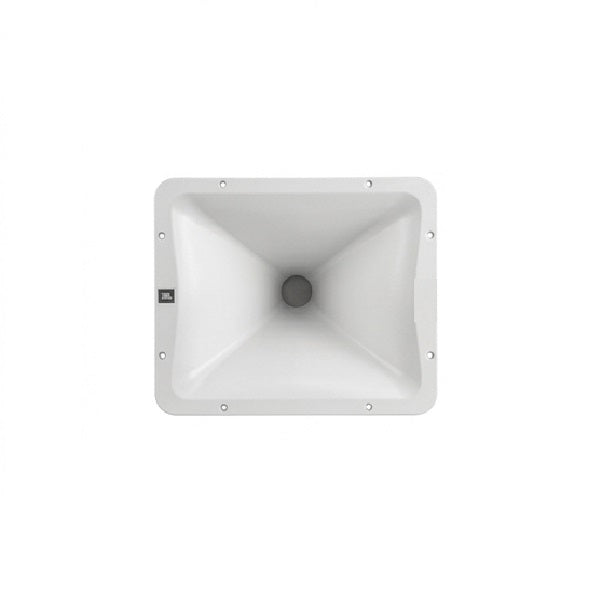

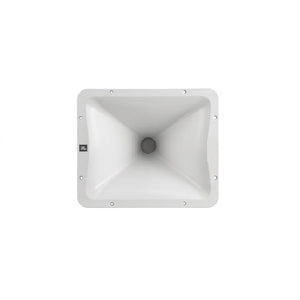

A central feature of this loudspeaker is its square-frame, rotatable constant-directivity horn, which provides a symmetrical 60° by 60° coverage pattern. This pattern can be physically rotated to orient the dispersion as needed—either horizontally or vertically—to best suit the acoustics and audience geometry of a given space. The horn design ensures smooth frequency response across its entire coverage angle, minimizing off-axis coloration and promoting consistent tonal quality for listeners throughout the venue. This precise control over dispersion is crucial for maximizing intelligibility, especially for speech, and for reducing problematic reflections from walls and ceilings, thereby enhancing overall system clarity.

Housed in a rugged enclosure constructed from void-free birch plywood with a durable, textured finish, the AM5215/66 is built to withstand the rigors of permanent installation. The cabinet includes integrated, steel-reinforced rigging points that offer secure and flexible options for flying, wall-mounting, or stacking the system. The internal passive crossover network incorporates high-quality components and protective circuitry to ensure optimal driver integration and long-term reliability. With its combination of substantial output, a symmetrical and rotatable horn for easy coverage tailoring, and a robust physical construction, this loudspeaker presents a highly adaptable and powerful audio solution for professional integrators seeking predictable performance in demanding sonic environments.
