JBL

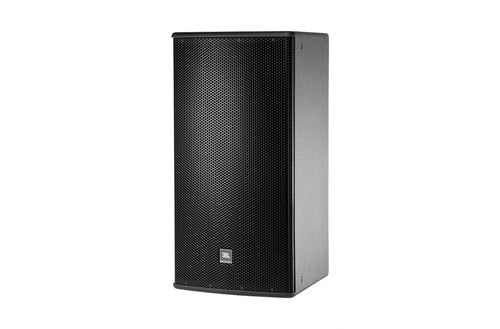

JBL AM7215/95 High Power 15-inch 2-Way Loudspeaker with 90° x 50° Rotatable Horn

$3,820.00

The AM7215 speakers are high power, lightweight, 2-way, full-range loudspeaker systems comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

View Product Features

  • 90° x 50° Coverage
  • 2265H Differential Drive® Low- Frequency Driver
  • 2432H High-Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-Amp/Passive Switchable
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the JBL AM7215/95 High Power 15-inch 2-Way Loudspeaker with 90° x 50° Rotatable Horn

The JBL AM7215/95 is a high-output, two-way loudspeaker system designed for professional sound reinforcement in demanding fixed-installation environments. This model combines a powerful 15-inch low-frequency transducer with a precision high-frequency compression driver, engineered to deliver exceptional clarity and extended frequency response at high sound pressure levels. Its robust construction is tailored for longevity in a variety of commercial and institutional settings, including performing arts centers, houses of worship, and large multi-purpose halls. The system's core design philosophy prioritizes reliability, consistent tonal quality, and the ability to project intelligible audio over considerable distances, making it a staple for primary front-of-house or stage monitor applications where high fidelity and high power are required.

A defining feature of this loudspeaker is its integrated rotatable constant-directivity horn, which allows the 90° by 50° coverage pattern to be oriented either horizontally or vertically to suit the acoustic requirements of the venue. This adjustability enables system designers to better control dispersion and minimize unwanted reflections from walls and ceilings, optimizing audience coverage and sound clarity. The waveguide is meticulously designed to provide smooth off-axis response and precise pattern control, ensuring uniform tonal balance throughout the designated coverage area. This attention to directivity management is crucial for achieving uniform sound distribution and maintaining sonic integrity across wide listening areas.

The enclosure is constructed from durable, void-free plywood with a textured, impact-resistant finish, protecting it from the rigors of transport and permanent installation. It includes multiple, heavy-duty rigging points that are integrated into a steel-reinforced frame, providing safe and flexible options for flying or mounting the cabinet in arrays. Internally, the crossover network utilizes high-quality components and protective circuitry to ensure driver safety and optimal performance alignment between the low and high-frequency sections. With its blend of high power capacity, controlled directivity, and installation-friendly features, the AM7215/95 stands as a versatile and powerful solution for professional audio systems that demand both high output and precise acoustic control.

Key Features

  • 90° x 50° Coverage
  • 2265H Differential Drive® Low- Frequency Driver
  • 2432H High-Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-Amp/Passive Switchable

JBL AM7215/95 High Power 15-inch 2-Way Loudspeaker with 90° x 50° Rotatable Horn Specs

Performance Specifications
Power Handling (Continuous)
600W
Power Handling (Peak)
2400W
Sensitivity (1W/1m)
99 dB
Maximum SPL
136 dB peak
Frequency Response (-10 dB)
45 Hz - 20 kHz
Nominal Impedance
8 ohms
Horn & Dispersion
Horn Type
90° x 50° Rotatable Constant Directivity
Coverage Pattern
Rotatable (Horizontal or Vertical)
Enclosure & Construction
Enclosure Material
18mm void-free birch plywood
Finish
Textured black paint
Grille
Powder-coated steel with foam backing
Connection & Hardware
Input Connectors
Dual NL4 SpeakON
Rigging Points
Integral M10 threaded inserts
Transducer Components
Low-Frequency Driver
15-inch (380mm) woofer
High-Frequency Driver
1.5-inch (38mm) diaphragm compression driver

Key Features

  • 90° x 50° Coverage
  • 2265H Differential Drive® Low- Frequency Driver
  • 2432H High-Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-Amp/Passive Switchable
