JBL | SKU: TMP-C424C/T

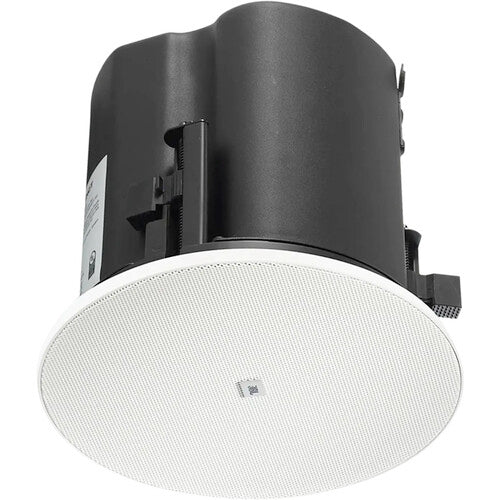

JBL Control 424C/T 4" Passive 2-Way Coaxial Ceiling-Mounted Loudspeaker

Name: JBL Control 424C/T 4" Passive 2-Way Coaxial Ceiling-Mounted Loudspeaker
Brand: AVGear.com
SKU: TMP-C424C/T
Price: 248.00 USD
Availability: InStock

$248.00

Shipping calculated at checkout.

For used equipment, the images displayed reflect the exact item and contents included, unless otherwise specified in the product description.

Already own this item and want to sell it?

Click here to sell your item

Description

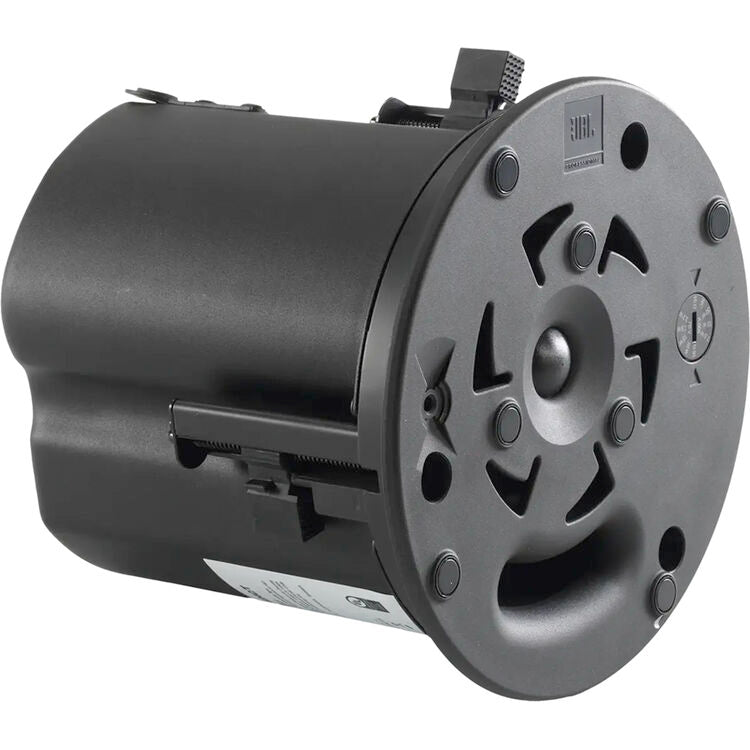

The JBL Control 424C/T is a high-fidelity, two-way coaxial in-ceiling loudspeaker specifically engineered to deliver uniform acoustic dispersion and pristine clarity across commercial installations. Part of JBL's Enhanced Coverage Series, this premium 4-inch speaker is equipped with JBL's exclusive CRBI™ (Coplanar Radiation Boundary Integrator) technology, an innovative acoustic design that ensures exceptionally smooth and consistent 130-degree conical coverage. By acoustically loading the 4-inch woofer and coaxially mounted 0.75-inch soft-dome tweeter via a specialized boundary integrator plate, CRBI minimizes on-axis hot spots and off-axis cold spots as listeners move throughout a venue. This widespread coverage often translates directly to project cost savings by allowing audio designers to use fewer total fixtures per room without sacrificing the sonic character or volume consistency of background music and paging systems.

Features

CRBI™ Acoustic Integration| Uses a Coplanar Radiation Boundary Integrator to combine the woofer and tweeter for ultra-smooth coverage.
130° Consistent Dispersion| Offers wide, uniform sound projection to prevent off-axis volume drops and reduce total fixture counts.
High-Impedance 16Ω Mode| Features a 16-ohm direct bypass setting allowing four speakers to be safely wired in parallel on a single 4-ohm channel.
Multi-Tap Transformer| Houses a high-fidelity 30W line transformer supporting distributed 70V and 100V infrastructure.
Dual-Entry Terminal Cover| Upgraded backcan lid provides both top and side knockouts for easier flexible conduit routing.
Tool-Less Cable Tensioning| Employs captive hand-screws on the cable clamp assembly to speed up electrical trim-outs.
Plenum-Rated Backcan| Built with a deep steel protective shell compliant with UL 2043 and NFPA 90A air-handling codes.
Paintable Magnetic Grille| Snaps flush against the ceiling tile with a bezel-less profile and an integrated anti-drop safety tether.
Removable Euroblock| Includes a locking, four-pin input connector with pass-through pins for seamless daisy-chain wiring.
