JBL

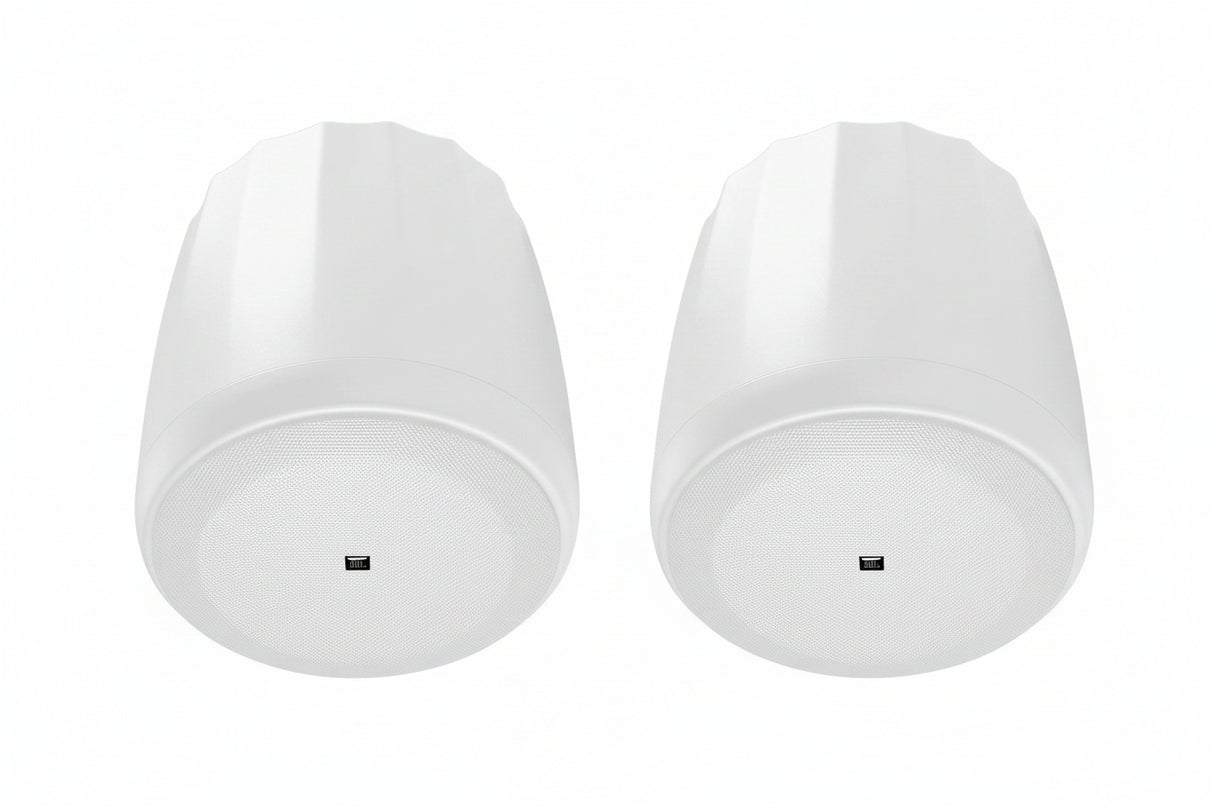

JBL C60PS/T-WH Pendant Subwoofer with Crossover

$515.00

The Control 60PS/T pendant subwoofer loudspeaker provides bass extension and high impact for high-fidelity sound systems in a wide variety of applications including restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, and other locations where full-range high fidelity foreground/background music systems are utilized. Featuring 150 Watt power handling and low distortion, the long-excursion 200 mm (8 in) low frequency driver features butyl rubber surround for well-damped, tight sound quality and long-term reliability, and a polypropylene-coated cone for humidity protection. The high-temperature 50 mm (2 in) voice coil and low-mass fiberglass coil former ensure good bass transient response and excellent stability under high power, high duty cycle, working conditions.


View Product Features

  • High impact, 150 Watt direct radiating pendant subwoofer with built-in passive crossover for up to four satellite speakers.
  • 200 mm (8 in) long-excursion driver.
  • 8 ohm (150 Watt) and 70V/100V (100 Watt) operation.
  • Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp.
  • Stylish design, available in black or white (-WH).
  • UL listed (speaker and hanging cable system).
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the JBL C60PS/T-WH Pendant Subwoofer with Crossover

The JBL C60PS/T-WH is a dedicated pendant-mount subwoofer system engineered to augment the low-frequency performance of distributed audio systems in commercial and architectural settings. Designed for seamless integration with compatible full-range pendant loudspeakers, this model provides a discreet yet powerful bass solution for applications where aesthetic appeal and sonic completeness are both priorities. Its primary function is to deliver enriched, extended low-end reproduction that typical compact ceiling speakers cannot achieve, thereby creating a more immersive and full-range listening experience for background music and audio reinforcement in venues such as retail stores, hotel lobbies, restaurants, and atrium spaces. The white finish allows it to blend inconspicuously with most ceiling designs while its compact, cylindrical form factor minimizes visual impact.

The system incorporates a specially designed 6.5-inch long-excursion woofer housed in a sealed enclosure, optimized for accurate and articulate bass response rather than extreme output levels. This approach ensures tight, musical bass that complements the mid and high frequencies from the main loudspeakers without overwhelming the acoustic environment. A critical feature is the included passive crossover network, which is specifically tuned to handle the signal routing between the subwoofer and the paired satellite speakers. This crossover facilitates a proper high-pass signal to the satellites, relieving them of low-frequency duties, which improves their clarity and power handling, while directing the appropriate bass frequencies to the subwoofer for efficient reproduction.

Installation is streamlined for architectural applications, with a standard pendant-mount system that includes aircraft cable and a ceiling canopy for secure, adjustable suspension from various ceiling heights. The integrated crossover simplifies wiring by allowing a single amplifier channel to drive both the subwoofer and its companion satellites. The construction utilizes a durable, paintable polypropylene enclosure that is resistant to humidity, making it suitable for a range of indoor environments. By offering a dedicated low-frequency extension in a visually subtle, easy-to-integrate format, the JBL C60PS/T-WH Pendant Subwoofer provides audio designers with an effective tool to achieve a balanced and complete full-range soundscape in aesthetically sensitive commercial installations.

Key Features

  • High impact, 150 Watt direct radiating pendant subwoofer with built-in passive crossover for up to four satellite speakers.
  • 200 mm (8 in) long-excursion driver.
  • 8 ohm (150 Watt) and 70V/100V (100 Watt) operation.
  • Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp.
  • Stylish design, available in black or white (-WH).
  • UL listed (speaker and hanging cable system).

JBL C60PS/T-WH Pendant Subwoofer with Crossover Specs

Driver and Enclosure
Woofer Size
6.5-inch
Enclosure Type
Sealed (Acoustic Suspension)
Finish Color
White
Performance Specifications
Frequency Response
45 Hz - 150 Hz
Continuous Power Handling
60W
Peak Power Handling
240W
Sensitivity (1W/1m)
84 dB
Nominal Impedance
8 ohms
System Integration
Crossover Function
High-pass output for satellites
Recommended Pairing
Compatible JBL C60 Series Satellites
Mounting and Installation
Mounting Method
Pendant/Suspension
Enclosure Shape
Cylindrical
Physical Dimensions
Diameter
10 inches (254 mm)
Depth
9.25 inches (235 mm)
Net Weight
7.5 lbs (3.4 kg)

Key Features

  • High impact, 150 Watt direct radiating pendant subwoofer with built-in passive crossover for up to four satellite speakers.
  • 200 mm (8 in) long-excursion driver.
  • 8 ohm (150 Watt) and 70V/100V (100 Watt) operation.
  • Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp.
  • Stylish design, available in black or white (-WH).
  • UL listed (speaker and hanging cable system).
