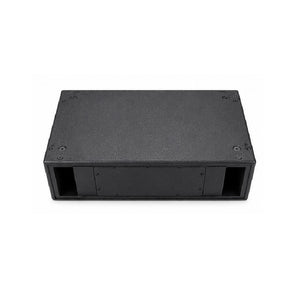

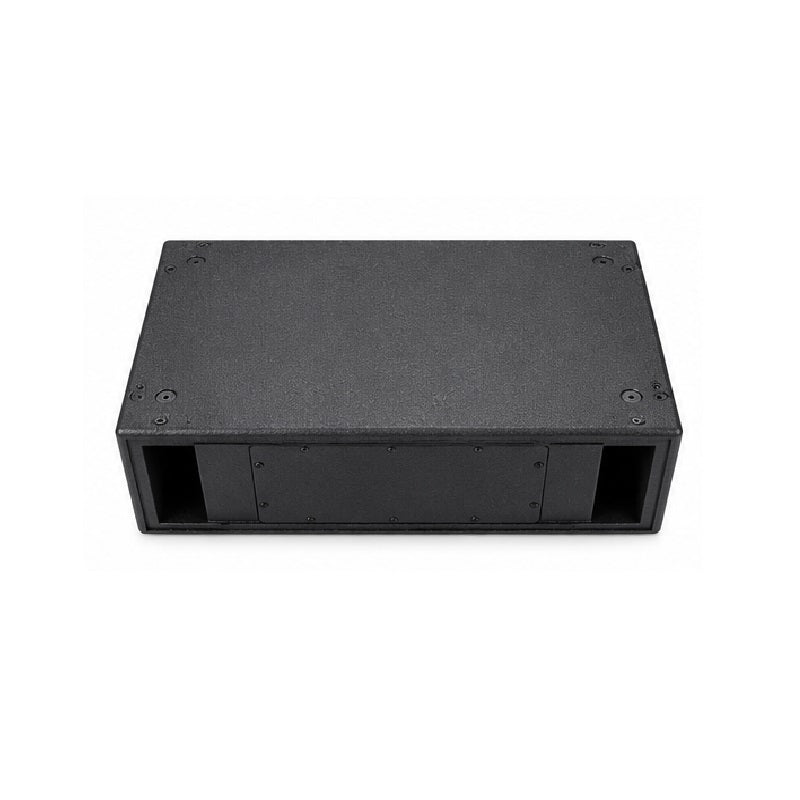

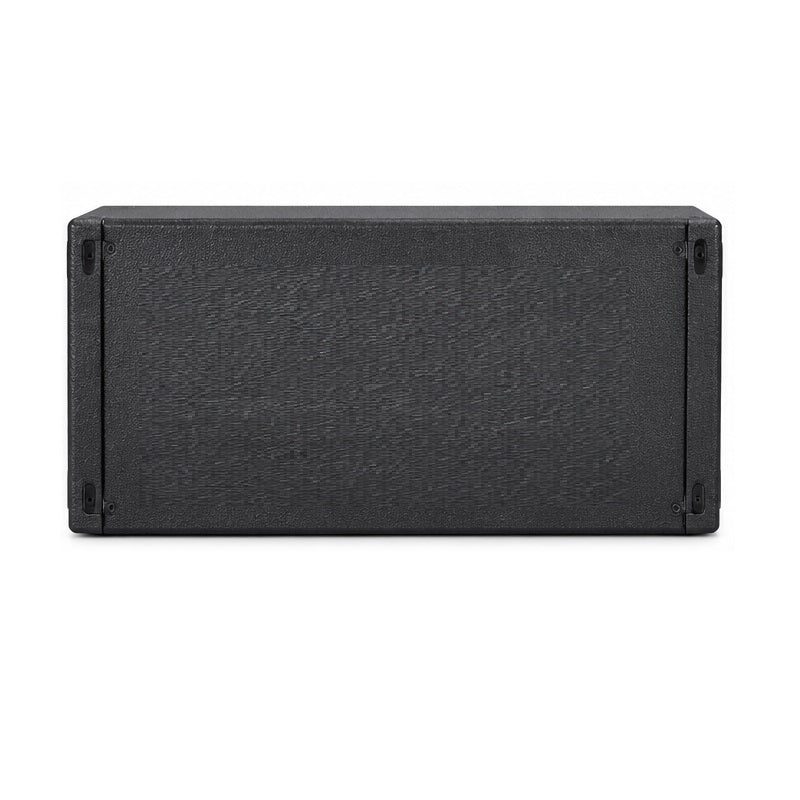

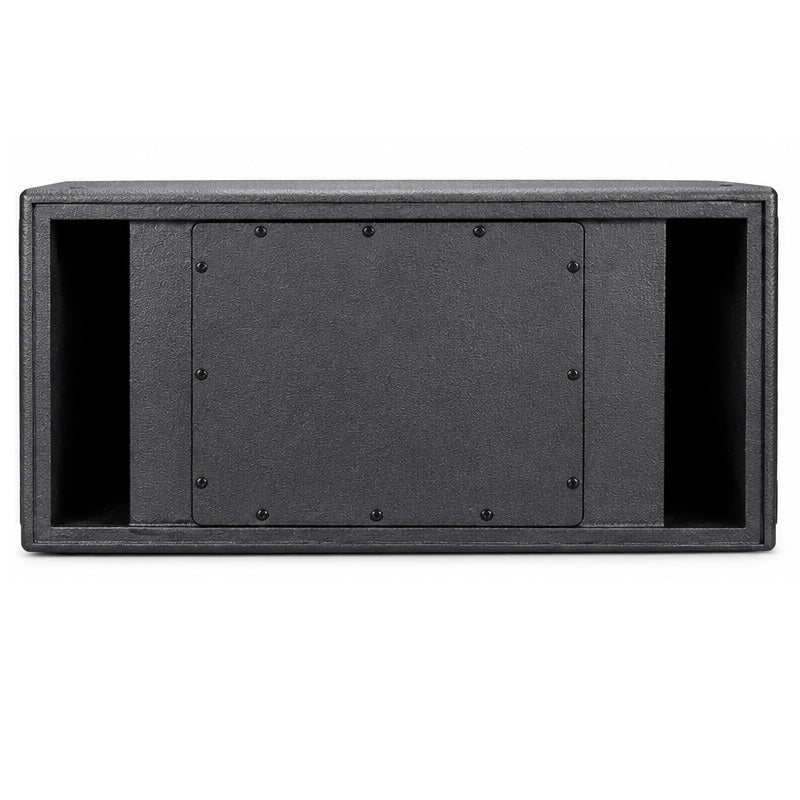

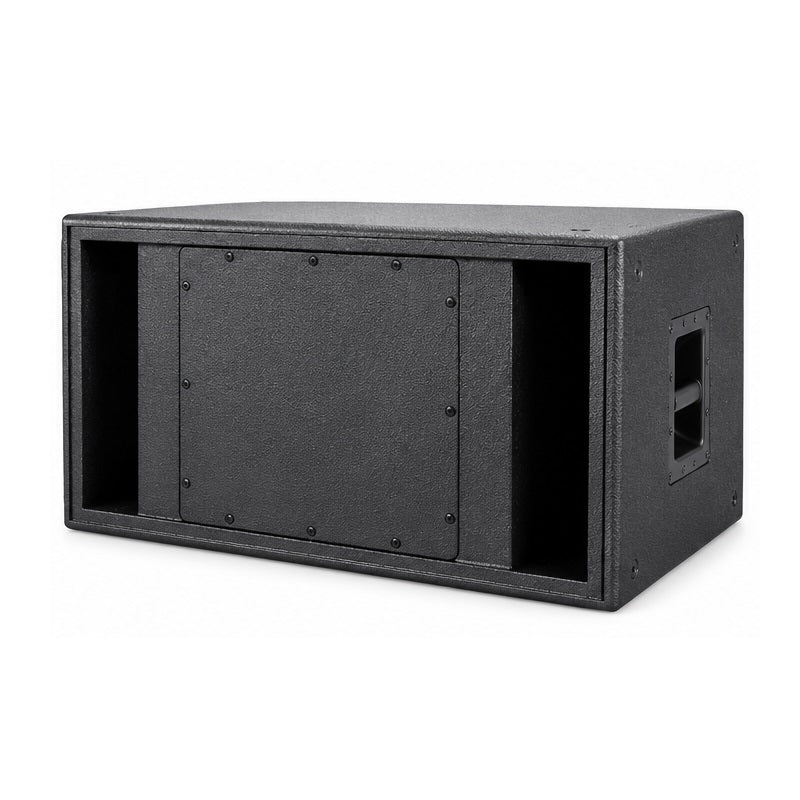

The JBL PD5122 is a professional, dual 12-inch low-frequency extension unit designed to provide powerful and articulate bass reinforcement in large-scale sound reinforcement systems. Functioning as a dedicated subwoofer, its primary role is to extend the low-frequency response of a full-range loudspeaker system, handling the demanding energy of kick drums, bass guitars, and electronic music with authority and control. The cabinet houses two long-excursion 12-inch drivers, which work in tandem within a carefully tuned bass-reflex (ported) enclosure to maximize output and efficiency in the sub-bass frequency range. This configuration is engineered to deliver high acoustic output with low distortion, making it suitable for concerts, live events, and installed applications in venues like theaters, clubs, and houses of worship where impactful, deep bass is essential for a full-spectrum audio experience.

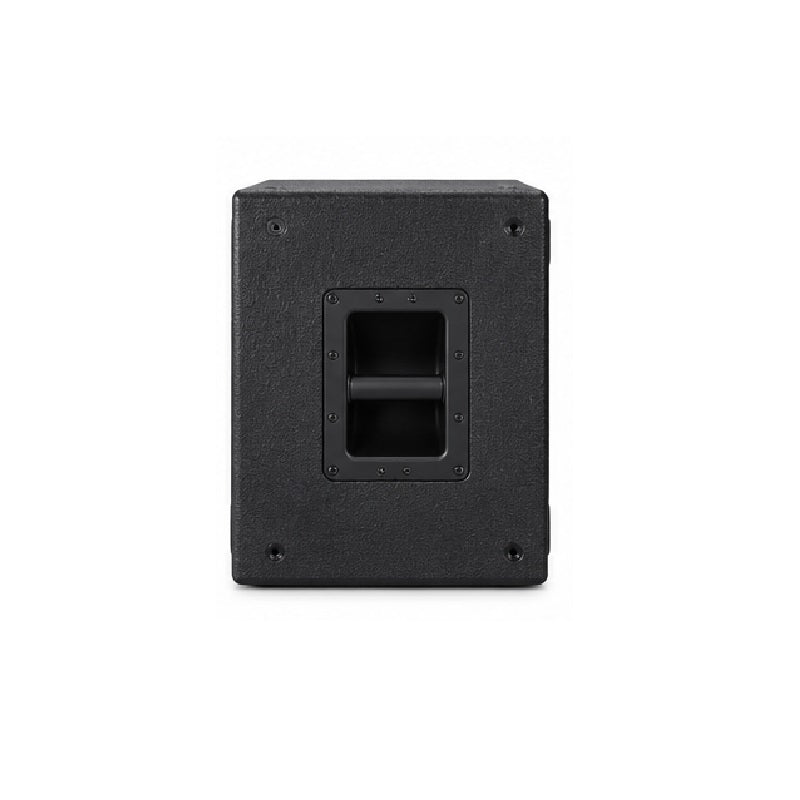

The design emphasizes both high performance and practical deployment. The enclosure is constructed from rugged, void-free plywood and finished with a durable, textured coating to withstand the physical demands of touring and frequent handling. Its form factor includes integrated handles and robust rigging points, allowing for flexible placement—it can be ground-stacked, flown as part of an array, or positioned on stage. As a passive system, it requires connection to a suitably powerful external amplifier and system processor. This external processing is critical for applying precise crossover filters, equalization, and limiting to protect the drivers and ensure optimal integration with the main loudspeakers, allowing system designers to tailor its performance to the specific acoustic requirements of the venue.

The PD5122 excels in delivering tight, punchy bass rather than merely extreme low-end extension, a characteristic that makes it particularly effective for music genres requiring definition and speed in the low-mid and upper-bass frequencies. When integrated correctly into a bi-amplified or tri-amplified system, it seamlessly blends with mid-high enclosures, freeing them from reproducing low frequencies and thereby improving their overall clarity and headroom. By offering a combination of high power handling, robust construction, and flexible application, this dual-driver low-frequency unit serves as a reliable and powerful foundational component for professional audio engineers seeking to enhance the impact and fullness of their sound system.
