JBL Professional

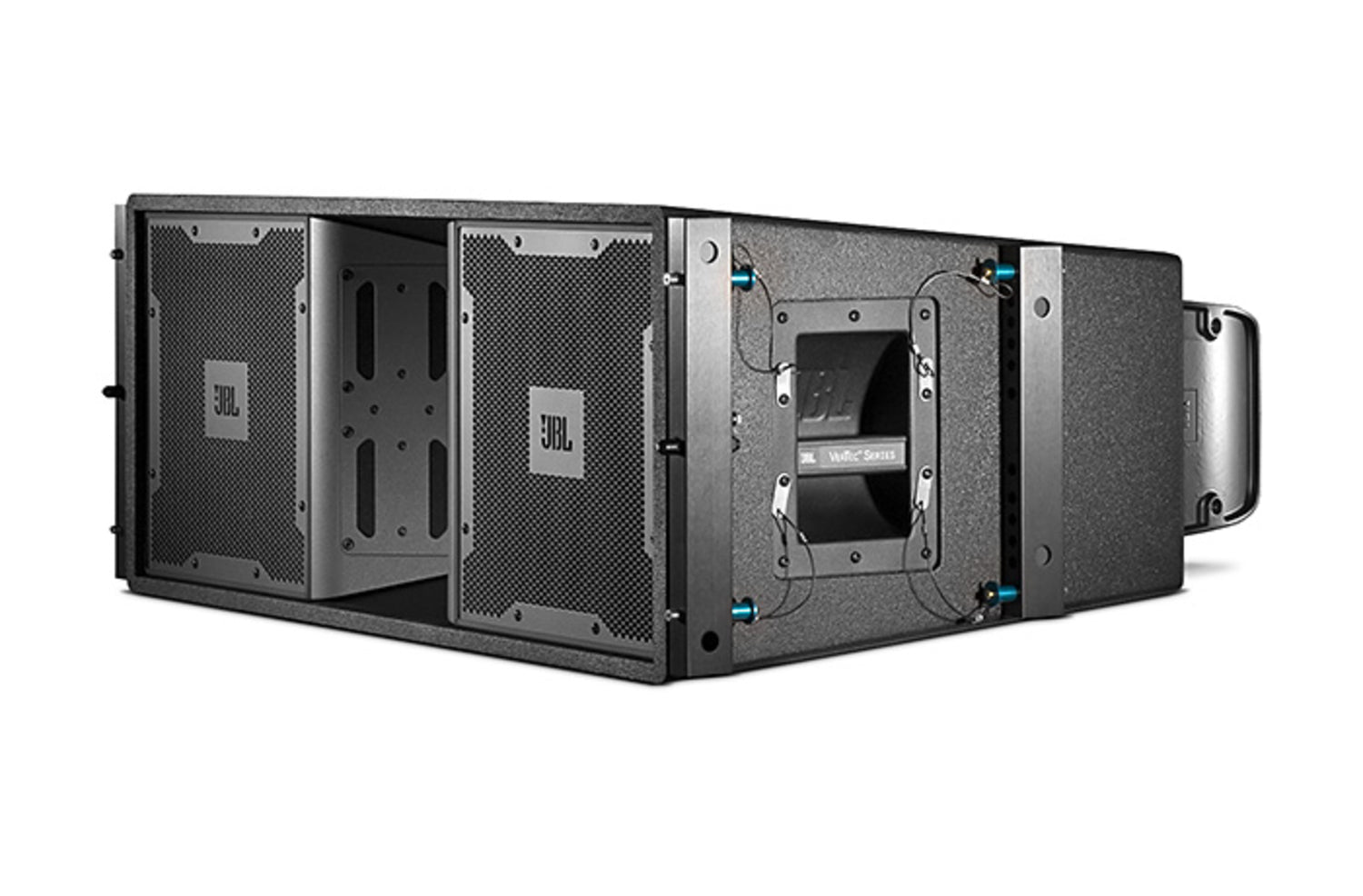

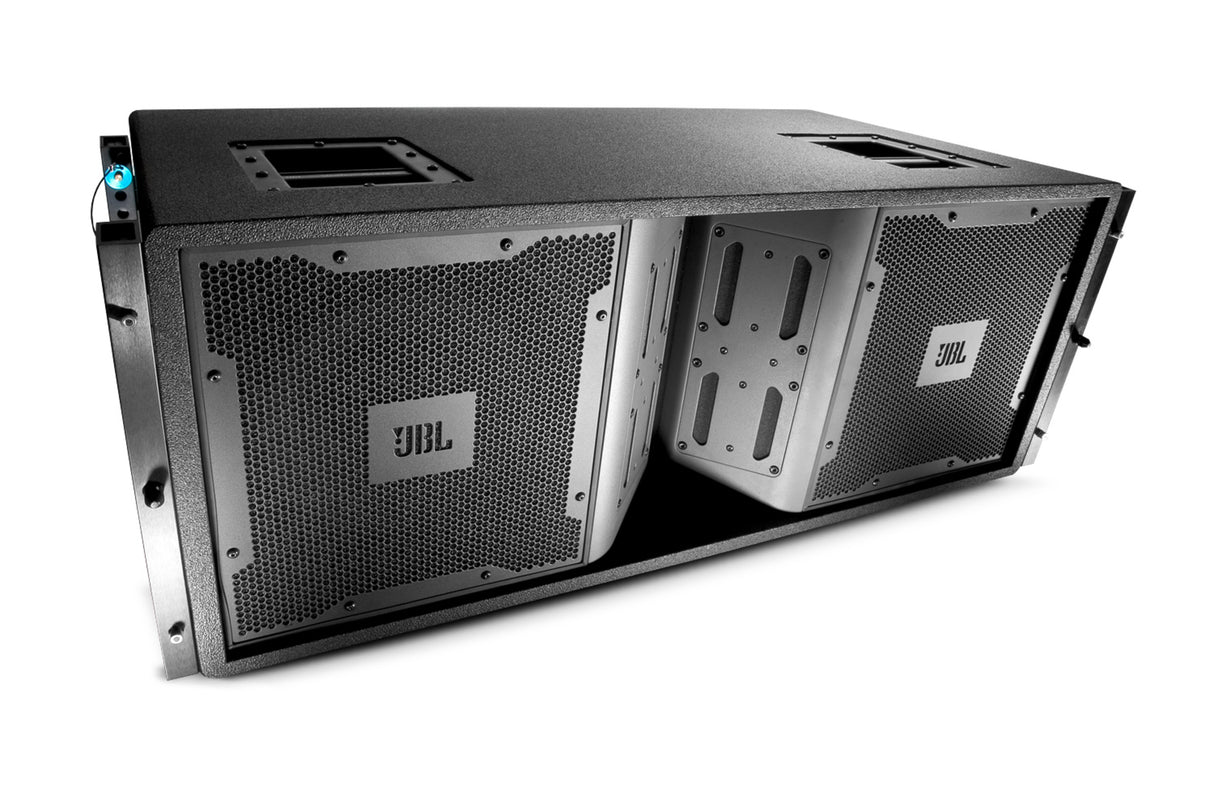

JBL Professional VT4888DP-DA Powered Midsize 3-Way High Directivity Line Array Element

$0.00 -

The powered VT4888DP Three-Way Line Array Element is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio and corporate A/V presentations of all types for both portable users and fixed venue installations.

View Product Features

  • Integrated JBL DrivePack DP3 electronics
  • Accepts AES/EBU digital audio input
  • 6000 Watts peak power output
  • Built-in BSS OmniDrive HD signal processing
  • Advanced Differential Drive transducer technology
  • Integrated S.A.F.E. suspension rigging system
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the JBL Professional VT4888DP-DA Powered Midsize 3-Way High Directivity Line Array Element

The JBL Professional VT4888DP-DA is a powered, midsize three-way line array element engineered for high-output, high-definition sound reinforcement in touring, large-scale installed sound, and major live event applications. As a fully self-contained and powered module, it integrates dedicated amplification and sophisticated DSP processing within its rugged enclosure, eliminating the need for external amplifier racks and streamlining system setup and control. The array element utilizes JBL's Differential Drive technology in its low-frequency transducers, a design that employs dual voice coils and magnets for increased power handling and thermal management while reducing distortion, resulting in exceptional clarity and impactful bass response even at extreme output levels. Its three-way design, comprising a dedicated low, mid, and high-frequency section, ensures precise driver optimization and coherent sound across the entire audio spectrum.

A defining characteristic of the VT4888DP-DA is its high-directivity waveguide design for the mid and high-frequency components. This proprietary geometry provides superior pattern control, minimizing unwanted acoustic energy on the stage and off-axis in the venue while maximizing the direct, consistent coverage of the audience area. The integrated Crown amplification is precisely matched to the transducer components and managed by a comprehensive DSP engine accessible via Harman's HiQnet System Architect software. This allows system technicians to configure preset tuning, limiters, alignment delays, and crossover parameters with exacting precision, ensuring optimal performance and speaker protection tailored to the specific array configuration and acoustic environment.

Built for the demands of professional touring, the enclosure is constructed from premium, multi-laminate plywood with a durable, textured finish and features integrated, heavy-duty rigging hardware that complies with stringent international safety standards. The front grille is made of durable steel with a hexagonal pattern for optimal transparency and driver protection. The inclusion of a dual-angle rigging system enables precise curvature adjustment for vertical array splay angles, allowing the system to be tailored for both near-field and far-field coverage within a single array. As a cornerstone of JBL's flagship VerTec line array series, the VT4888DP-DA delivers a powerful combination of pristine audio fidelity, high acoustic output, advanced system control, and road-ready durability, making it a preferred choice for engineers demanding the highest level of performance for major concerts and fixed installations.

Key Features

  • Integrated JBL DrivePack DP3 electronics
  • Accepts AES/EBU digital audio input
  • 6000 Watts peak power output
  • Built-in BSS OmniDrive HD signal processing
  • Advanced Differential Drive transducer technology
  • Integrated S.A.F.E. suspension rigging system

JBL Professional VT4888DP-DA Powered Midsize 3-Way High Directivity Line Array Element Specs

Transducer System
Low-Frequency
2 x 12-inch Differential Drive
Mid-Frequency
2 x 8-inch Differential Drive
High-Frequency
3 x 1.5-inch diaphragm compression drivers
Crossover Points
300 Hz, 1.2 kHz
Amplification & DSP
Amplifier Power
3000W Total (LF: 1600W, MF: 800W, HF: 600W)
DSP Processing
24-bit, 48 kHz
Control Software
HiQnet System Architect
Factory Presets
Multiple Array Configurations
Acoustic Performance
Frequency Response
45 Hz - 20 kHz (-10 dB)
Maximum SPL
147 dB Peak
Horizontal Coverage
100 degrees
Vertical Coverage
Variable via Rigging (5° - 15° per cabinet)
Connectivity & Power
Signal Input
2 x NL4 Speakon (A/B)
Data Link
RJ-45 for HiQnet
Power Requirements
120V / 230V, 20A Circuit
Power Connector
IEC 60320 C20
Physical & Rigging
Enclosure Material
Baltic Birch Plywood
Rigging Hardware
Integrated Dual-Angle System
Dimensions (HxWxD)
21.9" x 34.8" x 21.8" (557 x 885 x 554 mm)
Weight
176 lbs (80 kg)

Key Features

  • Integrated JBL DrivePack DP3 electronics
  • Accepts AES/EBU digital audio input
  • 6000 Watts peak power output
  • Built-in BSS OmniDrive HD signal processing
  • Advanced Differential Drive transducer technology
  • Integrated S.A.F.E. suspension rigging system
