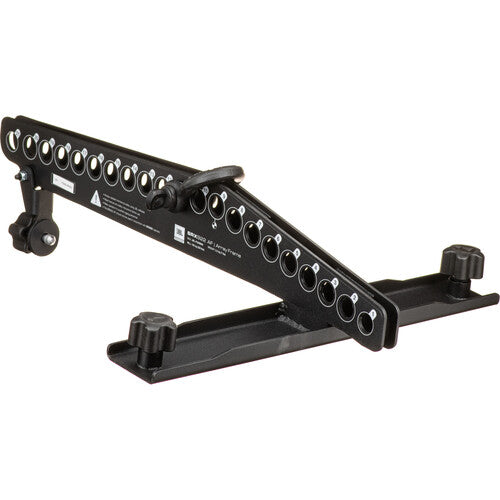

The JBL SRX922 AF Array Frame is a professional, low-profile rigging solution engineered to facilitate the safe, efficient, and precise suspension of the JBL SRX922 point-source loudspeaker. Custom-designed to match the top footprint of the speaker cabinet, this heavy-duty frame features a tool-free installation system with captive thumb-screws that thread directly into the enclosure's top M10 QuickLink points. The core structural spine is engineered with multiple precision-spaced shackle pickup holes, allowing audio technicians to adjust vertical down-tilt and up-tilt angles during single-point suspension without the need for complex secondary pullback bridles or extra hardware.

Constructed from premium high-tensile steel with a scuff-resistant, matte-black powder coat finish, the array frame is built to withstand the rigorous mechanical demands of touring sound and high-end permanent installations. It features complete integration with the JBL RC500 Rotating Clamp, allowing for swift, direct attachment to standard 2-inch global truss grids or lighting pipes. Furthermore, its exact weight, structural boundaries, and center-of-gravity profiles are fully supported within the JBL Venue Synthesis software ecosystem, enabling engineers to perform 3D mechanical load calculations, safety factor verifications, and precise acoustic aim modeling prior to building the rig.
