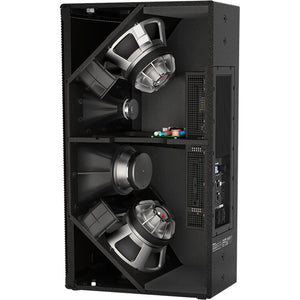

The JBL SRX922 is a compact, self-powered, acoustically three-way dual 12-inch point-source loudspeaker engineered to deliver exceptional clarity and high-output performance for mains systems, side-fills, or delay zones. Driven by an integrated 1,100W continuous Class-D amplifier module, its bi-amplified design houses two 12-inch Differential Drive low-frequency woofers arranged symmetrically in a dipole configuration to maximize bass headroom and improve vertical beamwidth control. This robust dual-woofer setup is paired with a 6.5-inch horn-loaded midrange driver and a 1.5-inch annular-diaphragm compression driver, allowing the system to achieve a powerful maximum peak SPL of 138 dB and a deep frequency response extending down to 40 Hz through four large flared ports. Built for demanding tour-grade environments, the outdoor-grade Baltic birch enclosure is coated in a rugged DuraFlex finish and features a comprehensive onboard DSP engine—complete with 24 parametric filters, 2,000 ms of delay, and LevelMax limiters—easily configured via a rear-panel full-color LCD or remotely via dual Neutrik etherCON ports using the HARMAN HControl protocol. Read more
