JBL

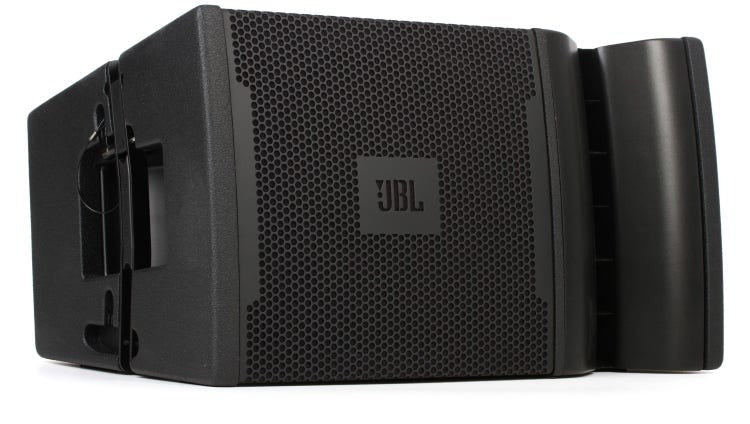

JBL VRX932LA 12" Two-Way Line-Array System

The VRX932LA is a lightweight and compact 12" two-way line array speaker system designed for use in arrays of up to six units. VRX932LA is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays such as JBL's VerTec. The Constant Curvature waveguide
mounts two compression drivers on a continuous arc. When additional VRX932LA speakers are added to the array the uninterrupted arc continues. In effect, all the drivers work together as if they were a single driver on a very long waveguide.

View Product Features

  • Frequency Range (-10dB)1: 57Hz - 20kHz
  • Frequency Response (+/-3dB)1: 75Hz - 20kHz
  • Coverage Pattern: 100 x 15 nominal
  • Crossover Modes: Bi-amp / passive, externally switchable
  • Crossover Frequency: 1.2kHz
  • Power Rating Passive: 800 W / 1600 W / 3200 W (Continuous/Program/Peak)2: Bi-amp LF: 800 W / 1600 W / 3200 W
  • Bi-amp HF: 75 W / 150 W / 300 W
  • LF Driver: 1 x JBL 2262H 12 in Differential Drive woofer with neodymium-magnet, dual voice-coils and magnetic gap.
  • HF Driver: 3 x JBL 2407J, 1.0 in voice-coil, neodymium compression driver
  • Nominal Impedance: Passive: 8 ohm
  • Bi-amp LF: 8 ohms
  • Bi-amp HF: 8 ohms
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the JBL VRX932LA 12" Two-Way Line-Array System

The JBL VRX932LA is a compact, high-output line array element designed for portable and installed sound reinforcement applications. This two-way system integrates a 12-inch low-frequency transducer and three 1-inch high-frequency drivers mounted on a patented progressive transition waveguide. This design facilitates precise vertical pattern control, allowing multiple cabinets to be arrayed to create a coherent wavefront that projects sound evenly over the audience area with minimal interference. The system is engineered to deliver the clarity, projection, and consistent coverage required for live music, corporate events, and houses of worship.

Built for durability and ease of deployment, the enclosure is constructed from multi-ply birch plywood with a rugged, textured black finish and features integral rigging points based on a front-and-rear interlocking array frame. This allows for quick and safe ground-stacking or flying of multiple cabinets without the need for external, complex hardware. The system's passive crossover network is optimized for high power handling and sonic accuracy, requiring connection to an external amplifier with appropriate system processing to unlock its full performance potential, including factory-preset EQ and limiting.

The VRX932LA is a cornerstone of the VRX series, known for bringing true line array performance to a more accessible form factor. Its combination of manageable size, significant output, and scalable array capability makes it a versatile choice for rental companies, touring musicians, and installers who need a system that can adapt to various venue sizes and deliver reliable, high-fidelity sound with predictable coverage.

Key Features

  • Frequency Range (-10dB)1: 57Hz - 20kHz
  • Frequency Response (+/-3dB)1: 75Hz - 20kHz
  • Coverage Pattern: 100 x 15 nominal
  • Crossover Modes: Bi-amp / passive, externally switchable
  • Crossover Frequency: 1.2kHz
  • Power Rating Passive: 800 W / 1600 W / 3200 W (Continuous/Program/Peak)2: Bi-amp LF: 800 W / 1600 W / 3200 W
  • Bi-amp HF: 75 W / 150 W / 300 W
  • LF Driver: 1 x JBL 2262H 12 in Differential Drive woofer with neodymium-magnet, dual voice-coils and magnetic gap.
  • HF Driver: 3 x JBL 2407J, 1.0 in voice-coil, neodymium compression driver
  • Nominal Impedance: Passive: 8 ohm
  • Bi-amp LF: 8 ohms
  • Bi-amp HF: 8 ohms

JBL VRX932LA 12" Two-Way Line-Array System Specs

Transducer Design
Low-Frequency Driver
12-inch
High-Frequency Drivers
3 x 1-inch
Waveguide Technology
Progressive Transition
Acoustic Performance
Frequency Response
55 Hz - 20 kHz
Horizontal Coverage
90 degrees
Vertical Coverage
10 degrees
Maximum SPL
138 dB peak
Power Handling
800W continuous, 3200W peak
Nominal Impedance
8 ohms
Enclosure & Rigging
Enclosure Material
Birch Plywood
Finish
Textured Black Paint
Integrated Rigging
Front & Rear Array Frames
Grille
Powder-Coated Steel
Physical Dimensions
Height
20.8 inches
Width
25.4 inches
Depth
17.1 inches
Weight
68 lbs
System Integration
Input Connectors
Dual NL4
Crossover
Passive Internal
Recommended Use
Array Element

Key Features

  • Frequency Range (-10dB)1: 57Hz - 20kHz
  • Frequency Response (+/-3dB)1: 75Hz - 20kHz
  • Coverage Pattern: 100 x 15 nominal
  • Crossover Modes: Bi-amp / passive, externally switchable
  • Crossover Frequency: 1.2kHz
  • Power Rating Passive: 800 W / 1600 W / 3200 W (Continuous/Program/Peak)2: Bi-amp LF: 800 W / 1600 W / 3200 W
  • Bi-amp HF: 75 W / 150 W / 300 W
  • LF Driver: 1 x JBL 2262H 12 in Differential Drive woofer with neodymium-magnet, dual voice-coils and magnetic gap.
  • HF Driver: 3 x JBL 2407J, 1.0 in voice-coil, neodymium compression driver
  • Nominal Impedance: Passive: 8 ohm
  • Bi-amp LF: 8 ohms
  • Bi-amp HF: 8 ohms
