Lab Gruppen

Lab Gruppen FA2402_US1 2 x 240 Watt Commercial Amplifier with Direct Drive Technology and Energy Star Certification

$0.00 -

2 x 240 Watt dual-channel Amplifier provides the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. Capable of delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations offering extreme flexibility on every channel. FA2402 is easy to install and operate – even for non-technical personnel. Simply put, the FA2402 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.

View Product Features

  • 2 x 240 Watt output: High power for large commercial spaces.
  • Direct Drive technology: Connects directly to speakers, no transformers needed for Hi-Z.
  • Energy Star certified: Ensures high power efficiency, lowers operating costs.
  • Versatile output options: Supports Lo-Z (4/8 Ohm) and Hi-Z (70V/100V) systems.
  • Automatic Power On/Off: Saves energy by entering standby mode when idle.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Lab Gruppen FA2402_US1 2 x 240 Watt Commercial Amplifier with Direct Drive Technology and Energy Star Certification

The Lab Gruppen FA2402_US1 is a professional two-channel commercial amplifier engineered to deliver robust, high-fidelity audio for a wide array of installed sound applications. With a power rating of 240 watts per channel, this amplifier is designed to meet the demands of medium-sized venues such as retail spaces, restaurants, fitness centers, and educational facilities where reliable, clear sound distribution is essential. A key feature of this unit is its implementation of Direct Drive Technology, which provides exceptional control over the loudspeaker by minimizing phase shift and enhancing damping factor. This results in tighter bass response, improved transient accuracy, and overall superior sound clarity, particularly beneficial for music reproduction and speech intelligibility in commercial environments. The amplifier's design prioritizes both performance and energy efficiency, as evidenced by its Energy Star certification, ensuring lower operational costs and reduced environmental impact without compromising audio quality.

The amplifier is built around a robust and efficient Class AB output stage, chosen for its proven reliability and sonic characteristics in fixed-installation contexts. It offers flexible input options with individual level controls, allowing seamless integration of various line-level sources like background music systems and paging microphones. Comprehensive system protection is integral, featuring safeguards against thermal overload, short circuits, and DC offset, which prolongs the lifespan of both the amplifier and connected loudspeakers. The unit also includes advanced signal management features such as selectable input sensitivity, high-pass filtering, and a priority input for emergency paging that can override other audio sources, making it a versatile and dependable choice for safety-critical installations.

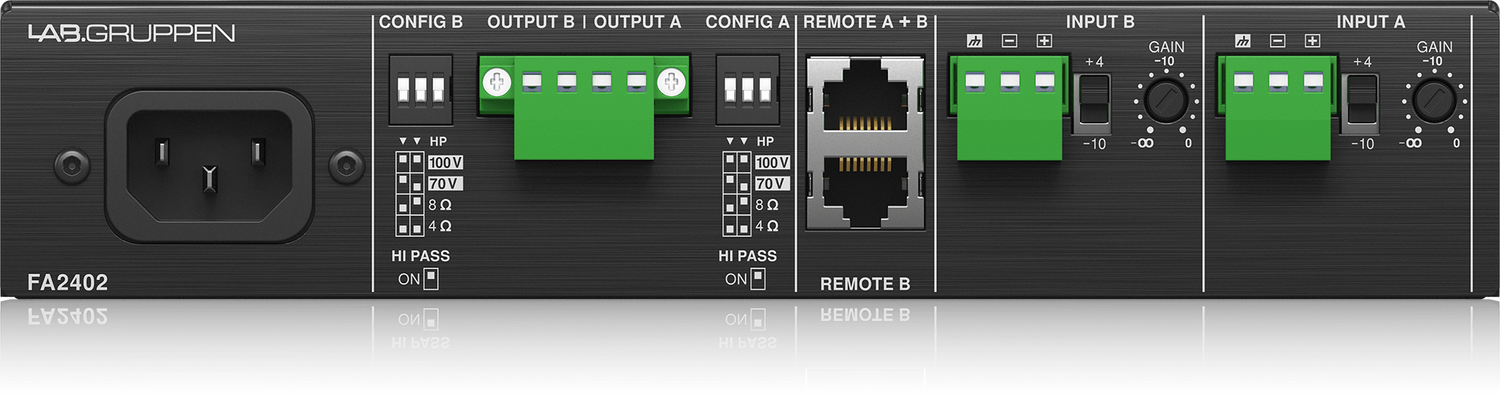

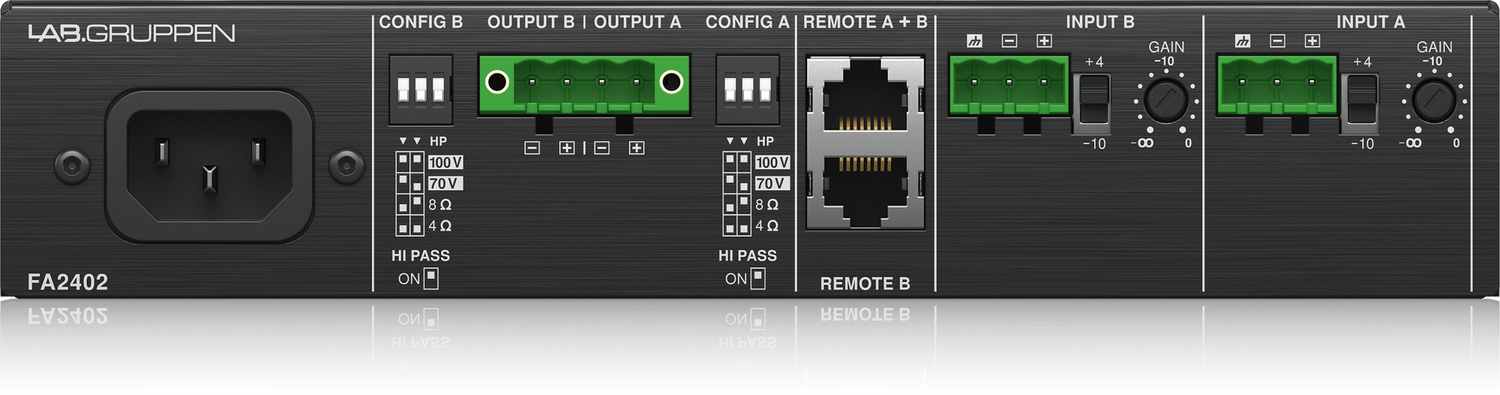

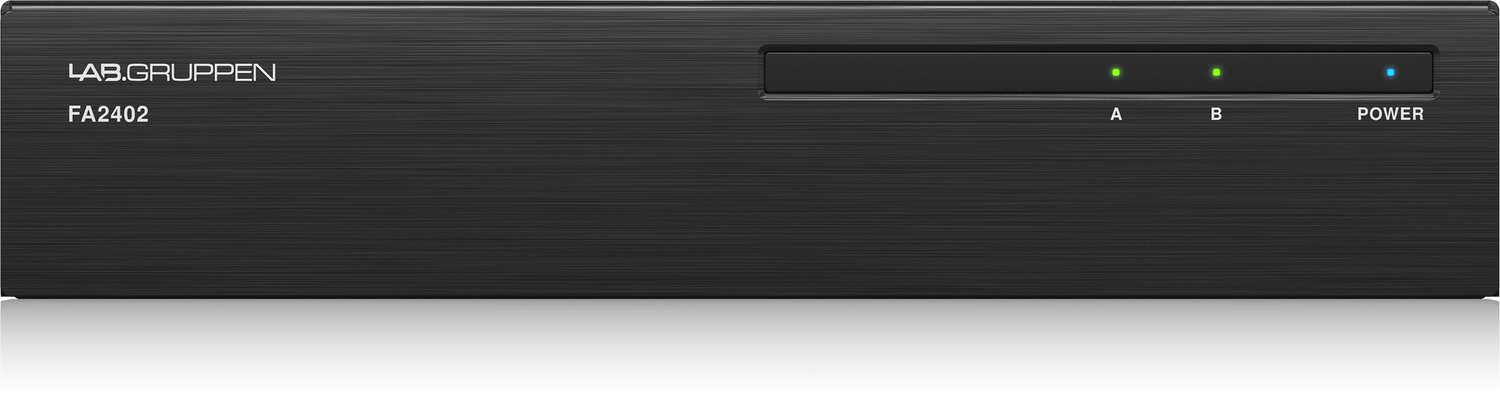

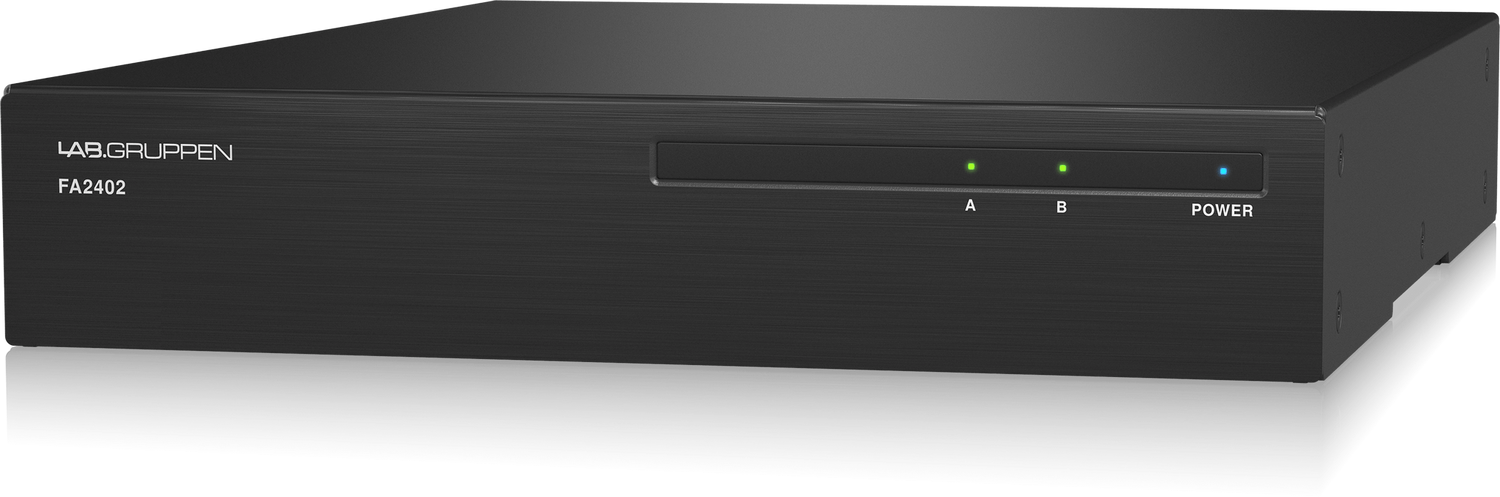

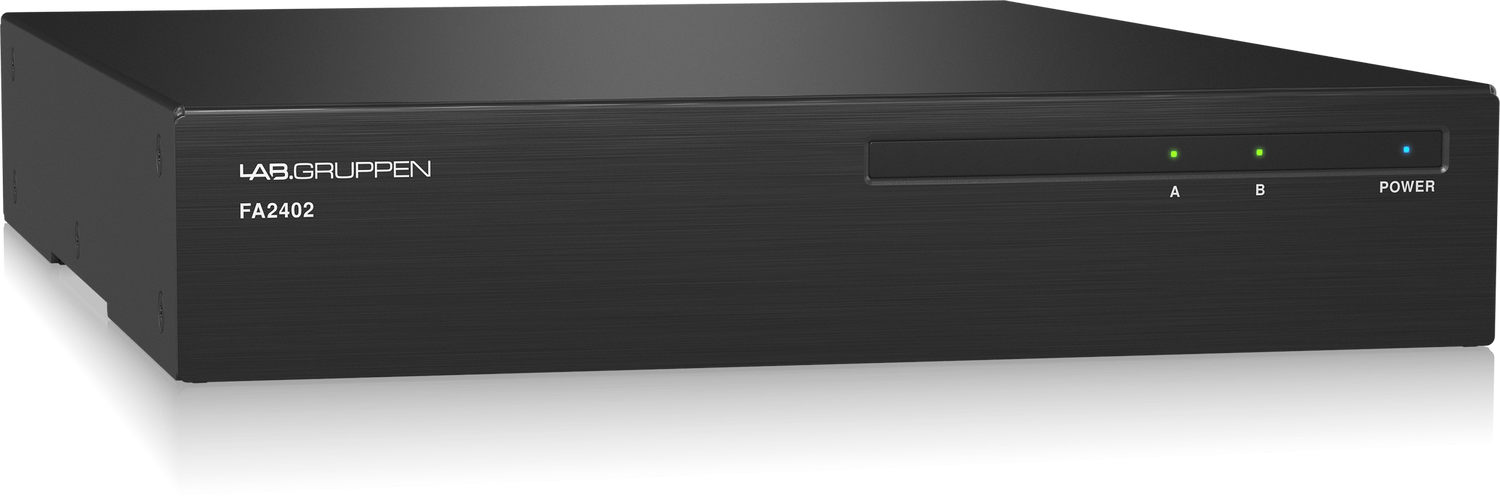

Housed in a compact 1U rack-mountable steel chassis, the FA2402_US1 is designed for easy integration into standard equipment racks, with a focus on straightforward installation and maintenance. Its convection cooling system operates silently, making it suitable for noise-sensitive environments. The front panel provides clear status indicators for power, signal presence, and any protection triggers, enabling quick diagnostics by on-site personnel. For system integrators and facility managers, this amplifier represents an optimal blend of Lab Gruppen's audio engineering heritage, commercial-grade durability, and energy-conscious operation, providing a trustworthy and high-performance audio backbone for day-to-day commercial sound reinforcement.

Key Features

  • 2 x 240 Watt output: High power for large commercial spaces.
  • Direct Drive technology: Connects directly to speakers, no transformers needed for Hi-Z.
  • Energy Star certified: Ensures high power efficiency, lowers operating costs.
  • Versatile output options: Supports Lo-Z (4/8 Ohm) and Hi-Z (70V/100V) systems.
  • Automatic Power On/Off: Saves energy by entering standby mode when idle.

Lab Gruppen FA2402_US1 2 x 240 Watt Commercial Amplifier with Direct Drive Technology and Energy Star Certification Specs

Technology & Design
Amplifier Topology
Class AB
Core Technology
Direct Drive
Damping Factor
>500 at 8Ω
Input & Output
Input Channels
2
Input Connectors
XLR/TRS Combo
Output Connectors
Binding Posts
Input Sensitivity
0.775V / 1.0V / 1.4V
System Features
Priority Input
Yes (Channel 1)
High-Pass Filter
50Hz, 12dB/octave
Protection
Thermal, Short Circuit, DC Offset
Power & Compliance
Mains Voltage
120V AC, 60Hz
Power Consumption (Idle)
<25W
Energy Certification
ENERGY STAR
Rack Units
1U
Amplifier Performance
Power per Channel (4Ω)
240W RMS
Power per Channel (8Ω)
160W RMS
Total Harmonic Distortion
<0.1%
Frequency Response
20Hz - 20kHz (±0.5dB)

Key Features

  • 2 x 240 Watt output: High power for large commercial spaces.
  • Direct Drive technology: Connects directly to speakers, no transformers needed for Hi-Z.
  • Energy Star certified: Ensures high power efficiency, lowers operating costs.
  • Versatile output options: Supports Lo-Z (4/8 Ohm) and Hi-Z (70V/100V) systems.
  • Automatic Power On/Off: Saves energy by entering standby mode when idle.
