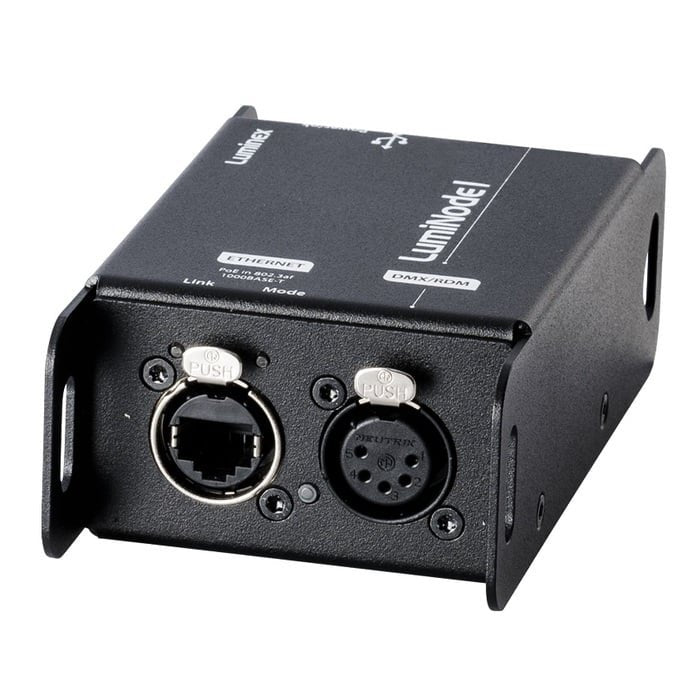

Luminex LU0100069 LumiNode 1

The Luminex LU 01 00069, commonly known as the LumiNode 1, is a highly versatile network dongle and single-port DMX node designed for professional lighting control. In a market where lighting protocols are rapidly shifting from traditional DMX to Ethernet-based networks, the LumiNode 1 acts as a critical bridge. It functions uniquely as a USB-to-Ethernet dongle, allowing lighting designers and technicians to directly output network lighting protocols (like Art-Net and sACN) from a laptop or PC directly to a lighting network without needing additional drivers.

Beyond its dongle capabilities, the LumiNode 1 operates as a robust, stand-alone, PoE-powered node. It features a single, fully isolated bi-directional 5-pin DMX/RDM port and an integrated Gigabit Ethernet port. What truly sets the LumiNode family apart is Luminex's "process engine" architecture. Even though the LumiNode 1 only has one physical DMX port, it houses two internal process engines. These engines allow the unit to receive multiple input streams across different protocols (e.g., Art-Net, sACN, KiNET, RTTrPL/BlackTrax) and merge, route, or crossfade them (using HTP, LTP, Backup, Switch, or Custom merging policies) before outputting the data to the physical DMX port or routing it back onto the network. Everything is managed via a highly intuitive, built-in web user interface or automated through a documented web API (REST/JSON).
