Mackie

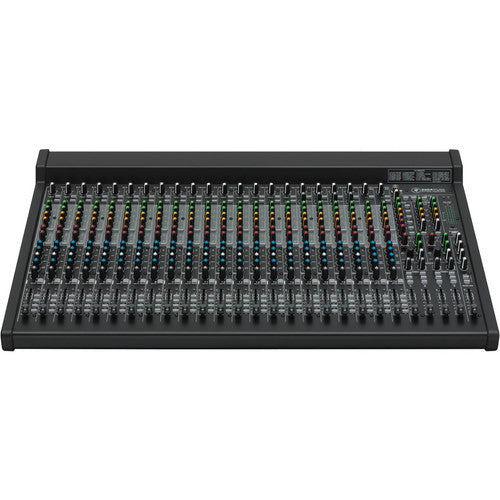

Mackie 2404VLZ4 24-channel 4-bus FX Mixer with USB

$0.00

VLZ4 ups the level of sonic quality at every level, featuring Mackie's flagship Onyx mic preamps and premium components from front to back. The result is the most rock solid, the most easy to use and, yes, the best sounding compact mixer ever created.

View Product Features

  • Premium Onyx preamps: 20 boutique-quality mic preamps with 60dB gain.
  • Built-in compression: 8 single-knob compressors on select channels/subgroups.
  • Dual effects engines: Dual 32-bit RMFX+ processors with 24 effects.
  • USB interface: Integrated 4x2 24-bit USB audio interface.
  • Rugged construction: "Built-Like-A-Tank" steel chassis, sealed controls.
  • Flexible routing: 4 subgroups, 6 aux sends, numerous I/O.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Mackie 2404VLZ4 24-channel 4-bus FX Mixer with USB

The Mackie 2404VLZ4 is a comprehensive 24-channel, 4-bus compact mixer that represents the culmination of the acclaimed VLZ series, designed for professional recording, live sound, and broadcast applications. It integrates a robust feature set into a streamlined chassis, beginning with its high-performance Onyx microphone preamplifiers on all mono inputs, which are renowned for their ultra-low noise, high headroom, and transparent sound quality essential for critical audio capture. The mixer's 4-bus architecture provides flexible routing options, allowing operators to send channel signals to four separate subgroup outputs or directly to the stereo main mix, facilitating sophisticated submixing for drums, vocals, or effects returns, and enabling versatile recording and live mixing strategies. This professional routing capability is complemented by six auxiliary sends per channel, supporting extensive monitor and effects setups.

A significant feature of the 2404VLZ4 is its integrated high-resolution USB audio interface, which facilitates seamless integration with digital audio workstations. The USB connection allows for multi-channel recording and playback, transmitting up to 24 channels of audio to and from a computer, which greatly enhances its utility in project and home studio environments. The mixer also includes a dedicated stereo effects return section with comprehensive routing options and a talkback system with a front-panel input, making it well-suited for studio communication. Channel strips are equipped with 3-band semi-parametric EQ with sweepable midrange frequencies, high-pass filters, and peak LEDs, providing detailed tonal shaping and clear visual feedback for each input.

Constructed with Mackie's renowned durability, the mixer features a rugged steel chassis, high-quality tactile controls, and smooth, long-throw faders. Its intuitive layout, comprehensive metering for all buses and the main output, and inclusion of both XLR and 1/4-inch main outputs ensure reliable operation in demanding settings. The 2404VLZ4 serves as a professional centerpiece for small to mid-sized studios, mobile recording rigs, and live sound venues, offering the analog mixing workflow cherished by engineers alongside modern digital connectivity. It effectively bridges the gap between traditional analog console operation and the needs of contemporary hybrid analog-digital production environments.

Key Features

  • Premium Onyx preamps: 20 boutique-quality mic preamps with 60dB gain.
  • Built-in compression: 8 single-knob compressors on select channels/subgroups.
  • Dual effects engines: Dual 32-bit RMFX+ processors with 24 effects.
  • USB interface: Integrated 4x2 24-bit USB audio interface.
  • Rugged construction: "Built-Like-A-Tank" steel chassis, sealed controls.
  • Flexible routing: 4 subgroups, 6 aux sends, numerous I/O.

Mackie 2404VLZ4 24-channel 4-bus FX Mixer with USB Specs

Input Configuration
Microphone/Line Inputs
16 (Mono XLR/TRS Combo)
Stereo Line Inputs
4 Pairs (1/4" TRS)
Total Input Channels
24
Phantom Power
+48V (Switchable in Banks)
Audio Performance
Preamplifier
Onyx Mic Preamp
Frequency Response
10 Hz - 80 kHz (+0/-1 dB)
Total Harmonic Distortion
<0.0007% @ 1 kHz
EIN (Noise Floor)
-129.5 dBV (150Ω)
Channel Processing
High-Pass Filter
75 Hz (Mono Channels)
Auxiliary Sends
6 (4 Pre-Fader, 2 Post-Fader)
Buses & Routing
Main Outputs
Stereo (XLR & 1/4" TRS)
Subgroup Outputs
4 (1/4" TRS)
Bus Assign
Per Channel to L/R & 4 Subgroups
USB Interface
USB Type
USB 2.0
Audio Resolution
Up to 24-bit/96 kHz
USB Send Channels
24 Channels (Multi-Track)
USB Return Channels
24 Channels (Playback)
Physical & Controls
Fader Type
60mm Long-Throw
Metering
12-Segment LED per Bus & Main
Dimensions
Approx. 515mm x 400mm x 125mm
Weight
Approx. 11.8 kg
Power
Power Supply
Internal
Voltage
100-240V AC, 50/60 Hz

Key Features

  • Premium Onyx preamps: 20 boutique-quality mic preamps with 60dB gain.
  • Built-in compression: 8 single-knob compressors on select channels/subgroups.
  • Dual effects engines: Dual 32-bit RMFX+ processors with 24 effects.
  • USB interface: Integrated 4x2 24-bit USB audio interface.
  • Rugged construction: "Built-Like-A-Tank" steel chassis, sealed controls.
  • Flexible routing: 4 subgroups, 6 aux sends, numerous I/O.
