Mackie

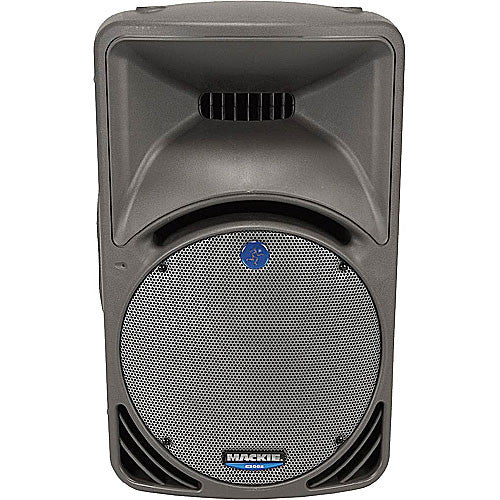

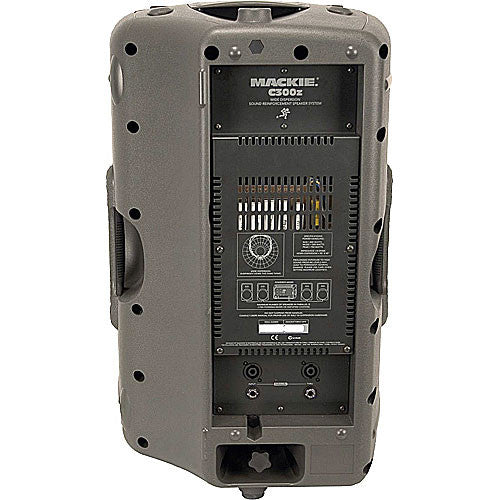

Mackie C300z 12" 2-way Compact Passive SR Loudspeaker

$0.00

The Mackie C300Z is a mid-priced 2-way speaker that is designed with a 12" woofer and a 1.75" compression driver enclosed in a wide-dispersion constant directivity horn housing, it comes with a 300 Watt average power handling capacity.

The asymmetrical design and internal damping of the Mackie C300Z is designed to contribute toward a natural sound reproduction free of phase anomalies, and the rugged enclosure is possible to be pole-mounted, flown, or used as a floor monitor. C series speakers are tuned exclusively by the renowned EAW design team, and are offering the design concepts applied to elite loudspeaker systems at a fraction of the cost.

View Product Features

  • Portable Passive loudspeaker with 1.75" HF compression driver and 12" LF transducer
    750W peak power handling
  • HF compression driver mounted on multi-celled aperture, with constant directivity horn for wide 90° x 45° dispersion angle
  • Accurate reproduction of upper mid-range and high frequencies, tuned Low Impedance
  • Compensated Crossover(LICC) for matching driver beamwidth patterns
  • Asymmetrical monocoque design with no parallel surfaces, causes reflection of mid and high frequency resonances at angles into internal damping materials, minimizes phase anomilies and other signal distortion
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Mackie C300z 12" 2-way Compact Passive SR Loudspeaker

The Mackie C300z is a compact, high-output passive loudspeaker designed as a versatile component for portable sound reinforcement and permanent installation systems. This 2-way speaker features a robust 12-inch woofer paired with a high-frequency compression driver mounted on a precision waveguide, delivering a balanced frequency response with clear vocals and solid low-mid projection suitable for a wide range of applications. Its compact cabinet, constructed from durable plywood with a textured polyurethane finish, is engineered to be both lightweight for transport and roadworthy for touring. The speaker is designed for use with external amplifiers and includes comprehensive connection options via dual Neutrik NL4 speakON connectors and 1/4-inch jacks, allowing for easy daisy-chaining in multi-speaker setups.

A key feature of the C300z is its integrated passive crossover network, which efficiently splits the amplified signal between the woofer and tweeter without requiring external processing. The speaker's design incorporates carefully tuned porting to extend low-frequency response and maximize output from the 12-inch driver. It is capable of handling significant power, making it suitable for use as a main front-of-house speaker for small to medium-sized venues, as a stage monitor when placed on its side, or as part of a distributed sound system. Multiple M10 suspension points are built into the cabinet for secure fly or truss mounting, adding to its installation flexibility.

The Mackie C300z represents a professional-grade workhorse speaker that prioritizes reliability, sound quality, and versatility. It is an excellent choice for mobile DJs, bands, houses of worship, and rental companies needing a dependable speaker that can perform reliably in various roles. When paired with an appropriately powered amplifier, it delivers the punch and clarity required for live music, spoken word, and playback, all in a form factor that balances performance with portability.

Key Features

  • Portable Passive loudspeaker with 1.75" HF compression driver and 12" LF transducer
    750W peak power handling
  • HF compression driver mounted on multi-celled aperture, with constant directivity horn for wide 90° x 45° dispersion angle
  • Accurate reproduction of upper mid-range and high frequencies, tuned Low Impedance
  • Compensated Crossover(LICC) for matching driver beamwidth patterns
  • Asymmetrical monocoque design with no parallel surfaces, causes reflection of mid and high frequency resonances at angles into internal damping materials, minimizes phase anomilies and other signal distortion

Mackie C300z 12" 2-way Compact Passive SR Loudspeaker Specs

Driver Configuration
Woofer
12 inch
Tweeter
1.75 inch Compression Driver
Crossover
Passive, built-in
Power Handling & Impedance
Power Handling (RMS)
400 Watts
Power Handling (Peak)
1600 Watts
Impedance
8 ohms
Frequency Response & Sensitivity
Frequency Response
50 Hz - 20 kHz
Sensitivity
96 dB (1W/1m)
Maximum SPL
129 dB Peak
Physical & Construction
Enclosure Material
15 mm Plywood with Polyurethane Finish
Dimensions
Compact design (approx. 24" H x 15" W x 13" D)
Weight
Approx. 40 lbs (18.1 kg)
Connectors & Mounting
Input Connectors
Dual Neutrik NL4 speakON, 1/4" Jack
Mounting Points
Multiple M10 Suspension Points
Pole Socket
1.5" for stand mounting
Application
Primary Use
Main PA, Monitor, Installation
Coverage Pattern
Wide dispersion (e.g., 90° x 50°)
Recommended Amplifier
400-800W per channel at 8 ohms

Key Features

  • Portable Passive loudspeaker with 1.75" HF compression driver and 12" LF transducer
    750W peak power handling
  • HF compression driver mounted on multi-celled aperture, with constant directivity horn for wide 90° x 45° dispersion angle
  • Accurate reproduction of upper mid-range and high frequencies, tuned Low Impedance
  • Compensated Crossover(LICC) for matching driver beamwidth patterns
  • Asymmetrical monocoque design with no parallel surfaces, causes reflection of mid and high frequency resonances at angles into internal damping materials, minimizes phase anomilies and other signal distortion
