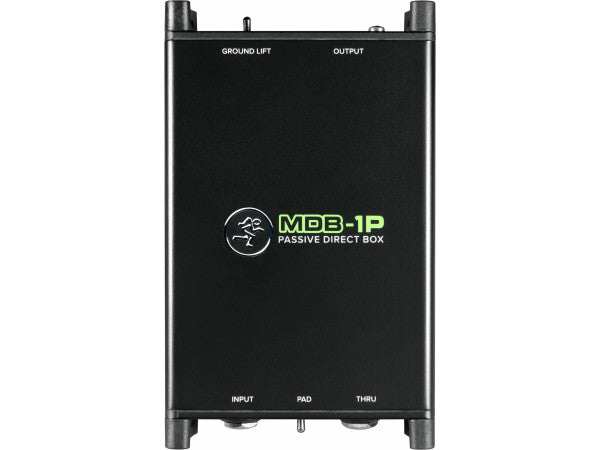

The Mackie MCK-2049171-00 is a professional passive direct box designed to convert unbalanced, high-impedance instrument-level signals into balanced, low-impedance microphone-level signals suitable for connection to mixing consoles, audio interfaces, and recording systems. This device is a fundamental tool in live sound and studio environments, solving common interfacing problems by allowing instruments like electric bass, acoustic guitar with a pickup, or keyboards to be connected directly to a mixer's microphone input via an XLR cable. The passive design, centered around a high-quality audio transformer, requires no external power, making it extremely reliable, simple to use, and immune to the potential noise issues that can affect active designs. Its primary functions are balancing the signal for long cable runs without noise, providing ground lift isolation to eliminate hum caused by ground loops, and offering appropriate impedance matching for optimal tonal response.

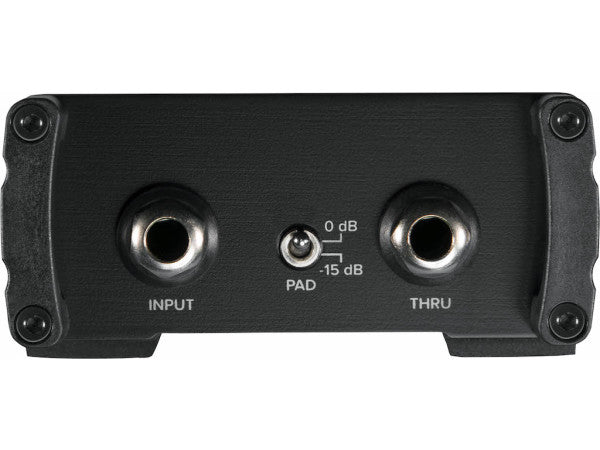

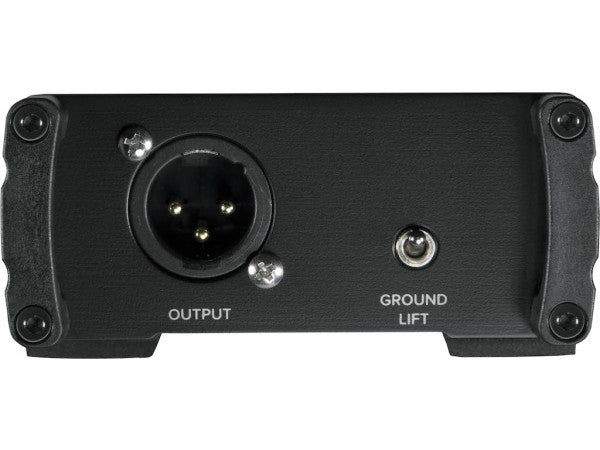

The direct box features a standard 1/4-inch input jack for connecting the instrument and provides two outputs: a balanced XLR output to send the signal to the mixer and a parallel 1/4-inch thru output with a fixed pad to feed the musician's onstage amplifier for local monitoring. The core component is a meticulously wound transformer that provides galvanic isolation between the input and output, effectively breaking ground loops and providing excellent common-mode rejection to filter out electromagnetic interference picked up along the cable run. A ground lift switch allows the user to disconnect the ground connection between the input and output, which is often the definitive solution for persistent low-frequency hum. The unit is built with a focus on signal integrity, ensuring minimal coloration and high headroom for clean, transparent performance.

Housed in a rugged, compact steel chassis, the MCK-2049171-00 is built to withstand the physical demands of touring and frequent handling. Its straightforward operation requires no configuration—users simply connect their instrument, run an XLR cable to the mixer, and engage the ground lift switch if hum is present. By providing a robust, transparent, and interference-free link between instrument and console, this passive direct box is an essential component in any professional audio toolkit, ensuring that direct instrument signals arrive at the mixer cleanly and with integrity, preserving the quality of the performance.
