The Mackie SP260 is a dedicated 2-input, 6-output loudspeaker system processor designed to serve as the central digital signal processing hub for complex multi-zone sound reinforcement systems. It provides precise control and optimization for a wide range of applications, including fixed installations in houses of worship, performing arts centers, retail environments, and distributed audio systems. The unit accepts two independent analog or digital input sources and routes them through a comprehensive suite of DSP tools before distributing the processed signals to up to six output channels. Each output is fully configurable with independent delay, equalization, crossover filtering, and limiting, allowing system integrators to meticulously tune the performance of individual speaker zones or specific loudspeaker components within a bi-amplified or tri-amplified setup.

The core of the SP260's functionality lies in its sophisticated, yet user-friendly, software-based configuration. Using dedicated software on a connected computer, engineers can design the system's signal flow, applying high-pass and low-pass filters to create precise crossover points for driving main speakers, subwoofers, and fill speakers from a single unit. The parametric EQ on each output allows for detailed room correction and tonal shaping, while the time alignment delay ensures coherent phase response across multiple speaker locations, eliminating comb filtering and improving intelligibility. Dynamics processing includes compressor/limiter functions with adjustable thresholds, ratios, and attack/release times to protect downstream amplifiers and loudspeakers from damage due to transient peaks or unintended overload.

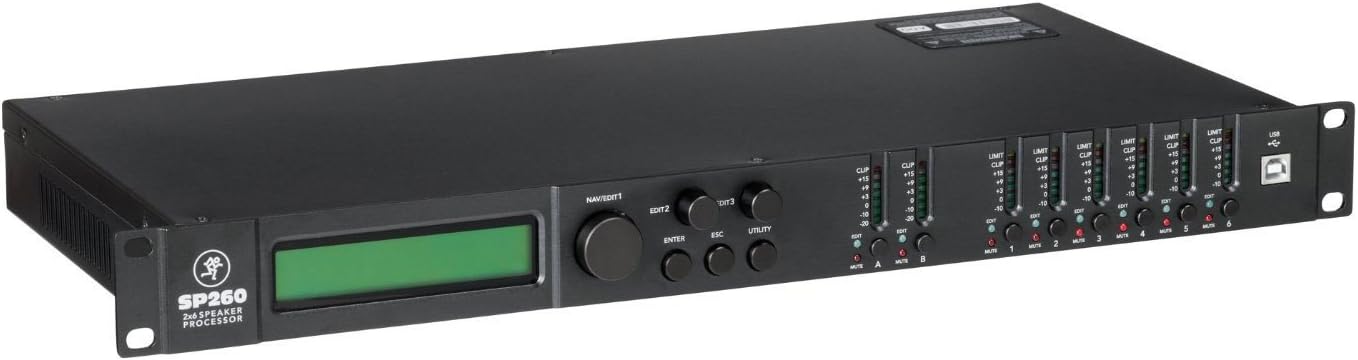

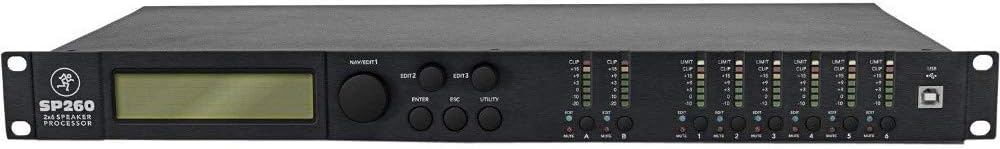

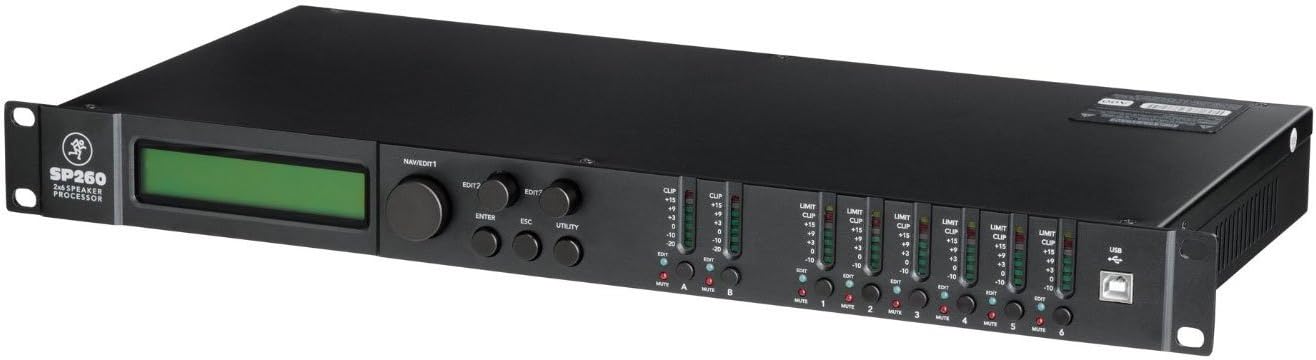

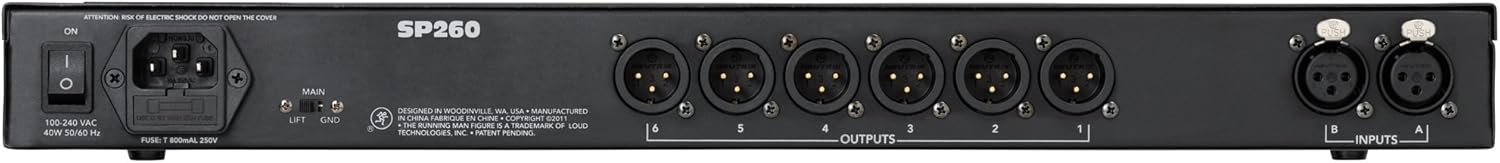

Housed in a single rack-space unit, the SP260 is built for reliability in permanent installations. It features balanced XLR input and output connectors, word clock I/O for synchronization with other digital audio devices, and both USB and RS-232 ports for configuration and control. The device can store multiple presets, enabling recall of different tuning configurations for various room uses or events. By consolidating the functions of multiple discrete processors—crossovers, EQs, delays, and limiters—into one intelligent unit, the Mackie SP260 provides system designers with a powerful, flexible, and space-efficient tool to maximize sound quality, ensure system protection, and simplify the management of sophisticated audio installations.
