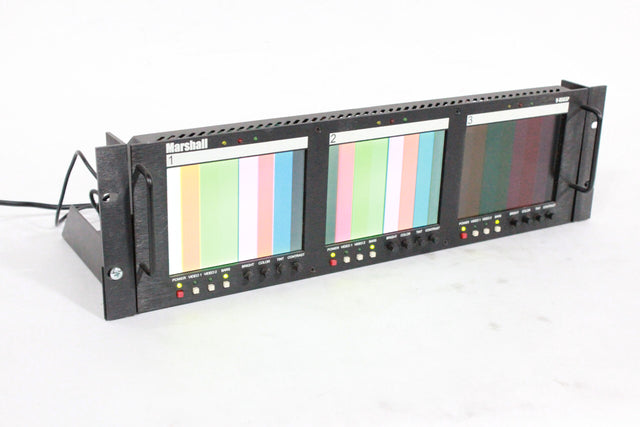

The Marshall Electronics V-R563P is a professional 3U rackmount solution housing three independent 5.6-inch high-resolution LCD monitors, designed for critical video monitoring in broadcast, production truck, and control room environments. Each monitor within the unit is a fully self-contained display, capable of accepting SDI video signals, making it an ideal choice for compact multi-viewer applications such as confidence monitoring for multiple cameras, preview/program feeds, graphics outputs, or source monitoring in a routing system. The displays utilize LCD technology to deliver a bright, sharp image with accurate color reproduction, essential for making informed production decisions regarding exposure, focus, and composition when space is at a premium.

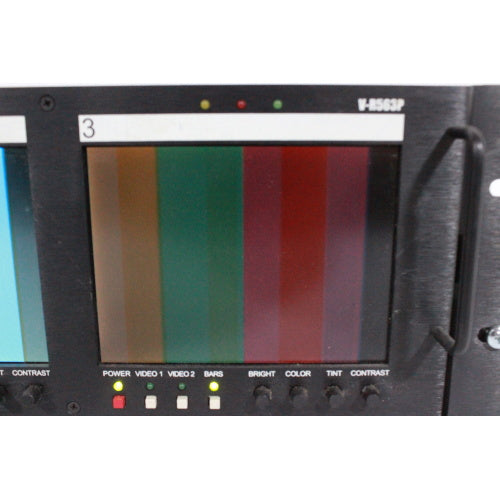

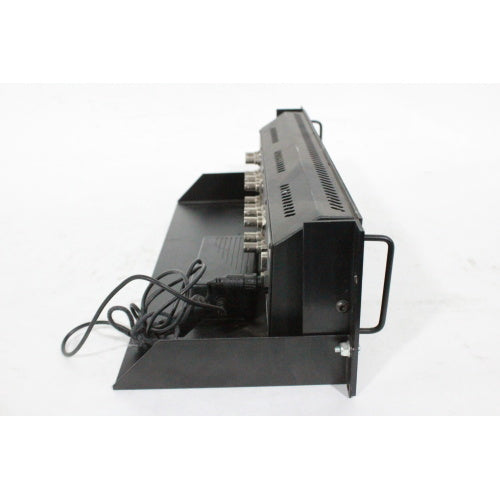

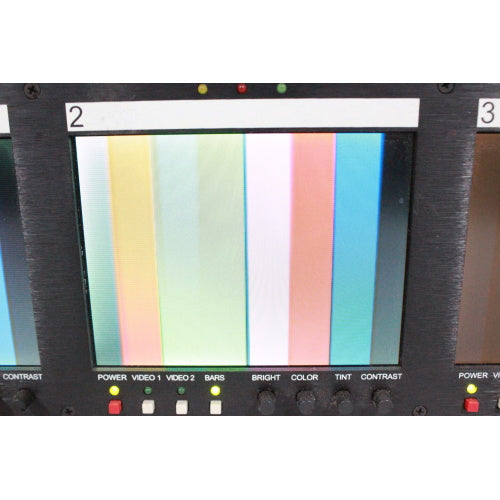

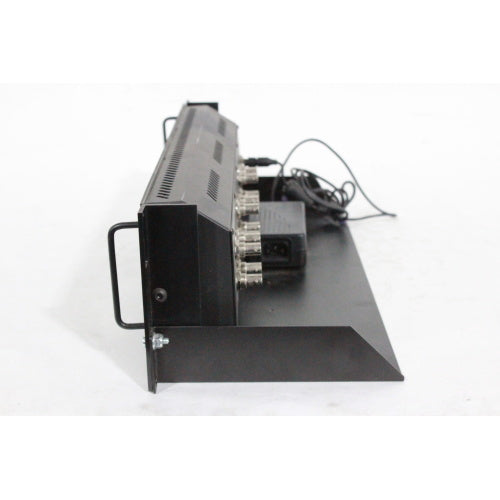

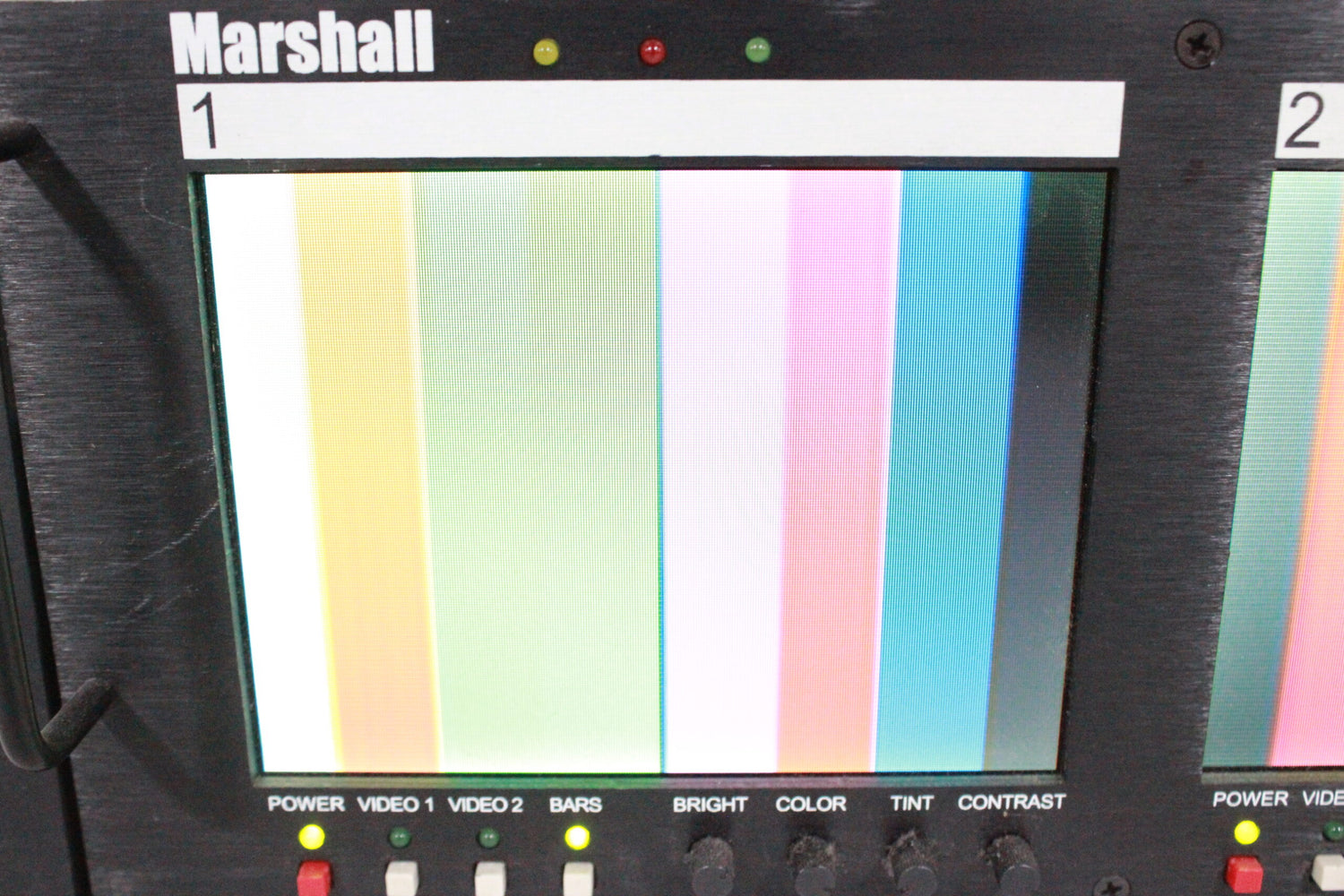

Functionality is centered on utility and integration. Each screen features its own dedicated BNC input for SDI signals (supporting standards up to 3G-SDI), and many models include loop-through outputs to daisy-chain signals to other equipment. The monitors provide essential on-screen display (OSD) controls accessible via front-panel buttons, allowing adjustment of parameters like brightness, contrast, peaking for focus assist, and various marker overlays such as safe area guides. The triple-display chassis is constructed from heavy-gauge metal for durability and is designed to mount neatly into a standard 19-inch equipment rack, consolidating three monitoring points into a single rack unit and saving valuable space compared to using three separate small monitors.

The V-R563P is engineered for continuous operation in professional video systems. Its compact screen size is a strategic choice for situations where the operator is at a close viewing distance, such as in a crowded equipment rack or a compact production console. The ability to see three distinct sources simultaneously without turning one's head greatly enhances operational efficiency for video engineers, technical directors, and playback operators. By offering reliable, straightforward multi-source monitoring in a rugged, space-saving package, this Marshall unit serves as a vital tool for maintaining visual oversight across multiple facets of a live production or broadcast facility's signal chain.
