Martin Audio

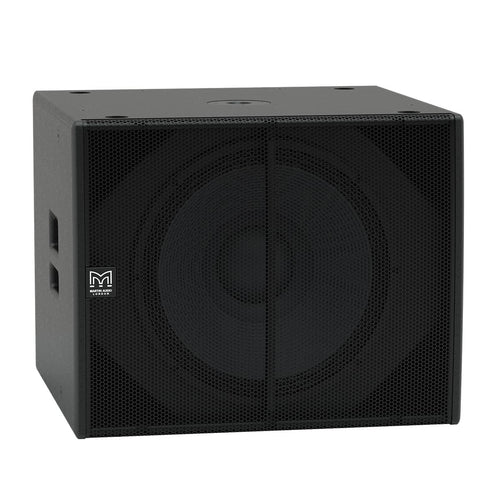

Martin Audio Backline XP118 1x18" Active Subwoofer for Use with BlacklineXP Loudspeakers

$2,100.00

The high-performance XP118 subwoofer is designed for indoor use with the XP12 and XP15 full-range loudspeakers to extend the low frequency operating range of the combined system down to 42Hz. The powered subwoofer can be used singly, stacked in omni or cardioid mode, or flown.

An onboard convection-cooled Class D amplifier provides a chest-thumping 2000 watts of peak output power to the 18-inch, long excursion, 4-inch voice coil LF driver. The amplifier’s DSP provides crossover, EQ, metering and control functions via a rotary encoder interface and multifunction color display on the rear panel.

Built to handle the rigors of road use, the XP188 enclosure is constructed from durable plywood finished in textured black paint. Its design incorporates four large reflex ports to reduce turbulent air noise at very high levels, two ergonomic side handles, and a 35mm pole-mount socket in the top surface.

View Product Features

  • Compact, self-powered subwoofer
  • 2000 watts of Class D amplification
  • Onboard DSP with rotary control interface
  • Multifunction display for control, metering, and function selection
  • Peak and RMS limiters
  • Bluetooth® control and streaming option
  • Global power supply with Power Factor Correction
  • Rugged plywood enclosure construction
  • Screw-free, perforated steel grille
  • 35mm pole-mount socket
  • Integral ergonomic handles
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Martin Audio Backline XP118 1x18" Active Subwoofer for Use with BlacklineXP Loudspeakers

Featuring a long-excursion 18” (460mm)/4” (100mm) voice coil driver in a compact enclosure that has four reflex ports with a large frontal area to reduce turbulent air noise at very high levels.

A convection-cooled Class D amplifier module delivers 2000W peak output to the driver for maximum low frequency extension and chest-thumping punch. Crossover, EQ, metering and control functions are provided by onboard DSP via a rotary encoder interface and multi-function colour screen on the rear panel.

The XP118 enclosure is built for the road, constructed from durable plywood and finished in textured black paint. A perforated steel grille protects the driver, and the enclosure has a 35mm pole-mount socket in the top surface and two ergonomic side handles.

Key Features

  • Compact, self-powered subwoofer
  • 2000 watts of Class D amplification
  • Onboard DSP with rotary control interface
  • Multifunction display for control, metering, and function selection
  • Peak and RMS limiters
  • Bluetooth® control and streaming option
  • Global power supply with Power Factor Correction
  • Rugged plywood enclosure construction
  • Screw-free, perforated steel grille
  • 35mm pole-mount socket
  • Integral ergonomic handles

Martin Audio Backline XP118 1x18" Active Subwoofer for Use with BlacklineXP Loudspeakers Specs

Acoustics
TYPE
Compact, Self-powered Subwoofer
FREQUENCY RESPONSE
42Hz –150Hz ±3dB -10dB @ 38Hz
DRIVER
18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet
MAXIMUM SPL
131dB continuous, 137dB peak (half space)
DISPERSION (-6dB)
Omnidirectional
CROSSOVER
100Hz, active
Module Audio In/Out
INPUT CONNECTORS
2 x female XLR/ 1⁄4” jack combo
MIC/LINE INPUT IMPEDANCE
8 kΩ balanced
1⁄4” JACK TS INPUT IMPEDANCE
1 MΩ unbalanced
MIX OUTPUT CONNECTOR
1 x male XLR
MIX OUTPUT IMPEDANCE
600Ω balanced
Internal Processing
Input channel EQ
3 band
Speaker EQ
2 presets: XP118 with XP12, XP118 with XP15
Protection
Peak and RMS limiting, amplifier thermal protection
Amplifier Module
TYPE
Class D, Bridged Tied
PEAK OUTPUT POWER
2000W total
AVERAGE EFFICIENCY
89%
COOLING
Convection
MAXIMUM AMBIENT TEMPERATURE
35°C (95°F) for full output
Power Supply
TYPE
Switch-mode, fixed frequency with PFC
AC INPUT OPERATING RANGE
100 – 240V ~ AC, 50 - 60Hz
POWER FACTOR
> 0.98
NOMINAL POWER CONSUMPTION
1000W Max
MAINS CONNECTOR
3-pin IEC
Mechanical
ENCLOSURE
Birch/poplar ply
FINISH
Black textured paint
PROTECTIVE GRILLE
Black perforated steel
FITTINGS
16 x M10 inserts, pole-mount socket 2 x bar handles, provision for castors
DIMENSIONS
(W) 662mm x (H) 536mm x (D) 640mm (W) 26.1in x (H) 21.1in x (D) 25.2in
WEIGHT
44kg (97lbs)

Key Features

  • Compact, self-powered subwoofer
  • 2000 watts of Class D amplification
  • Onboard DSP with rotary control interface
  • Multifunction display for control, metering, and function selection
  • Peak and RMS limiters
  • Bluetooth® control and streaming option
  • Global power supply with Power Factor Correction
  • Rugged plywood enclosure construction
  • Screw-free, perforated steel grille
  • 35mm pole-mount socket
  • Integral ergonomic handles
