Martin Audio

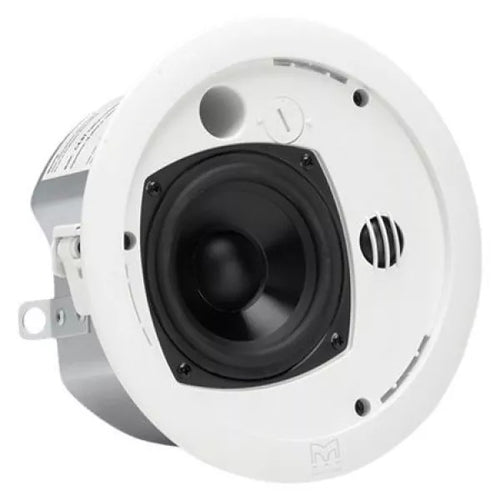

Martin Audio C4.8T Ceiling Loudspeaker, 4" LF & 0.8" Tweeter (Pair)

$330.00

Martin Audio C4.8T 2-Way Ceiling Mount Loudspeaker, Vented Enclosure

The extremely compact C4.8T 2-way flush mount loudspeaker delivers high performance, high intelligibility audio for a wide range of applications. It is designed for fixed installations in ceilings or walls and is especially effective in low ceiling applications. The unit is equipped with a 4-inch bass driver that has a UL-rated carbon fiber loaded polypropylene cone and a 0.8-inch dome tweeter.

View Product Features
  • Two-way high performance flush mounting ceiling speaker
  • 4" (100mm) UL94V-0 carbon fibre loaded polypropylene cone bass driver
  • Very wide dispersion – 180° up to 10kHz
  • High & low impedance operation – transformer included
  • Fireproofed rising clamp plug and socket for easy pre-wiring
  • 100dB continuous max SPL @ 1 metre
  • Steel backcan
  • Tile rails and C bracket included
  • UL2043 & UL1480
In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

  •
    New

    C4.8T

    Martin Audio C4.8T Ceiling Loudspeaker, 4" LF & 0.8" Tweeter (Pair)

    $330.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the Martin Audio C4.8T Ceiling Loudspeaker, 4" LF & 0.8" Tweeter (Pair)

C4.8T's configuration easily outperforms coaxial stalk-mounted tweeter or single driver arrangements in terms of wide dispersion and smooth off-axis frequency response. The exceptionally wide dispersion of the C4.8T makes it particularly suitable for installation in low ceilings where significantly fewer units will be required to cover a particular area.

These products comply with UL2043 Fire Tests for Heat & Visible Smoke Release for Discrete Products and their Accessories Installed in Air Handling Spaces.

Listed UL1480 General Signalling Speakers.

Key Features

  • Two-way high performance flush mounting ceiling speaker
  • 4" (100mm) UL94V-0 carbon fibre loaded polypropylene cone bass driver
  • Very wide dispersion – 180° up to 10kHz
  • High & low impedance operation – transformer included
  • Fireproofed rising clamp plug and socket for easy pre-wiring
  • 100dB continuous max SPL @ 1 metre
  • Steel backcan
  • Tile rails and C bracket included
  • UL2043 & UL1480

Martin Audio C4.8T Ceiling Loudspeaker, 4" LF & 0.8" Tweeter (Pair) Specs

TYPE
Ceiling mounted, two-way vented enclosure
FREQUENCY RESPONSE
100Hz-20kHz ± 3dB -10dB @ 80Hz
DRIVER
4" (100mm) UL94V-0 PP bass driver 0.8" (19mm) dome tweeter
RATED POWER
40W AES, 160W peak
SENSITIVITY
86dB
MAXIMUM SPL
100dB continuous, 106dB peak
NOMINAL IMPEDANCE
16Ω
DISPERSION (-6dB)
180° conical up to 10kHz
CROSSOVER
5kHz passive
ENCLOSURE
Steel backcan
FINISH
Bezel & grille – white UV resistant (Overpaintable) Backcan – zinc plated
PROTECTIVE GRILLE
Perforated steel
CONNECTORS
Rising clamp plug and socket
VOLTAGE TAPS
100V – 25W, 12.5W, 6W 70V – 25W, 12.5W, 6W, 3W
DIMENSIONS
(OD) 205mm x (D) 131mm (OD) 8.1ins x (D) 5.1ins
CUT-OUT DIAMETER
178mm (7.01 ins)

Key Features

  • Two-way high performance flush mounting ceiling speaker
  • 4" (100mm) UL94V-0 carbon fibre loaded polypropylene cone bass driver
  • Very wide dispersion – 180° up to 10kHz
  • High & low impedance operation – transformer included
  • Fireproofed rising clamp plug and socket for easy pre-wiring
  • 100dB continuous max SPL @ 1 metre
  • Steel backcan
  • Tile rails and C bracket included
  • UL2043 & UL1480
