SKU: IK81DIST32US

Martin Audio IK81DIST32US Power & Speaker Distro - 3 Ph Nema With 6 X Nl8 For Use With 3 X IK81 US Spec

$4,000.00

Items Included

Item Notes

Condition: Fully Working 5 available
5 available View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window

Description

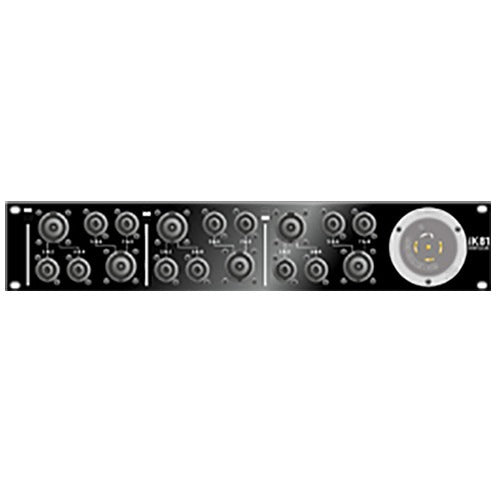

The Martin Audio IK81DIST32US is a 2U distro used to supply power and take the output from three iK81 amplifiers. Read more

Features

• 30A three-phase Hubbell power input
• 6 x NL8 output
• 12 x NL4 output
• All loudspeaker channels wired in parallel across output types

• 12 x NL4 tails
• 3 x 32A powerCON tails
• 3 x IEC outputs

Business Financing Options Avaiable

The Martin Audio IK81DIST32US is a 2U distro used to supply power and take the output from three iK81 amplifiers. Read more

Features

• 30A three-phase Hubbell power input
• 6 x NL8 output
• 12 x NL4 output
• All loudspeaker channels wired in parallel across output types

• 12 x NL4 tails
• 3 x 32A powerCON tails
• 3 x IEC outputs

About the Martin Audio IK81DIST32US Power & Speaker Distro - 3 Ph Nema With 6 X Nl8 For Use With 3 X IK81 US Spec

The iK81 can deliver a full 1250 watts per channel into 2, 4 or 8 ohms with all channels driven while remaining highly efficient. Its high efficiency reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound under arduous live conditions.

Martin Audio iKON iK81 | High Power, Eight-Channel Class D Amplifier
Ethernet is used for system remote control and monitoring via Martin Audio’s VU-NET software application, while a user friendly front panel interface allows full local control of all features. Dante digital audio network inputs are also provided for digital audio distribution and control.

Powerful DSP is fully integrated into the iK81 to provide a multitude of features. It also provides up to 1000 FIR filter taps @ 48kHz on each output channel, which is essential to implement DISPLAY’s wide bandwidth optimization process in the WPM line array.

The iK81 employs comprehensive protection functions to maintain safe operating conditions of both the amplifier and the loudspeakers driven — including a sophisticated loudspeaker limiter suite which incorporates peak, RMS and excursion limiting, as well as multi-band limiting for passive 2-way systems.

Key Features

• 30A three-phase Hubbell power input
• 6 x NL8 output
• 12 x NL4 output
• All loudspeaker channels wired in parallel across output types

• 12 x NL4 tails
• 3 x 32A powerCON tails
• 3 x IEC outputs

Martin Audio IK81DIST32US Power & Speaker Distro - 3 Ph Nema With 6 X Nl8 For Use With 3 X IK81 US Spec Specs

TYPE
Eight-channel Class D amplifier
POWER OUTPUT
1250W into 2Ω 1250W into 4Ω 1250W into 8Ω 625W into 16Ω 2500W bridged per channel pair, 4Ω 2500W bridged per channel pair, 8Ω
CV LINE OUTPUT
625W, 25V line 1250W, 70V line 1250W, 100V line
DIGITAL SIGNAL PROCESSING
96kHz/48kHz DSP on all inputs and outputs
COOLING
Dual vari-speed fans, front-to-back airflow
MAXIMUM AMBIENT TEMPERATURE
40°C (104°F)
AC INPUT OPERATING RANGE
85 – 240V ~ AC, 47 - 63Hz
MAINS INRUSH CURRENT
6A at 115V, 12A at 230V (max for <10ms)
MAINS CONNECTOR
Neutrik 32A Powercon™

Key Features

• 30A three-phase Hubbell power input
• 6 x NL8 output
• 12 x NL4 output
• All loudspeaker channels wired in parallel across output types

• 12 x NL4 tails
• 3 x 32A powerCON tails
• 3 x IEC outputs
