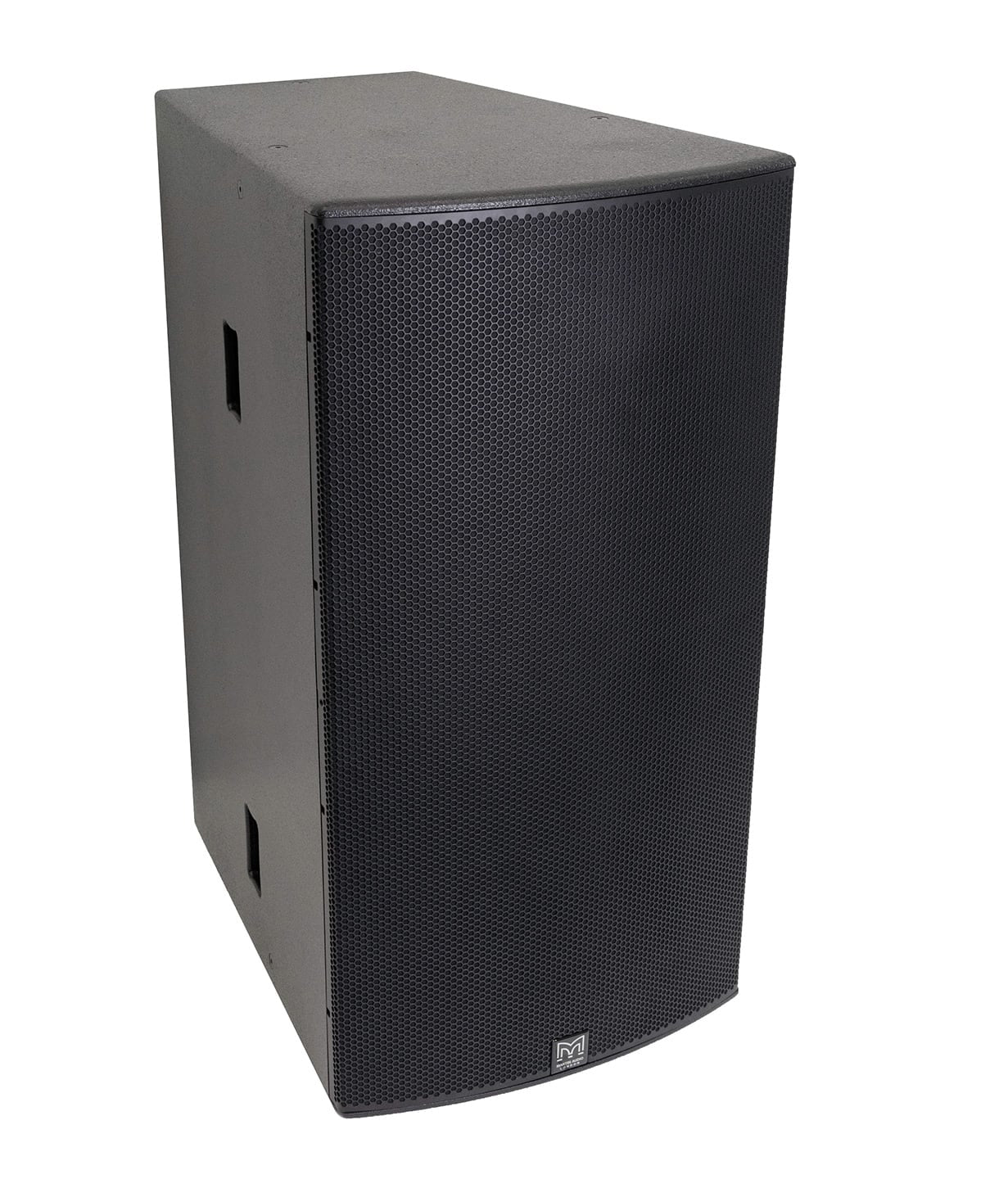

Martin Audio THV 3-Way Biamped Horn-Loaded Point Source Speaker, Vertical
For used equipment, the images displayed reflect the exact item and contents included, unless otherwise specified in the product description.
Already own this item and want to sell it?
Click here to sell your item
Description
Description
Martin Audio THV 3-Way Bi-Amp Trapezoid Hybrid® Fully Horn Loaded Speaker, Vertical
The THV is a 3-way, all-horn, very high-performance system in a single, vertically formatted, wide-bandwidth package.

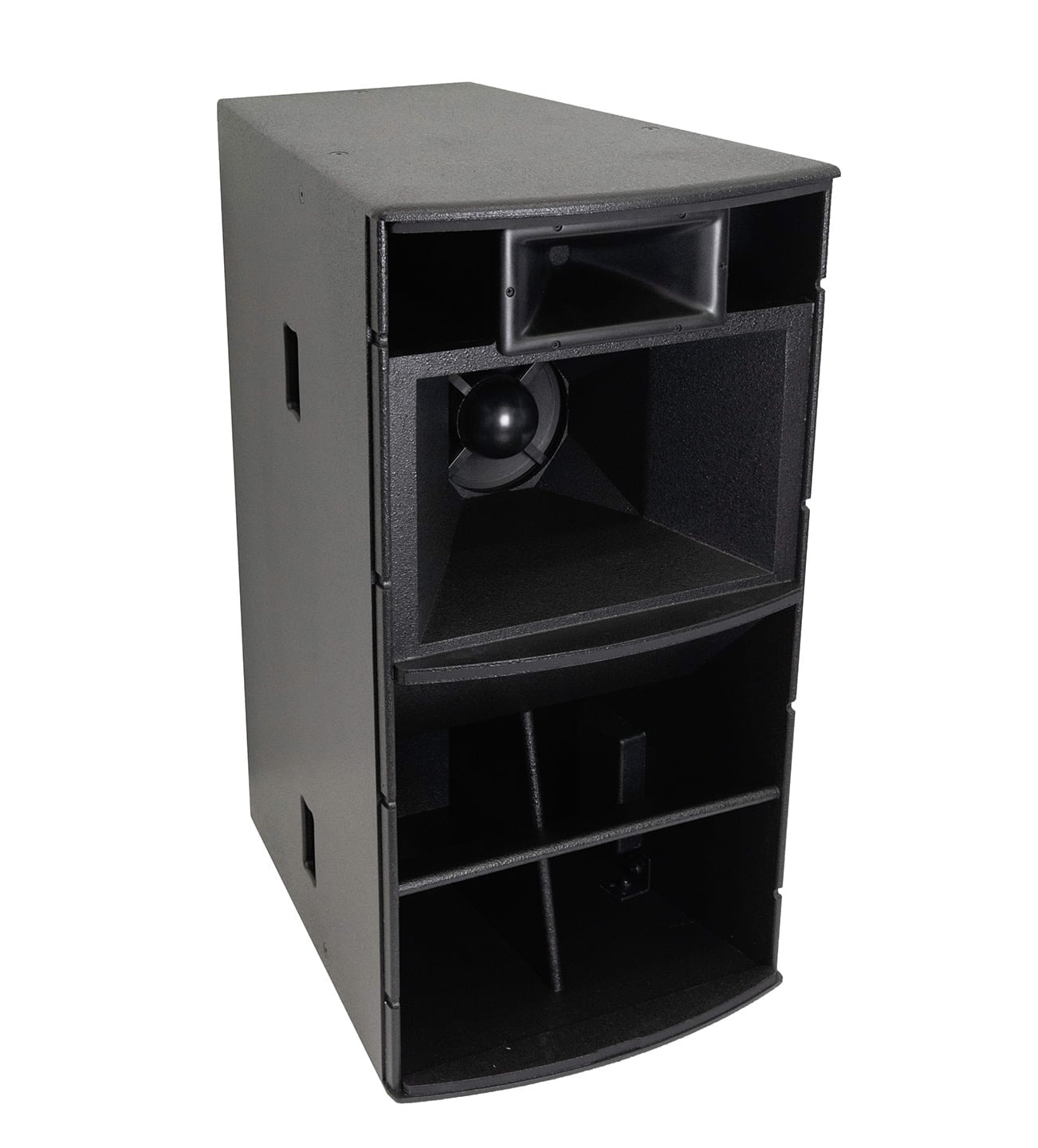

The THV features a 3-driver compliment engineered for top performance in all frequency bands.
The Hybrid® low frequency section uses a horn-loaded 15-inch driver with a 4-inch voice coil. The driver is reflex loaded to extend the LF output beyond the natural horn cut-off point. The driver has a water-resistant cone and triple roll surround for extended excursion.
The mid-horn incorporates a unique “phase-ball” loading device to maintain the constant directivity characteristics of the horn at the upper end of its range. This section uses a 10-inch midrange driver equipped with an aluminum demodulating ring for reduced distortion and improved high-mid clarity when driven hard.
The 70° x 40° high frequency section features a neodymium 1-inch exit compression driver with a Kapton diaphragm delivering high sensitivity and extended HF performance.
An internal passive mid-high crossover enables the 3-way system to be driven in a bi-amped configuration.
