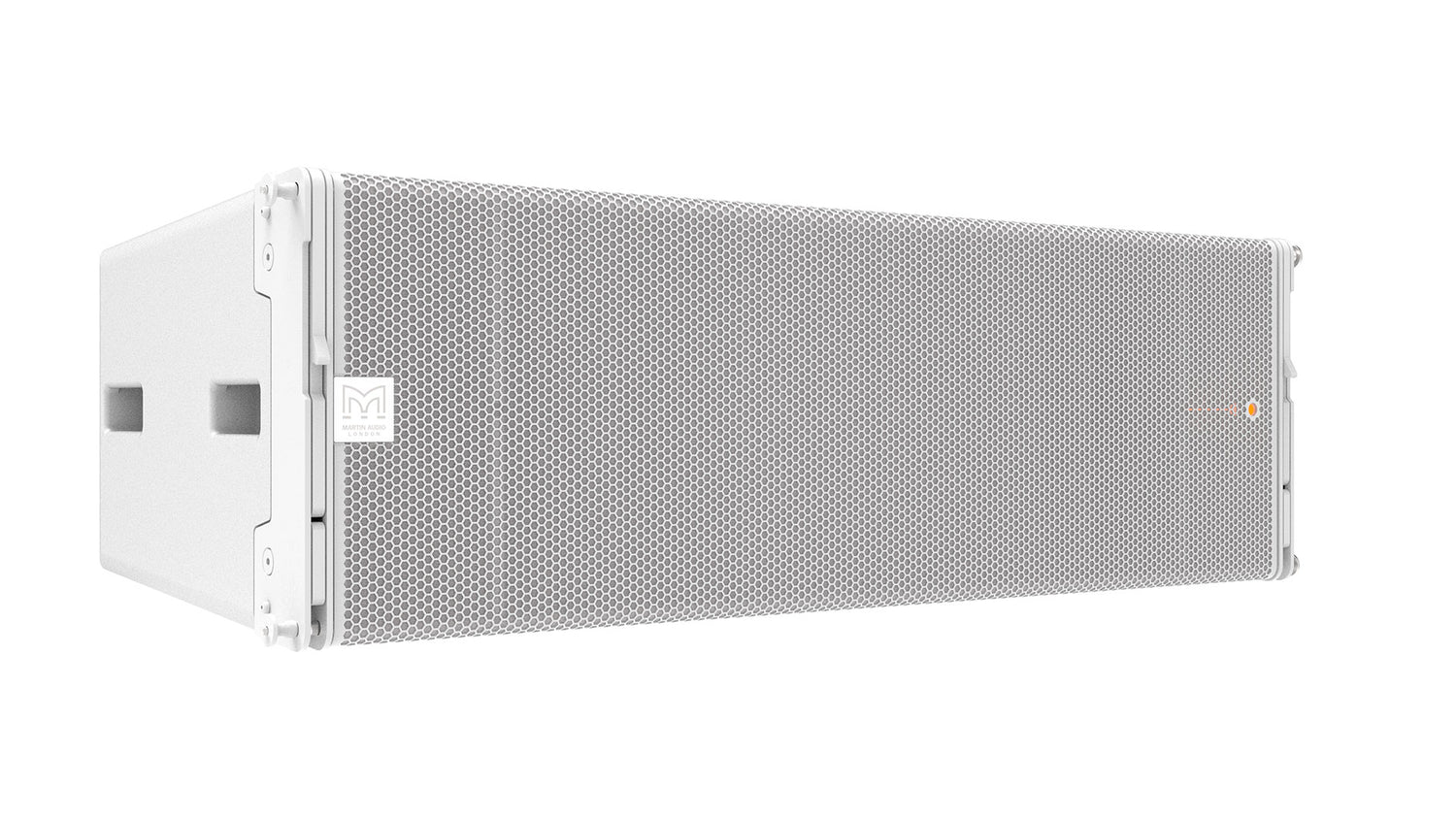

Martin Audio WPL-W 2 x 12" Bi-amp Three-way Line Array, White

Name: Martin Audio WPL-W 2 x 12" Bi-amp Three-way Line Array, White
Brand: AVGear.com
SKU: WPL-W
Price: 12000.00 USD
Availability: InStock

$12,000.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

WPL is a 3-way, bi-amped, large-format line array with dual 12” LF, scalable resolution optimisation, and the ability to deliver stadium-level and large festival output with extraordinary control. At just 64kg [116lbs] its power output to weight relationship provides additional efficiency in trucking space and speed of deployment. From Q2 2026, WPL systems are designed to withstand tougher environmental conditions, feature LED circuit visibility, and enjoy blazing-fast DISPLAY 3 optimisation software with enhanced LF control. If fidelity, precision and ROI matters, this is the moment to choose WPL. Product Comes in White Read more

Features

3-way bi-amp, 2 x 12” large format line array
All-horn, maximum-efficiency design
Exceptional signature sonic performance
Exemplary 90° horizontal constant directivity pattern control
External, dedicated, multi-channel Class D amplification
Scalable resolution for flexible optimisation of coverage, consistency and control
Industry-leading DISPLAY software interacts with DSP for highly-accurate array optimisation
Fast, integral 3-point rigging for up to 24 enclosures
Compact and light weight design with discreet side handles for ease of handling

Business Financing Options Avaiable

View Available Financing

Features

3-way bi-amp, 2 x 12” large format line array
All-horn, maximum-efficiency design
Exceptional signature sonic performance
Exemplary 90° horizontal constant directivity pattern control
External, dedicated, multi-channel Class D amplification
Scalable resolution for flexible optimisation of coverage, consistency and control
Industry-leading DISPLAY software interacts with DSP for highly-accurate array optimisation
Fast, integral 3-point rigging for up to 24 enclosures
Compact and light weight design with discreet side handles for ease of handling

No products currently in stock

About the Martin Audio WPL-W 2 x 12" Bi-amp Three-way Line Array, White

Delivering unmatched sound quality, coverage consistency and control in an affordable package, this uniquely flexible and upgradeable approach has been rapidly adopted by sound rental and installation companies worldwide to become the company’s fastest ever selling line array series.

Wavefront Precision Longbow (WPL) now brings this high performance, control and flexibility to large-scale touring and install applications. Designed as a complete system with external iKON® multi-channel amplifiers, automated DISPLAY™ optimisation software and VU-NET™ control platform, WPL provides financial accessibility to the top echelons of touring and install sound — from prestigious stadium concert and outdoor festivals, to high-specification arena and House of Worship installations.

The complete system philosophy guarantees that WPL arrays perform predictably and effortlessly to their design maximum, as well as ensuring that they are compatible with other WPL systems throughout the world.

Key Features

3-way bi-amp, 2 x 12” large format line array
All-horn, maximum-efficiency design
Exceptional signature sonic performance
Exemplary 90° horizontal constant directivity pattern control
External, dedicated, multi-channel Class D amplification
Scalable resolution for flexible optimisation of coverage, consistency and control
Industry-leading DISPLAY software interacts with DSP for highly-accurate array optimisation
Fast, integral 3-point rigging for up to 24 enclosures
Compact and light weight design with discreet side handles for ease of handling

Already own this item and want to sell it?

Click here to sell your item

Martin Audio WPL-W 2 x 12" Bi-amp Three-way Line Array, White Specs

TYPE

Three-way, bi-amp line array element

FREQUENCY RESPONSE

52Hz-18kHz ± 3dB

DRIVERS

LF: 2 x 12” (300mm)/3” (75mm) voice coil, ultra-long excursion, neodymium magnet drivers, Hybrid® bass horn loaded MF: 2 x 6.5” (165mm)/2” (50mm) coil, neodymium magnet drivers, horn loaded HF: 3 x 1” (25mm) exit neodymium magnet compression drivers, horn loaded

SYSTEM RESOLUTION

1 or 2 enclosures per pair of amplifier channels (Bi-amp)

RATED POWER

LF: 800 W AES, 3200 W peak MF/HF: 500 W AES, 2000 W peak

MAXIMUM SPL

LF: 139dB MF: 140dB HF: 145dB

NOMINAL IMPEDANCE

LF: 8 ohms, MF + HF: 8 ohms

DISPERSION (-6dB)

90º horizontal (-6dB), 120º horizontal (-10dB) 7.5° vertical

CROSSOVER

320Hz active, 4kHz internal passive

ENCLOSURE

Vertical trapezoid with 3.75º wall angle, multi-laminate birch and poplar-ply construction

FINISH

Black textured paint

PROTECTIVE GRILLE

Black HEX perforated steel

CONNECTORS

2 x NL4 type

INPUT CONNECTIONS

LF: 1+/1- MF + HF: 2+/2-

FITTINGS

3-point rigging system 4 x side pocket handles

FLOWN ARRAY MAXIMUM

24 enclosures in single array

DIMENSIONS

(W) 1136mm x (H) 371mm x (D) 526mm (W) 44.7in x (H) 14.6in x (D) 20.7in

WEIGHT

64Kg (141lbs)

Key Features

3-way bi-amp, 2 x 12” large format line array
All-horn, maximum-efficiency design
Exceptional signature sonic performance
Exemplary 90° horizontal constant directivity pattern control
External, dedicated, multi-channel Class D amplification
Scalable resolution for flexible optimisation of coverage, consistency and control
Industry-leading DISPLAY software interacts with DSP for highly-accurate array optimisation
Fast, integral 3-point rigging for up to 24 enclosures
Compact and light weight design with discreet side handles for ease of handling
