Martin Audio

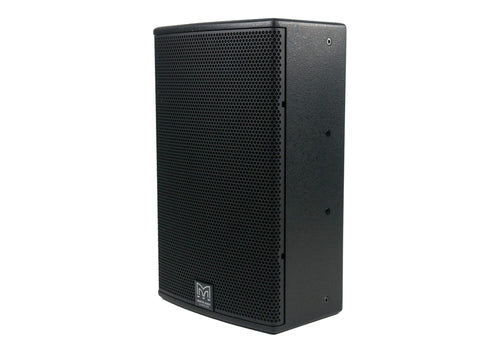

Martin Audio X10B 10" 2-Way Passive Loudspeaker System with 90x50 Horn, Black

$605.60

The Martin X10 is a high-performance, compact two-way passive loudspeaker system with a 10”/2.5” voice coil LF driver and a 1” exit HF compression driver with a 1.4” polyimide diaphragm.

The rotatable 90° x 50° HF horn has equal horizontal and vertical mouth dimensions for directivity control in both planes. The X10 is designed for many professional applications including distributed sound reinforcement, HoW, and AV events. It can be used for frontfill/infill and as a stage monitor.

The X10 is constructed from plywood and fitted with a screw-free steel grille, M8 inserts for wall brackets and eyebolt suspension, along with a pole-mount socket with a removable bung that maintains clean lines for install applications. The X10 is finished in black textured paint.

View Product Features

  • Compact passive two-way system
  • Symmetrical multi-angle plywood enclosure
  • User-rotatable 90° x 50° horn
  • Vertical and horizontal orientation
  • Screw-free, cloth-backed perforated steel grille
  • Integral ergonomic handle
  • Pole-mount bung maintains clean lines
  • 8Ω nominal impedance
  • Twin NL4 connectors
  • Flexible mounting options via M8 inserts
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Martin Audio X10B 10" 2-Way Passive Loudspeaker System with 90x50 Horn, Black

It has a multitude of professional applications — from distributed sound reinforcement, HoW and AV events to frontfill/infill and use as an unobtrusive stage monitor. With a maximum SPL of 124dB @ 1m, it is uniquely placed to meet the foreground requirements of music bars and clubs that require upfront sound levels from a very compact enclosure. Use with a BlacklineX Series subwoofer will enable the X10 to operate as small dancefloor or sound reinforcement system that is remarkably powerful for its size, as well as being extremely portable.

The X10 is constructed from plywood and fitted with a screw-free steel grille, M8 inserts for wall brackets and eyebolt suspension, plus a pole-mount socket with a removable bung that maintains clean lines in install applications. Finished in black textured paint.

A full-range passive two-way system, the X10 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.4 or DX0.6 will maximize its capabilities and provide crossover functions when used with a subwoofer such as the X115, X118 or X210.

Key Features

  • Compact passive two-way system
  • Symmetrical multi-angle plywood enclosure
  • User-rotatable 90° x 50° horn
  • Vertical and horizontal orientation
  • Screw-free, cloth-backed perforated steel grille
  • Integral ergonomic handle
  • Pole-mount bung maintains clean lines
  • 8Ω nominal impedance
  • Twin NL4 connectors
  • Flexible mounting options via M8 inserts

Martin Audio X10B 10" 2-Way Passive Loudspeaker System with 90x50 Horn, Black Specs

TYPE
Compact, passive two-way system
FREQUENCY RESPONSE
65Hz-20kHz ± 3dB, -10dB @ 55Hz
DRIVER
LF: 10” (250mm)/2.5” (63.5mm) voice coil, ferrite motor system HF: 1” (25mm) exit/1.4” (35mm) voice coil, polyimide dome compression driver
RATED POWER
250W AES, 1000W peak
SENSITIVITY
94dB
MAXIMUM SPL
118dB continuous, 124dB peak
NOMINAL IMPEDANCE
DISPERSION (-6dB)
90° H x 50° V (user-rotatable)
CROSSOVER
2.4kHz passive
ENCLOSURE
Multi-angle birch/poplar ply
FINISH
Black textured paint
PROTECTIVE GRILLE
Black perforated steel with scrim cloth backing
CONNECTORS
2 x NL4 type
PIN CONNECTIONS (INPUT)
1+/1-
PIN CONNECTIONS (LINK)
1+/- to 1+/-
FITTINGS
19 x M8 inserts, pole-mount socket, 1 x bar handle
DIMENSIONS
(W) 324mm x (H) 522mm x (D) 289mm (W) 12.8ins x (H) 20.6ins x (D) 11.4ins
WEIGHT
14kg (30.9lbs)

Key Features

  • Compact passive two-way system
  • Symmetrical multi-angle plywood enclosure
  • User-rotatable 90° x 50° horn
  • Vertical and horizontal orientation
  • Screw-free, cloth-backed perforated steel grille
  • Integral ergonomic handle
  • Pole-mount bung maintains clean lines
  • 8Ω nominal impedance
  • Twin NL4 connectors
  • Flexible mounting options via M8 inserts
