SKU: TMP-X12B

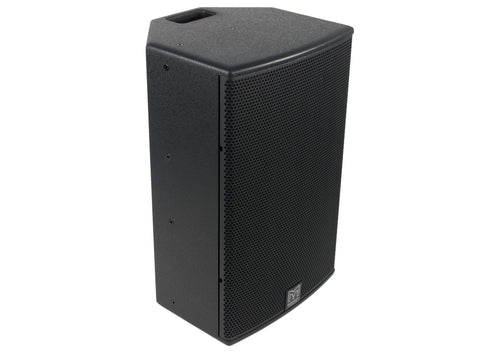

Martin Audio X12B 12" 2-Way Passive Loudspeaker System with 80x50 Horn, Black

$736.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The compact but powerful X12 is able to deliver high sound levels and can be used as a stand-alone system or supplemented by a subwoofer. When paired with a BlacklineX Series subwoofer, the X12 can operate as part of a small but powerful dancefloor or sound reinforcement system that is extremely portable. The X12 has a plywood-constructed enclosure fitted with a screw-free grille, M8 inserts for wall brackets and eyebolt suspension, plus a pole-mount socket with a removable plug to maintain clean lines in install applications. It’s loaded with a 12-inch LF driver with a 2.5-inch voice coil and a HF compression driver with a 1.75-inch polyimide diaphragm. The HF horn is rotatable for 80° x 50° directivity in either horizontal or vertical orientation. Read more

Features

  • Compact passive 2-way system
  • User-rotatable 80° x 50° HF horn
  • Symmetrical multi-angle plywood enclosure
  • Vertical or horizontal orientation
  • Integral ergonomic handle
  • Screw-free, cloth-backed perforated steel grille
  • 8Ω nominal impedance
  • Twin NL4 connectors
  • M8 inserts for flexible mounting options
  • · Pole mount socket with plug to maintain clean lines

Business Financing Options Avaiable

View Available Financing

The compact but powerful X12 is able to deliver high sound levels and can be used as a stand-alone system or supplemented by a subwoofer. When paired with a BlacklineX Series subwoofer, the X12 can operate as part of a small but powerful dancefloor or sound reinforcement system that is extremely portable. The X12 has a plywood-constructed enclosure fitted with a screw-free grille, M8 inserts for wall brackets and eyebolt suspension, plus a pole-mount socket with a removable plug to maintain clean lines in install applications. It’s loaded with a 12-inch LF driver with a 2.5-inch voice coil and a HF compression driver with a 1.75-inch polyimide diaphragm. The HF horn is rotatable for 80° x 50° directivity in either horizontal or vertical orientation. Read more

Features

  • Compact passive 2-way system
  • User-rotatable 80° x 50° HF horn
  • Symmetrical multi-angle plywood enclosure
  • Vertical or horizontal orientation
  • Integral ergonomic handle
  • Screw-free, cloth-backed perforated steel grille
  • 8Ω nominal impedance
  • Twin NL4 connectors
  • M8 inserts for flexible mounting options
  • · Pole mount socket with plug to maintain clean lines

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the Martin Audio X12B 12" 2-Way Passive Loudspeaker System with 80x50 Horn, Black

The Blackline X12 LF driver has a 2.5” (63mm) voice coil and a high BL motor, while the HF compression driver utilises a 1.75” (44mm) poly-imide diaphragm for extended high frequency response. Use with a BlacklineX Series subwoofer will enable the X12 to operate as a dancefloor or sound reinforcement system that is remarkably powerful for its size, as well as being extremely portable.

The X12 is constructed from plywood and fitted with a screw-free steel grille, M8 inserts for wall brackets and eyebolt suspension, plus a pole-mount socket with a removable bung that maintains clean lines in install applications. Finished in black textured paint.

A full-range passive two-way system, the X12 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.4 or DX0.6 will maximise its capabilities and provide crossover functions when used with a subwoofer such as the X115, X118 or X210.

Key Features

  • Compact passive 2-way system
  • User-rotatable 80° x 50° HF horn
  • Symmetrical multi-angle plywood enclosure
  • Vertical or horizontal orientation
  • Integral ergonomic handle
  • Screw-free, cloth-backed perforated steel grille
  • 8Ω nominal impedance
  • Twin NL4 connectors
  • M8 inserts for flexible mounting options
  • · Pole mount socket with plug to maintain clean lines

Already own this item and want to sell it?

Click here to sell your item

Martin Audio X12B 12" 2-Way Passive Loudspeaker System with 80x50 Horn, Black Specs

TYPE
Compact, passive two-way system
FREQUENCY RESPONSE
62Hz-20kHz ± 3dB, -10dB @ 50Hz
DRIVER
LF: 12” (300mm)/2.5” (63.5mm) voice coil, ferrite motor system HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
RATED POWER
300W AES, 1200W peak
SENSITIVITY
97dB
MAXIMUM SPL
122dB continuous, 128dB peak
NOMINAL IMPEDANCE
8Ω
DISPERSION (-6dB)
80° H x 50° V (user-rotatable)
CROSSOVER
2.3kHz passive
ENCLOSURE
Multi-angle birch/poplar ply
FINISH
Black textured paint
PROTECTIVE GRILLE
Black perforated steel with scrim cloth backing
CONNECTORS
2 x NL4 type
PIN CONNECTIONS (INPUT)
1+/1-
PIN CONNECTIONS (LINK)
1+/- to 1+/-
FITTINGS
20 x M8 inserts, pole-mount socket, 1 x bar handle
DIMENSIONS
(W) 358mm x (H) 574mm x (D) 337mm (W) 14.1ins x (H) 22.6ins x (D) 13.7ins
WEIGHT
17kg (37.5lbs)

Key Features

  • Compact passive 2-way system
  • User-rotatable 80° x 50° HF horn
  • Symmetrical multi-angle plywood enclosure
  • Vertical or horizontal orientation
  • Integral ergonomic handle
  • Screw-free, cloth-backed perforated steel grille
  • 8Ω nominal impedance
  • Twin NL4 connectors
  • M8 inserts for flexible mounting options
  • · Pole mount socket with plug to maintain clean lines
