Martin Audio

Martin Audio XE300 12" Bi-amp/Passive Coaxial Differential Dispersion Stage Monitor

$3,250.00

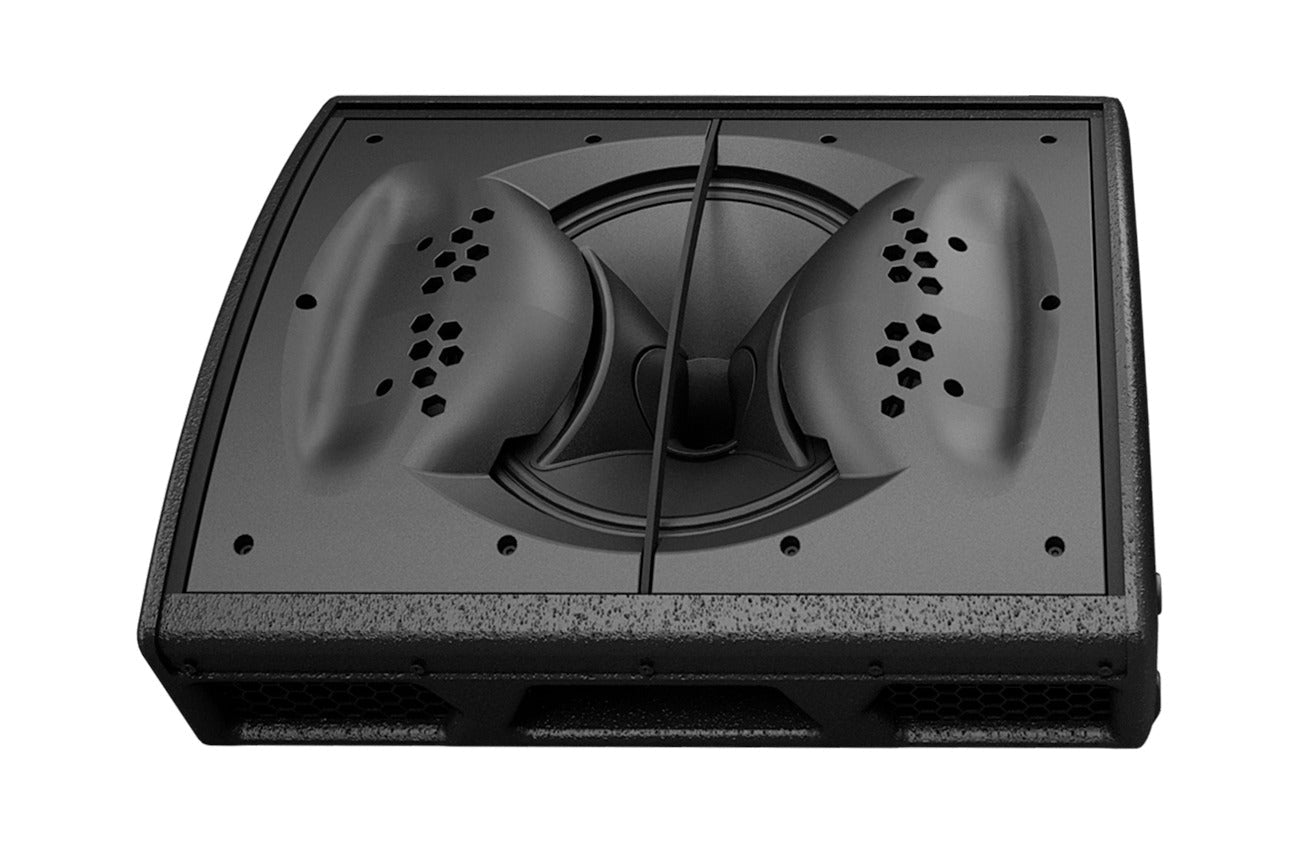

The XE300 is the definitive, high-performance compact monitor. It features a high-specification 12” (300mm) LF /1.4” exit HF Coaxial Differential Dispersion driver to deliver perfect sound over the artist’s listening plane. The LF driver section has a 3” (75mm) voice coil and efficient motor with an aluminum demodulating ring to minimize distortion, while the HF driver utilizes a 1.4” (35mm) exit HF compression driver with a 3” (75mm) pure titanium diaphragm.

View Product Features

  • Very high-SPL, compact two-way stage monitor
  • Coaxial ‘point source’ performance
  • Differential Dispersion™ technology for consistent coverage
  • Defined, rectangular coverage plane at head-height
  • Complete system with compatible iKON amplifiers for consistent high performance
  • Visually-appealing, low-profile plywood enclosures
  • Built-in risers for steeper monitor angle when required
  • Side panel rubber feet for extra protection when up-ended
  • Easy to carry and manoeuvre
  • M8 rigging inserts
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Martin Audio XE300 12" Bi-amp/Passive Coaxial Differential Dispersion Stage Monitor

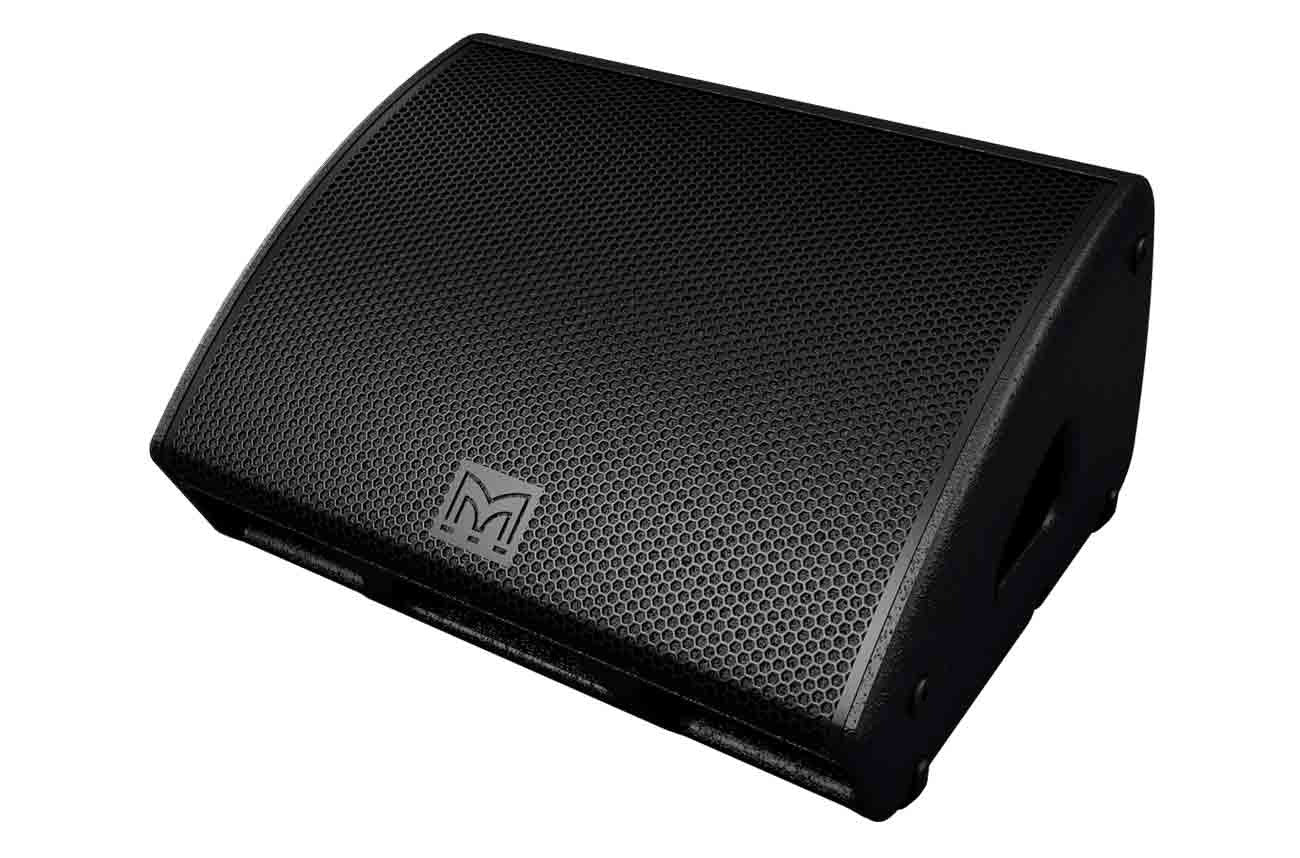

The XE300 enclosure is constructed from multi-laminate birch ply, with integral ergonomic handles and finished with a hard-wearing paint. A strong, perforated steel grille with an acoustically transparent cloth backing provides protection for the Coaxial Differential Dispersion driver, while moulded feet on the base prevent movement onstage with additional rubber feet on the side panels providing added protection if the monitor is upended when carrying.

Frontal reflex ports couple with the floor to increase LF output and inbuilt risers can be used to increase the monitoring angle for longer-throw applications.

XE Series monitors are designed as a complete system with compatible iKON Class D amplifiers, offering a unique combination of power and audio performance seamlessly combined with advanced DSP, proprietary VU-NET™ software control and Dante™ digital audio networking.

State of the art components and a finely optimised design results in generous power reserves that ensures pristine sound quality is maintained even under the most extreme conditions. As well as maximising the capability of the monitor, this ensures that the monitor engineer and artist can be confident that they will experience this same high level of consistent performance from an XE monitor anywhere in the world.

Key Features

  • Very high-SPL, compact two-way stage monitor
  • Coaxial ‘point source’ performance
  • Differential Dispersion™ technology for consistent coverage
  • Defined, rectangular coverage plane at head-height
  • Complete system with compatible iKON amplifiers for consistent high performance
  • Visually-appealing, low-profile plywood enclosures
  • Built-in risers for steeper monitor angle when required
  • Side panel rubber feet for extra protection when up-ended
  • Easy to carry and manoeuvre
  • M8 rigging inserts

Martin Audio XE300 12" Bi-amp/Passive Coaxial Differential Dispersion Stage Monitor Specs

TYPE
Two-way, bi-amp/passive, Coaxial Differential Dispersion Stage Monitor
FREQUENCY RESPONSE
67Hz-18kHz ± 3dB, -10dB @ 55Hz
DRIVERS
LF: 12” (300mm)/3” (75mm) voice coil, dual-gap neodymium motor system HF: 1.4” (35mm) exit/3” (75mm) voice coil, titanium dome compression driver
RATED POWER
LF: 350W AES, 1400W peak HF: 80W AES, 320W peak
MAXIMUM SPL
Bi-amp: 140dB peak. Passive: 139dB peak
SYSTEM AMPLIFIER
iKON® iK42
NOMINAL IMPEDANCE
LF/FR: 6Ω HF: 8Ω
DISPERSION (-6dB)
60-30° horizontal, 90° vertical
CROSSOVER
1.1kHz
ENCLOSURE
Birch/beech ply and hardwood
FINISH
Textured black paint
PROTECTIVE GRILLE
Black perforated steel with scrim cloth backing
BAFFLE ANGLE
27.5° (40° with risers)
CONNECTORS
4 x NL4 type
PIN CONNECTIONS
LF/FR: 1+/-, HF: 2+/-
FITTINGS
2 x pocket handles Protective rubber feet on base and sides Built-in risers 4 x M8 inserts
DIMENSIONS
(W) 550mm x (H) 290mm x (D) 470mm (W) 21.7ins x (H) 11.4ins x (D) 18.5ins
DIMENSIONS INCL FEET
(W) 556mm x (H) 293mm) x (D) 470mm (W) 21.9ins x (H) 11.5ins x (D) 18.5ins
WEIGHT
19kg (41.9lbs)

Key Features

  • Very high-SPL, compact two-way stage monitor
  • Coaxial ‘point source’ performance
  • Differential Dispersion™ technology for consistent coverage
  • Defined, rectangular coverage plane at head-height
  • Complete system with compatible iKON amplifiers for consistent high performance
  • Visually-appealing, low-profile plywood enclosures
  • Built-in risers for steeper monitor angle when required
  • Side panel rubber feet for extra protection when up-ended
  • Easy to carry and manoeuvre
  • M8 rigging inserts
