Martin Lighting

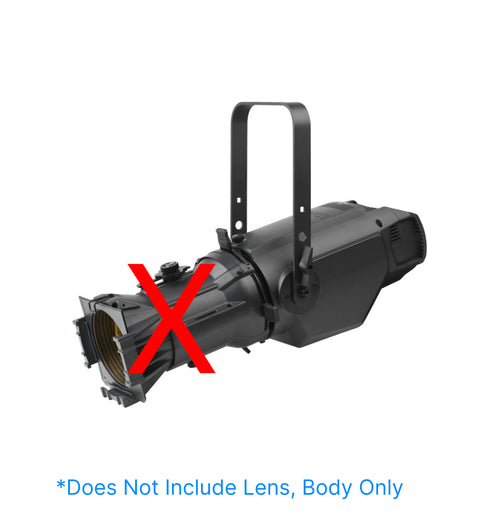

Martin ELP CL LED Ellipsoidal Body ONLY

$3,093.00

Martin ELP CL (Color) LED ellipsoid fixtures deliver the class-leading luminance, output and vivid color rendering that you’ve come to expect from Martin. Ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus—an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it. ELP also offers 16-bit dimming with 4 selectable curves and 26 color presets that match industry-standard color filters. ELP fixtures can be configured with one of four Martin lens tubes in 19, 26, 36 and 50-degree beam angles and are compatible with third-party lens tubes along with a wide range of accessories including gel frames and gobos for flexibility in lighting design and inventory management.

View Product Features

  • Impressive light output rating of 6,900 lumens (in High Output mode).
  • Superior CRI rating of 90 (in High Quality mode).
  • Revolutionary focus and functionality - industry’s first gear-driven Fine Focus, Fast Focus for data-free focusing, and more.
  • Compatible with universal accessories - use existing lens tubes, gel frames, gobo holders and rotators
  • 15-30 degree and 25-50 degree beam Zoom lenses available (not included)
  • Advanced optics engineered in Denmark
  • RGBAL Luxeon Rebel LED engine delivers vibrant, saturated colors
  • 26 color presets match industry-standard filters
  • 16-bit dimming with 4 selectable dimming curves
  • Flicker-free operation
  • 5-pin DMX/RDM and Neutrik True1 In/Thru connectivity
  • Electronic shutter effect: Instant open and blackout
  • Electronic dimming: 0–100%, Four dimming curve options
  • Strobe and pulse effects: Variable speed and action, random strobe
  • Color mixing: RGBLA
  • Color Temperature Range: 2000-10000K
  • Color selection: 26 color presets
  • Control options: DMX, stand-alone
  • 16-bit control: Intensity, CTC, RGBLA
  • Setting and addressing: Control panel with OLED display or via RDM
  • DMX channels: 1/10/17
  • PWM: 600-2400 Hz
  • Standalone programming: Control panel with OLED display
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • Transceiver: Opto-isolated RS-485
  • Light source: 91 X RGBAL Luxeon Rebel LEDs (19 Red, 24 Green, 12 Blue, 24 Lime, 12 Amber)
  • Color temperature: 2000-10000K
  • Lens tube options: 19°, 26°, 36°, 50° (not included)
  • Binning: Tight color and flux binning
  • Calibration: White Point Color Calibration
  • Minimum LED lifetime: 30,000 hours (to >70% luminous output)*Figure obtained under manufacturer's test conditions
  • Zoom Lens Tube Options: 15–30° and 25–50° (not included)
  • Housing: Die-cast aluminum
  • Color: Black
  • Protection rating: IP20
In stock
