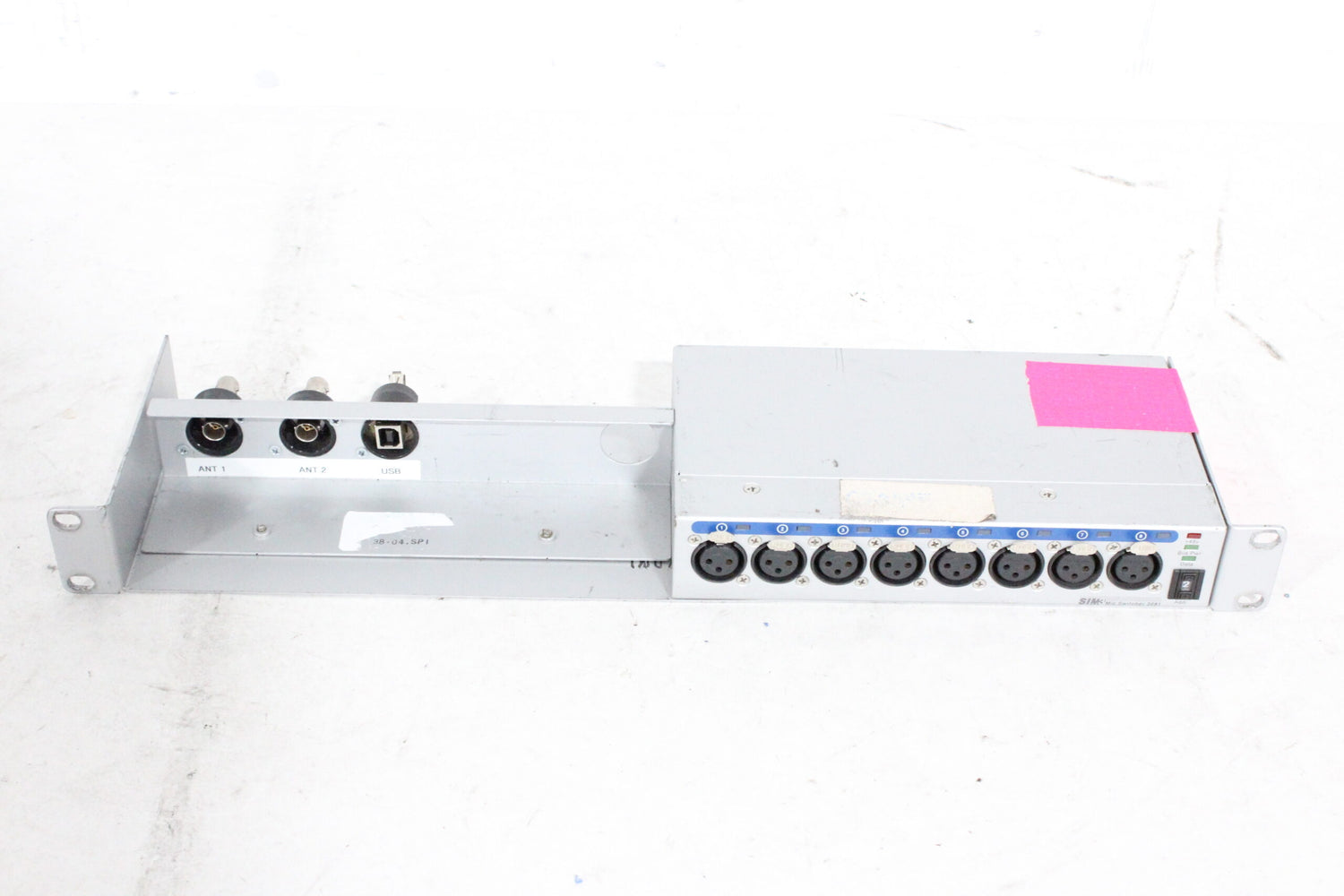

The Meyer Sound SIM3 3081 is an 8-channel microphone switcher designed for integration within the SIM3 (Source Independent Measurement version 3) audio analysis and sound system optimization platform. Its primary function is to provide automated, remotely controlled switching between up to eight different measurement microphones or line-level sources, enabling comprehensive multi-point analysis of a sound system's performance. In a typical SIM3 system setup, multiple measurement microphones are placed at various critical listener positions throughout a venue. The 3081 switcher allows the SIM3 analyzer to sequentially poll each microphone, capturing detailed acoustic data on frequency response, phase, level, and impulse response from each location without requiring manual re-patching. This capability is fundamental for creating a detailed spatial map of a sound system's coverage, identifying areas of cancellation or resonance, and verifying uniform performance.

The unit is engineered for precision and transparency, ensuring that the switching process does not introduce noise, distortion, or impedance mismatches that could corrupt the sensitive measurement signals. It interfaces directly with the SIM3 FFT analyzer and control computer via the SIM3 system bus, allowing for complete remote operation and synchronization from within the SIM3 software environment. This integration streamlines complex measurement sessions, making it possible to execute sophisticated tests like multi-channel transfer function analysis and coherence measurements across multiple points with repeatable accuracy. The switcher is a key component for acousticians and system technicians performing detailed alignments of large-scale, multi-zone sound systems in performance venues, auditoriums, and other critical listening environments.

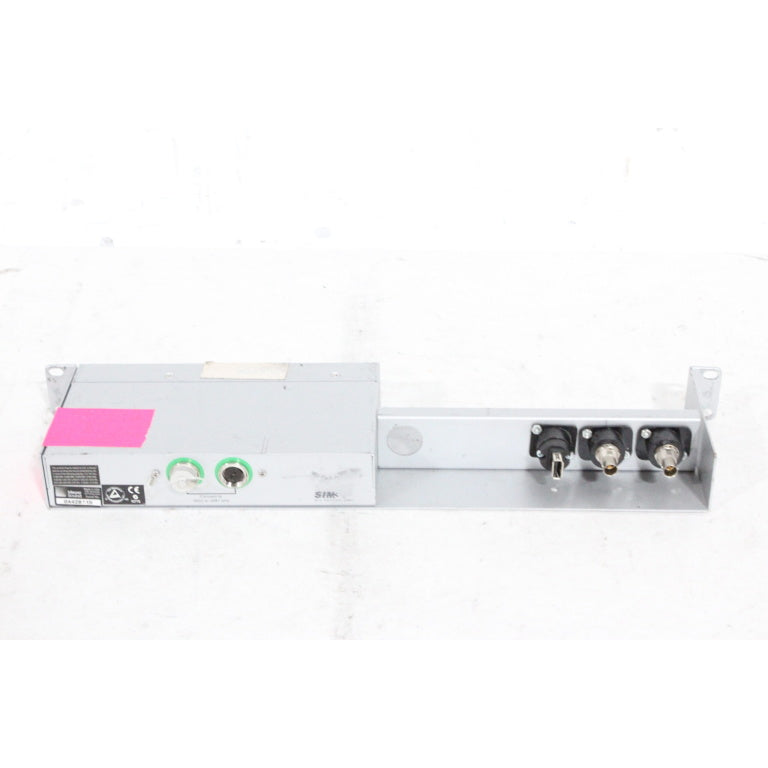

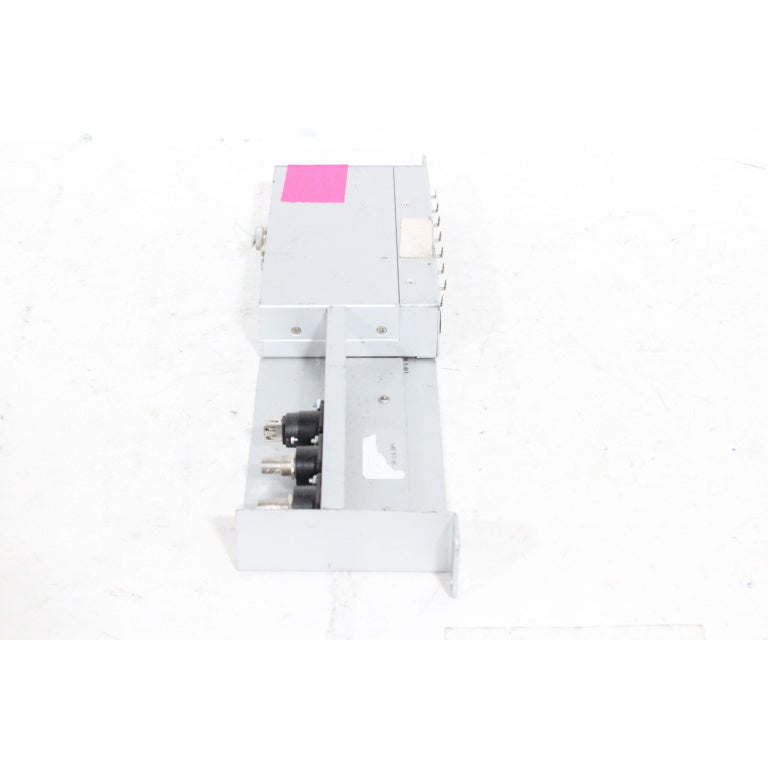

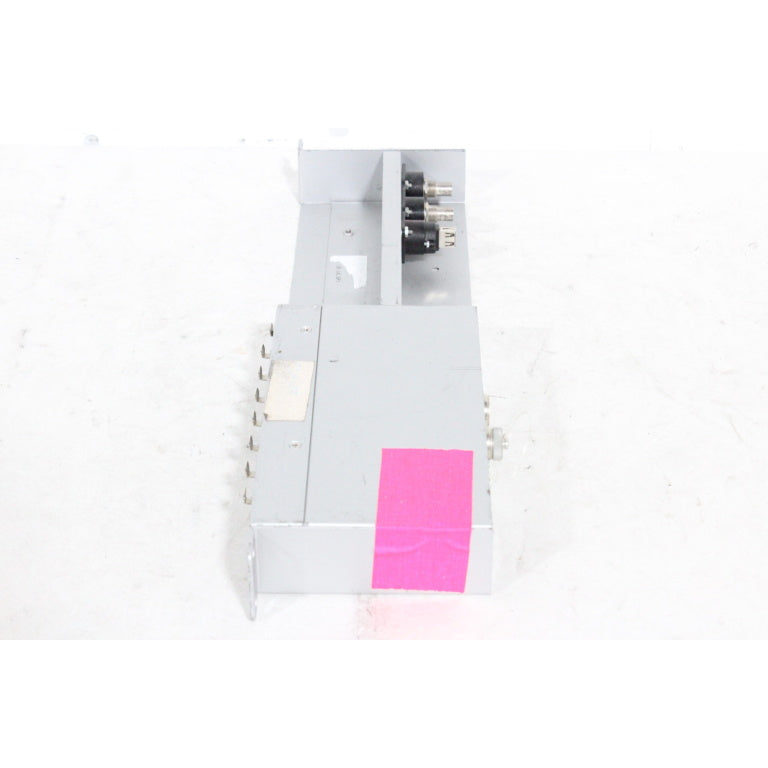

Housed in a robust rack-mountable chassis, the SIM3 3081 is built to the same high standards of reliability as all Meyer Sound professional equipment. It is designed for use in both permanent installations and for touring with the SIM3 system. By automating the signal routing from an array of measurement microphones, it significantly increases the efficiency and scope of system calibration and troubleshooting workflows. The data it facilitates is crucial for implementing Meyer Sound's rigorous approach to system optimization, ensuring that every listener experiences the intended sonic clarity, coverage, and impact.
