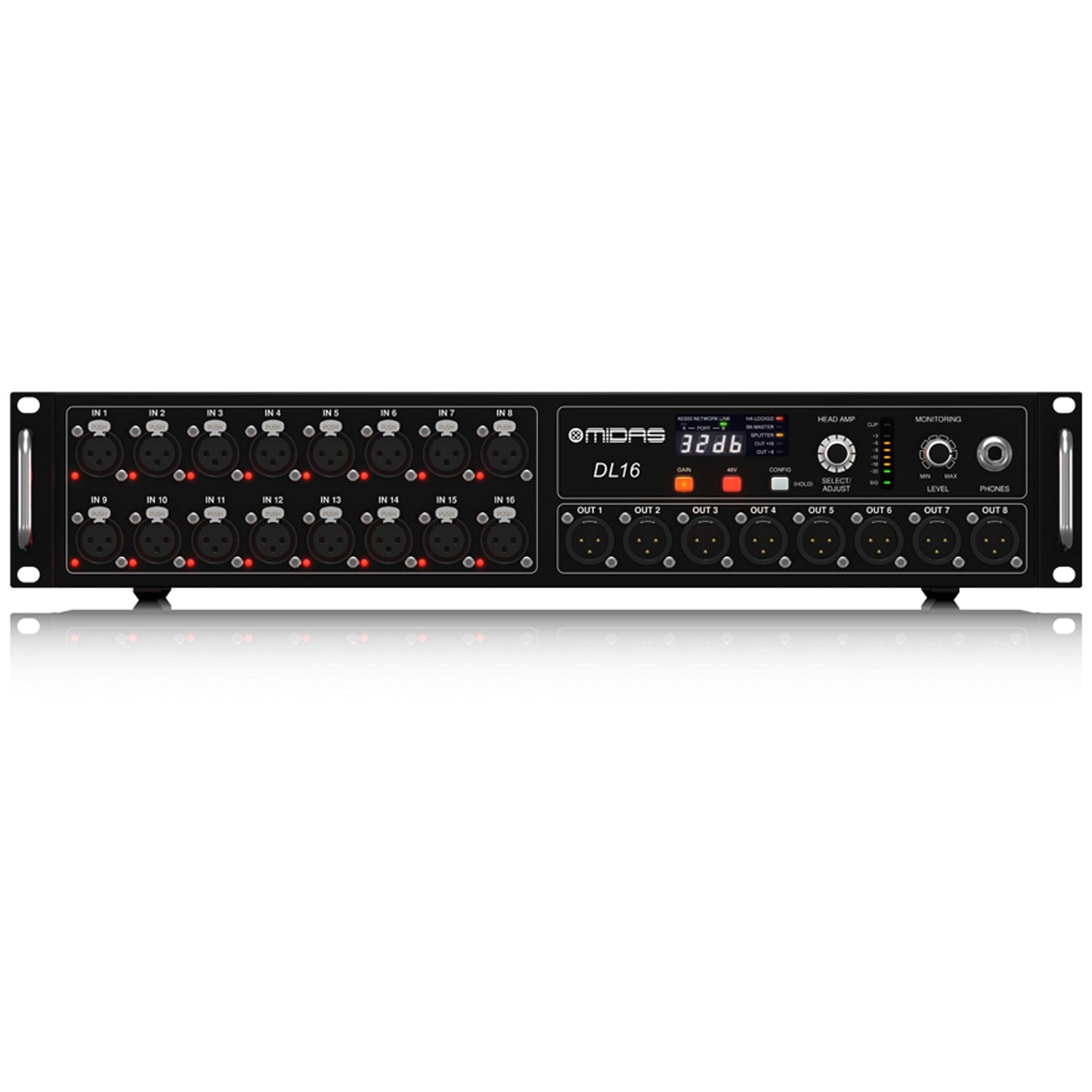

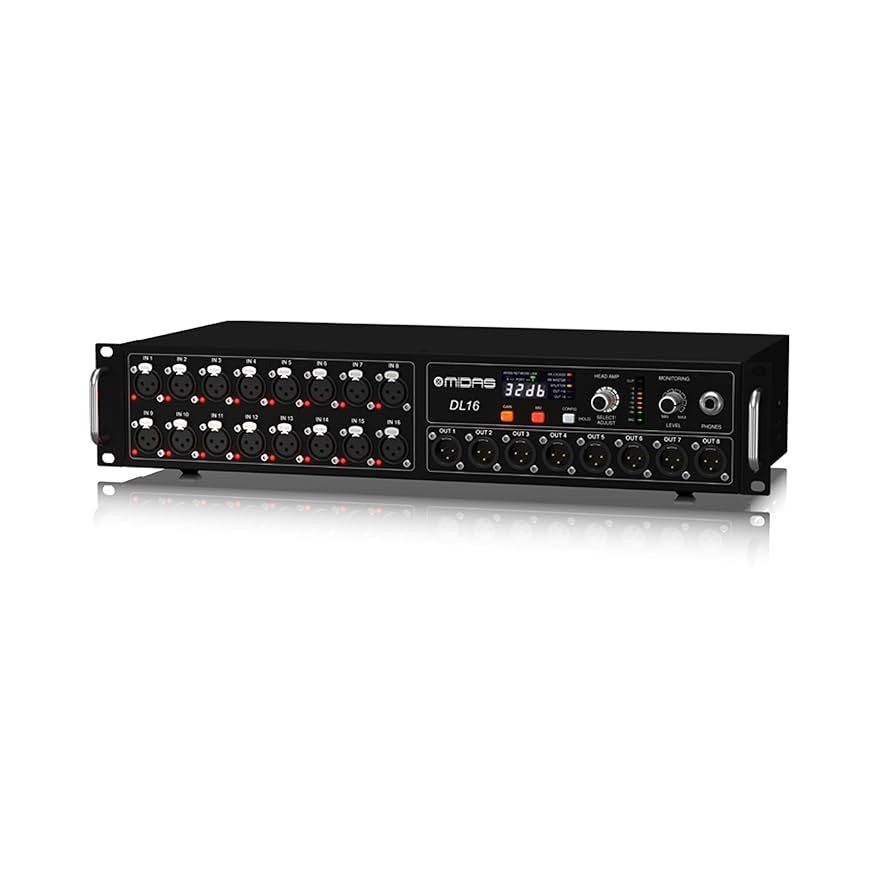

The Midas DL16 is a digital stage box designed as a remote input/output extension for compatible Midas digital mixing consoles, such as those in the M32 and DL Series. It is placed on or near the stage to convert 16 analog microphone or line-level signals into a digital audio stream transmitted to the main console over a single Cat-5e/Cat-6 cable via the proprietary Midas DL protocol (based on AES50). This eliminates the need for a bulky analog multicore snake, improving signal integrity and simplifying setup. The unit is equipped with 16 of Midas's renowned, fully discrete microphone preamplifiers, ensuring that every input channel benefits from the sonic clarity, headroom, and musicality for which the brand is famous.

In addition to its 16 inputs, the DL16 provides 8 analog outputs, allowing it to function as a digital splitter and distribution point for sending mixes, effects returns, or other console outputs back to the stage to drive power amplifiers, in-ear monitor systems, and stage monitors. This bi-directional flow of high-channel-count audio over a single network cable is a cornerstone of modern digital live sound systems. The stage box is built for professional touring and installation, featuring a robust metal chassis, Neutrik connectors, and a design that withstands frequent transport. Its UL certification indicates compliance with specific safety standards. Operation is seamless when connected to a compatible console; all preamp parameters are controlled directly from the mixer's surface. The DL16 provides a powerful, scalable, and sonically superior solution for building clean, high-performance audio systems.
