Midas

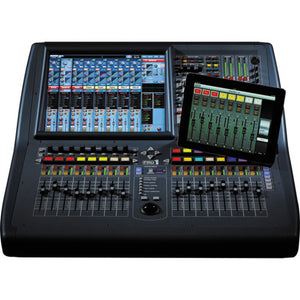

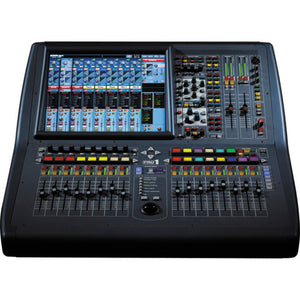

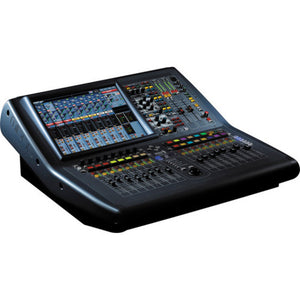

Midas PRO1-TP-UL Live Digital Console with 48 Input-Channels, 24 Midas Microphone Preamplifiers, 27 Mix Buses, 96 kHz Sample Rate and Touring Grade Road Case

$0.00

The ground breaking PRO1 features 48 simultaneous input channels with 24 award-winning Midas Microphone Preamplifiers and 27 time-aligned and phase-coherent mix buses in an all-new lightweight aluminium frame. Like all PRO Series consoles, the PRO1 features managed latency and 40 bit floating point processing precision. Designed for use in high-profile live sound applications, the PRO1 sets a new standard of performance and portability in a compact digital console form factor.

AES50 audio networking technology allows the PRO1 to dynamically assign up to 172 inputs and 172 outputs at 96 kHz sample rate to any of its input channels and bus outputs on a scene-by-scene basis. This high level of connectivity, coupled with the large channel and bus counts, makes the PRO1 equally at home in theatres and clubs as it is in live concert touring, outside broadcast and music festivals.

View Product Features

  • Live performance digital console with up to 48 simultaneous input channels
  • 24 award-winning Midas microphone preamplifiers
  • 27 time-aligned and phase-coherent mix buses
  • AES50 networking allows up to 172 inputs and 172 outputs @ 96 kHz sample rate
  • Touring grade road case featuring marine grade plywood, aluminium extrusions and
  • composite density protective foam
  • 8 VCA (Variable Control Association) and 6 POPulation groups
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Midas PRO1-TP-UL Live Digital Console with 48 Input-Channels, 24 Midas Microphone Preamplifiers, 27 Mix Buses, 96 kHz Sample Rate and Touring Grade Road Case

The Midas PRO1-TP-UL is a comprehensive, touring-grade digital mixing system that packages the renowned audio quality and processing power of the Midas PRO Series into a compact and highly mobile console format. This all-in-one solution includes the PRO1 control surface, a remote I/O rack loaded with legendary Midas microphone preamplifiers, and a certified heavy-duty road case, providing a complete front-of-house or monitor mixing station ready for the road. The system is built around a pure 96 kHz sampling rate audio engine, delivering the detailed, musical sound quality and headroom that professionals expect, with a channel count and bus structure capable of handling complex live productions. Its design successfully distills the essential workflow and sonic character of larger Midas consoles into a footprint ideal for theatre tours, corporate events, broadcast, and mid-sized music tours where space and setup time are at a premium.

The console's interface is centered on immediate, tactile control with 16 fully configurable motorized faders, a high-resolution central touchscreen, and dedicated controls for EQ, dynamics, and routing on each channel strip. This layout facilitates a fast, intuitive workflow, allowing engineers to manage a large number of inputs and create intricate mixes without excessive menu diving. The integrated digital snake system connects the control surface to the remote stage box via a single, lightweight fiber optic or Cat-5 cable, dramatically simplifying setup and eliminating the need for massive analog multicores. The system’s architecture also incorporates redundant power supplies and optional redundant audio networking, offering critical fail-safe protection to ensure show continuity in demanding live environments.

More than just a mixer in a box, the PRO1-TP-UL is engineered as a robust touring ecosystem. The included UL-certified road case provides exceptional protection for the console during transport, while the system's internal design prioritizes thermal management and mechanical reliability for continuous operation. With its comprehensive feature set—including extensive onboard effects, detailed dynamics on every channel, and flexible matrix routing—this package delivers the complete professional toolset required to achieve outstanding live sound. It represents a significant investment in audio fidelity, operational confidence, and logistical efficiency for the working audio engineer.

Key Features

  • Live performance digital console with up to 48 simultaneous input channels
  • 24 award-winning Midas microphone preamplifiers
  • 27 time-aligned and phase-coherent mix buses
  • AES50 networking allows up to 172 inputs and 172 outputs @ 96 kHz sample rate
  • Touring grade road case featuring marine grade plywood, aluminium extrusions and
  • composite density protective foam
  • 8 VCA (Variable Control Association) and 6 POPulation groups

Midas PRO1-TP-UL Live Digital Console with 48 Input-Channels, 24 Midas Microphone Preamplifiers, 27 Mix Buses, 96 kHz Sample Rate and Touring Grade Road Case Specs

System Audio
Input Channels
48
Microphone Preamps
24
Mix Buses
27
Sample Rate
96 kHz
Dynamic Range
120 dB
Console Control
Fader Channels
16
Motorized Faders
16
Touchscreen
1
Display Size
15 inches
Physical & Packaging
Road Case Certification
UL Touring Rated
Rack Space for I/O
6U
Connectivity
Digital Snake Ports
2
AES Digital Outputs
8
Network Control
Dual Ethernet
Power & Environment
Power Supply
Dual Redundant
Mains Voltage
100-240 VAC
Operating Temperature
0°C to 40°C

Key Features

  • Live performance digital console with up to 48 simultaneous input channels
  • 24 award-winning Midas microphone preamplifiers
  • 27 time-aligned and phase-coherent mix buses
  • AES50 networking allows up to 172 inputs and 172 outputs @ 96 kHz sample rate
  • Touring grade road case featuring marine grade plywood, aluminium extrusions and
  • composite density protective foam
  • 8 VCA (Variable Control Association) and 6 POPulation groups
