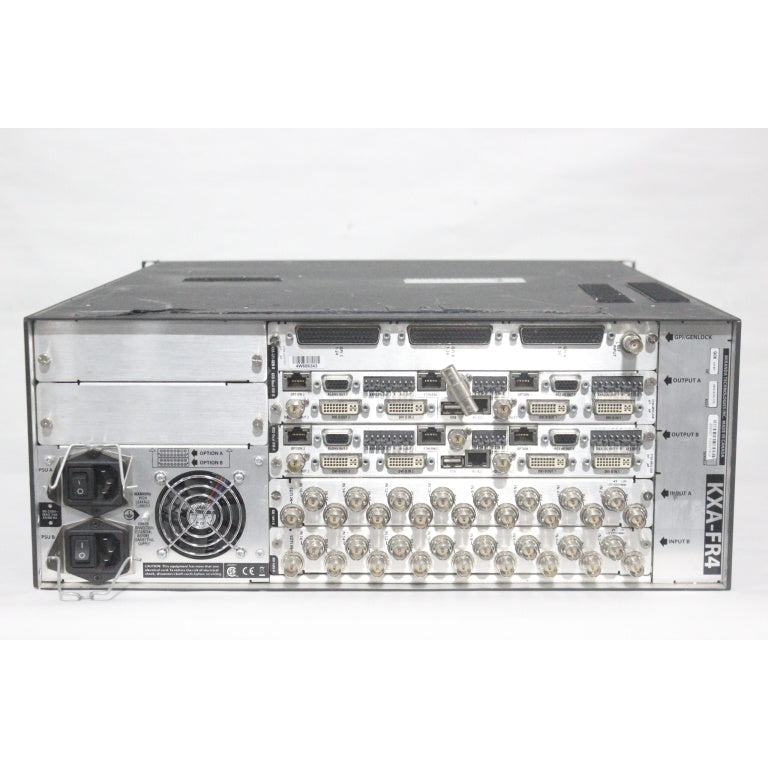

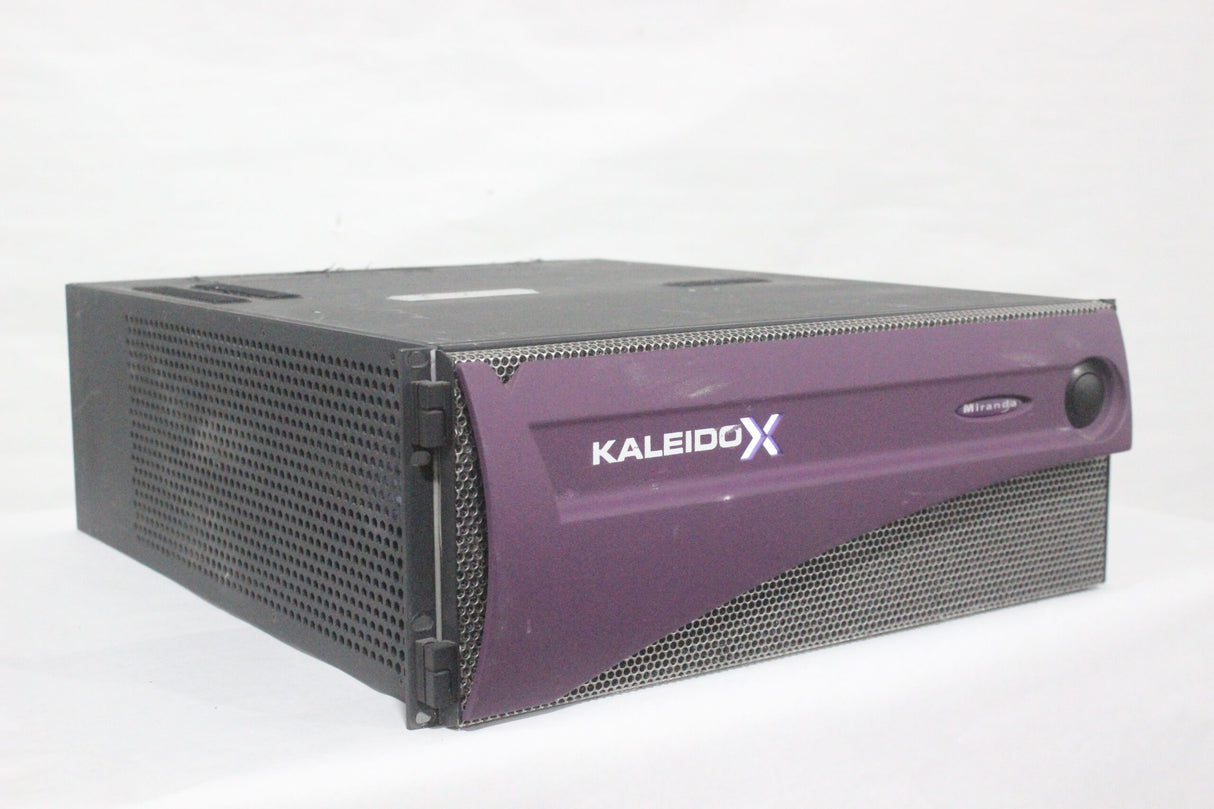

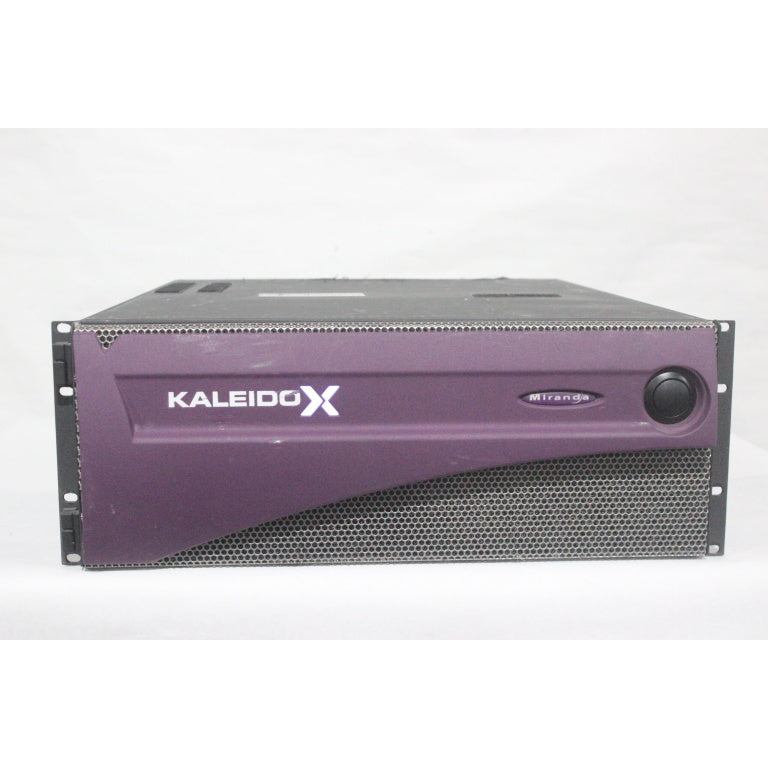

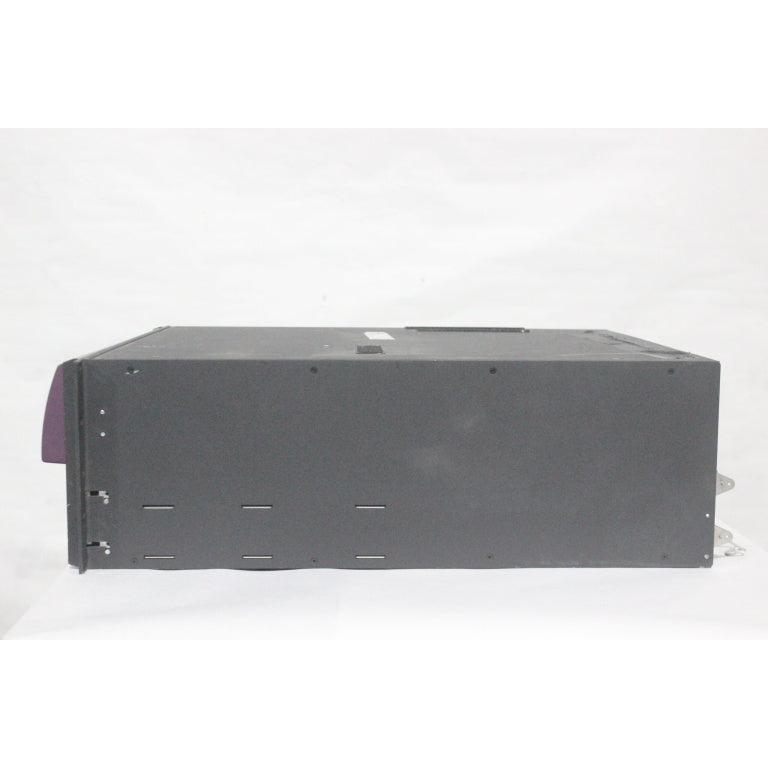

The Miranda KXA-FR4 is a versatile and high-capacity 4 Rack Unit (4RU) mainframe chassis designed to house and power a variety of signal processing cards within a broadcast or production facility's infrastructure. It serves as a centralized, modular platform for building customized signal management systems, capable of accommodating multiple cards for functions such as audio/video distribution, format conversion, frame synchronization, and aspect ratio control. The mainframe provides a robust backplane that handles all critical signal routing, control communication, and power distribution between the installed cards and the external system. Its primary role is to offer scalability and flexibility, allowing engineers to configure a processing system tailored to the specific I/O and processing needs of their facility, from a simple multi-viewer system to a complex routing and conversion hub.

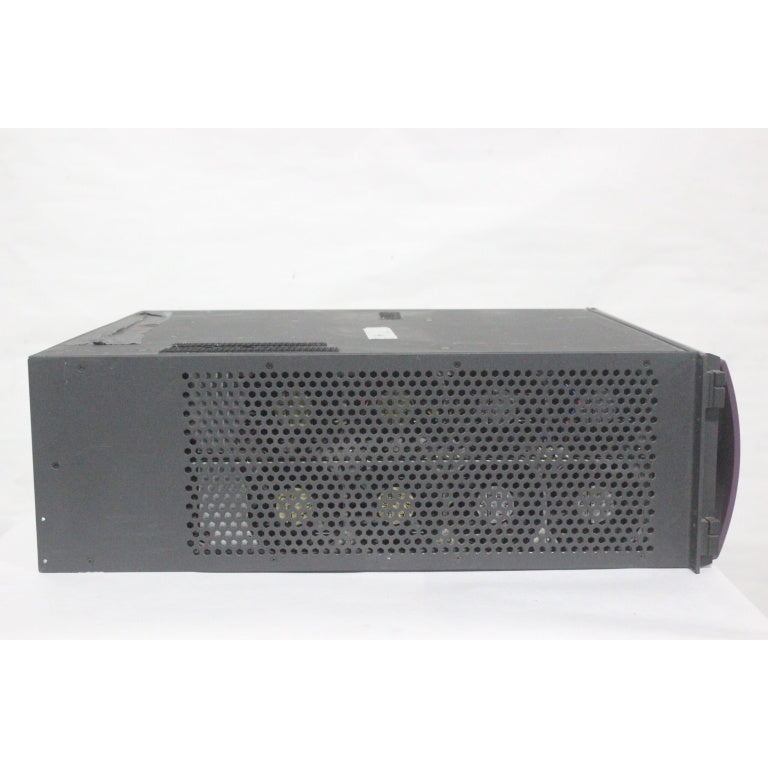

Engineered for reliability in 24/7 broadcast environments, the KXA-FR4 features dual, hot-swappable power supplies with automatic load sharing and redundancy to ensure uninterrupted operation. The chassis also includes redundant, temperature-controlled cooling fans that adjust speed based on thermal load, maintaining optimal operating temperatures for the sensitive processing cards. Control and monitoring are facilitated through multiple interfaces, including Ethernet for integration into network management systems and serial ports for direct communication. The mainframe's design emphasizes serviceability, with cards that can be inserted or removed without tools, minimizing downtime during maintenance or system reconfiguration.

The Miranda KXA-FR4 exemplifies a modular approach to broadcast infrastructure, where functionality can be expanded or altered by swapping or adding cards rather than replacing entire systems. This future-proofs the investment and allows facilities to adapt to changing standards and workflows. By consolidating various processing functions into a single, managed chassis, it reduces rack space, simplifies cabling, and centralizes control, contributing to a more efficient and reliable broadcast operation capable of handling the complex signal management demands of modern television production and master control.
