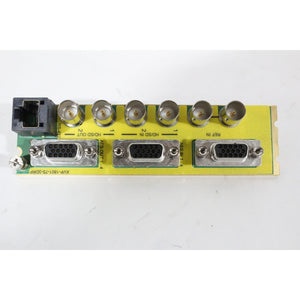

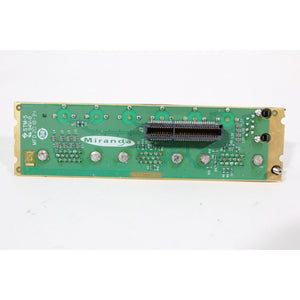

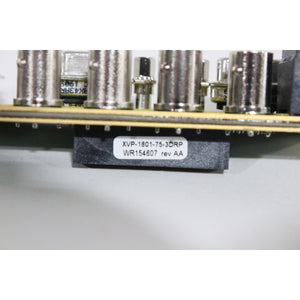

The Miranda XVP-1801-75-3DRP is a specialized, factory-configured rear connector panel engineered for the Miranda (later Grass Valley) XVP-1801 series of universal video processing frames. This panel serves as the critical physical interface, providing the standardized 75-ohm BNC connectors that link the frame's internal processing modules to the external broadcast signal infrastructure. The "3DRP" designation typically signifies a specific double-width panel configuration with a trio of primary connector types, which often includes dedicated inputs, outputs, and reference or loop-through connections, all meticulously impedance-matched for professional serial digital video signals. Its role is to ensure that high-frequency digital video streams, including SDI, HD-SDI, and 3G-SDI formats, pass between the frame and external routers, cameras, or monitors with minimal signal degradation, reflections, or jitter.

Precision and signal integrity are paramount in the panel's design. Each 75-ohm BNC connector is engineered to maintain the characteristic impedance of the connected coaxial cable throughout the interface, preventing impedance mismatches that can cause data errors in high-speed digital video. The panel's construction utilizes high-quality materials and plating to ensure reliable, low-resistance connections over thousands of mating cycles, which is essential in a broadcast environment where equipment is frequently reconfigured. The layout of the connectors is logically arranged to correspond with the signal flow of common processing modules housed in the frame, such as frame synchronizers or format converters, streamlining the patching process for technical staff.

As a factory-installed option, this rear panel underscores the modular and customizable nature of professional broadcast systems. It allows systems integrators to specify a frame with the exact physical port count and arrangement required for its designated function within a facility's signal flow, whether for master control, production, or transmission. By providing a robust, impedance-correct physical layer, the XVP-1801-75-3DRP panel ensures that the sophisticated electronic processing within the frame can perform at its peak, contributing to the overall reliability, flexibility, and signal transparency of the broadcast operation.
