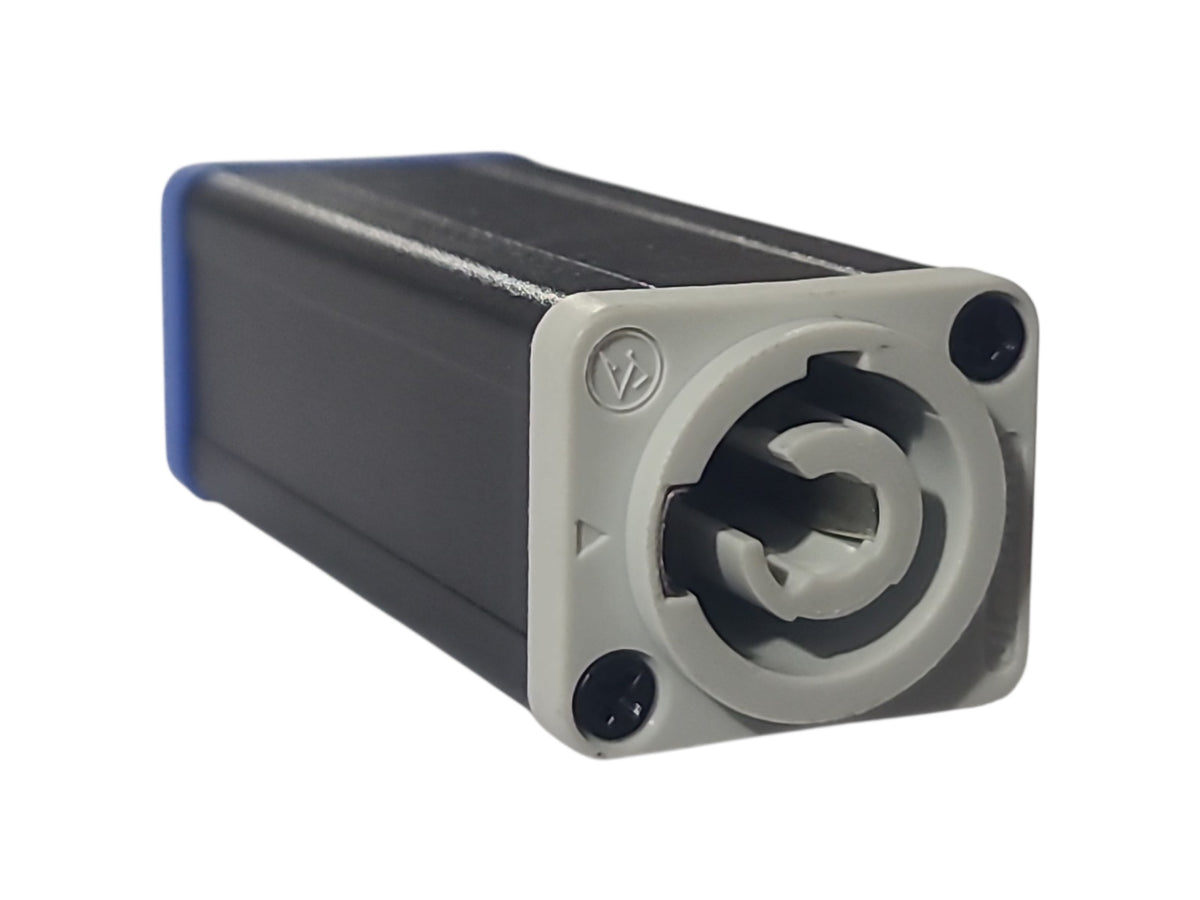

Neutrik-style NAC3MM PowerCON Coupler

The Neutrik-style NAC3MM PowerCON Coupler is a rugged three-pole AC power interconnection adapter designed for linking compatible powerCON cable assemblies. Based on the NAC3MM-1 configuration, it provides a male-to-male coupling interface between power-in and power-out connectors, allowing compatible power cables to be extended or interconnected while maintaining the secure mechanical characteristics associated with the powerCON system.

The coupler incorporates a quick-lock mechanism that provides fast and secure mating, helping prevent unintended disconnection during equipment operation, transportation, or repeated setup and teardown. Its three-conductor configuration accommodates line, neutral, and pre-mating protective ground contacts, making it appropriate for professional equipment power distribution where a robust locking connection is preferred over conventional appliance couplers.

Constructed with a reinforced polyamide shell, bronze contacts, and silver contact plating, the NAC3MM-1 is engineered for mechanical durability and dependable electrical performance. The connector is rated for high-current AC applications, with a nominal rating of 250 V AC and up to 20 A RMS per contact in the applicable powerCON configuration. Its low contact resistance and high dielectric strength further support reliable operation in demanding professional environments.

The coupler is well suited to professional audio/video equipment, stage and event systems, lighting equipment, touring racks, production infrastructure, and industrial equipment requiring secure detachable AC power connections. With more than 1,000 mating cycles, UL 94 V-0 flammability performance, and an operating temperature range extending from -30 °C to +80 °C, it is designed for repeated professional use where durability, secure retention, and consistent electrical contact are essential.
