AMX CTC-1402
$2,500.00
Unit price
/
Items Included
Item Notes
Note: Each item is unique. please check individual listings for details.
Pre-Owned Guarantee
14 Day Return Window
AMX CTC-1402
1 options available
Condition: New
New
SKU: C2216-165
New
SKU: C2216-165
$2,500.00
Description
The AMX CTC-1402 Conferencing Connectivity and Transport Kit makes it easy to connect mobile devices like laptops and smartphones to the A/V equipment in a conference room or meeting space. The all-inclusive system is a 4K60 4:4:4 auto-switching, scaling, and distance transport solution that includes both the transmitter and receiver, and features USB 2.0 peripheral switching for dynamically sharing room USB devices. With the CTC-1402, you can simply connect a visiting mobile device to the transmitter, and the room display/projector is automatically turned on, and the signal is transmitted and scaled for optimal viewing. Read more
Features
Business Financing Options Avaiable
The AMX CTC-1402 Conferencing Connectivity and Transport Kit makes it easy to connect mobile devices like laptops and smartphones to the A/V equipment in a conference room or meeting space. The all-inclusive system is a 4K60 4:4:4 auto-switching, scaling, and distance transport solution that includes both the transmitter and receiver, and features USB 2.0 peripheral switching for dynamically sharing room USB devices. With the CTC-1402, you can simply connect a visiting mobile device to the transmitter, and the room display/projector is automatically turned on, and the signal is transmitted and scaled for optimal viewing. Read more
Features
Recommended Accessories
Frequently Purchased Together
About the AMX CTC-1402
Key Features
Already own this item and want to sell it?
Click here to sell your itemAMX CTC-1402 Specs
Twisted Pair Cable Standard
Shielded Cat6, Cat6A and Cat7 / Shielded Cat6A and Cat7 Twisted Pair Cable Up to 262" / 80 m for Full 4K Signal Support Up to 328" / 100 m for 1080p and Below
Power Requirements
12 VDC 3A Max Output; 100-240V 50/60Hz AC Input
Power Consumption
CTC-1402TX: 16.5 Watts CTC-1402RX: 17 Watts
Power Connector
Screw-Down Locking Power Connector
Rear Connections

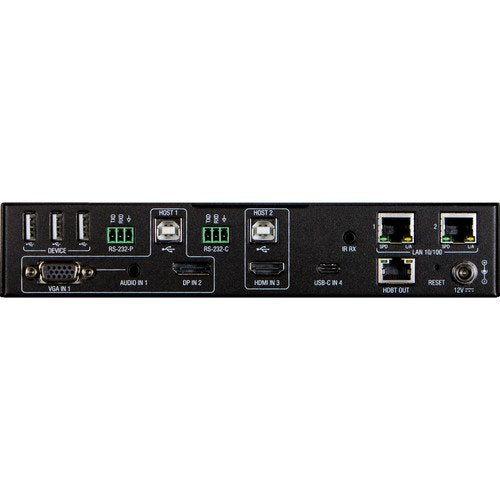

CTC-1402 TX DC Power: Screw-Down Locking Power Connector USB Device Connections: 3 x USB 2.0 Type-A Connectors USB Host Connections: 2 x USB 2.0 Type-B Connectors HDMI Input: HDMI Type-A Female Connector VGA Inputs: HD-15 Connector Display Port: DisplayPort Connector USB Input: USB Type-C LAN10/100 Ethernet Port: 2 x RJ-45 Connectors, TCP/IP Port (ICS LAN 10/100) HDBaseT Output: RJ-45 IR RX: 1/8" / 3.5 mm Mini-Stereo Jack RS-232 Device Control: 3-Position 1/8" / 3.5 mm Pluggable Phoenix Terminal Blocks Analog Stereo Input: 1/8" / 3.5 mm Stereo Mini Jack Analog Stereo Pass-Through Input: 1/8" / 3.5 mm Stereo Mini Jack RS-232 Extended Control: 3-Position 1/8" / 3.5 mm Pluggable Phoenix Terminal

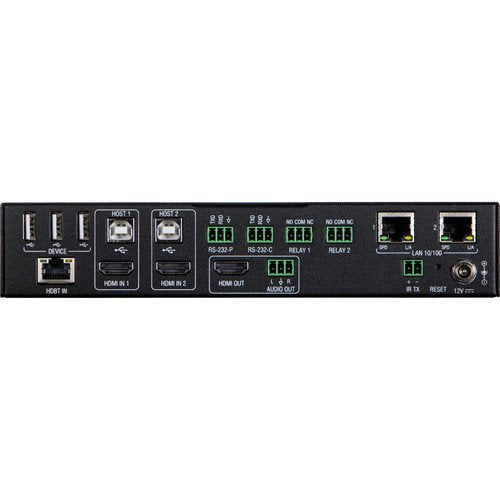

CTC-1402 RX DC Power: Screw-Down Locking Power Connector USB Device Connections: 3 x USB 2.0 Type-A Connectors USB Host Connections: 2 x USB 2.0 Type-B Connectors HDMI Input: 2 x HDMI Type A Female Connectors
HDMI Output: HDMI Type-A Female Connector Analog Stereo Program Output: 3-pin 1/8" / 3.5 mm Screw Terminal Connector Analog Stereo Pass-Through Output: 3-pin 1/8" / 3.5 mm Screw Terminal Connector LAN10/100 Ethernet Port: 2 x RJ-45 Connectors, TCP/IP Port (ICS LAN 10/100) HDBaseT Input: RJ-45 IR RX: 1/8" / 3.5 mm Stereo Mini-Jack
RS-232 Device Control: 3-Position 1/8" / 3.5 mm Pluggable Phoenix Terminal Blocks RS-232 Extended Control: 3-Position 1/8" / 3.5 mm Pluggable Phoenix Terminal Blocks
Relay Control: 2 x 3-Position 1/8" / 3.5 mm Pluggable Phoenix Terminal
Controls and Indicators

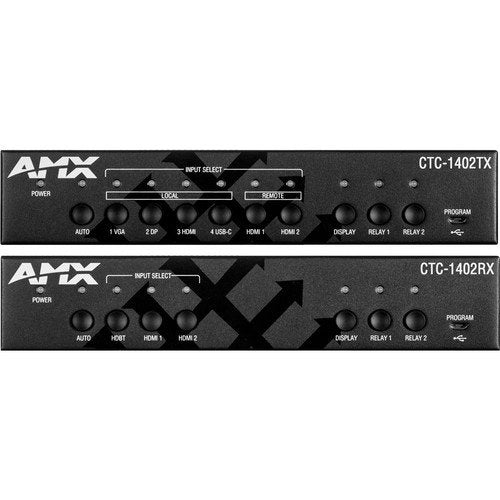

CTC-1402 TX Input Status Indicator: 6 x Tricolor LEDs Indicating Selected Input and Signal Presence on Each Input Input Selection Buttons: 6 x Selects Active Input Auto LED: Indicates Auto Switching Enabled/Disabled Auto Button: Enables/Disables Auto Switching Display Indicator: Provides Feedback on Display Control Display Button: Display On/Off Control Relay Indicator: Feedback on Relay Control Relay Button: 2 x Relay Control Ethernet Link / Act Indicator: 2 x Link/Activity LED (Green) Blinks When Receiving Ethernet Data Packets One on Ethernet RJ-45 Ethernet Speed Indicator: 2 x Speed LED (Yellow) Lights On When Connection Speed is 100 Mbps Ethernet Connection and Turns OFF When the Speed is 10 Mbps HDBaseT Link: On HDBaseT RJ-45 (Green) Indicates Link to HDBaseT Rx HDBaseT HDCP Status: On HDBaseT RJ-45 (Yellow) On Indicates HDCP, Flashing Indicates Non-HDCP Power Indicator: Power LED (Green) Indicates Unit Is Powered On
CTC-1402 RX Input Status Indicator: 3 x Tricolor LED Indicating Selected Input and Signal Presence On Each Input
Input Selection Buttons: 3 x Selects Active Input Auto LED: Indicates Auto Switching Enabled/Disabled Auto Button: Enables/Disables Auto Switching Display Indicator: Provides Feedback on Display Control Display Button: Display On/Off Control Relay Indicator: 2 x Provides Feedback on Relay Control Display Button: 2 x Relay Control Ethernet Link/Act Indicator: 2 x Link/Activity LED (Green) Blinks When Receiving Ethernet Data Packets, One On Ethernet RJ-45
Ethernet Speed Indicator: 2 x Speed LED (Yellow) Lit When Connection Speed Is 100 Mbps Ethernet Connection and Turns Off When Speed Is 10 Mbps HDBaseT Link: On HDBaseT RJ-45 (Green) Lit Indicates Link to HDBaseT Rx
HDBaseT HDCP Status: On HDBaseT RJ-45 (Yellow) On Indicates HDCP, Flashing Indicates Non-HDCP Power Indicator: Power LED (Green) Lit Indicates Unit Is Powered On
Integrated Switching
Video Switching 4x1 TX Switching Combined with a 3x1 Receiver, Switching to Select Between TX HDBaseT Source or Two HDMI RX Sources, Audio Switches with Video, Full 6x1 Switching Video Inputs
HD-15: Supports RGBHV HDMI x 3: supports HDMI/HDCP
DisplayPort: Supports DisplayPort/HDCP USB Type-C: Supports USB 3.0 DisplayPort Alternative Mode Video/HDCP
HDBaseT: To Connected TX/RX Video Outputs HDMI: supports HDMI/HDCP (On RX) HDBaseT: to Connect TX/RX
HDCP Support: Yes; HDCP 1.4 and 2.2 Key Management System EDID Management: A Preferred EDID Can Be Selected for Each Input or Any Display; EDID Can Be Mirrored to Any Input Independently
USB Peripheral Switching
USB Switching: All USB Device Connections Switch to USB Host Device Connection Associated with Active Video Input Selection USB Device Hub Support: Supports 1 USB Hub Connected to Either TX or RX Device Port USB Device Support: Up to 7 Connected USB Devices USB Power Support: Not to exceed .5 A per USB Device (USB Type-A) Port
HDMI
Compatible Formats: HDMI 2.0, 1.X, HDCP 2.2 Signal Type Support: HDMI, DisplayPort++ (Input Only with HDMI CableAdapter) Input Video Level: .5 - 1.2 V p-p Data Rate (Max): 18 Gbp Pixel Clock (Max): Up to 600 Mhz Resolution Support: Various up to 4096 x 2160 at 60 Hz - Reference User Manual For Specific Resolution Support Audio Format Support: 2 CH L-PCM Local Audio Support: TX Insertion / RX Extraction HDCP Support: Yes HDCP 1.4, 2.2 CEC Support: Yes Automatic or NetLinx programmable
HDMI Supported Resolutions
VESA 800 x 600 at 60 Hz 1024 x 768 at 60 Hz 1280 x 768, at 60 Hz 1280 x 800 at 60 Hz
1280 x 960 at 60 Hz 1280 x 1024 at 60 Hz 1360 x 768 at 60 Hz 1366 x 768 at 60 Hz 1440 x 900 at 60 Hz 1600 x 900 at 60 Hz 1600 x 1200 at 60 Hz 1680 x 1050 at 60 Hz 1920 x 1200 at 60 Hz 2048 x 1152 at 60 Hz 3840 x 2160 at 24 Hz, 25Hz, 30 Hz, 60 Hz 4096 x 2160 at 24 Hz, 25Hz, 30 Hz, 60 Hz SMPT/ 720 x 480 at 60 Hz 720 x 576 p at 50 Hz 1280 x 720 p at 50 Hz, 60 Hz 1920 x 1080 p at 50 Hz, 60 Hz
Established Timing/ 1280 x 1024 at 75 Hz 1152 x 870 at 75 Hz 1024 x 768 at 60 Hz, 70 Hz, 75 Hz, 87 Hz 832 x 624 at 75 Hz 800 x 600 at 56 Hz, 60 Hz, 72 Hz, 75 Hz 720 x 400 at 70 Hz, 88 Hz 640 x 480 at 60 Hz, 67 Hz, 72 Hz, 75 Hz
CEA Information Code (VIC) Formats/ VIC = 1, 640 x 480 p, 60 Hz 4:3 VIC = 2, 720 x 480 p, 60 Hz 4:3 VIC = 3, 720 x 480 p, 60 Hz 16:9 VIC = 4, 1280 x 720 p, 60 Hz 16:9 VIC = 5, 1920 x 1080 p, 60 Hz 16:9 VIC = 6, 720 (1440) x 480 p, 60 Hz 4:3 VIC = 7, 720 (1440) x 480 p, 60 Hz 16:9 VIC = 14, 1440 x 480 p, 60 Hz 4:3 VIC = 15, 1440 x 480 p, 60 Hz 16:9 VIC = 16, 1920 x 1080 p, 60 Hz 16:9 VIC = 17, 720 x 576 p, 50 Hz 4:3 VIC = 18, 720 x 576 p, 50 Hz 16:9 VIC = 19, 1280 x 720 p, 50 Hz 16:9 VIC = 20, 1920 x 1080 p, 50 Hz 16:9 VIC = 21, 720 (1440) x 576 p, 50 Hz 4:3 VIC = 22, 720 (1440) x 576 p, 50 Hz 16:9 VIC = 29, 1440 x 576 p, 50 Hz 4:3 VIC = 30, 1440 x 576 p, 50 Hz 16:9 VIC = 30, 1440 x 576 p, 50 Hz 16:9 VIC = 31, 1920 x 1080 p, 50 Hz 16:9 VIC = 32, 1920 x 1080 p, 23.97/24 Hz 16:9 VIC = 33, 1920 x 1080 p, 25 Hz 16:9 VIC = 34, 1920 x 1080 p, 29.97/30 Hz 16:9 VIC = 39, 1920 x 1080 p, 50 Hz 16:9 VIC = 41, 1280 x 720 p, 100 Hz 16:9 VIC = 42, 720 x 576 p, 100 Hz 4:3 VIC = 43, 720 x 576 p, 100 Hz 16:9 VIC = 44, 720 (1440) x 576 p, 100 Hz 4:3 VIC = 45, 720 (1440) x 576 p, 100 Hz 16:9
HDMI Output Scaling Resolutions
800 x 600 at 60 Hz
1280 x 720 at 50 Hz, 59.95 Hz, 60 Hz 1024 x 768 at 60 Hz
1280 x 768 at 60 Hz 1280 x 800 at 60 Hz 1280 x 960 at 60 Hz 1280 x 1024 at 60 Hz 1360 x 768 at 60 Hz 1366 x 768 at 60 Hz 1440 x 900 at 60 Hz 1600 x 900 at 60 Hz 1600 x 1200 at 60 Hz 1680 x 1050 at 60 Hz 1920 x 1080 at 50 hz, 60 Hz
1920 x 1200 at 60 Hz 3840 x 2160 at 24 Hz, 25 Hz, 30 Hz, 60 Hz 4096 x 2160 at 24 Hz, 25 Hz, 30 Hz, 60 Hz
Display Port Supported Video
CTC-1402 TX 800 x 600 at 60 Hz 1024 x 768 at 60 Hz 1280 x 768, at 60 Hz 1280 x 800 at 60 Hz 1280 x 960 at 60 Hz 1280 x 1024 at 60 Hz 1360 x 768 at 60 Hz 1366 x 768 at 60 Hz 1440 x 900 at 60 Hz 1600 x 900 at 60 Hz 1600 x 1200 at 60 Hz 1680 x 1050 at 60 Hz
1920 x 1200 at 60 Hz 1280 x 720 at 50 Hz 1920 x 1080 at 50 Hz 1920 x 1080 at 60 Hz 1920 x 1200 at 60 Hz 1280 x 720 at 50 Hz, 60 Hz 1920 x 1080 at 50 Hz, 60 Hz 3840 x 2160 at 50 Hz, 60 Hz 4096 x 2160 at 50 Hz, 60 Hz
USB-C Supported Video
CTC-1402 TX 800 x 600 at 60 Hz
1024 x 768 at 60 Hz 1280 x 768, at 60 Hz 1280 x 800 at 60 Hz 1280 x 960 at 60 Hz 1280 x 1024 at 60 Hz 1360 x 768 at 60 Hz 1366 x 768 at 60 Hz 1440 x 900 at 60 Hz 1600 x 900 at 60 Hz 1600 x 1200 at 60 Hz 1680 x 1050 at 60 Hz 1920 x 1200 at 60 Hz 1280 x 720 at 50 Hz 1920 x 1080 at 50 Hz
1920 x 1080 at 60 Hz 1920 x 1200 at 60 Hz 1280 x 720P at 50 Hz, 60 Hz 1920 x 1080 at 50 Hz, 60 Hz 3840 x 2160 at 50 Hz, 60 Hz 4096 x 2160 at 50 Hz, 60 Hz
USB-C Host Support
CTC-1402 TX For Connected USB 3.0 Devices USB Type-C Connector Supports Simultaneous Video Passage and USB 2.0 Peripheral Connectivity for Devices Connected to CTC1402 TX/RX
USB-C Cable Requirements
CTC-1402 TX For USB Type-C Video, Use of a USB 3.0 Cable with a Minimum Transfer Data Rate of 5G bps is Required
Analog Video
CTC-1402 TX Compatible Formats: RGBHV
Input Connector: HD-15 Resolution Support: Up to 1920 x 1200 at 60 Hz Reduced Blanking Auto-Adjust Input: Supported Digital Processing: 24-Bit, 165 MHz
Signal Transport
HDBaseT CTC-1402 TX/RX Connector: RJ-45 Transport Layer Throughput (Max): 10.2 Gbps Output Formats: Connects TX to RX Twisted Pair Cable Type: Shielded Cat6, Cat6A and Cat7, HDBaseT Cable Runs for Equipment Shall Only Be Run Within a Common Building Where Common Building Is Defined As: The Walls of the Structure(s) Are Physically Connected and the Structure(s) Share a Single Ground Reference
Stereo Audio Outputs
CTC-1402 RX Output Signal Types: Unbalanced Stereo Analog Volume Control: -100 db to +0 db in 1 dB Steps
