Nexo

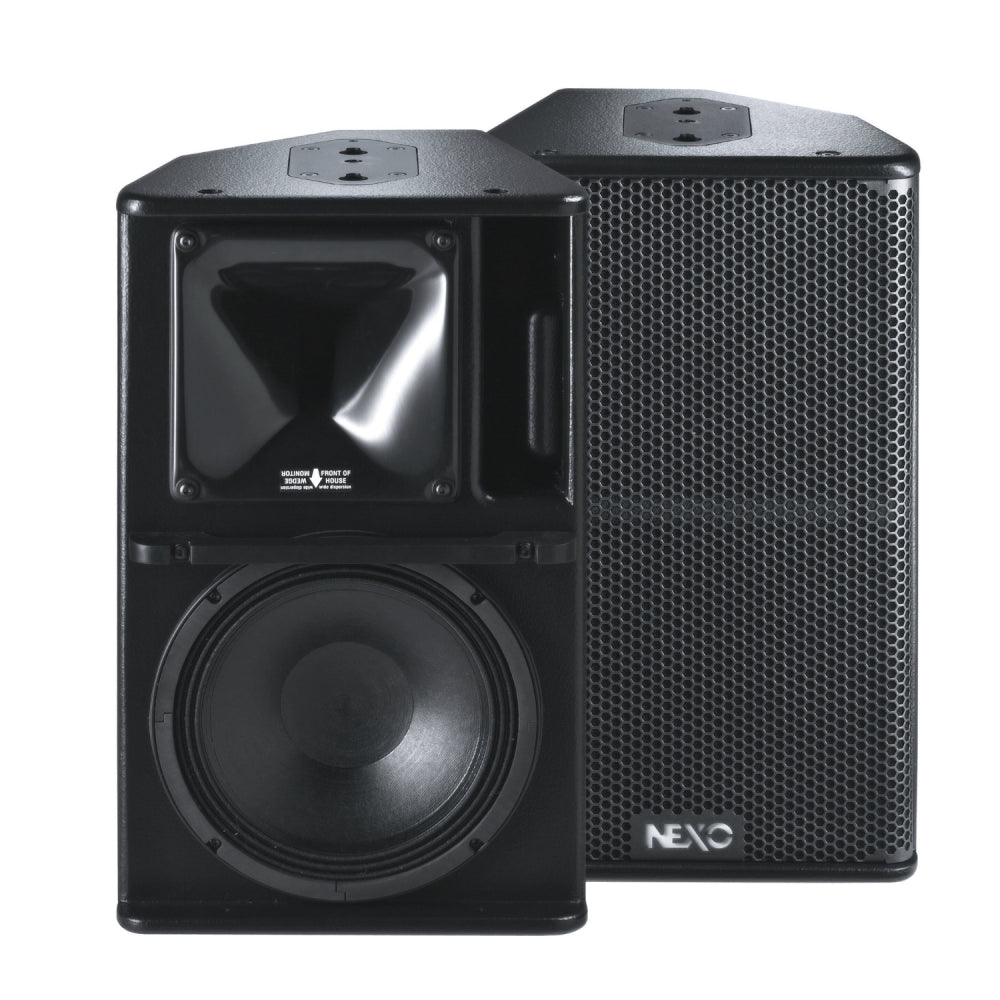

Nexo PS-10 Speaker

$0.00

The Nexo PS10 was a popular and versatile loudspeaker system known for its high output and compact design, often used for both front-of-house (FOH) sound reinforcement and stage monitoring. The original PS10 was later updated and replaced by the PS10-R2.

View Product Features

  • High Output and Compact Design: Despite its small size, the PS10 is a powerful system, with the original model capable of producing up to 127dB peak SPL and the PS10-R2 reaching up to 132dB peak SPL.
  • Asymmetrical Rotatable Horn: A key feature of the PS10 is its unique constant directivity, asymmetrical dispersion horn. This horn can be rotated by the user to one of four positions, allowing for highly flexible and tailored sound coverage for various applications, whether as a PA speaker or a stage monitor.
  • Passive Two-Way Design: The PS10 is a passive 8-ohm loudspeaker, using a single amplifier channel to drive its 10-inch low-frequency driver and 1-inch high-frequency driver. This reduces complexity and cost compared to a bi-amped setup.
  • Controller Required: The PS10 is designed to be used with a dedicated Nexo controller (e.g., the original PS10 TD controller or the later DTD/NXAMP controllers). The controller provides sophisticated filtering and processing that ensures optimal performance and protects the components from damage.
  • Multi-Purpose Application: The balanced design and rotatable horn allow the PS10 to function exceptionally well as both a main PA speaker for small- to medium-sized venues and as a high-quality stage monitor.
  • Rigging and Accessories: A wide range of accessories are available for flying, mounting, and pole-mounting the PS10, making it suitable for both temporary events and fixed installations.
  • LS500 Subwoofer: The system is often paired with the optional Nexo LS500 subwoofer to extend the low-frequency response.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Nexo PS-10 Speaker

The Nexo PS-10 is a compact, high-performance point source loudspeaker renowned for its versatility and sonic clarity in portable sound reinforcement and fixed installation applications. Utilizing a two-way, bass-reflex design, it incorporates a 10-inch neodymium low-frequency driver and a 1-inch exit compression driver mounted on a patented elliptical waveguide. This coaxial-like alignment ensures precise phase coherence and a consistent, wide dispersion pattern, delivering even coverage and accurate reproduction of vocals and instruments across the listening area. The speaker is engineered to provide high output with low distortion, making it suitable for a wide range of uses, from stage monitors and front fills to main reinforcement in small to mid-sized venues, including live music, corporate events, and houses of worship.

A key strength of the PS-10 lies in its integration within the broader Nexo ecosystem, specifically designed to work with Nexo's proprietary digital processing and amplification. When powered by a compatible Nexo NXAMP or driven by presets from a Nexo processor, the speaker's performance is fully optimized, with active crossover filtering, driver protection limiting, and system alignment precisely tuned to the transducer's characteristics. This synergy between cabinet, electronics, and processing guarantees predictable, reliable performance that aligns with the manufacturer's stringent quality standards. The cabinet itself is constructed from durable, multi-layered plywood with a textured, scratch-resistant finish, built to withstand the rigors of touring while maintaining a professional appearance.

The speaker offers flexible mounting options via integrated M10 rigging points and a 35 mm pole mount socket, facilitating easy deployment as a main speaker on a stand, as a side fill, or as part of a flown array when used in multiples. Its relatively lightweight and compact form factor enhances portability without compromising acoustic power. The Nexo PS-10 has established itself as a trusted workhorse in the professional audio industry, valued for its transparent sound, robust construction, and the performance assurance that comes from being part of a fully engineered, manufacturer-supported system.

Key Features

  • High Output and Compact Design: Despite its small size, the PS10 is a powerful system, with the original model capable of producing up to 127dB peak SPL and the PS10-R2 reaching up to 132dB peak SPL.
  • Asymmetrical Rotatable Horn: A key feature of the PS10 is its unique constant directivity, asymmetrical dispersion horn. This horn can be rotated by the user to one of four positions, allowing for highly flexible and tailored sound coverage for various applications, whether as a PA speaker or a stage monitor.
  • Passive Two-Way Design: The PS10 is a passive 8-ohm loudspeaker, using a single amplifier channel to drive its 10-inch low-frequency driver and 1-inch high-frequency driver. This reduces complexity and cost compared to a bi-amped setup.
  • Controller Required: The PS10 is designed to be used with a dedicated Nexo controller (e.g., the original PS10 TD controller or the later DTD/NXAMP controllers). The controller provides sophisticated filtering and processing that ensures optimal performance and protects the components from damage.
  • Multi-Purpose Application: The balanced design and rotatable horn allow the PS10 to function exceptionally well as both a main PA speaker for small- to medium-sized venues and as a high-quality stage monitor.
  • Rigging and Accessories: A wide range of accessories are available for flying, mounting, and pole-mounting the PS10, making it suitable for both temporary events and fixed installations.
  • LS500 Subwoofer: The system is often paired with the optional Nexo LS500 subwoofer to extend the low-frequency response.

Nexo PS-10 Speaker Specs

Transducer System
LF Driver
10 inch, Neodymium
HF Driver
1 inch exit compression driver, Neodymium
Crossover Frequency
1.7 kHz (electronic, when used with Nexo processing)
Waveguide
Elliptical, Constant Directivity
Performance Data
Frequency Response
65 Hz - 20 kHz (±3 dB)
Maximum Peak SPL
133 dB
Nominal Dispersion
90° H x 50° V
Sensitivity (1W/1m)
98 dB
Power Handling & Impedance
Power Handling (RMS)
300 Watts (LF: 250W, HF: 50W)
Power Handling (Peak)
1200 Watts
Nominal Impedance
8 Ohms
Physical & Mounting
Enclosure Material
Multi-ply Birch Plywood
Finish
Textured Black Paint
Dimensions (H x W x D)
20.0 x 12.4 x 12.0 inches (508 x 315 x 305 mm)
Weight
30.9 lbs (14.0 kg)
Mounting Options
M10 rigging points, 35 mm pole socket
Recommended Processing
Recommended Amplification
Nexo NXAMP or amplifier with Nexo presets
Processor Presets
Available in NXAMP, TD Controller, or GEOSoft

Key Features

  • High Output and Compact Design: Despite its small size, the PS10 is a powerful system, with the original model capable of producing up to 127dB peak SPL and the PS10-R2 reaching up to 132dB peak SPL.
  • Asymmetrical Rotatable Horn: A key feature of the PS10 is its unique constant directivity, asymmetrical dispersion horn. This horn can be rotated by the user to one of four positions, allowing for highly flexible and tailored sound coverage for various applications, whether as a PA speaker or a stage monitor.
  • Passive Two-Way Design: The PS10 is a passive 8-ohm loudspeaker, using a single amplifier channel to drive its 10-inch low-frequency driver and 1-inch high-frequency driver. This reduces complexity and cost compared to a bi-amped setup.
  • Controller Required: The PS10 is designed to be used with a dedicated Nexo controller (e.g., the original PS10 TD controller or the later DTD/NXAMP controllers). The controller provides sophisticated filtering and processing that ensures optimal performance and protects the components from damage.
  • Multi-Purpose Application: The balanced design and rotatable horn allow the PS10 to function exceptionally well as both a main PA speaker for small- to medium-sized venues and as a high-quality stage monitor.
  • Rigging and Accessories: A wide range of accessories are available for flying, mounting, and pole-mounting the PS10, making it suitable for both temporary events and fixed installations.
  • LS500 Subwoofer: The system is often paired with the optional Nexo LS500 subwoofer to extend the low-frequency response.
