SKU: 2105-541

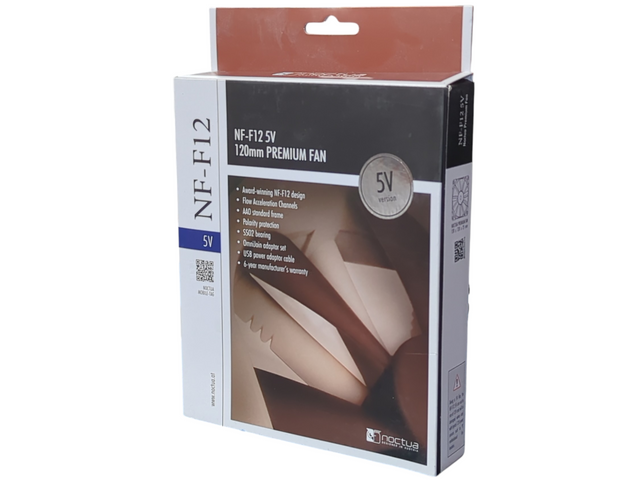

Noctua NF-F12 5V Premium Quiet Fan with USB Power Adaptor Cable to 3-Pin 5V Version in Original Box

$59.95

Items Included

Noctua NF-F12 5V 120mm Premium Fan
NA-AC7 USB Power Adapter Cable
NA-EC1 30cm Extension Cable
OmniJoin Adaptor Set (with 4 cable connectors)
4x NA-AV1 Anti-Vibration Pull-Mounts
4x Metal Fan Mounting Screws

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

The Noctua NF-F12 5V (3-Pin Version) brings heavy-duty, low-noise industrial performance to compact custom electronics, network gear, and DIY home projects. Employing a signature Focused Flow Frame with eleven stator guide vanes alongside a reference-class SSO2 bearing, it delivers outstanding airflow-to-silence efficiency. The inclusion of a dedicated USB power adapter cable unlocks plug-and-play operation directly off portable power banks, phone wall chargers, and storage drives, while the polarity-protected 3-pin configuration provides seamless hardware swapping within proprietary enclosures. Read more

Features

Adapts industrial-grade cooling to ordinary home setups effortlessly using an included NA-AC7 USB power adapter cable.
Delivers superior static air compression via a custom Heptaperf seven-blade impeller engineered for dense heatsinks and grilles.
Eliminates unpleasant micro-acoustics by offsetting frame guide vanes with Varying Angular Distance and Vortex-Control Notches.
Minimizes structural vibration transfer down to the chassis utilizing pre-installed, non-slip silicone anti-vibration corner pads.
Prevents electrical burnout hazards during custom wiring tasks through integrated polarity protection built into the fan's motor circuit.

Business Financing Options Avaiable

View Available Financing

Features

Adapts industrial-grade cooling to ordinary home setups effortlessly using an included NA-AC7 USB power adapter cable.
Delivers superior static air compression via a custom Heptaperf seven-blade impeller engineered for dense heatsinks and grilles.
Eliminates unpleasant micro-acoustics by offsetting frame guide vanes with Varying Angular Distance and Vortex-Control Notches.
Minimizes structural vibration transfer down to the chassis utilizing pre-installed, non-slip silicone anti-vibration corner pads.
Prevents electrical burnout hazards during custom wiring tasks through integrated polarity protection built into the fan's motor circuit.

No products currently in stock

About the Noctua NF-F12 5V Premium Quiet Fan with USB Power Adaptor Cable to 3-Pin 5V Version in Original Box

The Noctua NF-F12 5V is a premium 120 mm pressure-optimized cooling fan designed for applications requiring efficient airflow, high static pressure, and exceptionally quiet operation from a 5 V power source. It combines Noctua’s Focused Flow frame with a seven-blade Heptaperf impeller and eleven stator guide vanes to produce concentrated airflow suitable for heatsinks, ventilation openings, compact electronics, networking equipment, embedded systems, and other demanding 5 V cooling applications. The standard version uses a 3-pin connector and is specifically designed for 5 V operation rather than conventional 12 V PC fan power.

The fan incorporates Noctua’s SSO2 bearing and Smooth Commutation Drive technology to provide smooth, stable, and long-lasting operation. At its maximum rated speed of 1500 RPM, it delivers up to 93.4 m³/h of airflow while producing a maximum acoustic noise level of only 22.4 dB(A). Its static pressure capability of 2.61 mm H₂O makes it particularly suitable for applications where airflow must pass through restrictive components such as filters, grilles, ducts, heatsinks, or densely packed electronic assemblies.

The included USB power adaptor cable expands the fan's versatility beyond conventional fan-header applications, allowing it to operate from USB host ports, power banks, or suitable USB power supplies. The package also includes a 30 cm extension cable, anti-vibration mounts, fan screws, and an OmniJoin adaptor set for integration with compatible proprietary 5 V fan connections. The 3-pin interface provides ground, +5 V supply, and RPM signal connections, while integrated polarity protection helps protect the fan against incorrect power polarity.

This particular product configuration is therefore well suited to portable cooling, electronics projects, networking and communications equipment, custom 5 V cooling installations, and replacement of existing 5 V fans. The NF-F12 5V is specified for continuous-duty applications with an MTTF exceeding 150,000 hours and carries Noctua’s 6-year manufacturer warranty. The supplied original-box accessory set further enhances installation flexibility while retaining the fan's compact 120 mm form factor.

Key Features

Adapts industrial-grade cooling to ordinary home setups effortlessly using an included NA-AC7 USB power adapter cable.
Delivers superior static air compression via a custom Heptaperf seven-blade impeller engineered for dense heatsinks and grilles.
Eliminates unpleasant micro-acoustics by offsetting frame guide vanes with Varying Angular Distance and Vortex-Control Notches.
Minimizes structural vibration transfer down to the chassis utilizing pre-installed, non-slip silicone anti-vibration corner pads.
Prevents electrical burnout hazards during custom wiring tasks through integrated polarity protection built into the fan's motor circuit.

Already own this item and want to sell it?

Click here to sell your item

Noctua NF-F12 5V Premium Quiet Fan with USB Power Adaptor Cable to 3-Pin 5V Version in Original Box Specs

Performance

Fan Size

120 x 120 x 25 mm

Maximum Speed

1500 RPM

Airflow

93.4 m³/h

Airflow

54.97 CFM

Static Pressure

2.61 mm H₂O

Maximum Noise

22.4 dB(A)

MTTF

>150,000 h

Electrical

Rated Voltage

5 V

Starting Voltage

4 V

Maximum Operating Voltage

5.5 V

Typical Input Power

0.65 W

Maximum Input Power

0.75 W

Typical Input Current

0.13 A

Maximum Input Current

0.15 A

Connector

3-pin

Pin Count

Mechanical

Mounting Hole Spacing

105 x 105 mm

Fan Weight

165 g

Primary Cable Length

200 mm

Extension Cable Length

300 mm

Wire Gauge

26 AWG

Bearing

SSO2

Blade Count

Frame Technology

Focused Flow™

Blade Geometry

Heptaperf™

Environmental

Operating Temperature

-10 to +70 °C

Operating Humidity

15–90 %

Storage Temperature

-20 to +75 °C

Storage Humidity

15–90 %

Ingress Protection

IP50

Packaging

EAN

9010018100266

UPC

841501110269

Key Features

Adapts industrial-grade cooling to ordinary home setups effortlessly using an included NA-AC7 USB power adapter cable.
Delivers superior static air compression via a custom Heptaperf seven-blade impeller engineered for dense heatsinks and grilles.
Eliminates unpleasant micro-acoustics by offsetting frame guide vanes with Varying Angular Distance and Vortex-Control Notches.
Minimizes structural vibration transfer down to the chassis utilizing pre-installed, non-slip silicone anti-vibration corner pads.
Prevents electrical burnout hazards during custom wiring tasks through integrated polarity protection built into the fan's motor circuit.
