The NVIDIA Quadro FX 540 is a professional-grade graphics processing unit designed for entry-level CAD (Computer-Aided Design), digital content creation, and financial visualization workstations. Built on NVIDIA's unified architecture, it delivers dedicated hardware acceleration for OpenGL and DirectX applications, providing the stability, precision, and driver certification required for professional software suites like AutoCAD, SolidWorks, and 3ds Max. Unlike consumer GeForce cards optimized for gaming frame rates, the Quadro FX series focuses on geometric accuracy, wireframe anti-aliasing, and high color fidelity for 3D modeling, rendering, and 2D drafting tasks, ensuring viewports are responsive and visual artifacts are minimized during complex scene manipulation.

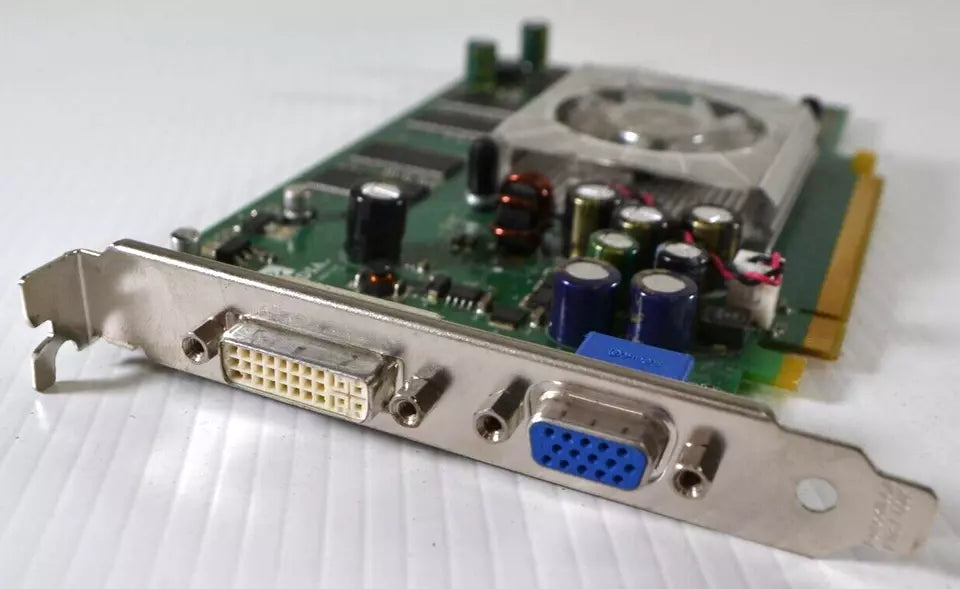

The card features a PCI Express x16 interface and incorporates dedicated video memory, which is crucial for handling large textures and complex models without relying on slower system RAM. Its display outputs typically support dual-link DVI connections, enabling driving of high-resolution displays, including 30-inch panels at 2560x1600 resolution, which is essential for detailed design work. The GPU includes advanced features such as hardware-accelerated pixel readback and support for professional overlays, which enhance performance in specific professional workflows like real-time shading, texture editing, and financial chart rendering with multiple data streams.

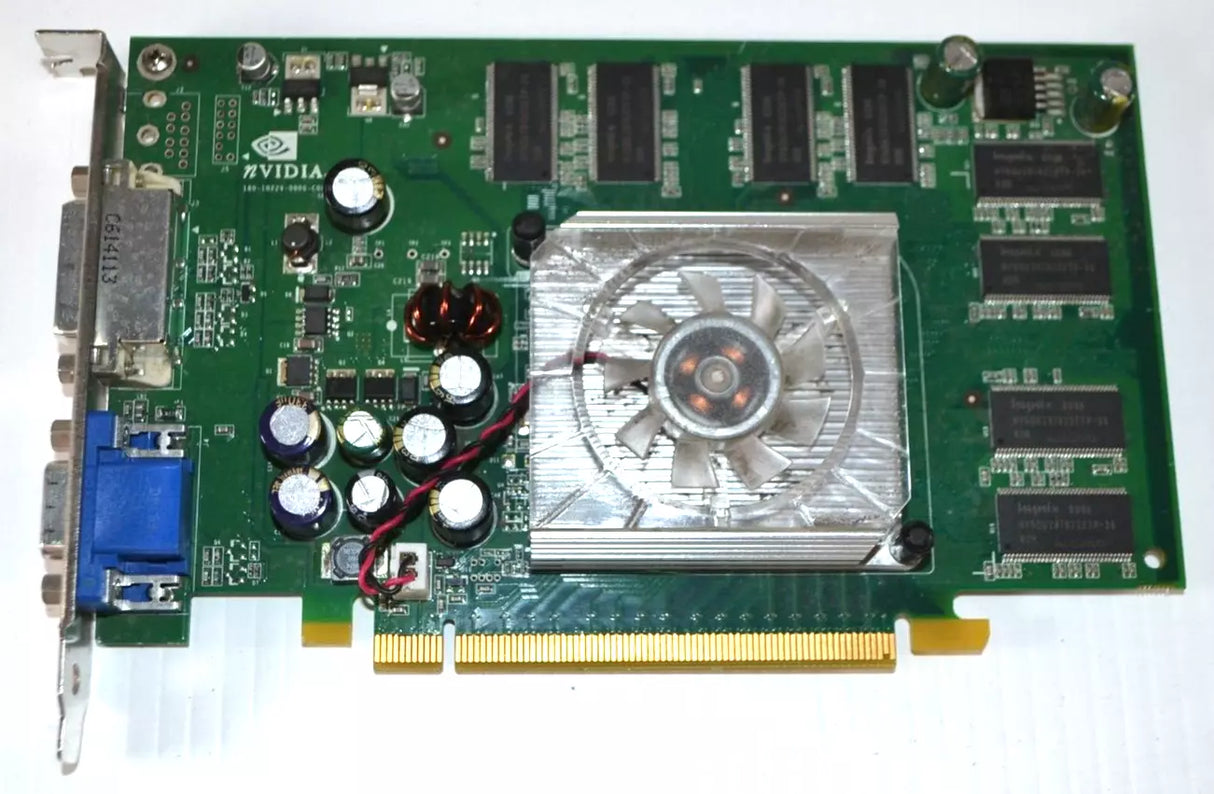

Engineered for reliability in a business environment, the Quadro FX 540 operates within a low-power thermal envelope, often not requiring an auxiliary power connector and utilizing passive or single-slot active cooling solutions to maintain quiet operation in office settings. Its drivers are rigorously tested and certified by independent software vendors (ISVs) to guarantee compatibility and performance with specific professional applications, a key differentiator from consumer graphics solutions. For professionals in engineering, architecture, and design who require certified performance and visual accuracy over raw gaming speed, the Quadro FX 540 provided a cost-effective entry point into the world of professional graphics acceleration.
