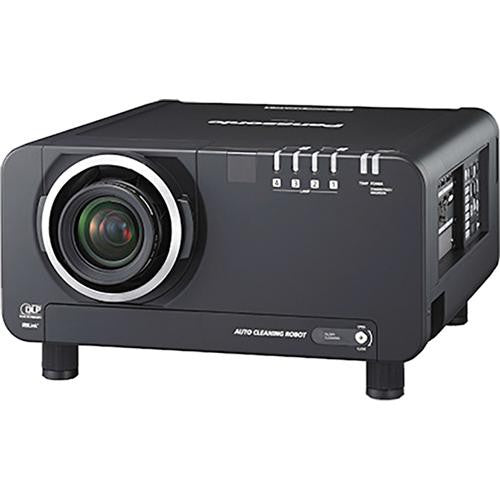

Projection System
3-Chip DLP
Light Source
Laser Diode (Laser Phosphor)
Light Source Life
Up to 20,000 hours (Standard Mode)
Native Resolution
WUXGA (1920 x 1200)
Brightness
12,000 Lumens (Color/White)
Contrast Ratio
Full On/Off: 10,000:1
Color Processing
Pure Color Drive Pro with 6-primary color adjustment
Lens Mount
Motorized zoom/focus/shift, interchangeable
Lens Shift
Vertical: ±50%, Horizontal: ±15% (with standard lens)
Throw Ratio
Wide selection via optional lenses (0.8:1 to 7.5:1)

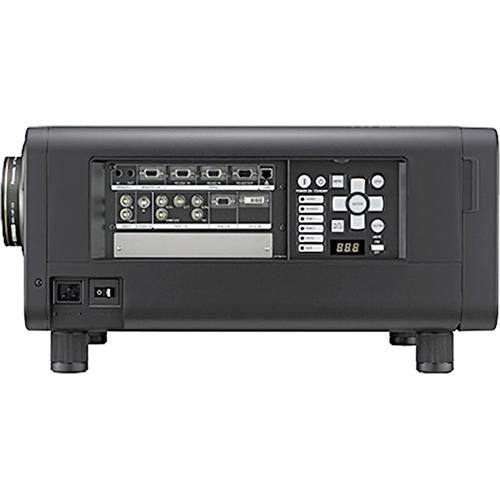

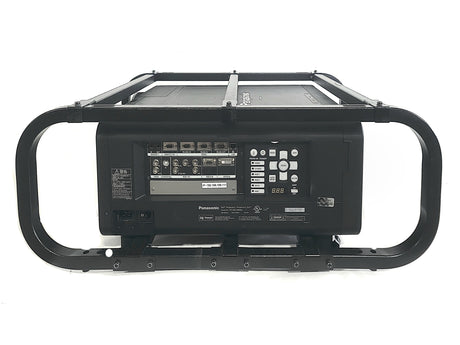

Inputs
2 x HDMI, 2x 3G-SDI, 5-BNC (Component), HDBaseT, DVI-D
Network
2x LAN (RJ-45) for control and monitoring

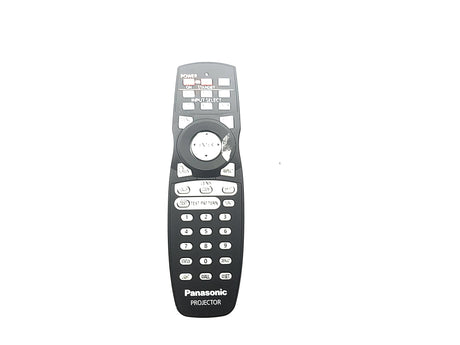

Remote Control
RS-232C, USB, 12V Trigger
Output
DVI-D (Monitor Out)
Recommended Usage
24/7 Large Venue and Installation
Cooling System
Sealed optics with liquid cooling for laser diodes
Power Supply
200-240V AC, 50/60 Hz
Power Consumption
1400 W (Normal), <0.5 W (Standby)
Dimensions (W x H x D)
22.6" x 9.1" x 24.8" (575 x 232 x 630 mm) without lens
Weight
Approx. 83.8 lbs (38.0 kg) without lens
