SKU: 2119-2160

Panasonic PT-RZ690LB 6,000 Lumens WUXGA DLP Large Venue Laser Projector (3953 Laser Hours) [NO LENS]

$1,195.00

Items Included

Panasonic PT-RZ690LB 6,000 Lumens WUXGA DLP Large Venue Laser Projector (3953 Laser Hours) [NO LENS]

Item Notes

(3953 Laser Hours) [NO LENS]

Condition: Out of stock
Once stock replenishes, inventory will display below.
Title
Sold out
Pre-Owned Guarantee 14 Day Return Window

Description

Deliver stunning visuals in large venues with the Panasonic PT-RZ690B, a professional-grade laser projector engineered for exhibition spaces and high-impact presentations. With 6,000 lumens of brightness and a 10,000:1 dynamic contrast ratio, this projector cuts through ambient light to produce vibrant images with exceptional shadow detail. Its native WUXGA resolution (1920 x 1200) ensures crisp clarity for video, graphics, and data, while 4K UHD compatibility future-proofs your setup. The DLP technology delivers reliable, maintenance-free performance ideal for continuous use in demanding environments. Note: This unit does not include a lens—select from available options separately to match your throw distance and venue layout. Read more

Features

  • Brightness of 6000 Lumens
  • WUXGA (1920 x 1200) Native Resolution
  • Includes 1.71 to 2.41:1 Lens
  • HDMI, DVI-D, DIGITAL LINK HDBaseT Inputs

Business Financing Options Avaiable

Deliver stunning visuals in large venues with the Panasonic PT-RZ690B, a professional-grade laser projector engineered for exhibition spaces and high-impact presentations. With 6,000 lumens of brightness and a 10,000:1 dynamic contrast ratio, this projector cuts through ambient light to produce vibrant images with exceptional shadow detail. Its native WUXGA resolution (1920 x 1200) ensures crisp clarity for video, graphics, and data, while 4K UHD compatibility future-proofs your setup. The DLP technology delivers reliable, maintenance-free performance ideal for continuous use in demanding environments. Note: This unit does not include a lens—select from available options separately to match your throw distance and venue layout. Read more

Features

  • Brightness of 6000 Lumens
  • WUXGA (1920 x 1200) Native Resolution
  • Includes 1.71 to 2.41:1 Lens
  • HDMI, DVI-D, DIGITAL LINK HDBaseT Inputs

About the Panasonic PT-RZ690LB 6,000 Lumens WUXGA DLP Large Venue Laser Projector (3953 Laser Hours) [NO LENS]

The Panasonic PT-RZ690LB is a professional 6,000-lumen WUXGA 1-Chip DLP laser projector engineered for demanding large-venue applications, including auditoriums, conference centers, museums, higher education, houses of worship, and rental & staging environments. Powered by Panasonic's advanced SOLID SHINE Laser light source, the projector delivers bright, consistent image quality with virtually maintenance-free operation while providing the installation flexibility required for professional AV systems. This LB (Lens Optional) model is designed to accept Panasonic's interchangeable ET-DLE series projection lenses, enabling users to select the ideal lens for their specific throw distance and installation requirements. This unit does not include a projection lens.

Producing 6,000 ANSI lumens of brightness and a native WUXGA (1920 × 1200) resolution, the PT-RZ690LB delivers sharp, vibrant images with outstanding clarity for presentations, digital signage, live events, and video playback. Panasonic's Quartet Color Harmony technology enhances color accuracy and brightness consistency, while the laser light engine provides stable illumination throughout its service life. A 10,000:1 dynamic contrast ratio improves black levels and shadow detail, ensuring high-quality images in both dark and moderately lit environments.

This projector has 3,953 laser operating hours, leaving substantial life remaining from the laser light source's 20,000-hour rated lifespan in Normal mode. Professional installation features include powered lens shift (with compatible optional lenses), edge blending, geometric correction, portrait projection support, and 360-degree installation capability, making it ideal for complex AV installations, projection mapping, and multi-projector systems. DIGITAL LINK (HDBaseT) technology further simplifies installation by transmitting video, audio, and control signals over a single CAT cable.

Designed for continuous operation in mission-critical environments, the PT-RZ690LB combines a rugged chassis, efficient cooling system, and extensive connectivity for seamless integration into professional AV systems. Whether deployed in permanent installations or rental fleets, it delivers dependable performance, exceptional image quality, and outstanding installation flexibility. This listing includes the projector only; a compatible Panasonic ET-DLE series projection lens is required and is not included.

Key Features

  • Brightness of 6000 Lumens
  • WUXGA (1920 x 1200) Native Resolution
  • Includes 1.71 to 2.41:1 Lens
  • HDMI, DVI-D, DIGITAL LINK HDBaseT Inputs

Panasonic PT-RZ690LB 6,000 Lumens WUXGA DLP Large Venue Laser Projector (3953 Laser Hours) [NO LENS] Specs

Projection System
Projection Technology
1-Chip DLP® Laser
Native Resolution
WUXGA (1920 x 1200)
Aspect Ratio
16:10
Display Chip Size
0.67 in DLP®
Optical
Light Source
SOLID SHINE Laser
Brightness
6,000 ANSI Lumens
Contrast Ratio
10,000:1 (Dynamic)
Laser Light Source Life
Up to 20,000 Hours (Normal Mode)
Laser Hours (This Unit)
3,953 Hours
Lens Included
No
Lens Compatibility
Panasonic ET-DLE Series Interchangeable Lenses
Image Performance
Screen Size
50–600 in
Color Processing
Quartet Color Harmony
Edge Blending
Yes
Geometric Correction
Yes
Portrait Mode
Supported
360° Installation
Supported

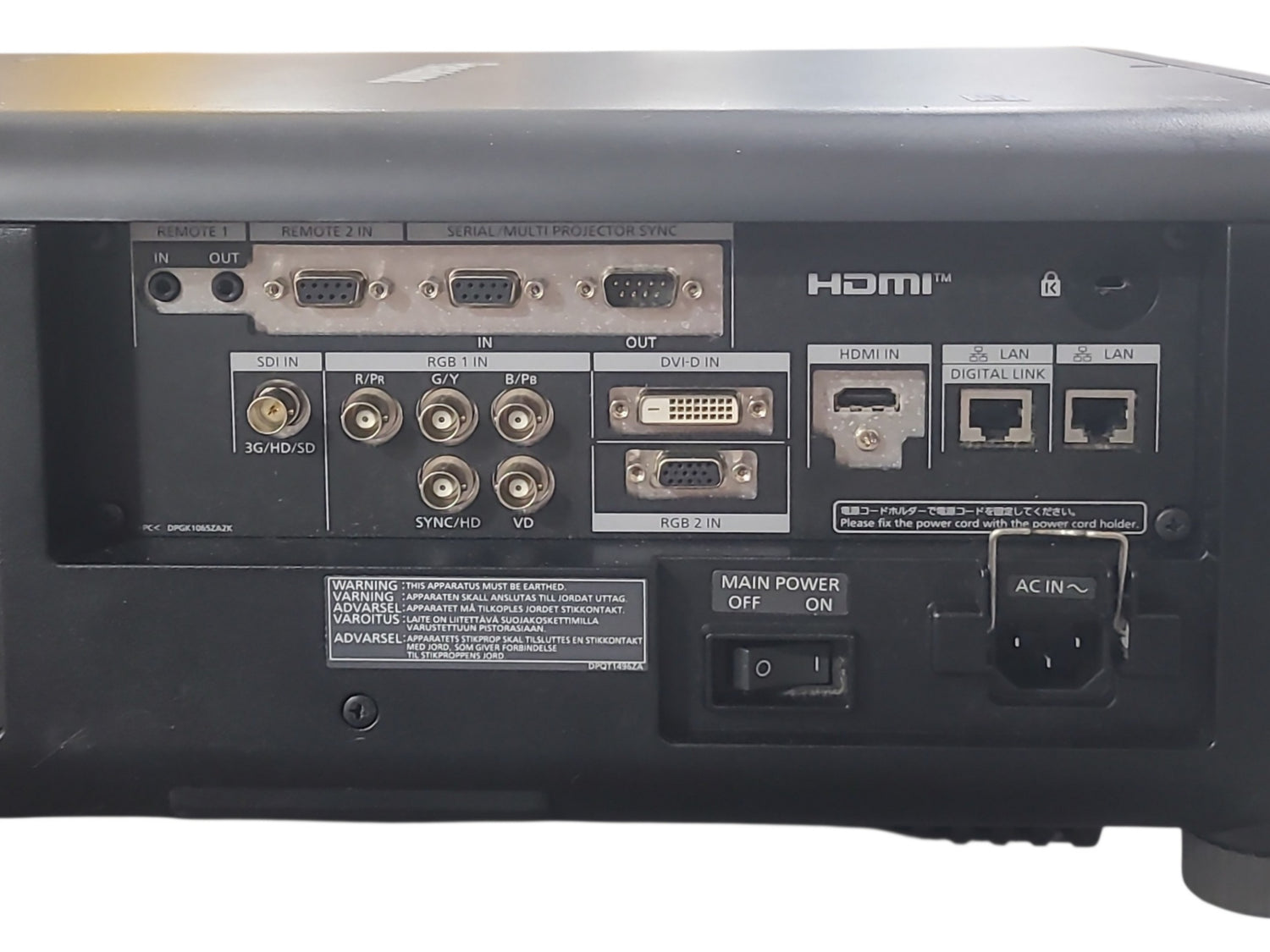

Connectivity
HDMI Input
1
DVI-D Input
1
DIGITAL LINK / HDBaseT
1 x RJ45
VGA Input
1 x 15-Pin D-Sub
LAN
1 x RJ45
RS-232C
1
USB
1
Electrical
Power Supply
100–240 V AC, 50/60 Hz
Power Consumption
565 W (Maximum)
Construction
Enclosure Color
Black
Cooling System
Forced-Air Cooling
Dimensions
Width
19.65 in
Height
6.65 in
Depth
22.24 in
Weight
Net Weight
35.5 lb

Key Features

  • Brightness of 6000 Lumens
  • WUXGA (1920 x 1200) Native Resolution
  • Includes 1.71 to 2.41:1 Lens
  • HDMI, DVI-D, DIGITAL LINK HDBaseT Inputs
