Powersoft

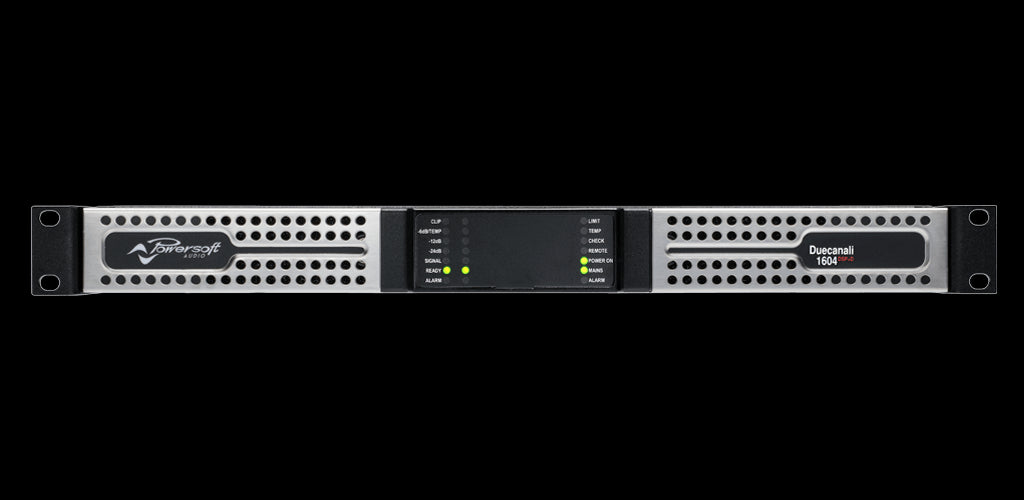

Powersoft DUECANALI 1604 DSP+DANTE 2-Channel High-Performance Amplifier Platform with DSP and Dante

$0.00 -

The Duecanali 1604 DSP+D is designed to work with Lo-Z (from 2 Ω ) and with 70V/100V distributed lines: any mixed impedance output loads can be realized.

A fully integrated state-of-the-art DSP yields extensive system management functionality. In addition to sound shaping and limiter functions in unique Powersoft style, the DSP hardware and ArmoníaPlus software enable compliance with IEC 60849 for the crucial requirements of sound systems for emergency purposes.

View Product Features

  • Universal AC Main Power: Operates efficiently with universal 100-240V AC input.
  • Flexible Output Configuration: Drives both low-impedance (from 2Ω) and 70V/100V high-impedance distributed lines.
  • Integrated Advanced DSP: Features a TI C6000 DSP platform with extensive functionality like FIR/IIR filters, delay, and Powersoft's unique limiters.
  • Dante Digital Audio Network: Seamlessly integrates into modern digital audio networks using the Dante and AES67 protocols.
  • High Efficiency Design: Powersoft's legendary efficiency saves energy and reduces operational costs and heat dissipation.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Powersoft DUECANALI 1604 DSP+DANTE 2-Channel High-Performance Amplifier Platform with DSP and Dante

The Powersoft Duecanali 1604 DSP+Dante represents a sophisticated integration of high-fidelity amplification, advanced digital signal processing, and networked audio connectivity within a single, space-efficient 1U chassis. This two-channel amplifier platform is engineered for professional audio environments where precision, reliability, and system integration are critical, such as in broadcast master control rooms, high-end studio monitoring suites, performing arts centers, and premium fixed installations. Each channel delivers substantial power with exceptional flexibility, capable of being configured for various impedance loads or bridged to provide immense output for a single application, ensuring compatibility with a wide array of loudspeaker systems. The embedded Dante networking interface allows the amplifier to function as a native node on a digital audio network, enabling the direct receipt of uncompressed, multi-channel audio over standard Ethernet infrastructure. This capability facilitates a streamlined, all-digital signal chain from source to loudspeaker, enhancing audio transparency while significantly reducing system complexity and cable requirements.

Central to the platform's capability is its comprehensive onboard DSP, which provides complete control over system tuning and loudspeaker management directly at the point of amplification. The processing toolkit includes parametric equalization, crossover filters with adjustable slopes, dynamics processing with limiters and compressors, and precision delay for each input and output. This allows for meticulous optimization of the amplifier's output to match the specific characteristics of the connected loudspeakers and the acoustic properties of the listening environment. When combined with Powersoft's proprietary technologies, such as Dynamic Power Supply Management and Enhanced Power Factor Correction, the amplifier achieves remarkable electrical efficiency and thermal performance. This results in lower operational costs, reduced cooling demands, and enhanced long-term reliability, making it a sustainable and economically advantageous choice for continuous operation.

Designed for robust performance and seamless integration, the Duecanali 1604 DSP+Dante features a durable construction, an intelligent thermal management system with a quiet fan, and comprehensive control interfaces. It includes redundant Dante network ports for fault-tolerant audio streaming and offers both analog and digital audio inputs for maximum compatibility. Remote monitoring, configuration, and diagnostics are fully supported via dedicated software, allowing for centralized management of entire amplifier networks. This amplifier platform stands as a testament to modern audio engineering, offering professionals an intelligent, efficient, and powerful solution that consolidates amplification, processing, and networking into one future-proof component for the most demanding audio applications.

Key Features

  • Universal AC Main Power: Operates efficiently with universal 100-240V AC input.
  • Flexible Output Configuration: Drives both low-impedance (from 2Ω) and 70V/100V high-impedance distributed lines.
  • Integrated Advanced DSP: Features a TI C6000 DSP platform with extensive functionality like FIR/IIR filters, delay, and Powersoft's unique limiters.
  • Dante Digital Audio Network: Seamlessly integrates into modern digital audio networks using the Dante and AES67 protocols.
  • High Efficiency Design: Powersoft's legendary efficiency saves energy and reduces operational costs and heat dissipation.

Powersoft DUECANALI 1604 DSP+DANTE 2-Channel High-Performance Amplifier Platform with DSP and Dante Specs

Amplifier Performance
Number of Channels
2
Maximum Output Power
3200 W
Frequency Response
10 Hz - 30 kHz
Total Harmonic Distortion
<0.05%
Damping Factor
>5000
Network & Processing
Audio Protocol
Dante
DSP Channels
2-in, 4-out
Crossover Filters
Fully Configurable
Dynamic Processing
Per Channel
Electrical Specifications
Mains Voltage
100-240 VAC
Typical Efficiency
>93%
Maximum Current
10 A
Physical Specifications
Rack Units
1U
Width
482 mm
Depth
350 mm
Net Weight
9 kg

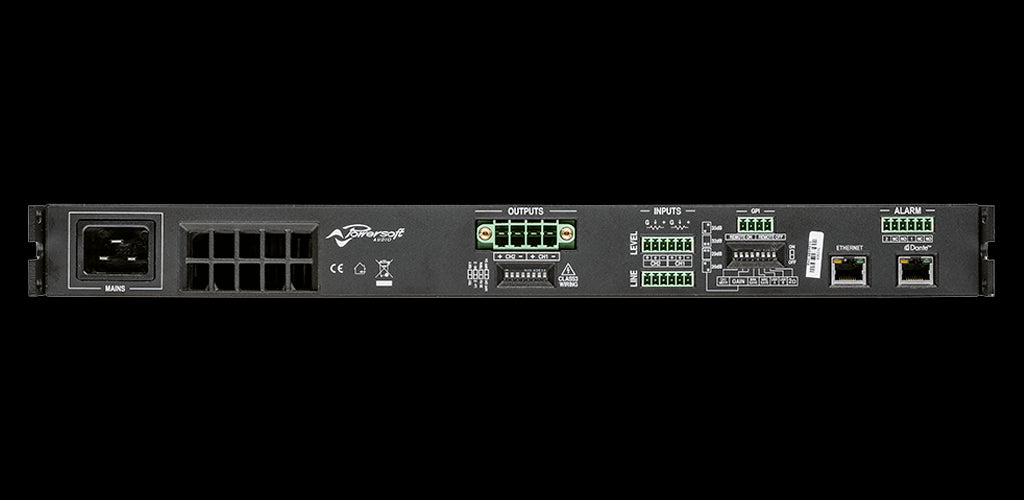

Connections
Network Ports
2x RJ45 (Dante)
Analog Input
XLR, Euroblock
Output Connectors
Binding Posts, SpeakON

Key Features

  • Universal AC Main Power: Operates efficiently with universal 100-240V AC input.
  • Flexible Output Configuration: Drives both low-impedance (from 2Ω) and 70V/100V high-impedance distributed lines.
  • Integrated Advanced DSP: Features a TI C6000 DSP platform with extensive functionality like FIR/IIR filters, delay, and Powersoft's unique limiters.
  • Dante Digital Audio Network: Seamlessly integrates into modern digital audio networks using the Dante and AES67 protocols.
  • High Efficiency Design: Powersoft's legendary efficiency saves energy and reduces operational costs and heat dissipation.
